2-01B — CLUTCH (#111335) — 77 parça

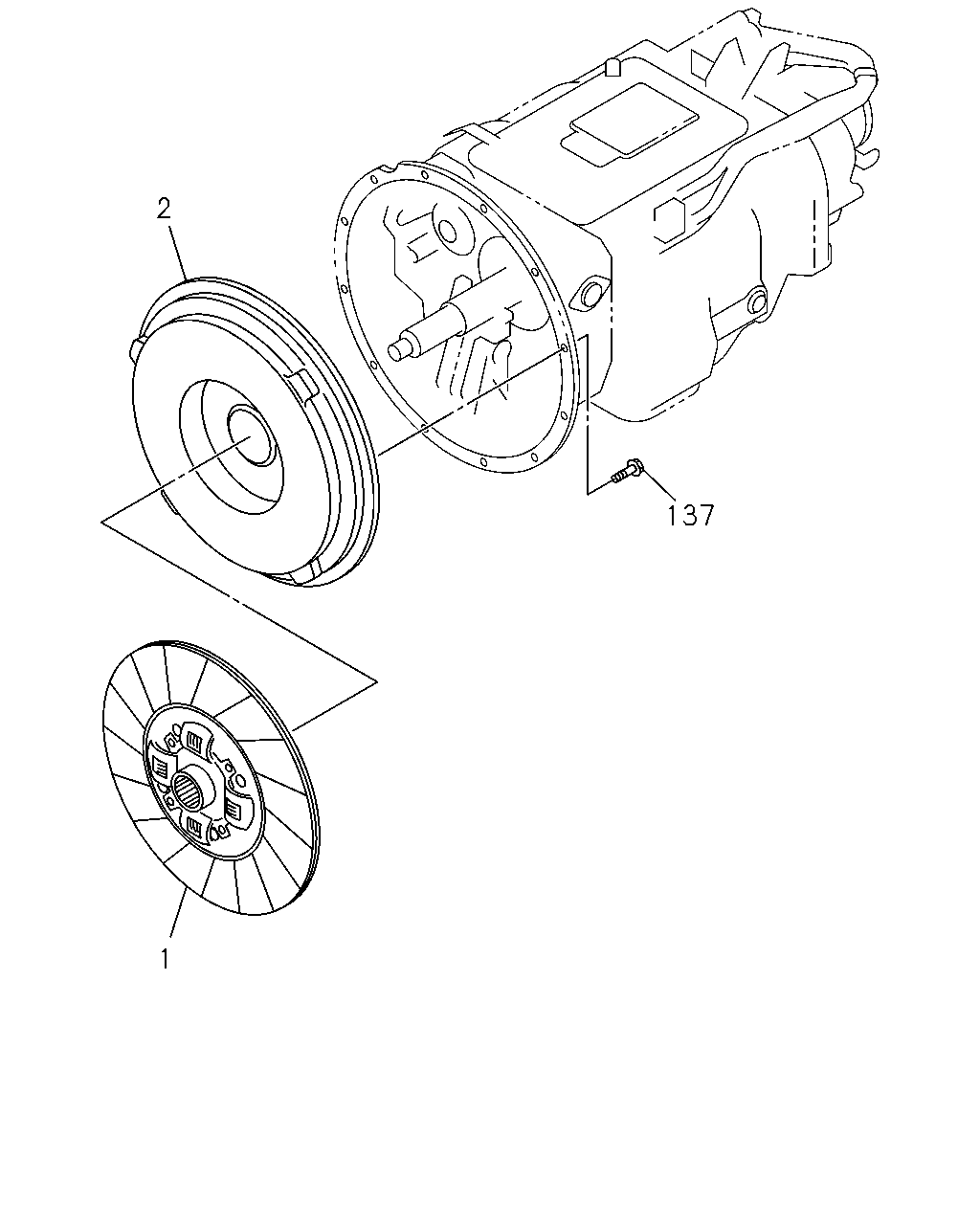

çizim 322378
137 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
CLUTCH EX-3+N COMBINATION FACED DISC<BJW> 17" 		1-31240-980-0 01 1 1212-1311 ●
1 DISC; CLUTCH
CLUTCH EX-3+N COMBINATION FACED DISC<BJW> 17" 		1-31240-980-0 01 1 1312- ● ●
1 DISC; CLUTCH
EXC. CLUTCH EX-3+N COMBINATION FACED DISC<BJW> 17" 		1-31240-864-1 01 1 1212-1311 ●
1 DISC; CLUTCH
EXC. CLUTCH EX-3+N COMBINATION FACED DISC<BJW> 17" 		1-31240-864-1 01 1 1312- ● ●
1 DISC; CLUTCH
CLUTCH EX-3+N COMBINATION FACED DISC<BJW> BEST VALUE PARTS 		1-87610-141-0 01 1 1212-1311 ●
1 DISC; CLUTCH
CLUTCH EX-3+N COMBINATION FACED DISC<BJW> BEST VALUE PARTS 		1-87610-141-0 01 1 1312- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-421-0 01 1 1212-1311 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-421-0 01 1 1312- ● ●
137 BOLT; CLU COVER
M12X30 FLANGE 		0-28751-230-0 12 1 1212- ●

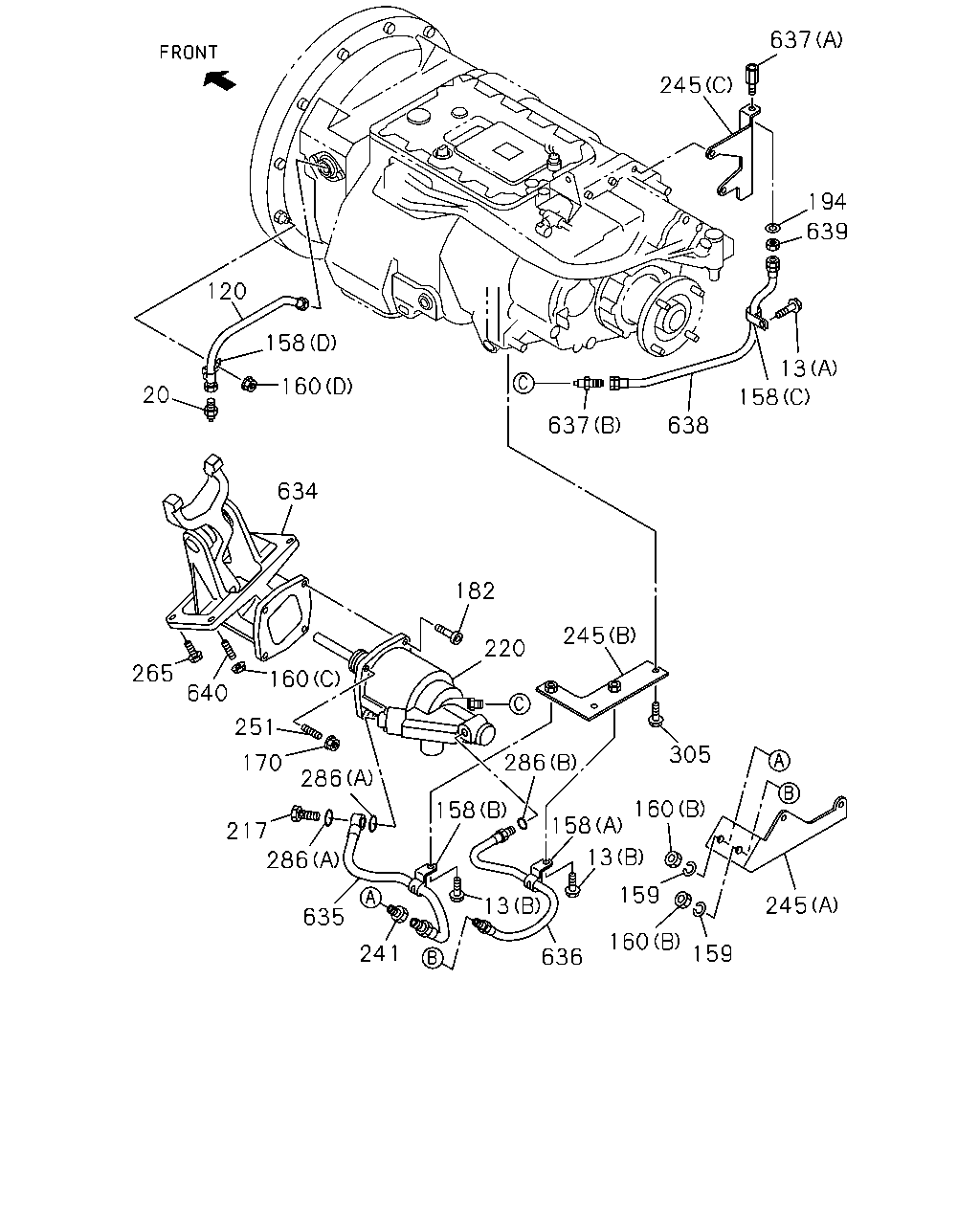

çizim 322549
245 159 160 159 13 636 241 635 286 217 170 251 640 265 160 286 182 220 286 158 158 13 160 245 305 637 638 158 13 639 194 245 637 158 160 634 20 120
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1212-1311 ●
13 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1312- ● ●
13 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1212-1311 ●
13 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1312- ● ●
20 NIPPLE; GREASE
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1212-1311 ●
20 NIPPLE; GREASE
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1312- ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=440 		1-09365-412-1 01 1 1212-1311 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=440 		1-09365-412-1 01 1 1312- ● ●
158 CLIP; FLEX HOSE
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1212-1311 ●
158 CLIP; FLEX HOSE
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1312- ● ●
158 CLIP; FLEX HOSE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1212-1311 ●
158 CLIP; FLEX HOSE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 1312- ● ●
158 CLIP; FLEX HOSE
(C) ID=18 L=40 		1-09701-111-0 01 1 1212-1311 ●
158 CLIP; FLEX HOSE
(C) ID=18 L=40 		1-09701-111-0 01 1 1312- ● ●
158 CLIP; FLEX HOSE
(D) 		9-09917-576-0 01 1 1212-1311 ●
158 CLIP; FLEX HOSE
(D) 		9-09917-576-0 01 1 1312- ● ●
159 WASHER; LK
ID=12.2 		0-91510-512-0 02 1 1212-1311 ●
159 WASHER; LK
ID=12.2 		0-91510-512-0 02 1 1312- ● ●
160 NUT
(B) M12 		9-09840-280-0 02 1 1212-1311 ●
160 NUT
(B) M12 		9-09840-280-0 02 1 1312- ● ●
160 NUT
(D) M10 FLANGE 		0-91180-210-0 01 1 1212-1311 ●
160 NUT
(D) M10 FLANGE 		0-91180-210-0 01 1 1312- ● ●
160 NUT
(C) M12 		1-09984-184-1 02 1 1212-1311 ●
160 NUT
(C) M12 		1-09984-184-1 02 1 1312- ● ●
170 NUT; BOOSTER FIX
M8 FLANGE 		5-09440-010-0 02 1 1212-1311 ●
170 NUT; BOOSTER FIX
M8 FLANGE 		5-09440-010-0 02 1 1312- ● ●
182 BOLT
M8X25 HEX SOCKET 		0-58330-825-0 02 1 1212-1311 ●
182 BOLT
M8X25 HEX SOCKET 		0-58330-825-0 02 1 1312- ● ●
194 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1212-1311 ●
194 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1312- ● ●
217 BOLT; EYE
M16X30 		1-09675-026-0 01 1 1212-1311 ●
217 BOLT; EYE
M16X30 		1-09675-026-0 01 1 1312- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-526-0 01 1 1212-1311 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-526-0 01 1 1312- ● ●
241 CONNECTOR 1-09661-823-0 01 1 1212-1311 ●
241 CONNECTOR 1-09661-823-0 01 1 1312- ● ●
245 BRACKET; HOSE
(A) 		1-31429-495-0 01 1 1212-1311 ●
245 BRACKET; HOSE
(A) 		1-31429-495-0 01 1 1312- ● ●
245 BRACKET; HOSE
(B) 		1-31429-496-0 01 1 1212-1311 ●
245 BRACKET; HOSE
(B) 		1-31429-496-0 01 1 1312- ● ●
245 BRACKET; HOSE
(C) 		1-31429-497-0 01 1 1212-1311 ●
245 BRACKET; HOSE
(C) 		1-31429-497-0 01 1 1312- ● ●
251 STUD; BOOSTER FIX
M8X28 L=44 		0-40210-828-0 02 1 1212-1311 ●
251 STUD; BOOSTER FIX
M8X28 L=44 		0-40210-828-0 02 1 1312- ● ●
265 BOLT; ADAPTER
M12X30 FLANGE 		0-28751-230-0 02 1 1212-1311 ●
265 BOLT; ADAPTER
M12X30 FLANGE 		0-28751-230-0 02 1 1312- ● ●
286 GASKET; BOLT,EYE
(A) ID=16.2 		1-09630-086-0 02 1 1212-1311 ●
286 GASKET; BOLT,EYE
(A) ID=16.2 		1-09630-086-0 02 1 1312- ● ●
286 GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0 		9-09571-414-0 01 1 1212-1311 ●
286 GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0 		9-09571-414-0 01 1 1312- ● ●
305 BOLT; BRACKET
M8X20 FLANGE 		0-28060-820-0 02 1 1212-1311 ●
305 BOLT; BRACKET
M8X20 FLANGE 		0-28060-820-0 02 1 1312- ● ●
634 ADAPTER; CLUTCH 1-31340-070-0 01 1 1212-1311 ●
634 ADAPTER; CLUTCH 1-31340-070-0 01 1 1312- ● ●
635 HOSE; AIR 1-09365-397-0 01 1 1212-1311 ●
635 HOSE; AIR 1-09365-397-0 01 1 1312- ● ●
636 HOSE; OIL 1-09365-415-0 01 1 1212-1311 ●
636 HOSE; OIL 1-09365-415-0 01 1 1312- ● ●
637 UNION
(A) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 1212-1311 ●
637 UNION
(A) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 1312- ● ●
637 UNION
(B) 		1-09654-384-0 01 1 1212-1311 ●
637 UNION
(B) 		1-09654-384-0 01 1 1312- ● ●
638 HOSE 1-09365-410-0 01 1 1212-1311 ●
638 HOSE 1-09365-410-0 01 1 1312- ● ●
639 NUT; UNION
M12 		9-09840-280-0 01 1 1212-1311 ●
639 NUT; UNION
M12 		9-09840-280-0 01 1 1312- ● ●
640 STUD
M12X30 L=48 		8-98059-951-0 02 1 1212-1311 ●
640 STUD
M12X30 L=48 		8-98059-951-0 02 1 1312- ● ●
