51238 - NPR LHD EURO5 BUS CHASSIS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#111328) — 24 parça
◀
[156A] NO.1 (7 parça)
[156A] NO.2 (6 parça)
[156A] NO.4 (8 parça)
[156A] NO.3 (3 parça)
▶

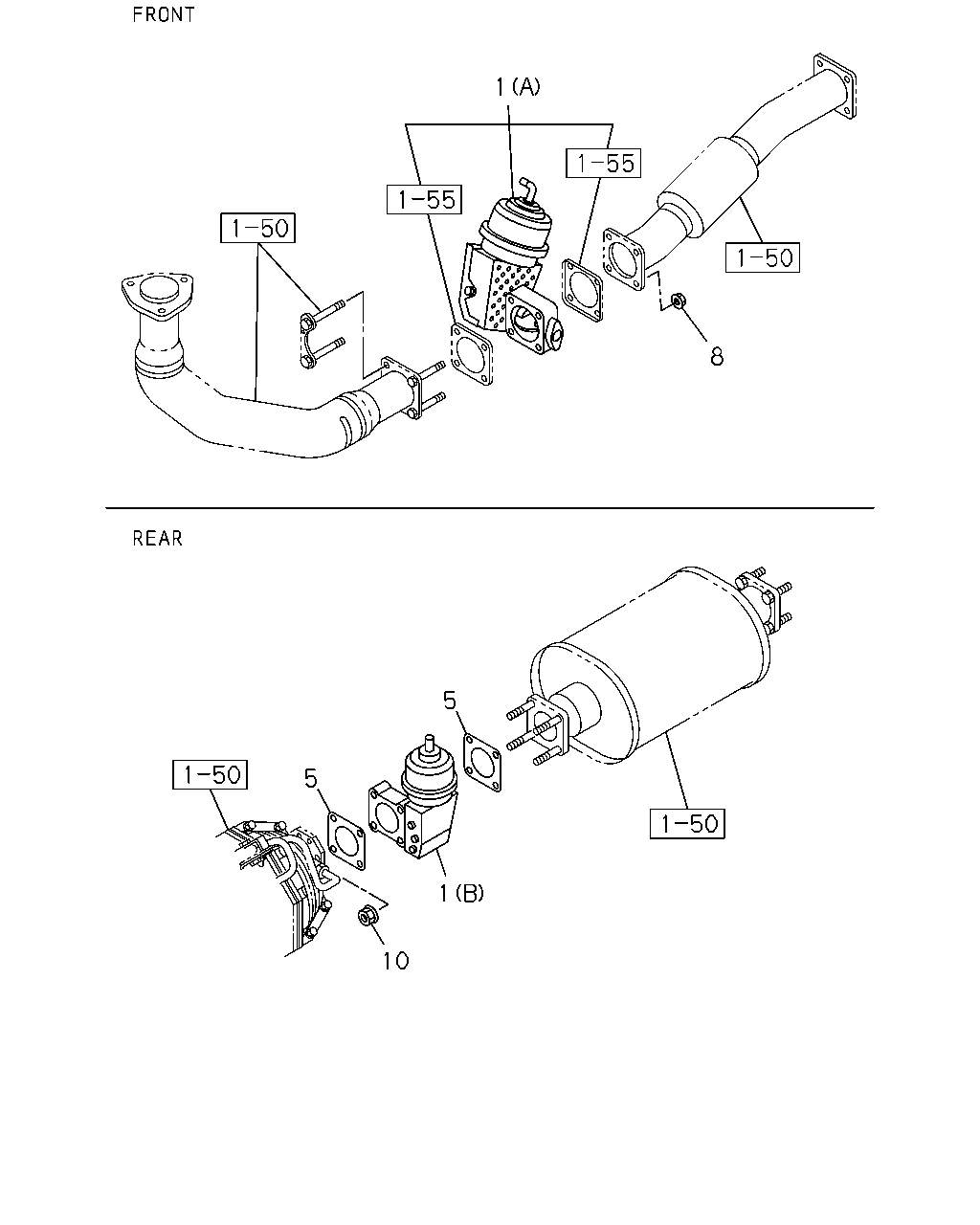

8
1
5
5
1
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.632 BRAKE UNIT; EXH
(A)
8-98068-178-1
01
1
1212-1212
1
03.632 BRAKE UNIT; EXH
(A)
8-98227-170-0
01
1
1301-
1
03.632 BRAKE UNIT; EXH
(B)
8-98167-678-1
01
1
1212-1310
1
03.632 BRAKE UNIT; EXH
(B)
8-98258-269-0
01
1
1311-
5
03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64
8-97373-108-0
02
1
1212-
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1212-
10
03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1212-
92
124
94
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1212-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1212-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98034-053-3
01
1
1212-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98040-096-2
01
1
1212-
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE
0-91180-108-0
02
1
1212-
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-98043-344-0
01
1
1212-

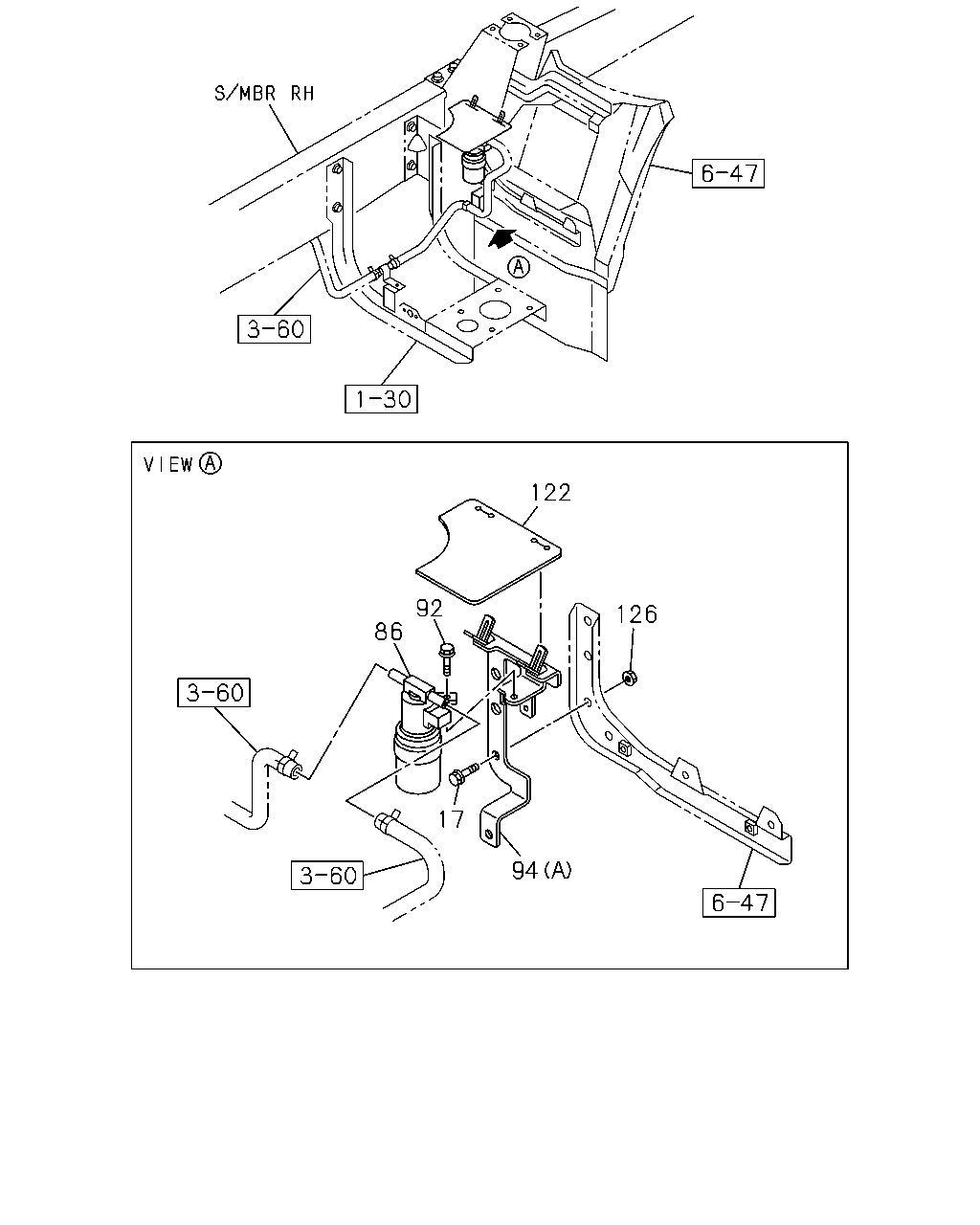

122
126
92
86
17
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1212-
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
1212-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1212-
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1212-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98034-053-3
01
1
1212-
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98040-096-2
01
1
1212-
122
03.640 PROTECTOR; MAG VLV
8-98087-988-0
01
1
1212-
126
03.634 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
1212-

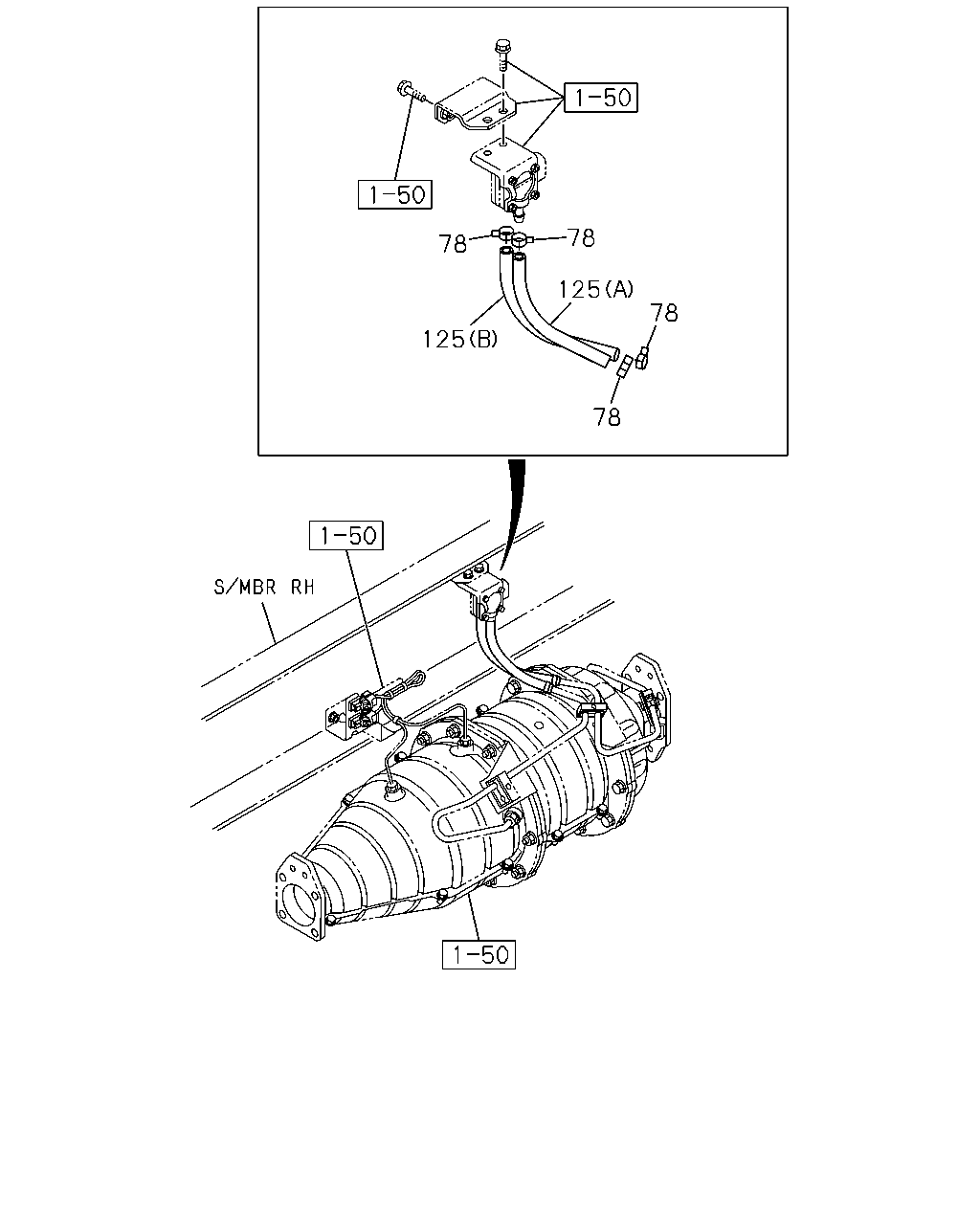

78
78
125
78
78
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
78
03.636 CLIP; HOSE
03.162 ID=13
8-97329-627-0
04
1
1212-
125
03.630 HOSE; DPD
03.163 (B) L=200 SERVICED BY L=3000
0-01558-300-0
01
1
1212-
125
03.630 HOSE; DPD
(A) L=170
8-98068-068-0
01
1
1212-
