◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#111324) — 65 parça

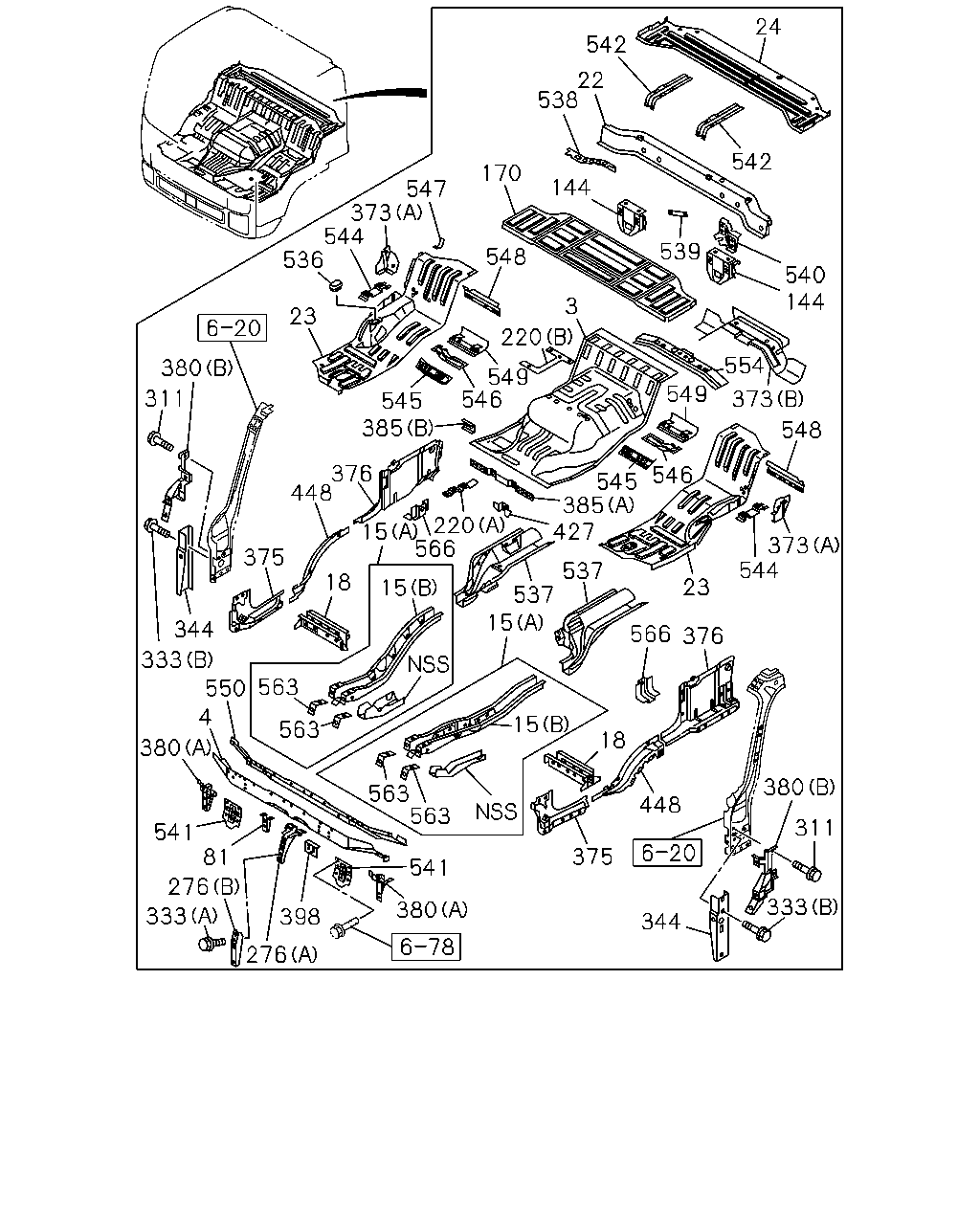

çizim 322370
542 24 22 170 548 547 373 544 144 538 542 540 539 554 548 144 3 549 545 546 220 549 546 545 373 544 385 23 427 537 566 537 376 385 376 448 375 344 333 380 550 563 18 15 220 566 373 15 15 448 380 311 333 344 375 541 541 380 398 563 563 563 276 333 276 536 23 380 311 81 18 15 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98053-070-8 01 1 1212- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1212- ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1212- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1212- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1212- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1212- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1212- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1212- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1212- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1212- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1212- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1212- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1212- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1212- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1212- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1212- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1212- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1212- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1212- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1212- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1212- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1212- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1212- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1212- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1212- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1212- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1212- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1212- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1212- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1212- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1212-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1212- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1212- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1212- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1212- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1212- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1212- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1212- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1212- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1212- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1212- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1212- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1212- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1212- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1212- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1212- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1212- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1212- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1212- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1212- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1212- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1212- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1212- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1212- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1212- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1212- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1212- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1212- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1212- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1212- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1212- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1212- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1212- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1212- ● ●
