◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11475 - FRR-L EURO5 EXC.SPAC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#111302) — 54 parça

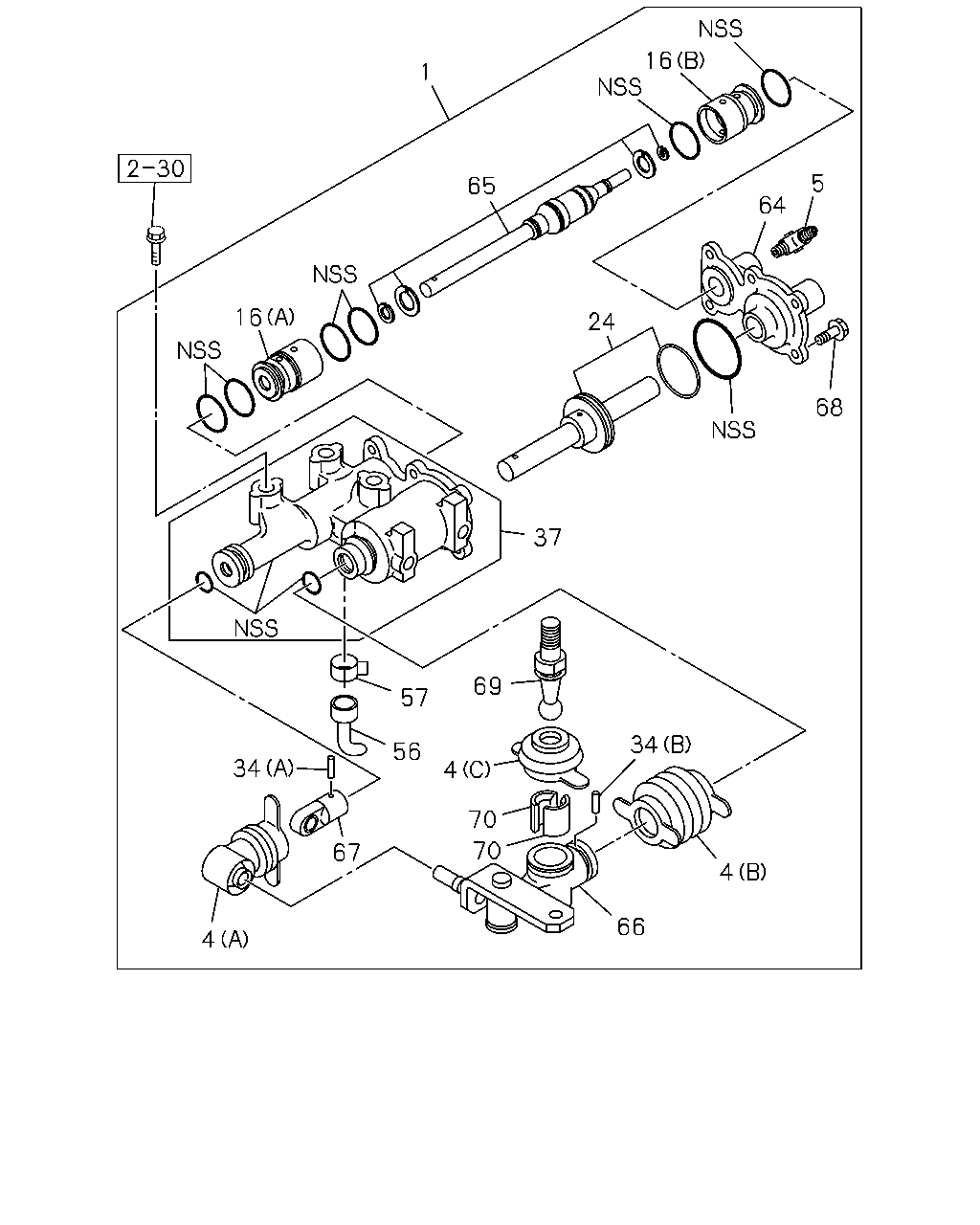

çizim 321375
1 16 65 16 34 4 67 56 57 69 4 70 70 66 4 34 37 24 64 5 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 1212- ●
1 ASSISTOR ASM; POWER,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98022-843-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1212- ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 1212- ●
5 CONNECTOR; CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 1212- ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 1212- ●
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 1212- ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 1212- ●
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 1212- ●
24 PISTON 1-33739-836-1 01 1 1212- ●
24 PISTON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-836-1 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1212- ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 1212- ●
37 HOUSING; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-969-0 01 1 1212- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 1212- ●
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1212- ●
57 CLAMP; HOSE 1-33739-849-0 01 1 1212- ●
57 CLAMP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 1212- ●
64 COVER; HOUSING 1-33739-970-0 01 1 1212- ●
64 COVER; HOUSING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-970-0 01 1 1212- ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 1212- ●
65 VALVE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 1212- ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 1212- ●
66 JOINT ASM; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-972-0 01 1 1212- ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 1212- ●
67 JOINT; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 1212- ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 1212- ●
68 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 1212- ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 1212- ●
69 STUD; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 1212- ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 1212- ●
70 SEAT; BALL STUD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 1212- ●

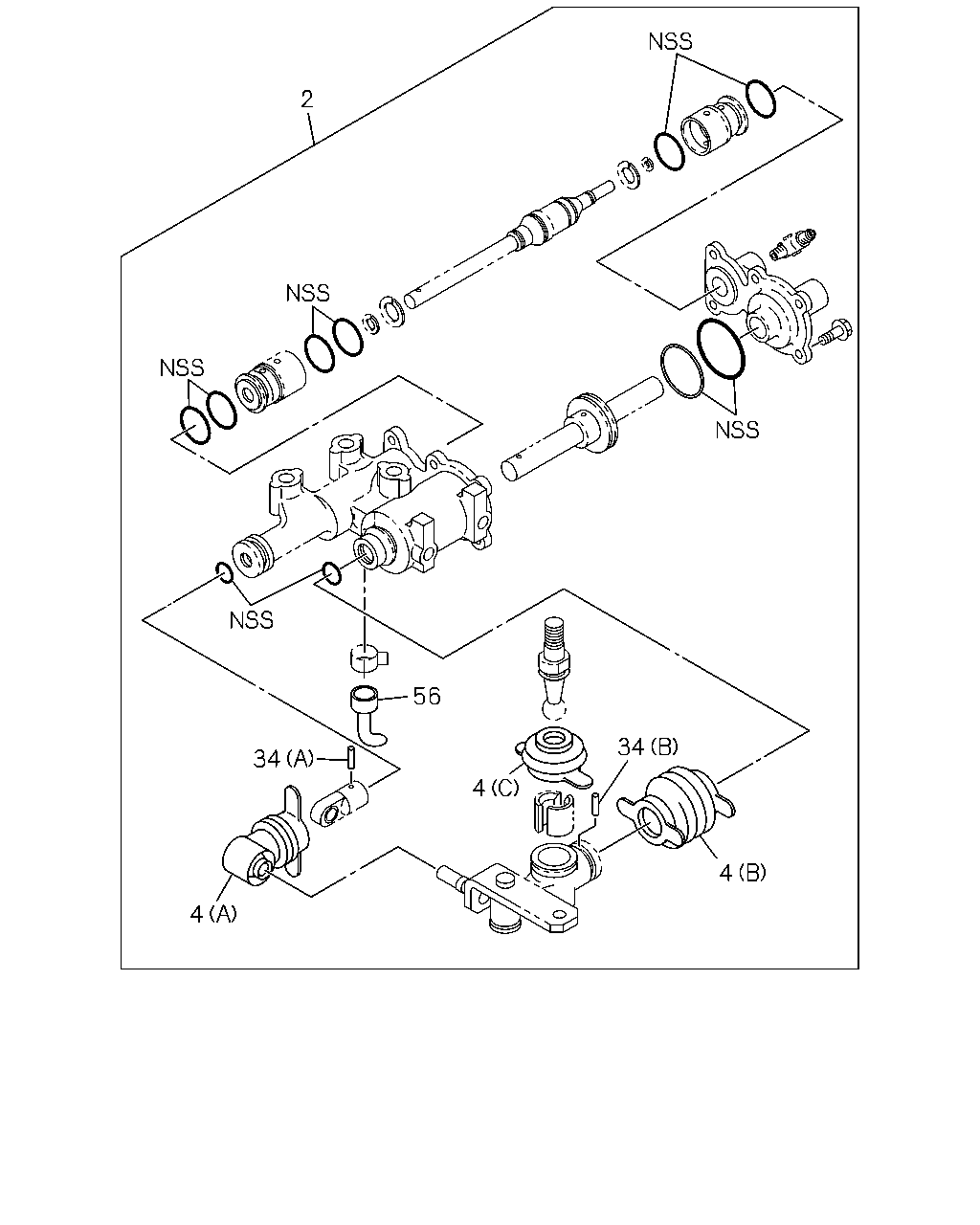

çizim 322596
2 56 4 34 4 4 34
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 1212- ●
2 REPAIR KIT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-028-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 1212- ●
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 1212- ●
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1212- ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 1212- ●
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
