Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#1113) — 181 parça

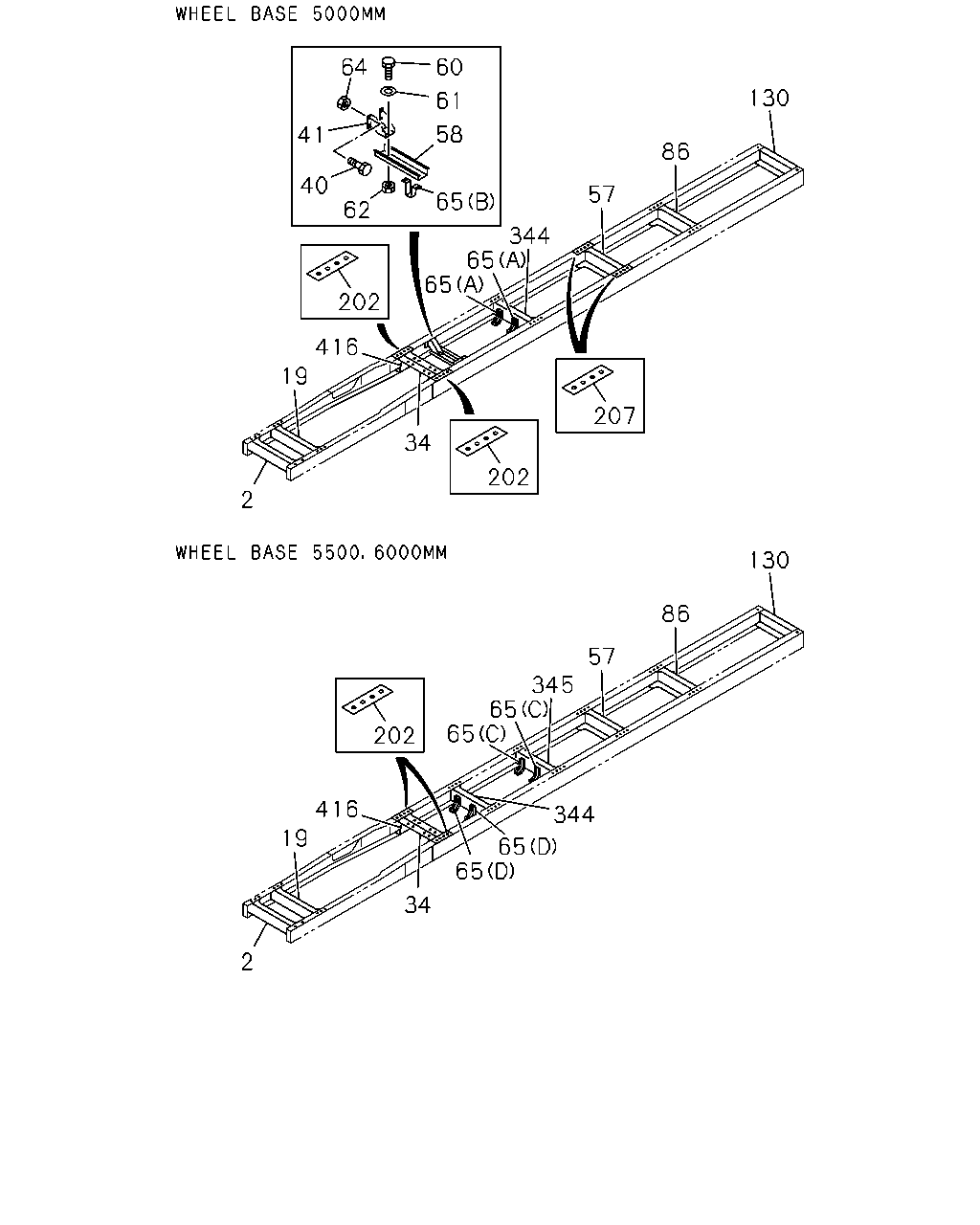

64 60 130 61 58 41 86 40 57 65 62 344 65 65 202 416 19 207 34 202 2 130 86 57 345 65 65 202 416 344 19 65 65 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-370-5	01	1	9202-	●	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-371-7	01	1	9202-	●	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9202-9404	●	●	●	●	●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-155-0	01	1	9405-9406				●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-9406		●	●		●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-231-1	01	1	9405-9406				●
34	MEMBER; CROSS,3RD 6SA1 STD ENG(06L)	1-53174-231-1	01	1	9405-9406				●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9407-	●	●	●	●	●	●	●
40	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	08	1	9202-		●			●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9202-		●			●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-382-9	01	1	9202-	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ)	1-53181-382-9	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-		●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9202-							●
58	MEMBER; CENTER BRG 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-37529-079-1	01	1	9202-		●			●
58	MEMBER; CENTER BRG 6SA1TC ENG(28L)	1-37529-065-0	01	1	9202-					●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9202-		●			●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9202-		●			●
62	NUT; MBR M10	9-09110-510-0	08	1	9202-		●			●
64	NUT; BRKT TO FRAME M10	9-09110-510-0	08	1	9202-		●			●
65	BRACKET; CENTER BRG (C) L=300	1-53271-306-1	02	1	9202-				●			●
65	BRACKET; CENTER BRG (D) L=325	1-53271-341-0	02	1	9202-				●			●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (B) L=107.5	1-53271-293-0	02	1	9202-					●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (A) L=335	1-53271-309-1	02	1	9202-					●
86	MEMBER; CROSS,RR SUSP RR	1-53181-382-9	01	1	9202-	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-		●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ)	1-53181-382-9	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-		●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9202-							●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9202-9211	●	●	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-101-0	02	1	9202-9404	●	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-351-1	02	1	9405-	●	●	●	●	●	●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-163-1	02	1	9407-			●	●	●	●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-			●	●	●	●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9202-					●		●
345	MEMBER; CROSS,5TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-						●	●
345	MEMBER; CROSS,5TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9202-							●
416	GUSSET; 3RD C/MBR	1-53164-168-0	01	1	9202-9404	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-167-0	01	1	9202-9404	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●	●	●	●	●

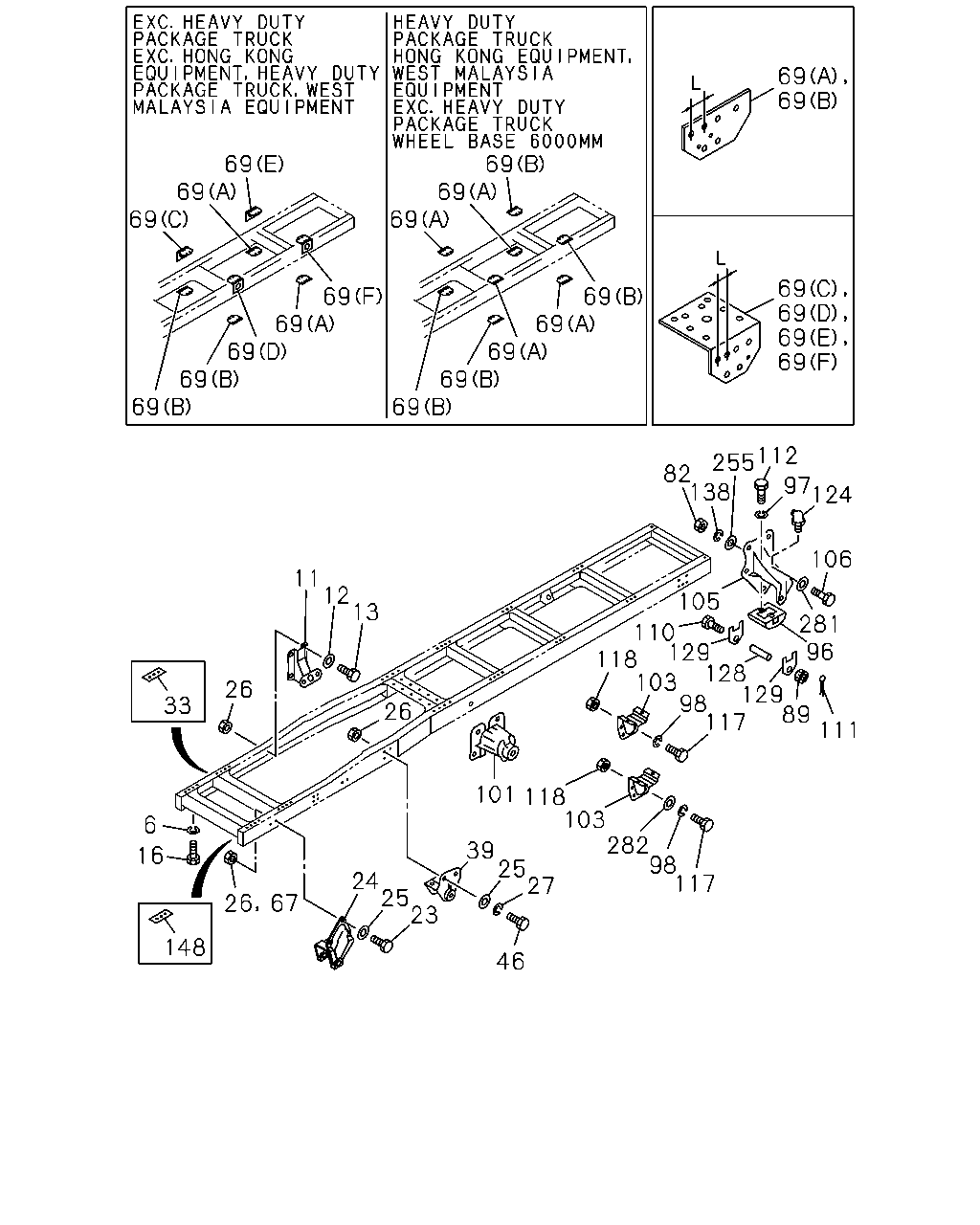

69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 69 112 255 82 138 97 124 106 11 12 13 105 281 96 110 129 118 128 103 129 98 89 117 26 26 33 111 101 118 282 98 117 6 39 25 27 16 24 25 23 26 67 148 46 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9202-9205	●	●	●	●	●	●
6	WASHER; LK,1ST C/MBR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) ID=16.2	9-09150-616-0	02	1	9202-9205							●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9206-	●	●		●	●	●
6	WASHER; LK,1ST C/MBR EXC. AUSTRALIA EQUIPMENT(RR3) ID=16.2	9-09150-616-0	02	1	9206-			●				●
6	WASHER; LK,1ST C/MBR 6SA1TC ENG(28L) ID=16.2	9-09150-616-0	01	1	9202-9205							●
6	WASHER; LK,1ST C/MBR AUSTRALIA EQUIPMENT(RR3) ID=16.2	9-09150-616-0	01	1	9206-			●				●
11	BRACKET; ENG MTG 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53211-143-1	02	1	9202-	●	●	●	●	●	●	●
11	BRACKET; ENG MTG 6HE1 STD ENG(46L)	1-53211-185-0	02	1	9202-				●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	08	1	9202-	●	●	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X28	9-92061-228-0	08	1	9202-	●	●	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9202-9205	●	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M16X40	0-20801-640-0	02	1	9202-9205							●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9206-	●	●		●	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. AUSTRALIA EQUIPMENT(RR3) M16X40	0-20801-640-0	02	1	9206-			●				●
16	BOLT; 1ST C/MBR TO S/MBR 6SA1TC ENG(28L) M16X40	0-20801-640-0	01	1	9202-9205							●
16	BOLT; 1ST C/MBR TO S/MBR AUSTRALIA EQUIPMENT(RR3) M16X40	0-20801-640-0	01	1	9206-			●				●
23	BOLT; BRKT,SPR M14X50	9-92061-450-0	06	1	9202-	●	●	●	●	●	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9202-	●	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9202-	●	●	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9202-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9202-	●	●	●	●	●	●	●
25	WASHER; PL,BRKT 6SA1TC ENG(28L) ID=15	9-09651-069-0	28	1	9202-	●				●		●
25	WASHER; PL,BRKT 6SA1 STD ENG(06L),6HE1 STD ENG(46L) ID=15	9-09651-069-0	24	1	9202-		●	●	●	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9202-	●	●	●	●	●	●	●
26	NUT; BRKT,SPR 6SA1TC ENG(28L) M14	9-99110-514-0	14	1	9202-	●				●		●
26	NUT; BRKT,SPR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M14	9-99110-514-0	12	1	9202-		●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9202-	●	●	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR 6SA1TC ENG(28L) ID=14.2	9-09150-614-0	14	1	9202-	●				●		●
27	WASHER; LK,BRKT,FRT SPR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) ID=14.2	9-09150-614-0	12	1	9202-		●	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> UPPER	1-53168-276-0	02	1	9202-	●	●	●	●	●	●
33	SPACER; 2ND C/MBR,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> LOWER	1-53168-287-0	02	1	9202-	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53352-091-3	01	1	9202-	●	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53352-090-3	01	1	9202-	●	●	●	●	●	●	●
39	BRACKET; FRT SPR,RR 6HE1 STD ENG(46L)	1-53352-125-2	01	1	9202-				●	●	●	●
39	BRACKET; FRT SPR,RR 6HE1 STD ENG(46L)	1-53352-124-2	01	1	9202-				●	●	●	●
46	BOLT; BRKT FIX 6SA1TC ENG(28L) M14X50	9-92061-450-0	08	1	9202-	●				●		●
46	BOLT; BRKT FIX 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M14X50	9-92061-450-0	06	1	9202-		●	●	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9202-9205	●	●	●	●	●	●
67	NUT; C/MBR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M16	9-99110-516-0	02	1	9202-9205							●
67	NUT; C/MBR AUSTRALIA EQUIPMENT(RR3) M16	9-99110-516-0	01	1	9206-			●				●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9206-	●	●		●	●	●
67	NUT; C/MBR EXC. AUSTRALIA EQUIPMENT(RR3) M16	9-99110-516-0	02	1	9206-			●				●
69	GUSSET; RR SUSP,UPR (A) L=60	1-53167-099-4	02	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=60	1-53167-099-4	02	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (A) L=60	1-53167-099-4	02	1	9202-						●
69	GUSSET; RR SUSP,UPR (B) L=51	1-53167-100-3	02	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=51	1-53167-100-3	02	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (B) L=51	1-53167-100-3	02	1	9202-						●
69	GUSSET; RR SUSP,UPR (D) L=60 21-HOLE	1-53167-095-4	01	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) L=60 21-HOLE	1-53167-095-4	01	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (D) L=60 21-HOLE	1-53167-095-4	01	1	9202-						●
69	GUSSET; RR SUSP,UPR (F) L=51 17-HOLE	1-53167-098-5	01	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (F) L=51 17-HOLE	1-53167-098-5	01	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (F) L=51 17-HOLE	1-53167-098-5	01	1	9202-						●
69	GUSSET; RR SUSP,UPR (C) L=60 21-HOLE	1-53167-096-4	01	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) L=60 21-HOLE	1-53167-096-4	01	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (C) L=60 21-HOLE	1-53167-096-4	01	1	9202-						●
69	GUSSET; RR SUSP,UPR (E) L=51 17-HOLE	1-53167-097-5	01	1	9202-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (E) L=51 17-HOLE	1-53167-097-5	01	1	9202-		●	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) (E) L=51 17-HOLE	1-53167-097-5	01	1	9202-						●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=60	1-53167-099-4	04	1	9202-		●	●	●	●	●
69	GUSSET; RR SUSP,UPR HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=60	1-53167-099-4	04	1	9202-						●
69	GUSSET; RR SUSP,UPR (A) L=60	1-53167-099-4	04	1	9202-							●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=51	1-53167-100-3	04	1	9202-		●	●	●	●	●
69	GUSSET; RR SUSP,UPR HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=51	1-53167-100-3	04	1	9202-						●
69	GUSSET; RR SUSP,UPR (B) L=51	1-53167-100-3	04	1	9202-							●
82	NUT; BRKT M14	9-99110-514-0	24	1	9202-	●	●	●	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9202-	●	●	●	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9202-	●	●	●	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9202-	●	●	●	●	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9202-	●	●	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9202-	●	●	●	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9202-	●	●	●	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9202-	●	●	●	●	●	●	●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	9202-	●	●	●	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9202-	●	●	●	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9202-	●	●	●	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9202-	●	●	●	●	●	●	●
117	BOLT; STOPPER M14X60	9-91066-460-0	16	1	9202-9202	●	●	●	●	●	●	●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	9203-	●	●	●	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9202-	●	●	●	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●	●	●	●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-058-0	02	1	9202-9209	●	●	●	●	●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9210-	●	●	●	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9202-	●	●	●	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9202-	●	●	●	●	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9202-	●	●	●	●	●	●	●
148	SPACER; C/MBR	1-53168-268-0	02	1	9202-	●	●	●	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9202-	●	●	●	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9202-	●	●	●	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9202-	●	●	●	●	●	●	●

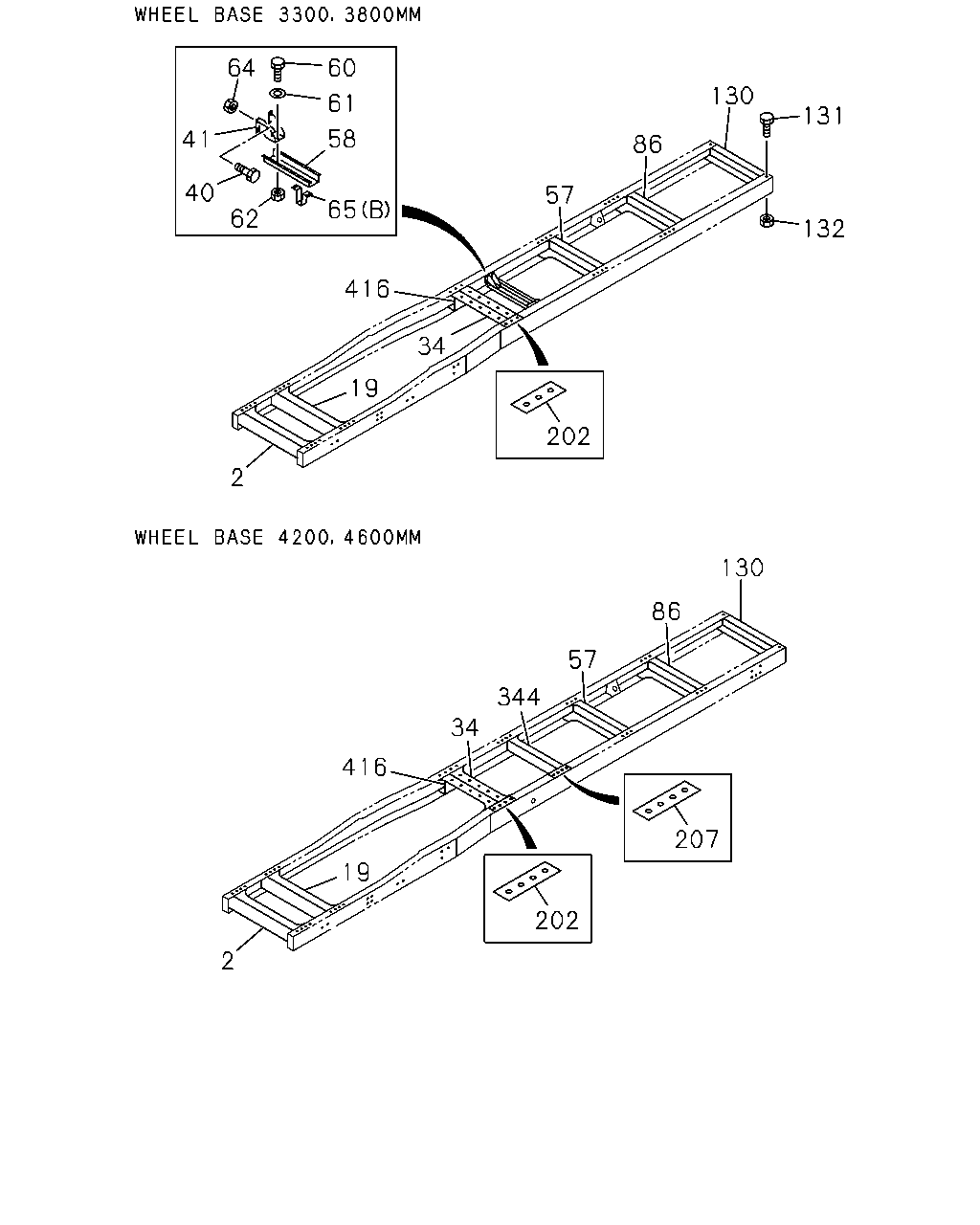

64 60 130 61 131 58 41 86 40 57 65 62 132 416 34 19 202 2 130 86 57 344 34 416 207 19 202 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-370-5	01	1	9202-	●	●	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-371-7	01	1	9202-	●	●	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9202-9404	●	●	●	●	●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-155-0	01	1	9405-9406				●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-9406		●	●		●	●	●
34	MEMBER; CROSS,3RD 6HE1 STD ENG(46L) HEAVY DUTY PACKAGE TRUCK<RD2>	1-53174-231-1	01	1	9405-9406				●
34	MEMBER; CROSS,3RD 6SA1 STD ENG(06L)	1-53174-231-1	01	1	9405-9406				●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9407-	●	●	●	●	●	●	●
40	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	08	1	9202-		●			●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9202-		●			●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-382-9	01	1	9202-	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ)	1-53181-382-9	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-		●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-						●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9202-							●
58	MEMBER; CENTER BRG 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-37529-079-1	01	1	9202-		●			●
58	MEMBER; CENTER BRG 6SA1TC ENG(28L)	1-37529-065-0	01	1	9202-					●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9202-		●			●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9202-		●			●
62	NUT; MBR M10	9-09110-510-0	08	1	9202-		●			●
64	NUT; BRKT TO FRAME M10	9-09110-510-0	08	1	9202-		●			●
65	BRACKET; CENTER BRG (C) L=300	1-53271-306-1	02	1	9202-				●			●
65	BRACKET; CENTER BRG (D) L=325	1-53271-341-0	02	1	9202-				●			●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (B) L=107.5	1-53271-293-0	02	1	9202-					●
65	BRACKET; CENTER BRG 6SA1TC ENG(28L) (A) L=335	1-53271-309-1	02	1	9202-					●
86	MEMBER; CROSS,RR SUSP RR	1-53181-382-9	01	1	9202-	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-382-9	01	1	9202-		●	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ)	1-53181-382-9	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-		●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-380-5	01	1	9202-						●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9202-							●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9202-9211	●	●	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●	●	●	●	●
131	BOLT; END C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9202-		●
132	NUT; END C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99110-512-0	04	1	9202-		●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-101-0	02	1	9202-9404	●	●	●	●	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-351-1	02	1	9405-	●	●	●	●	●	●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-163-1	02	1	9407-			●	●	●	●
344	MEMBER; CROSS,4TH 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-53171-738-7	01	1	9202-			●	●	●	●	●
344	MEMBER; CROSS,4TH 6SA1TC ENG(28L)	1-53171-972-3	01	1	9202-					●		●
416	GUSSET; 3RD C/MBR	1-53164-168-0	01	1	9202-9404	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-167-0	01	1	9202-9404	●	●	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
