◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#111296) — 14 parça

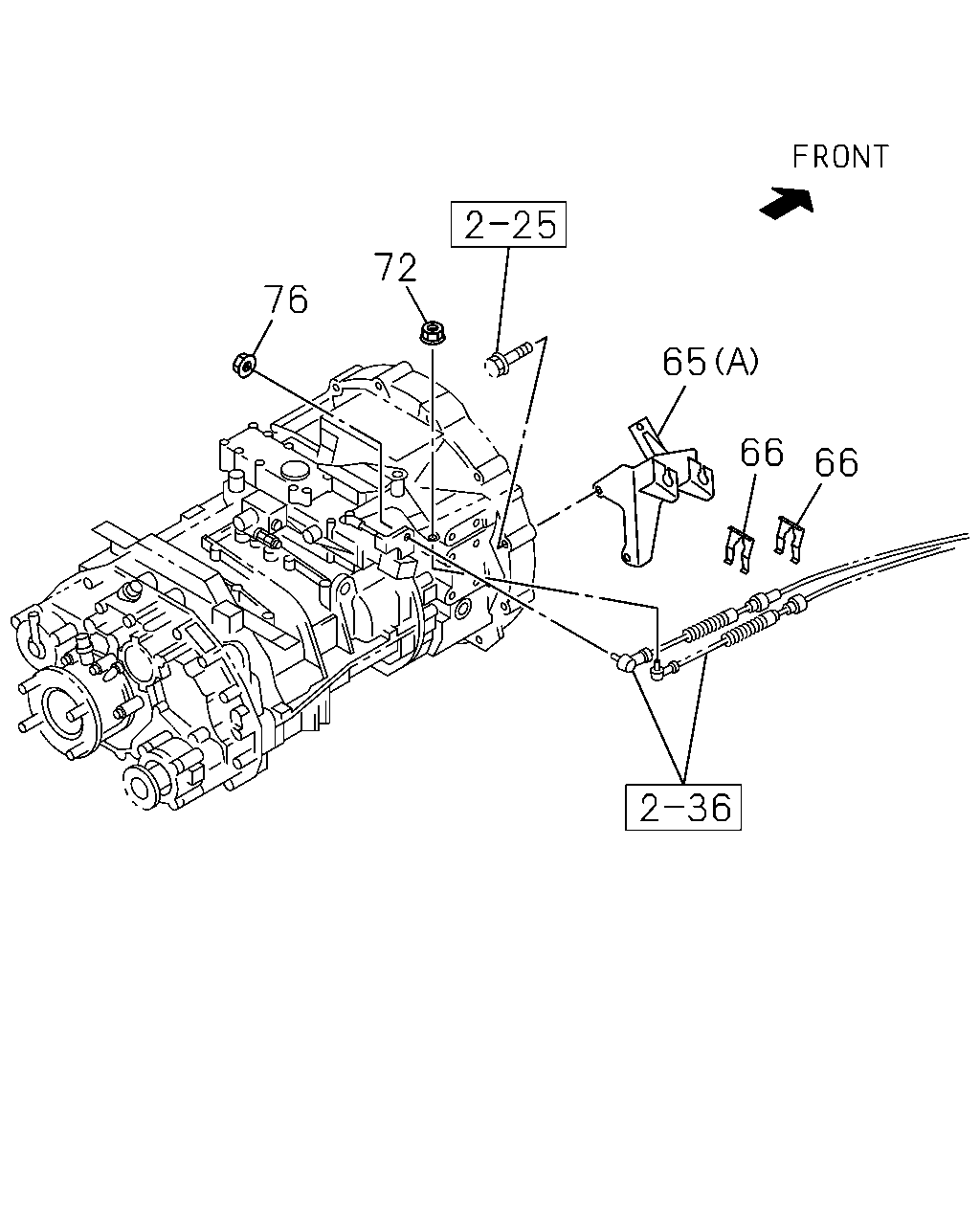

çizim 321369
76 72 65 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98055-457-2 01 1 1212-1311 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98055-457-2 01 1 1312- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) 		8-98082-465-3 01 1 1212- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-344-1 01 1 1212- ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1212- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1212- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1212- ● ●

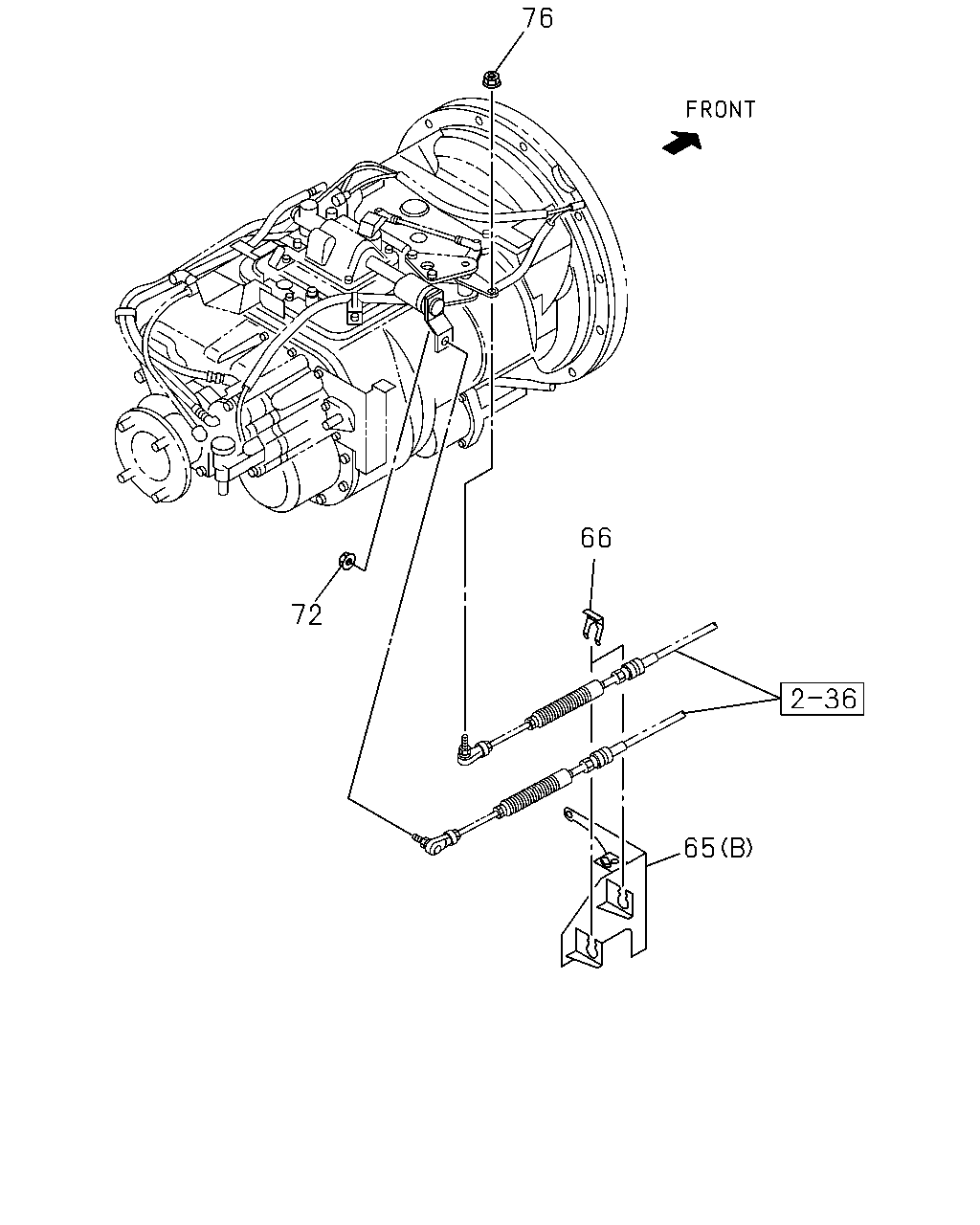

çizim 322663
76 66 72 65
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98055-457-2 01 1 1212-1311 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98055-457-2 01 1 1312- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) 		8-98082-465-3 01 1 1212- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-344-1 01 1 1212- ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1212- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1212- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
