Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

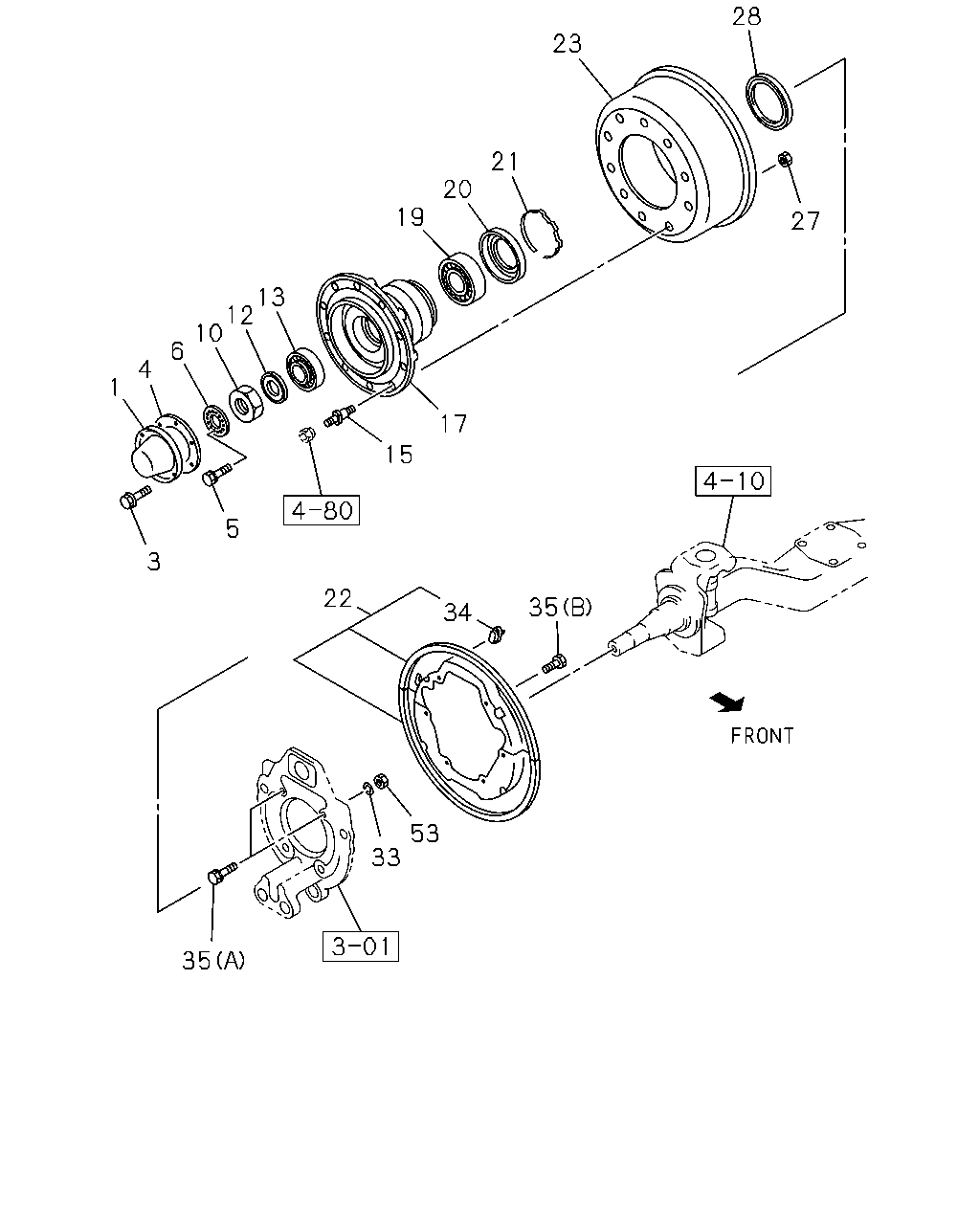

4-11 — FRONT HUB AND DRUM OR ROTOR
(#11129) — 23 parça
28
23
21
20
19
27
13
12
10
6
4
1
17
15
5
3
22
35
34
53
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
0106-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
0106-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-1
02
1
0106-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
0106-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
0106-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
0106-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
0106-
13
BEARING; HUB OUTER,FRT AXLE
KOYO
1-09812-234-0
02
1
0106-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-044-0
20
1
0106-0206
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
1-42337-067-1
20
1
0207-
17
HUB; FRT AXLE
1-42312-100-1
02
1
0106-
19
BEARING; HUB INNER,FRT AXLE
KOYO
1-09812-231-0
02
1
0106-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
0106-
21
RING; SNAP,HUB
1-09587-017-0
02
1
0106-
22
COVER SET; FRT BRK DRUM
1-47151-459-1
02
1
0106-
23
DRUM; BRK,FRT
1-42315-337-0
02
1
0106-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
20
1
0106-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
0106-
33
WASHER; LK,DRUM COVER
ID=16.2
9-09150-816-0
04
1
0106-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
0106-
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50041-016-0
12
1
0106-
35
BOLT; DRUM COVER
(A) M16X59 FLANGE
1-09044-002-2
04
1
0106-
53
NUT; DRUM COVER
M16
9-99110-516-0
04
1
0106-
