3-46 — AIR DRYER (#111280) — 114 parça

13 13 1 23 23 9 10 10 12 16 11 16 13 1 23 23 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR	1-48190-325-1	01	1	1212-1511	●	●
1	DRYER; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48190-325-1	01	1	1512-	●
1	DRYER; AIR	1-48190-325-1	01	1	1512-		●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 5700MM(57W) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1512-		●
9	CONNECTOR; PIPE,AIR DRYER DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
10	BOLT; AIR DRYER WHEEL BASE 5700MM(57W) (A) M10X30 FLANGE	0-28651-030-0	04	1	1512-		●
10	BOLT; AIR DRYER (A) M10X30 FLANGE	0-28651-030-0	02	1	1212-1511	●	●
10	BOLT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1512-	●
10	BOLT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M10X30 FLANGE	0-28651-030-0	02	1	1512-		●
10	BOLT; AIR DRYER (B) M10X40 FLANGE	0-28651-040-0	02	1	1212-1511	●	●
10	BOLT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X40 FLANGE	0-28651-040-0	02	1	1512-	●
10	BOLT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10X40 FLANGE	0-28651-040-0	02	1	1512-		●
11	BRACKET; AIR DRYER WHEEL BASE 5700MM(57W)	8-98333-713-0	01	1	1512-		●
12	BOLT; BRKT WHEEL BASE 5700MM(57W) M10X35 FLANGE	0-28651-035-0	02	1	1512-		●
13	NUT; AIR DRYER M10 FLANGE	0-91180-210-0	04	1	1212-	●	●
16	NUT; BRKT WHEEL BASE 5700MM(57W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
23	CONNECTOR; AIR TANK (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1212-1511	●	●
23	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1512-	●
23	CONNECTOR; AIR TANK (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1512-		●
23	CONNECTOR; AIR TANK (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1212-1511	●	●
23	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1512-	●
23	CONNECTOR; AIR TANK (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1512-		●

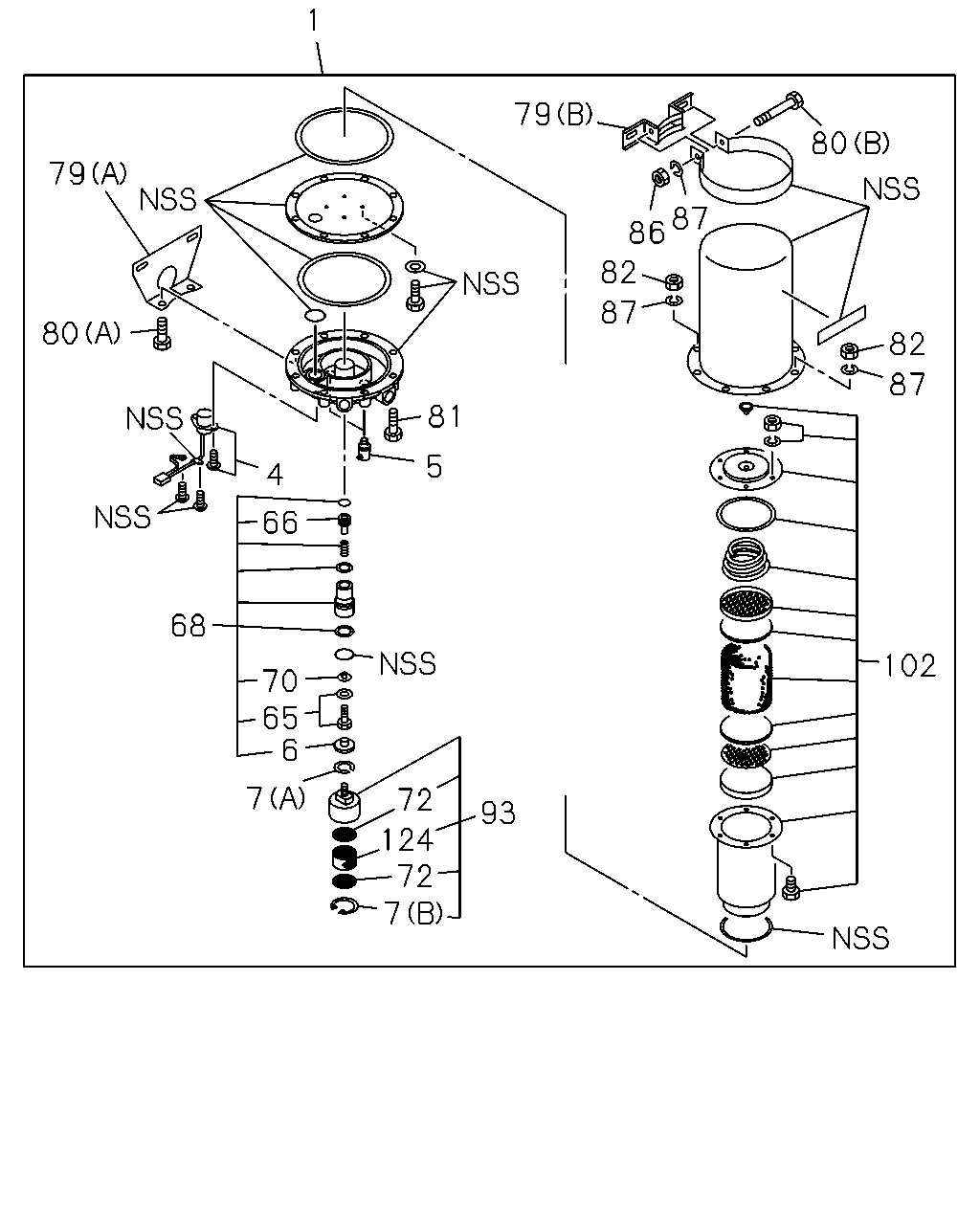

79 80 79 81 4 5 87 86 82 80 87 82 102 87 66 68 70 65 6 7 93 72 124 72 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR	1-48190-325-1	01	1	1212-1511	●	●
1	DRYER; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48190-325-1	01	1	1512-	●
1	DRYER; AIR	1-48190-325-1	01	1	1512-		●
4	THERMOSTAT KIT; AIR DRYER	1-85576-216-0	01	1	1212-1511	●	●
4	THERMOSTAT KIT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-216-0	01	1	1512-	●
4	THERMOSTAT KIT; AIR DRYER	1-85576-216-0	01	1	1512-		●
5	HEATER ASM; AIR DRYER	1-48199-085-0	02	1	1212-1511	●	●
5	HEATER ASM; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-085-0	02	1	1512-	●
5	HEATER ASM; AIR DRYER	1-48199-085-0	02	1	1512-		●
6	COVER; EXH,AIR DRYER	1-48199-419-0	01	1	1212-1511	●	●
6	COVER; EXH,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-419-0	01	1	1512-	●
6	COVER; EXH,AIR DRYER	1-48199-419-0	01	1	1512-		●
7	RING; SNAP,AIR DRYER (B)	1-47769-017-0	01	1	1212-1511	●	●
7	RING; SNAP,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47769-017-0	01	1	1512-	●
7	RING; SNAP,AIR DRYER (B)	1-47769-017-0	01	1	1512-		●
7	RING; SNAP,AIR DRYER (A)	1-48199-154-0	01	1	1212-1511	●	●
7	RING; SNAP,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48199-154-0	01	1	1512-	●
7	RING; SNAP,AIR DRYER (A)	1-48199-154-0	01	1	1512-		●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	1212-1511	●	●
65	BOLT; PURGE VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-393-0	01	1	1512-	●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	1512-		●
66	PISTON; AIR DRYER	1-48199-198-0	01	1	1212-1511	●	●
66	PISTON; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-198-0	01	1	1512-	●
66	PISTON; AIR DRYER	1-48199-198-0	01	1	1512-		●
68	BODY; VALVE	1-48199-352-0	01	1	1212-1511	●	●
68	BODY; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-352-0	01	1	1512-	●
68	BODY; VALVE	1-48199-352-0	01	1	1512-		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	1212-1511	●	●
70	VALVE; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-105-0	01	1	1512-	●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	1512-		●
72	PLATE; FILTER,AIR DRYER	1-48199-464-0	02	1	1212-1511	●	●
72	PLATE; FILTER,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-464-0	02	1	1512-	●
72	PLATE; FILTER,AIR DRYER	1-48199-464-0	02	1	1512-		●
79	BRACKET; AIR DRYER (A)	1-48199-336-0	01	1	1212-1511	●	●
79	BRACKET; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48199-336-0	01	1	1512-	●
79	BRACKET; AIR DRYER (A)	1-48199-336-0	01	1	1512-		●
79	BRACKET; AIR DRYER (B)	1-48199-354-0	01	1	1212-1511	●	●
79	BRACKET; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48199-354-0	01	1	1512-	●
79	BRACKET; AIR DRYER (B)	1-48199-354-0	01	1	1512-		●
80	BOLT; BRKT (B)	1-48199-335-0	01	1	1212-1511	●	●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48199-335-0	01	1	1512-	●
80	BOLT; BRKT (B)	1-48199-335-0	01	1	1512-		●
80	BOLT; BRKT (A)	1-48199-338-0	02	1	1212-1511	●	●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48199-338-0	02	1	1512-	●
80	BOLT; BRKT (A)	1-48199-338-0	02	1	1512-		●
81	BOLT; CASE,AIR DRYER	1-48199-341-0	06	1	1212-1511	●	●
81	BOLT; CASE,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-341-0	06	1	1512-	●
81	BOLT; CASE,AIR DRYER	1-48199-341-0	06	1	1512-		●
82	NUT; CASE,AIR DRYER	1-48199-421-0	08	1	1212-1511	●	●
82	NUT; CASE,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-421-0	08	1	1512-	●
82	NUT; CASE,AIR DRYER	1-48199-421-0	08	1	1512-		●
86	NUT; BRKT	1-48199-333-0	01	1	1212-1511	●	●
86	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-333-0	01	1	1512-	●
86	NUT; BRKT	1-48199-333-0	01	1	1512-		●
87	WASHER; LK,BRKT	1-48199-334-0	09	1	1212-1511	●	●
87	WASHER; LK,BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-334-0	09	1	1512-	●
87	WASHER; LK,BRKT	1-48199-334-0	09	1	1512-		●
93	SILENCER; AIR DRYER	1-48199-462-0	01	1	1212-1511	●	●
93	SILENCER; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-462-0	01	1	1512-	●
93	SILENCER; AIR DRYER	1-48199-462-0	01	1	1512-		●
102	CARTRIDGE; AIR DRYER	1-48199-493-0	01	1	1212-1511	●	●
102	CARTRIDGE; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-493-0	01	1	1512-	●
102	CARTRIDGE; AIR DRYER	1-48199-493-0	01	1	1512-		●
124	FILTER; SILENCER	1-48199-465-0	01	1	1212-1511	●	●
124	FILTER; SILENCER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-465-0	01	1	1512-	●
124	FILTER; SILENCER	1-48199-465-0	01	1	1512-		●

70 66 68 70 65 6 2 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER	1-85576-379-0	01	1	1212-1511	●	●
2	REPAIR KIT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-379-0	01	1	1512-	●
2	REPAIR KIT; AIR DRYER	1-85576-379-0	01	1	1512-		●
3	PISTON KIT; AIR DRYER	1-85576-139-0	01	1	1212-1511	●	●
3	PISTON KIT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-139-0	01	1	1512-	●
3	PISTON KIT; AIR DRYER	1-85576-139-0	01	1	1512-		●
4	THERMOSTAT KIT; AIR DRYER	1-85576-216-0	01	1	1212-1511	●	●
4	THERMOSTAT KIT; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-216-0	01	1	1512-	●
4	THERMOSTAT KIT; AIR DRYER	1-85576-216-0	01	1	1512-		●
6	COVER; EXH,AIR DRYER	1-48199-419-0	01	1	1212-1511	●	●
6	COVER; EXH,AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-419-0	01	1	1512-	●
6	COVER; EXH,AIR DRYER	1-48199-419-0	01	1	1512-		●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	1212-1511	●	●
65	BOLT; PURGE VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-393-0	01	1	1512-	●
65	BOLT; PURGE VLV	1-48199-393-0	01	1	1512-		●
66	PISTON; AIR DRYER	1-48199-198-0	01	1	1212-1511	●	●
66	PISTON; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-198-0	01	1	1512-	●
66	PISTON; AIR DRYER	1-48199-198-0	01	1	1512-		●
68	BODY; VALVE	1-48199-352-0	01	1	1212-1511	●	●
68	BODY; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-352-0	01	1	1512-	●
68	BODY; VALVE	1-48199-352-0	01	1	1512-		●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	1212-1511	●	●
70	VALVE; AIR DRYER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48199-105-0	01	1	1512-	●
70	VALVE; AIR DRYER	1-48199-105-0	01	1	1512-		●
