Sayfa 3-20 - Isuzu EPC

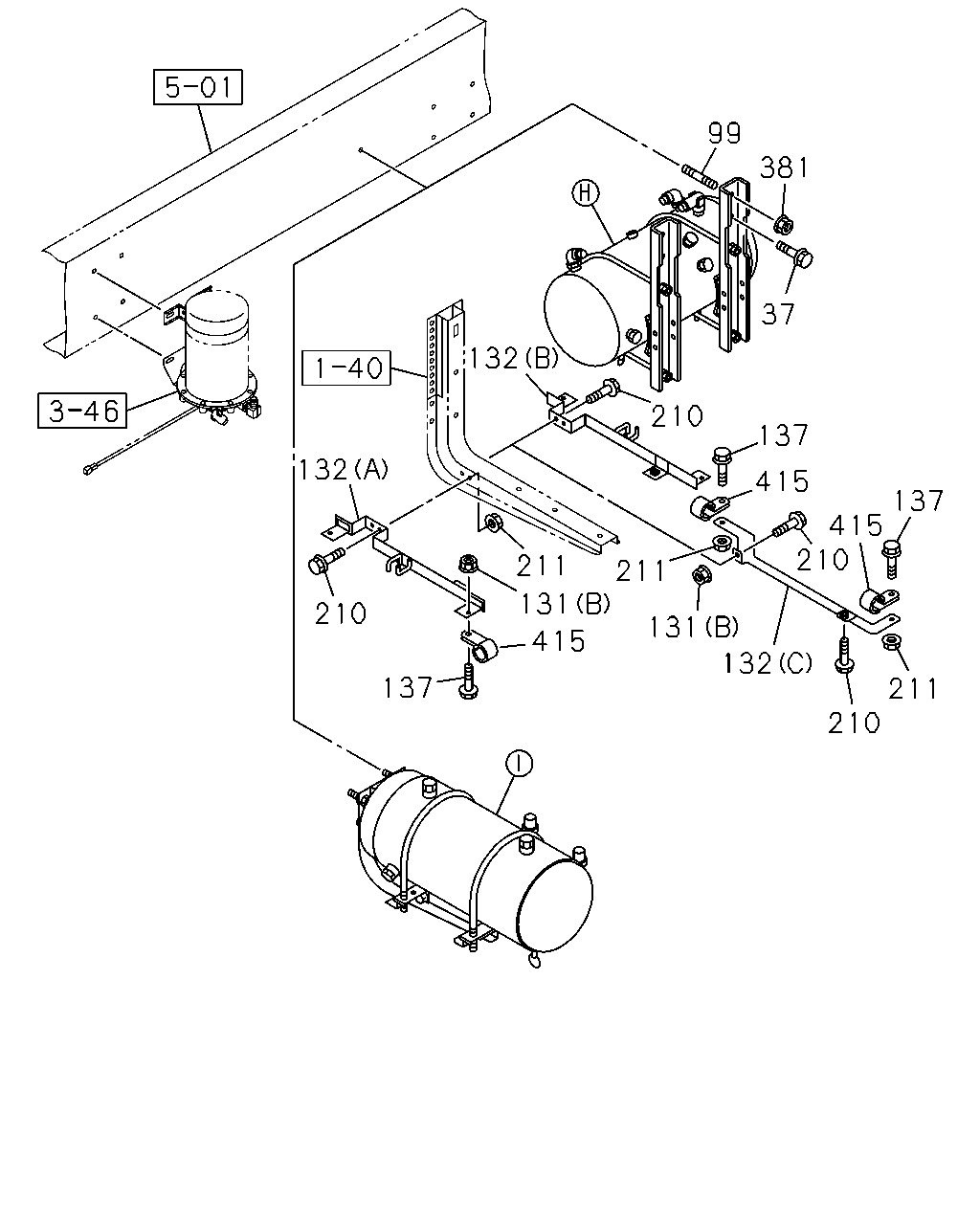

3-20 — AIR TANK (#111276) — 740 parça

132 210 137 415 211 131 131 32 210 415 210 137 415 137 37 381 99 132 210 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK WHEEL BASE 7300MM(73W) M14X50	0-20851-450-0	03	1	1303-	●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1212-1511	●	●
37	BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M12X35 FLANGE	0-28651-235-0	02	1	1512-	●	●
99	PLATE; STUD BOLT M12X30,M12X16 L=56	8-98144-947-0	02	1	1212-1511	●	●
99	PLATE; STUD BOLT WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M12X30,M12X16 L=56	8-98144-947-0	02	1	1512-	●	●
131	NUT; BRKT FIX WHEEL BASE 5700MM(57W) (B) M8 FLANGE	0-91180-108-0	01	1	1512-	●
131	NUT; BRKT FIX (A) M12 FLANGE	0-91180-212-0	02	1	1212-1511	●	●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M12 FLANGE	0-91180-212-0	02	1	1512-		●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W) (B) M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
132	BRACKET; STRING GUIDE WHEEL BASE 5700MM(57W) (C)	8-98333-653-0	01	1	1512-	●
132	BRACKET; STRING GUIDE WHEEL BASE 6400MM(64W) (A)	8-98229-786-0	01	1	1212-	●	●
132	BRACKET; STRING GUIDE WHEEL BASE 6400MM(64W) (B)	8-98229-787-0	01	1	1212-	●	●
137	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
137	BOLT; BRKT WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28650-825-0	06	1	1212-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	1212-1511	●	●
137	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1512-		●
137	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M12X30 FLANGE	0-28651-230-0	02	1	1512-	●
210	BOLT; STRING GUIDE WHEEL BASE 5700MM(57W) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
210	BOLT; STRING GUIDE WHEEL BASE 6400MM(64W) M8X20 FLANGE	0-28650-820-0	04	1	1212-	●	●
211	NUT; STRING GUIDE WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
211	NUT; STRING GUIDE WHEEL BASE 6400MM(64W) M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●
381	NUT; SUB TANK WHEEL BASE 7300MM(73W) M14	0-91110-514-0	04	1	1303-	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1212-1511	●	●
381	NUT; SUB TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●
415	CLIP; STRING GUIDE WHEEL BASE 6400MM(64W) ID=7 L=20	0-95234-635-0	02	1	1212-	●	●
415	CLIP; STRING GUIDE WHEEL BASE 6400MM(64W) ID=16 L=20	0-95235-535-0	02	1	1212-1511	●	●
415	CLIP; STRING GUIDE WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) ID=16 L=20	0-95235-535-0	02	1	1512-	●	●

51 28 192 57 184 184 192 28 192 51 46 36 11 50 50 50 53

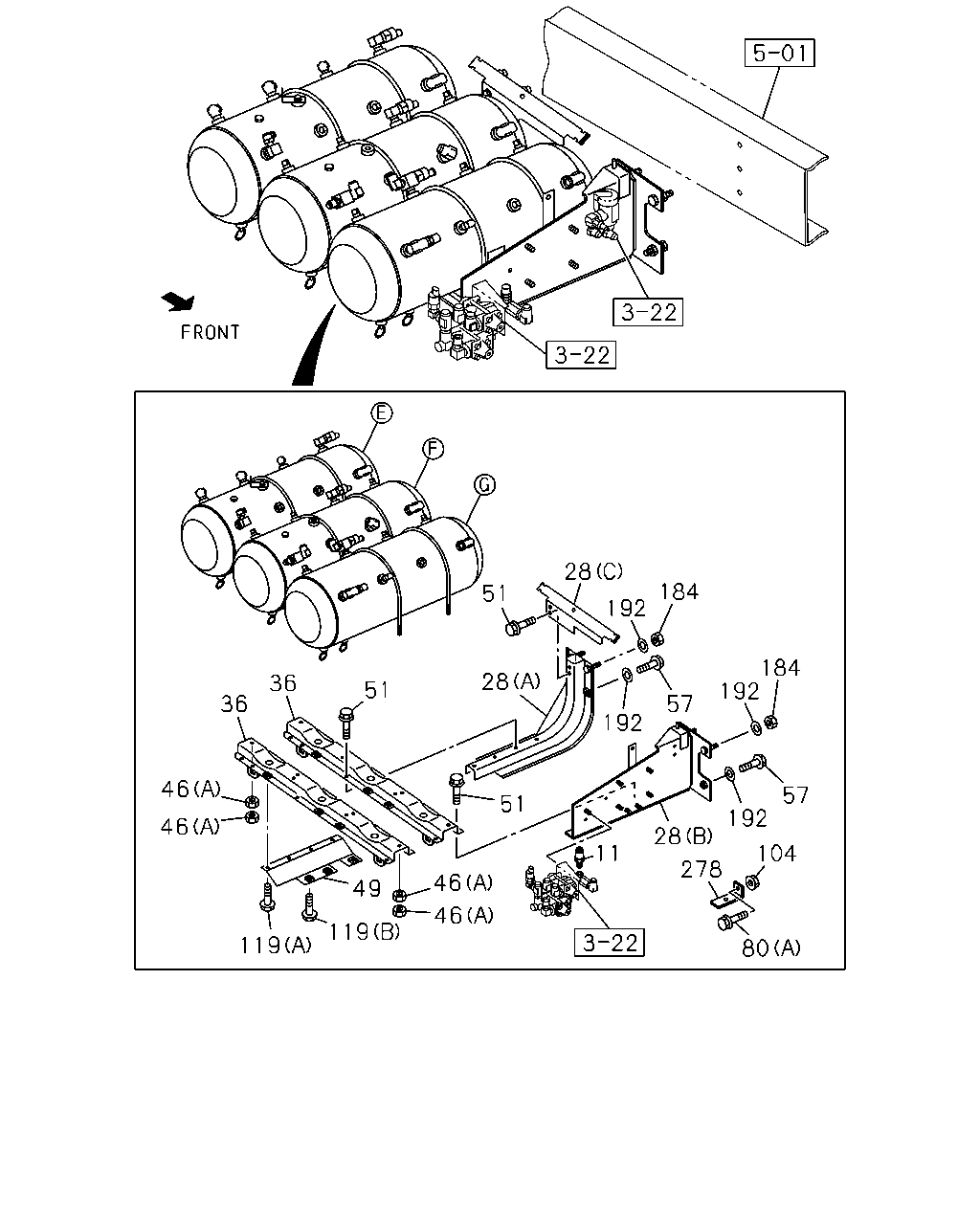

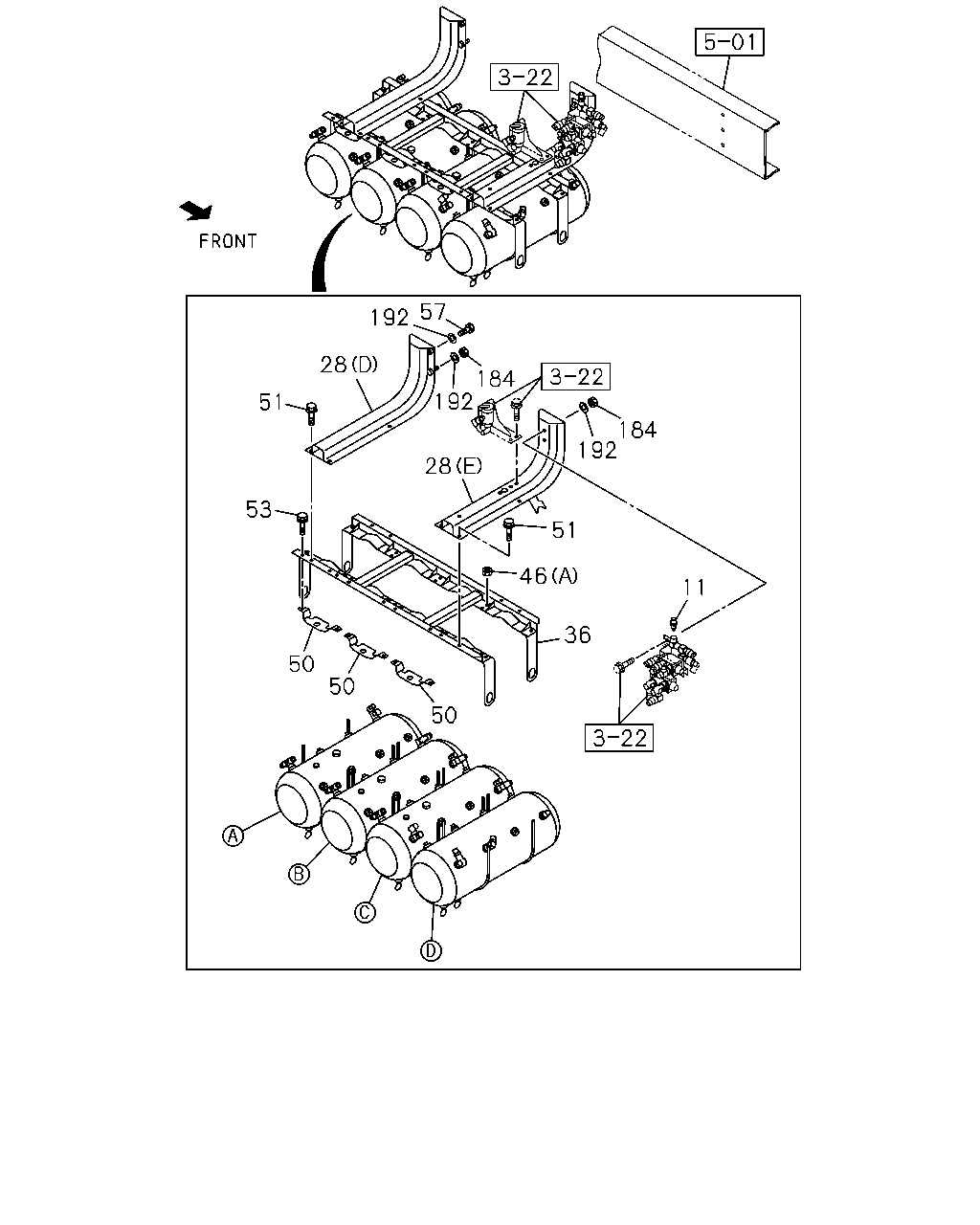

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1212-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5700MM(57W) (D)	8-98333-701-0	01	1	1512-	●
28	BRACKET; AIR TANK WHEEL BASE 5700MM(57W) (E)	8-98333-702-0	01	1	1512-	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97618-088-1	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97618-088-1	01	1	1512-	●
28	BRACKET; AIR TANK (B)	8-98093-562-1	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98093-562-1	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98093-562-1	01	1	1512-	●
28	BRACKET; AIR TANK (C)	8-98112-257-0	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98112-257-0	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C)	8-98112-257-0	01	1	1512-	●
36	STAY; MAIN TANK WHEEL BASE 5700MM(57W)	8-98333-703-0	01	1	1512-	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1212-1511	●	●
36	STAY; MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-97618-091-1	02	1	1512-		●
36	STAY; MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-97618-091-1	02	1	1512-	●
46	NUT; U-BOLT WHEEL BASE 7300MM(73W) (B) M12 FLANGE	0-91180-212-0	01	1	1303-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1212-1511	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	08	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	32	1	1212-1511	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	24	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	24	1	1512-	●
50	STAY; AIR TANK WHEEL BASE 5700MM(57W)	8-98333-683-0	03	1	1512-	●
51	BOLT; STAY TO BRKT WHEEL BASE 5700MM(57W) M10X30 FLANGE	0-28651-030-0	08	1	1512-	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1212-1511	●	●
51	BOLT; STAY TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	10	1	1512-		●
51	BOLT; STAY TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE	0-28650-820-0	10	1	1512-	●
53	BOLT; STAY,AIR TANK WHEEL BASE 5700MM(57W) M8X20 FLANGE	0-28650-820-0	06	1	1512-	●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 5700MM(57W) M14X45	1-09000-764-0	08	1	1512-	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1212-1511	●	●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M14X45	1-09000-764-0	04	1	1512-		●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M14X45	1-09000-764-0	04	1	1512-	●
184	NUT; BRKT WHEEL BASE 5700MM(57W) M14	1-09440-072-0	02	1	1512-	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1212-1511	●	●
184	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M14	1-09440-072-0	04	1	1512-		●
184	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M14	1-09440-072-0	04	1	1512-	●
192	WASHER; LK,BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14.2	0-91510-514-0	08	1	1512-		●
192	WASHER; LK,BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=14.2	0-91510-514-0	08	1	1512-	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1212-1511	●	●
192	WASHER; LK,BRKT WHEEL BASE 5700MM(57W) ID=14.2	0-91510-514-0	10	1	1512-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

1 5 5 136 31 5 126 7 6 126 8 39 10 39 10 5 166 1 10 10 8 8 166 10 5 5 39 10 39 5 8 8 6 5 10 1 8 10 166 0 5 10 39 5 39 8 3 7 6 7

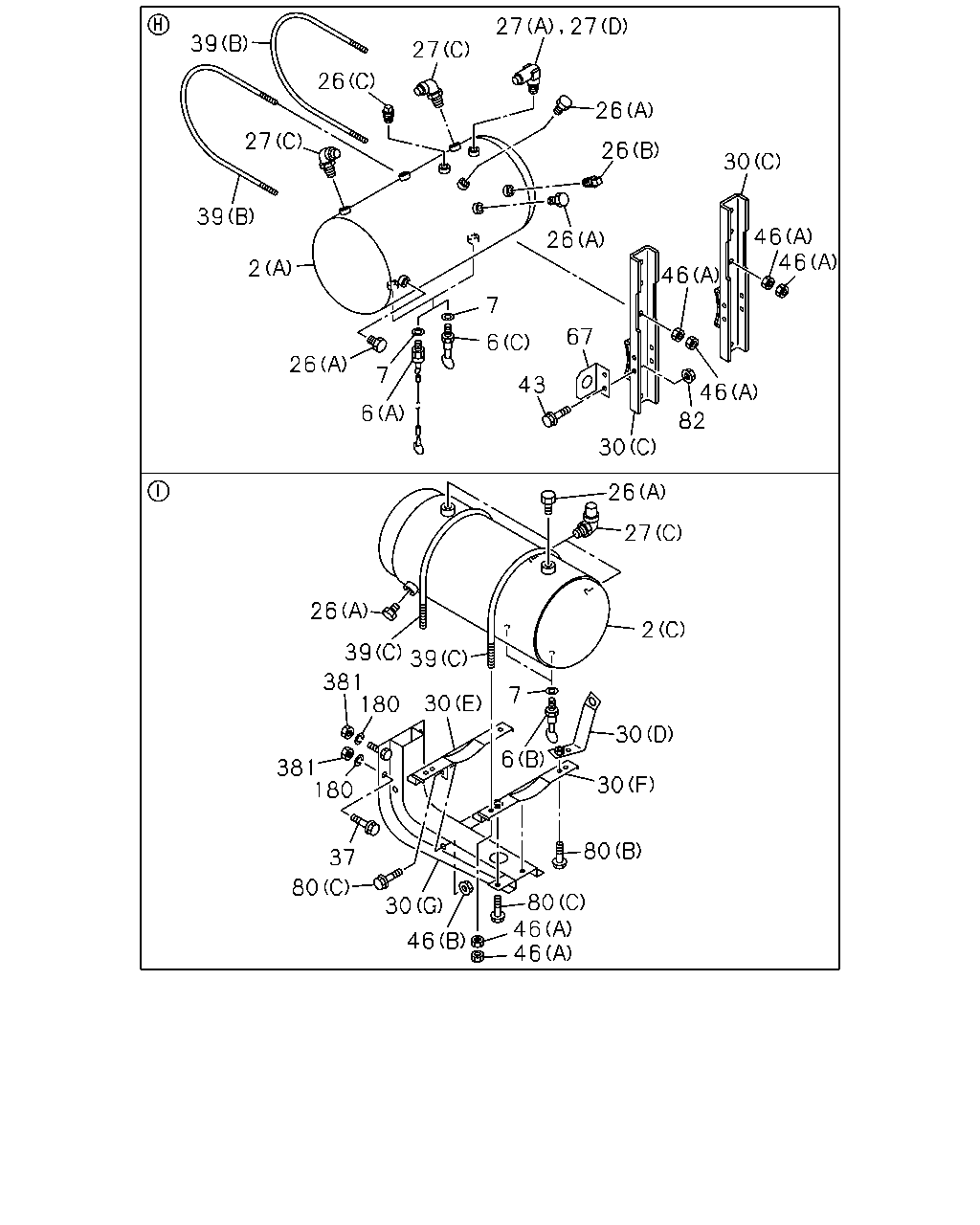

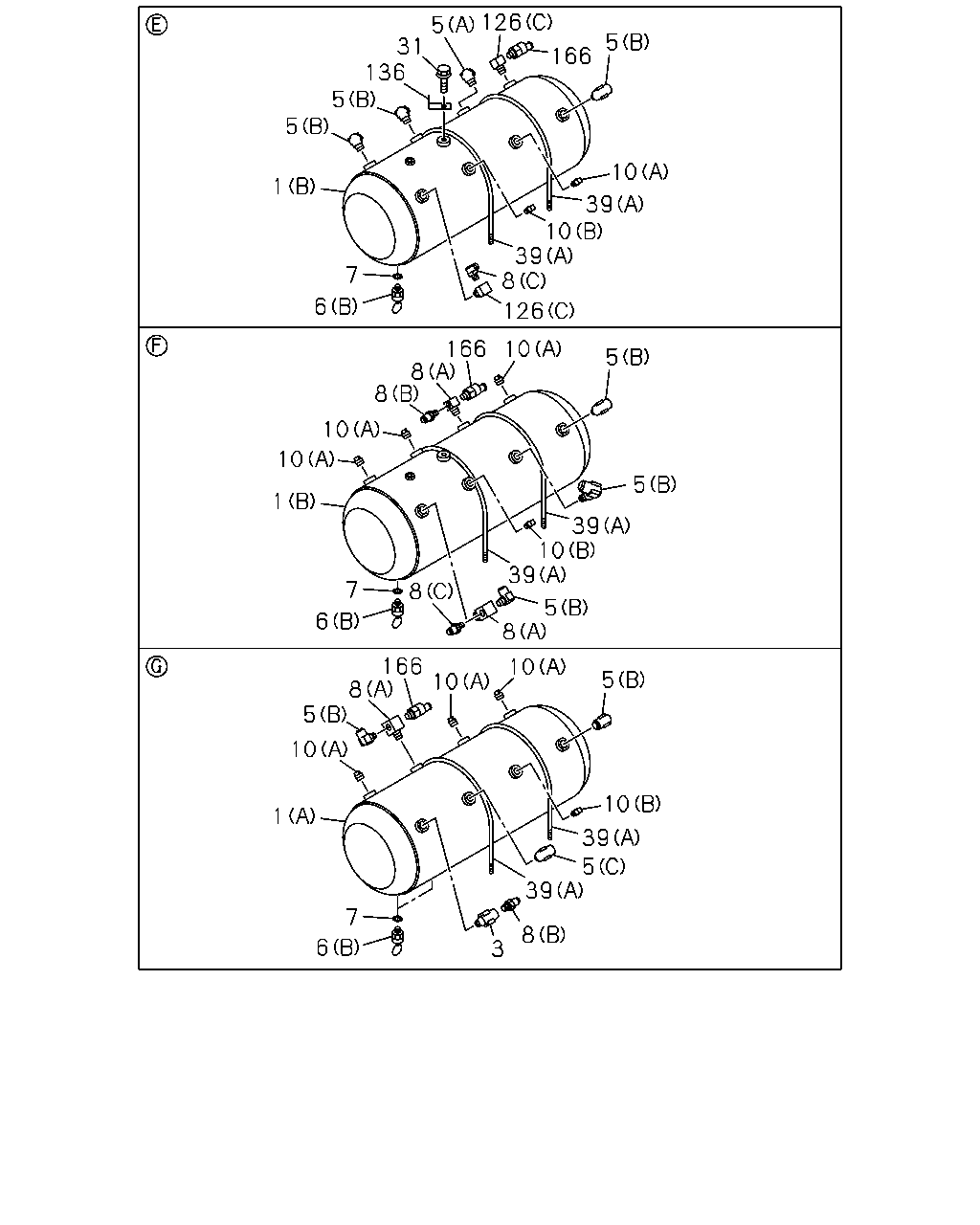

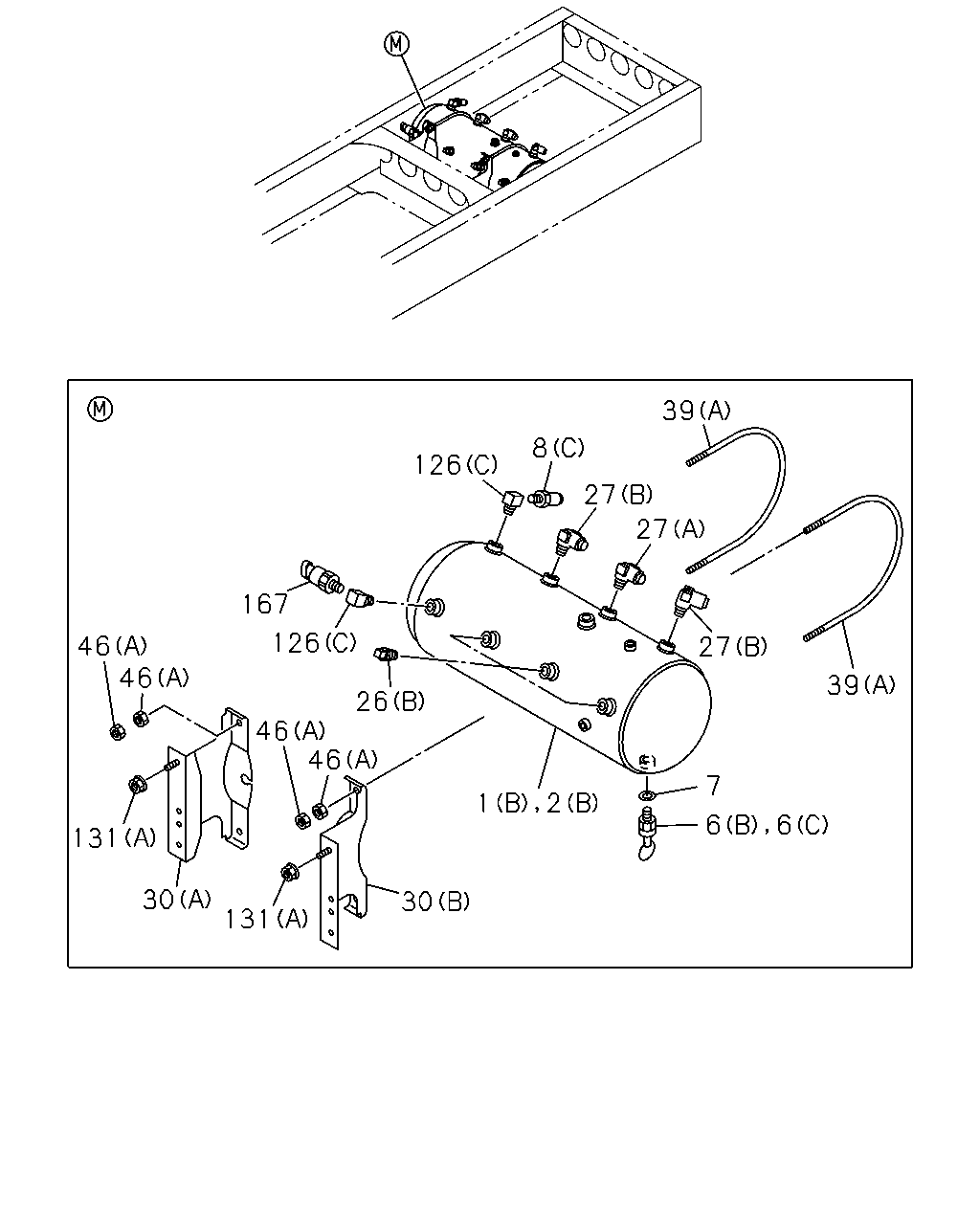

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 5700MM(57W) (B)	8-98187-713-0	03	1	1512-	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-98187-712-0	01	1	1512-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1512-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	02	1	1512-		●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	02	1	1512-	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1212-1511	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48320-031-1	01	1	1512-		●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (D) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (F) DIN12 & R1/4 ELBOW	1-09660-958-0	03	1	1512-	●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-	●
5	UNION; AIR TANK (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (A)	1-48312-012-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B) M14X15	8-98162-878-0	02	1	1303-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	02	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W) (A)	1-48312-012-0	02	1	1212-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	05	1	1212-1511	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48312-015-0	05	1	1512-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) (A)	1-48312-017-0	02	1	1212-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	02	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1512-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	05	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (F) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (G) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (H) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (D)	1-09661-134-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (I) DIN12 & R3/8 ELBOW	1-09661-233-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-	●
8	CONNECTOR; AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-		●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (A) PT3/8	9-09204-517-0	16	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (B) PT1/4	9-99204-513-0	04	1	1512-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	07	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8	9-09204-517-0	07	1	1512-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	03	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT1/4	9-99204-513-0	03	1	1512-	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	02	1	1212-1511	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
31	BOLT; BRKT TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	06	1	1512-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 7300MM(73W) (C) L=303	1-48317-087-2	02	1	1303-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	08	1	1212-1511	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1512-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1212-1311	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1312-1511		●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1312-1511	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-		●
39	U-BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (E) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (F) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1512-	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	04	1	1212-	●	●
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1212-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1212-1511	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-		●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-	●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	02	1	1212-1511	●	●
136	BRACKET; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=55 B=25	1-47478-439-0	02	1	1512-		●
136	BRACKET; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=55 B=25	1-47478-439-0	02	1	1512-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	03	1	1212-1511	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	03	1	1512-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) STAMP 5.5	8-97609-249-0	03	1	1512-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

39 39 2 26 6 7 7 27 26 27 27 27 26 26 26 46 30 46 46 30 43 6 67 82 46 26 27 2 30 30 80 80 46 30 80 381 180 37 381 26 39 39 180 30 6 7 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR WHEEL BASE 7300MM(73W) (C)	1-48371-427-0	01	1	1303-	●
2	TANK; AIR (A)	1-48371-450-1	01	1	1212-1311	●	●
2	TANK; AIR (A)	1-48371-450-1	01	1	1312-1511		●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1312-1511	●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1512-		●
2	TANK; AIR WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1512-	●
2	TANK; AIR (B)	8-98187-713-0	01	1	1212-1511	●	●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1512-		●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (A)	1-48312-012-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B) M14X15	8-98162-878-0	02	1	1303-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	02	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W) (A)	1-48312-012-0	02	1	1212-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	05	1	1212-1511	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48312-015-0	05	1	1512-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) (A)	1-48312-017-0	02	1	1212-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	02	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1512-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	05	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1512-	●
26	PLUG; SUB AIR TANK (A) M22	1-09661-502-0	03	1	1212-1511	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M22	1-09661-502-0	03	1	1512-		●
26	PLUG; SUB AIR TANK (A) M22	1-09661-502-0	03	1	1512-	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	01	1	1212-1311	●	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	01	1	1312-1511		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1312-1511	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1512-	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	03	1	1212-1511	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	03	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT3/8	9-09204-517-0	03	1	1512-	●
26	PLUG; SUB AIR TANK (C) PT1/4	9-99204-513-0	01	1	1212-1311	●	●
26	PLUG; SUB AIR TANK (C) PT1/4	9-99204-513-0	01	1	1312-1511		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1312-1511	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (D)	1-48316-014-1	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (E)	1-48316-026-0	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (F)	1-48317-994-2	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (G)	8-97633-497-0	01	1	1303-	●
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1212-1511	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97618-390-1	01	1	1512-	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1212-1511	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-97618-391-1	01	1	1512-	●
30	BRACKET; AIR TANK,SUB (C)	8-98085-690-0	02	1	1212-1311	●	●
30	BRACKET; AIR TANK,SUB (C)	8-98085-690-0	02	1	1312-1511		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1312-1511	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1512-	●
37	BOLT; AIR TANK WHEEL BASE 7300MM(73W) M14X50	0-20851-450-0	03	1	1303-	●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1212-1511	●	●
37	BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M12X35 FLANGE	0-28651-235-0	02	1	1512-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	06	1	1512-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 7300MM(73W) (C) L=303	1-48317-087-2	02	1	1303-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	08	1	1212-1511	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1512-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1212-1311	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1312-1511		●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1312-1511	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-		●
39	U-BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	02	1	1212-1311	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	02	1	1312-1511		●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1312-1511	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1512-		●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	02	1	1512-	●
46	NUT; U-BOLT WHEEL BASE 7300MM(73W) (B) M12 FLANGE	0-91180-212-0	01	1	1303-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1212-1511	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	08	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	32	1	1212-1511	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	24	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	24	1	1512-	●
67	STAY; SUB TANK WHEEL BASE 5700MM(57W)	8-98333-904-0	01	1	1512-	●
67	STAY; SUB TANK	8-98214-489-0	01	1	1212-1311	●	●
67	STAY; SUB TANK	8-98214-489-0	01	1	1312-		●
67	STAY; SUB TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98214-489-0	01	1	1312-	●
80	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
80	BOLT; BRKT WHEEL BASE 7300MM(73W) (C) M12X25 FLANGE	0-28651-225-0	04	1	1303-	●
80	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1212-1511	●	●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	1212-1311	●	●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	1312-1511		●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1312-1511	●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
180	WASHER; LK WHEEL BASE 7300MM(73W) ID=14.2	0-91510-514-0	04	1	1303-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●
381	NUT; SUB TANK WHEEL BASE 7300MM(73W) M14	0-91110-514-0	04	1	1303-	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1212-1511	●	●
381	NUT; SUB TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1512-	●	●

10 10 10 8 8 1 7 6 5 39 10 8 10 39 5 8 8 10 10 8 10 1 7 7 6 6 39 8 3 13 5 8 10 39 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 5700MM(57W) (B)	8-98187-713-0	03	1	1512-	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-98187-712-0	01	1	1512-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1512-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	02	1	1512-		●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	02	1	1512-	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1212-1511	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48320-031-1	01	1	1512-		●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (D) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (F) DIN12 & R1/4 ELBOW	1-09660-958-0	03	1	1512-	●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-	●
5	UNION; AIR TANK (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (A)	1-48312-012-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B) M14X15	8-98162-878-0	02	1	1303-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	02	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W) (A)	1-48312-012-0	02	1	1212-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	05	1	1212-1511	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48312-015-0	05	1	1512-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) (A)	1-48312-017-0	02	1	1212-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	02	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1512-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	05	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (F) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (G) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (H) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (D)	1-09661-134-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (I) DIN12 & R3/8 ELBOW	1-09661-233-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-	●
8	CONNECTOR; AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-		●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (A) PT3/8	9-09204-517-0	16	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (B) PT1/4	9-99204-513-0	04	1	1512-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	07	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8	9-09204-517-0	07	1	1512-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	03	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT1/4	9-99204-513-0	03	1	1512-	●
13	ADAPTER; NYLON TUBE WHEEL BASE 5700MM(57W) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	01	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	06	1	1512-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 7300MM(73W) (C) L=303	1-48317-087-2	02	1	1303-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	08	1	1212-1511	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1512-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1212-1311	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1312-1511		●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1312-1511	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-		●
39	U-BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

126 5 10 10 126 8 1 7 6 39 10 10 10 10 39 5 8 10 10 8 8 1 7 6 39 10 10 10 8 8 5 39 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 5700MM(57W) (B)	8-98187-713-0	03	1	1512-	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-98187-712-0	01	1	1512-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1512-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	02	1	1512-		●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	02	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (D) PT3/8 & PT1/4 ELBOW	1-09660-709-0	01	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1512-	●
5	UNION; AIR TANK WHEEL BASE 5700MM(57W) (F) DIN12 & R1/4 ELBOW	1-09660-958-0	03	1	1512-	●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	1512-	●
5	UNION; AIR TANK (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
5	UNION; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (A)	1-48312-012-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B) M14X15	8-98162-878-0	02	1	1303-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	02	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W) (A)	1-48312-012-0	02	1	1212-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	05	1	1212-1511	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48312-015-0	05	1	1512-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) (A)	1-48312-017-0	02	1	1212-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	02	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1512-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	05	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (F) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (G) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (H) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (D)	1-09661-134-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (I) DIN12 & R3/8 ELBOW	1-09661-233-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-	●
8	CONNECTOR; AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-		●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (A) PT3/8	9-09204-517-0	16	1	1512-	●
10	PLUG; AIR TANK WHEEL BASE 5700MM(57W) (B) PT1/4	9-99204-513-0	04	1	1512-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	07	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8	9-09204-517-0	07	1	1512-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	03	1	1212-1511	●	●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	03	1	1512-		●
10	PLUG; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT1/4	9-99204-513-0	03	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	06	1	1512-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 7300MM(73W) (C) L=303	1-48317-087-2	02	1	1303-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	08	1	1212-1511	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1512-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1212-1311	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1312-1511		●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1312-1511	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-		●
39	U-BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (E) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (F) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1512-	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	04	1	1212-	●	●
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1212-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1212-1511	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-		●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

36 36 46 46 119 28 51 51 51 192 192 184 57 192 104 28 27 80 11 46 46 119 28 192 184 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1212-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
28	BRACKET; AIR TANK WHEEL BASE 5700MM(57W) (D)	8-98333-701-0	01	1	1512-	●
28	BRACKET; AIR TANK WHEEL BASE 5700MM(57W) (E)	8-98333-702-0	01	1	1512-	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97618-088-1	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97618-088-1	01	1	1512-	●
28	BRACKET; AIR TANK (B)	8-98093-562-1	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98093-562-1	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98093-562-1	01	1	1512-	●
28	BRACKET; AIR TANK (C)	8-98112-257-0	01	1	1212-1511	●	●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98112-257-0	01	1	1512-		●
28	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C)	8-98112-257-0	01	1	1512-	●
36	STAY; MAIN TANK WHEEL BASE 5700MM(57W)	8-98333-703-0	01	1	1512-	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1212-1511	●	●
36	STAY; MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-97618-091-1	02	1	1512-		●
36	STAY; MAIN TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-97618-091-1	02	1	1512-	●
46	NUT; U-BOLT WHEEL BASE 7300MM(73W) (B) M12 FLANGE	0-91180-212-0	01	1	1303-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1212-1511	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	08	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	32	1	1212-1511	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	24	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	24	1	1512-	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1212-1511	●	●
49	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98110-683-0	01	1	1512-		●
49	BRACKET; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-98110-683-0	01	1	1512-	●
51	BOLT; STAY TO BRKT WHEEL BASE 5700MM(57W) M10X30 FLANGE	0-28651-030-0	08	1	1512-	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1212-1511	●	●
51	BOLT; STAY TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	10	1	1512-		●
51	BOLT; STAY TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE	0-28650-820-0	10	1	1512-	●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 5700MM(57W) M14X45	1-09000-764-0	08	1	1512-	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1212-1511	●	●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M14X45	1-09000-764-0	04	1	1512-		●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M14X45	1-09000-764-0	04	1	1512-	●
80	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-	●
80	BOLT; BRKT WHEEL BASE 7300MM(73W) (C) M12X25 FLANGE	0-28651-225-0	04	1	1303-	●
80	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1212-1511	●	●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
80	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1212-1511	●	●
104	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	1512-		●
104	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	01	1	1512-	●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1212-1511	●	●
119	BOLT; STAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-		●
119	BOLT; STAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1212-1511	●	●
119	BOLT; STAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M8X25 FLANGE	0-28650-825-0	03	1	1512-		●
119	BOLT; STAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M8X25 FLANGE	0-28650-825-0	03	1	1512-	●
184	NUT; BRKT WHEEL BASE 5700MM(57W) M14	1-09440-072-0	02	1	1512-	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1212-1511	●	●
184	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M14	1-09440-072-0	04	1	1512-		●
184	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M14	1-09440-072-0	04	1	1512-	●
192	WASHER; LK,BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14.2	0-91510-514-0	08	1	1512-		●
192	WASHER; LK,BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=14.2	0-91510-514-0	08	1	1512-	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1212-1511	●	●
192	WASHER; LK,BRKT WHEEL BASE 5700MM(57W) ID=14.2	0-91510-514-0	10	1	1512-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

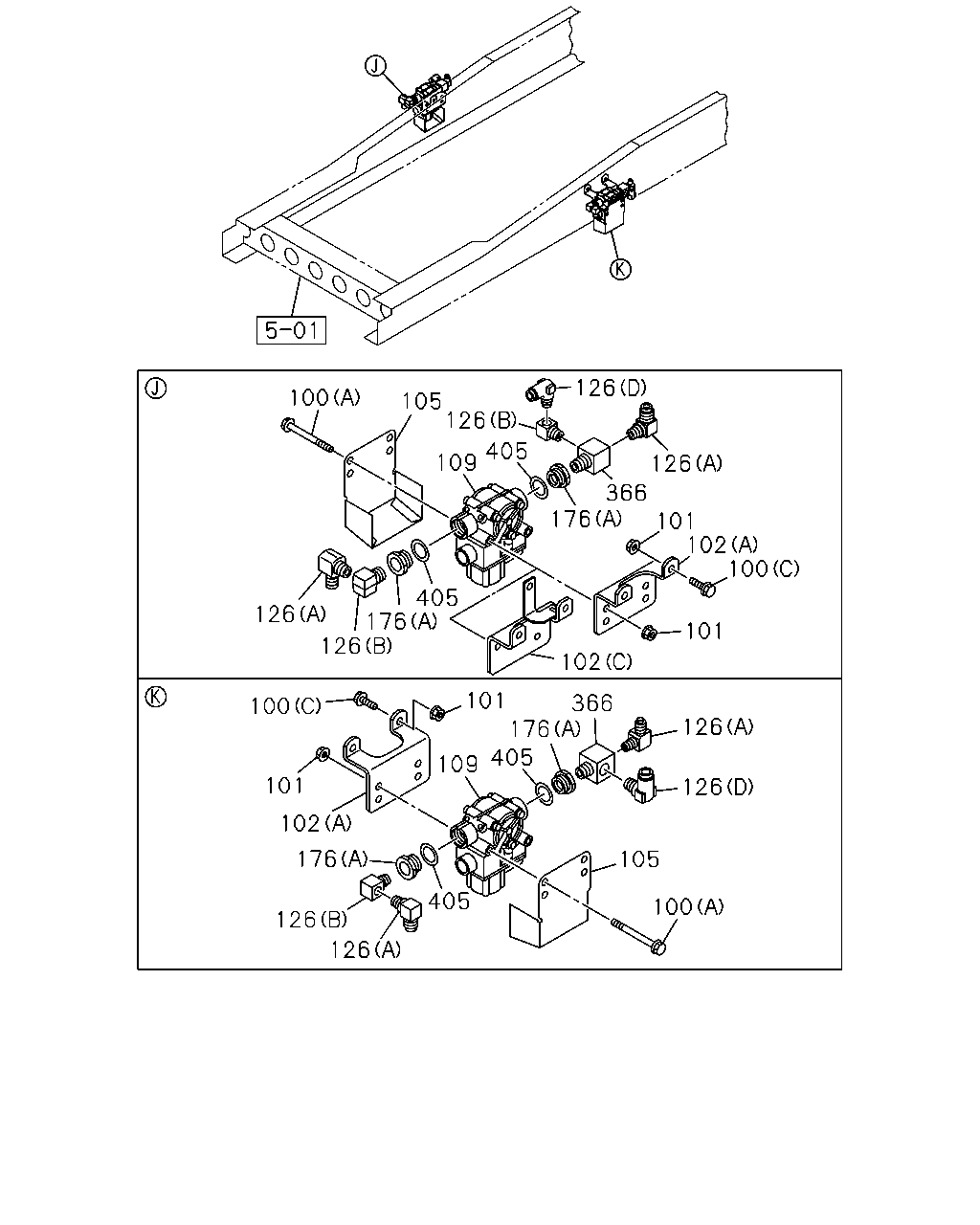

100 105 126 126 405 176 109 102 405 126 126 126 176 101 366 102 100 101 100 101 102 176 126 101 109 405 105 405 366 176 126 126 100 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1212-1504	●	●
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	04	1	1505-	●	●
100	BOLT; MODULATOR (B) M8X140 FLANGE	0-28055-814-0	02	1	1212-	●	●
100	BOLT; MODULATOR (C) M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	08	1	1212-	●	●
102	BRACKET; MODULATOR (A)	8-98302-564-0	01	1	1505-	●	●
102	BRACKET; MODULATOR (A)	1-47479-635-0	02	1	1212-1504	●	●
102	BRACKET; MODULATOR (C)	8-98302-563-0	01	1	1505-	●	●
102	BRACKET; MODULATOR (B)	8-98034-539-2	01	1	1212-1504	●	●
102	BRACKET; MODULATOR (B)	8-98273-170-0	01	1	1505-	●	●
105	COVER; MODULATOR	8-98302-925-0	01	1	1505-	●	●
105	COVER; MODULATOR	1-47471-354-0	02	1	1212-1504	●	●
105	COVER; MODULATOR	8-98302-924-0	01	1	1505-	●	●
109	MODULATOR; FRT	1-48240-115-0	02	1	1212-1504	●	●
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (E) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (F) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1512-	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	04	1	1212-	●	●
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1212-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1212-1511	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-		●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1212-	●	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1212-	●	●
176	ADAPTER (B) PT3/8	1-09664-210-0	02	1	1212-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●
366	CONNECTOR; NYLON TUBE PT3/8 3WAY	1-09661-300-0	02	1	1212-	●	●
405	GASKET ID=22.5	9-09571-422-0	04	1	1212-	●	●

126 8 39 27 27 27 39 7 167 46 46 131 30 131 30 46 46 126 26 1 6 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 5700MM(57W) (B)	8-98187-713-0	03	1	1512-	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-98187-712-0	01	1	1512-		●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1512-	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1212-1511	●	●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	02	1	1512-		●
1	TANK ASM; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	02	1	1512-	●
2	TANK; AIR WHEEL BASE 7300MM(73W) (C)	1-48371-427-0	01	1	1303-	●
2	TANK; AIR (A)	1-48371-450-1	01	1	1212-1311	●	●
2	TANK; AIR (A)	1-48371-450-1	01	1	1312-1511		●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1312-1511	●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1512-		●
2	TANK; AIR WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (A)	1-48371-450-1	01	1	1512-	●
2	TANK; AIR (B)	8-98187-713-0	01	1	1212-1511	●	●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1512-		●
2	TANK; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-98187-713-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (A)	1-48312-012-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	01	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5700MM(57W) (C)	1-48312-017-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B) M14X15	8-98162-878-0	02	1	1303-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	02	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W) (A)	1-48312-012-0	02	1	1212-	●	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-015-0	05	1	1212-1511	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48312-015-0	05	1	1512-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-48312-015-0	05	1	1512-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W) (A)	1-48312-017-0	02	1	1212-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	02	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1512-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1212-1511	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	05	1	1512-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (F) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (G) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (H) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (D)	1-09661-134-0	01	1	1512-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5700MM(57W) (I) DIN12 & R3/8 ELBOW	1-09661-233-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	03	1	1512-	●
8	CONNECTOR; AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-		●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1512-	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1212-1511	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-		●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1512-	●
26	PLUG; SUB AIR TANK (A) M22	1-09661-502-0	03	1	1212-1511	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M22	1-09661-502-0	03	1	1512-		●
26	PLUG; SUB AIR TANK (A) M22	1-09661-502-0	03	1	1512-	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	01	1	1212-1311	●	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	01	1	1312-1511		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1312-1511	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	01	1	1512-	●
26	PLUG; SUB AIR TANK (B) PT3/8	9-09204-517-0	03	1	1212-1511	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8	9-09204-517-0	03	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT3/8	9-09204-517-0	03	1	1512-	●
26	PLUG; SUB AIR TANK (C) PT1/4	9-99204-513-0	01	1	1212-1311	●	●
26	PLUG; SUB AIR TANK (C) PT1/4	9-99204-513-0	01	1	1312-1511		●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1312-1511	●
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1512-		●
26	PLUG; SUB AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (C) PT1/4	9-99204-513-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-1311	●
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●	●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511		●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1312-1511	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1512-	●
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-		●
27	UNION; ELBOW,AIR TANK (C) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1512-	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
27	UNION; ELBOW,AIR TANK A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (D)	1-48316-014-1	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (E)	1-48316-026-0	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (F)	1-48317-994-2	01	1	1303-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7300MM(73W) (G)	8-97633-497-0	01	1	1303-	●
30	BRACKET; AIR TANK,SUB (A)	8-97618-390-1	01	1	1212-1511	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97618-390-1	01	1	1512-	●
30	BRACKET; AIR TANK,SUB (B)	8-97618-391-1	01	1	1212-1511	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	8-97618-391-1	01	1	1512-	●
30	BRACKET; AIR TANK,SUB (C)	8-98085-690-0	02	1	1212-1311	●	●
30	BRACKET; AIR TANK,SUB (C)	8-98085-690-0	02	1	1312-1511		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1312-1511	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1512-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (C)	8-98085-690-0	02	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	06	1	1512-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1512-	●
39	U-BOLT; AIR TANK WHEEL BASE 7300MM(73W) (C) L=303	1-48317-087-2	02	1	1303-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	08	1	1212-1511	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1512-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1212-1311	●	●
39	U-BOLT; AIR TANK (B)	1-48317-675-0	02	1	1312-1511		●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1312-1511	●
39	U-BOLT; AIR TANK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-		●
39	U-BOLT; AIR TANK WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (B)	1-48317-675-0	02	1	1512-	●
46	NUT; U-BOLT WHEEL BASE 7300MM(73W) (B) M12 FLANGE	0-91180-212-0	01	1	1303-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1212-1511	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	08	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1512-	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	32	1	1212-1511	●	●
46	NUT; U-BOLT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8	0-91110-508-0	24	1	1512-		●
46	NUT; U-BOLT (A) M8	0-91110-508-0	24	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (E) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (F) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1512-	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	04	1	1212-	●	●
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1212-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1212-1511	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-		●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-	●
131	NUT; BRKT FIX WHEEL BASE 5700MM(57W) (B) M8 FLANGE	0-91180-108-0	01	1	1512-	●
131	NUT; BRKT FIX (A) M12 FLANGE	0-91180-212-0	02	1	1212-1511	●	●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M12 FLANGE	0-91180-212-0	02	1	1512-		●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M12 FLANGE	0-91180-212-0	02	1	1512-	●
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W) (B) M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1212-1511	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1512-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) STAMP 5.5	8-97609-249-0	01	1	1512-	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

126 126 126 176 369 126 369 101 352 352 100 107 103 176 257 257 107 176 176 102 369 176 107 101 352 352 107 176 100 103 369 257 257 126 352 352 126 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1212-1504	●	●
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	04	1	1505-	●	●
100	BOLT; MODULATOR (B) M8X140 FLANGE	0-28055-814-0	02	1	1212-	●	●
100	BOLT; MODULATOR (C) M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	08	1	1212-	●	●
102	BRACKET; MODULATOR (A)	8-98302-564-0	01	1	1505-	●	●
102	BRACKET; MODULATOR (A)	1-47479-635-0	02	1	1212-1504	●	●
102	BRACKET; MODULATOR (C)	8-98302-563-0	01	1	1505-	●	●
102	BRACKET; MODULATOR (B)	8-98034-539-2	01	1	1212-1504	●	●
102	BRACKET; MODULATOR (B)	8-98273-170-0	01	1	1505-	●	●
103	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1212-		●
103	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-	●
107	MODULATOR; RR	1-48240-115-0	02	1	1212-1504	●	●
107	MODULATOR; RR	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (E) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
126	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (F) DIN12 & R3/8 ELBOW	1-09661-233-0	01	1	1512-	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	04	1	1212-	●	●
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1212-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1212-1511	●	●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-		●
126	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	04	1	1512-	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-	●	●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
126	CONNECTOR; ELBOW (D) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1212-	●	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1212-	●	●
176	ADAPTER (B) PT3/8	1-09664-210-0	02	1	1212-	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	02	1	1212-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-		●
352	CONNECTOR; STRAIGHT (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1212-	●	●
369	CONNECTOR; 3WAY PT3/8 3WAY	1-09661-300-0	02	1	1212-	●	●

241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1212-	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1212-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1212-1511	●	●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=75	1-47478-323-0	01	1	1512-		●
278	BRACKET; CONNECTOR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=75	1-47478-323-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
