4-01 — PROPELLER SHAFT (#11127) — 57 parça

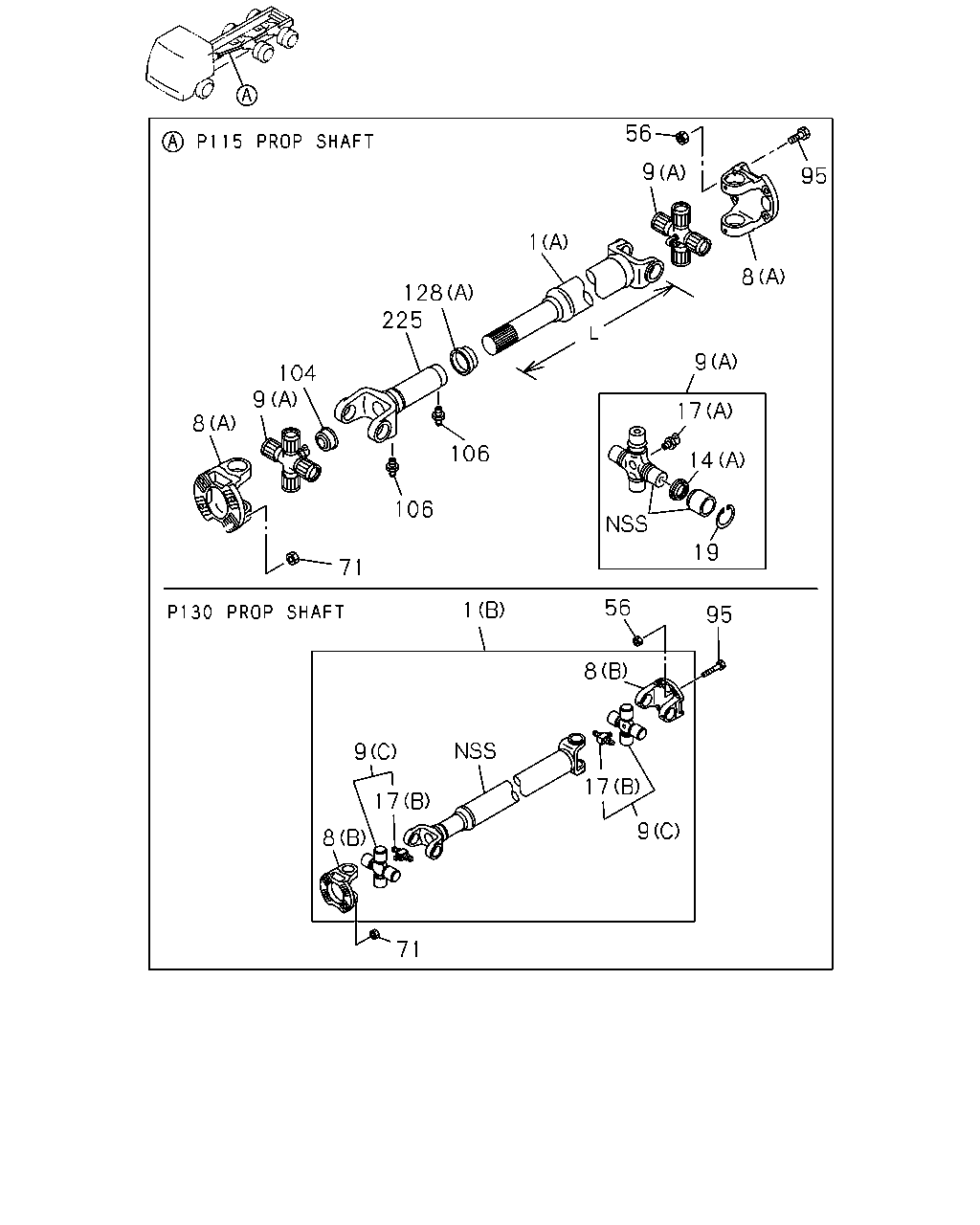

56 95 1 8 128 225 9 104 9 17 8 106 14 106 19 71 56 1 95 8 9 17 17 9 8 71 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP FULLER M/T<X9B> P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> (A) L=900	1-37124-770-1	01	1	0106-
1	SHAFT; PROP FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. RR TIRE 12.00-20<98X> (A) L=940	1-37124-771-1	01	1	0106-
1	SHAFT; PROP FULLER M/T<X9B> P130 PROP SHAFT<BEE> (B) L=1280	1-37124-507-1	01	1	0106-0210
1	SHAFT; PROP FULLER M/T<X9B> P130 PROP SHAFT<BEE> (B) L=1265	1-37125-167-0	01	1	0211-
1	SHAFT; PROP TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> (A) L=875	1-37124-586-1	01	1	0106-
1	SHAFT; PROP TRANSMISSION-ZF 16S221 OD(Y1U) P130 PROP SHAFT<BEE> (B) L=1060	1-37124-726-1	01	1	0106-0210
1	SHAFT; PROP TRANSMISSION-ZF 16S221 OD(Y1U) P130 PROP SHAFT<BEE> (B) L=1120	1-37125-165-0	01	1	0211-
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> RR TIRE 12.00-20<98X> (A) L=750	1-37124-769-1	01	1	0106-
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> EXC. RR TIRE 12.00-20<98X> (A) L=795	1-37124-912-0	01	1	0106-0112
1	SHAFT; PROP 6WG1 TC-C(72L) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> (A) L=795	1-37124-912-0	01	1	0106-0112
1	SHAFT; PROP 6WA1 TC-C(55L) TRANSMISSION-ZF 16S221 OD(Y1U) P115 PROP SHAFT<C5X> EXC. RR TIRE 12.00-20<98X> (A) L=795	1-37124-912-0	01	1	0201-
8	YOKE; FLANGE,PROP SHAFT P130 PROP SHAFT<BEE> (B)	1-37211-083-0	02	1	0106-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X> (A)	1-37211-077-1	02	1	0106-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT<BEE> (C)	1-37300-118-0	02	1	0106-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0106-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A)	1-37300-112-0	AR	1	0106-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0106-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X> (A)	1-37249-133-0	AR	1	0106-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT<BEE> (B)	1-37319-013-0	02	1	0106-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0106-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.2	1-09587-103-1	AR	1	0106-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P115 PROP SHAFT<C5X> T=2.17	1-09587-107-0	AR	1	0106-
56	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0106-
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0106-
95	BOLT; YOKE,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50	1-09000-645-0	04	1	0106-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	0106-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0106-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0106-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	0106-0312
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0401-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-020-0	01	1	0106-
225	YOKE; SLEEVE,PROP SHAFT P115 PROP SHAFT<C5X> L=339	1-37241-140-0	01	1	0106-

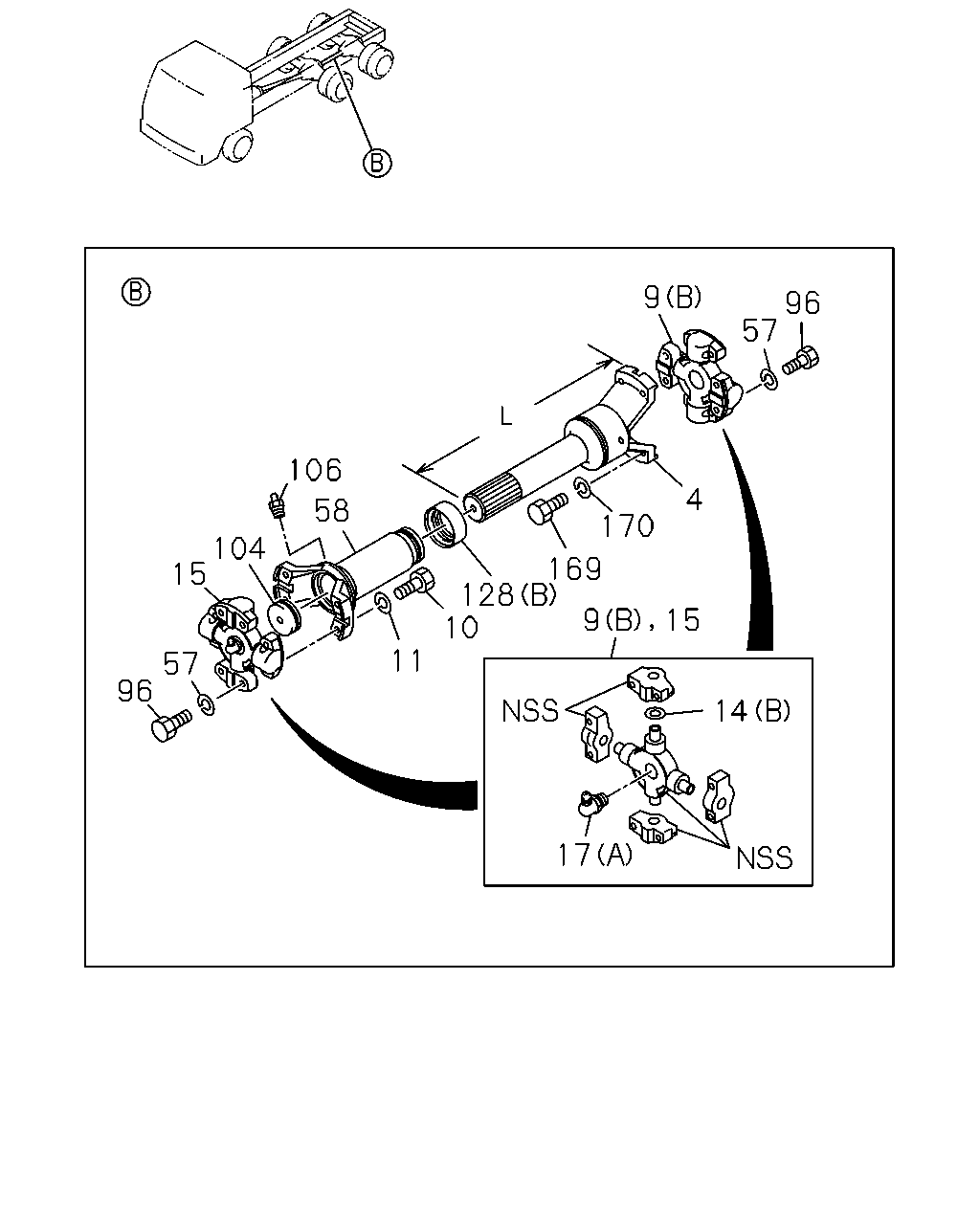

9 96 57 106 4 58 170 104 15 169 128 10 9 15 11 57 96 14 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; PROP RR TIRE 12.00-20<98X> L=418	1-37171-129-3	01	1	0106-
4	SHAFT; PROP EXC. RR TIRE 12.00-20<98X> L=348	1-37171-127-2	01	1	0106-
9	JOURNAL ASM; PROP SHAFT P130 PROP SHAFT<BEE> (C)	1-37300-118-0	02	1	0106-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0106-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A)	1-37300-112-0	AR	1	0106-
10	BOLT; UJT M12X45	9-91066-245-0	04	1	0106-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0106-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0106-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X> (A)	1-37249-133-0	AR	1	0106-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0106-
17	NIPPLE; GREASE,PROP SHAFT P130 PROP SHAFT<BEE> (B)	1-37319-013-0	02	1	0106-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	0106-
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	0106-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0106-
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0106-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	0106-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0106-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0106-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	0106-0312
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0401-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-020-0	01	1	0106-
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0106-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	0106-
