◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#111262) — 14 parça

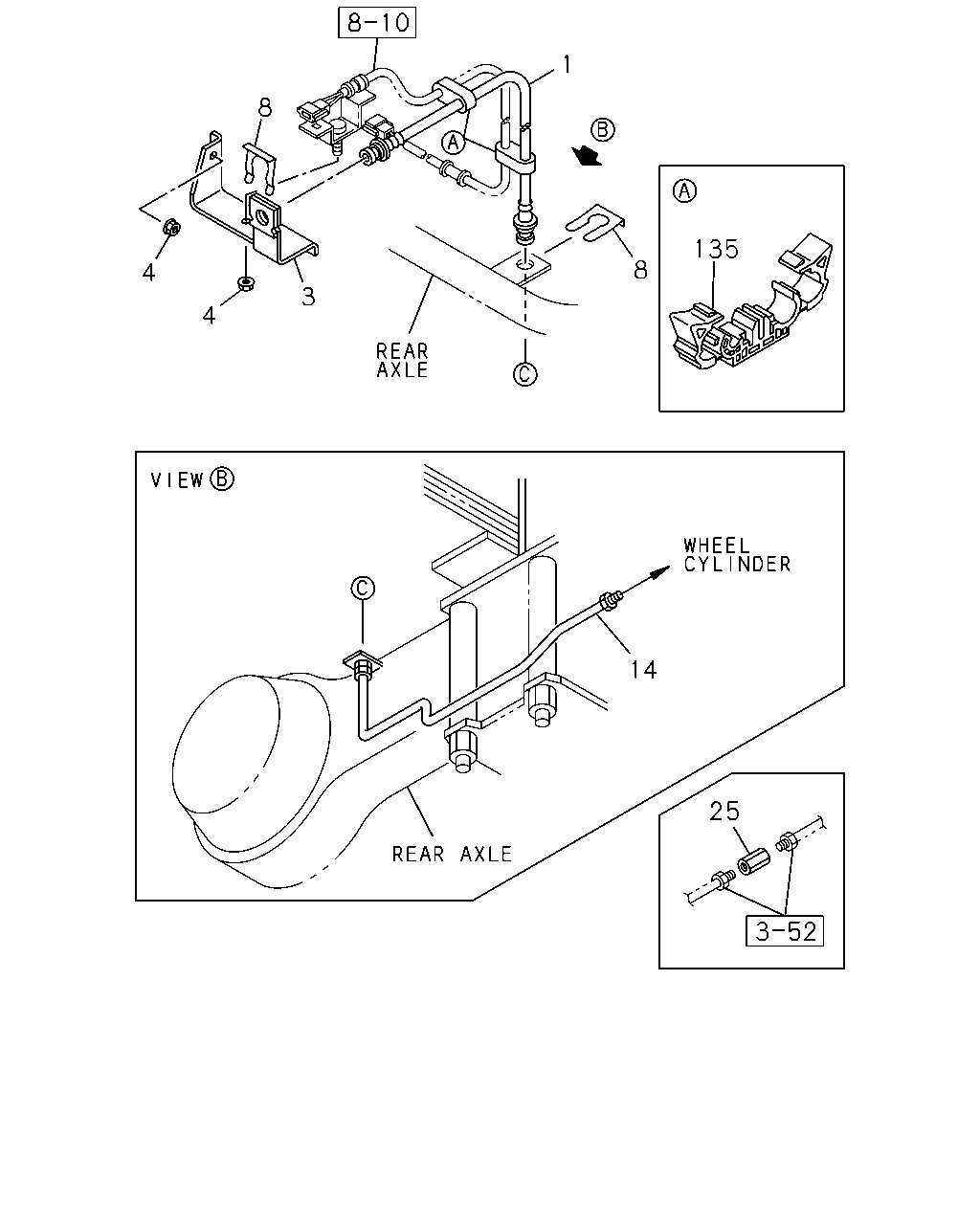

çizim 321452
1 8 135 14 25 3 4 4 8
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,RR BRK 8-97253-569-0 01 1 1212-
1 04.680 HOSE; FLEX,RR BRK 8-97253-570-0 01 1 1212-
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1212-
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1212-
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1212-
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1212-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1212-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 1212-
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1212-
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1212-
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 1212-

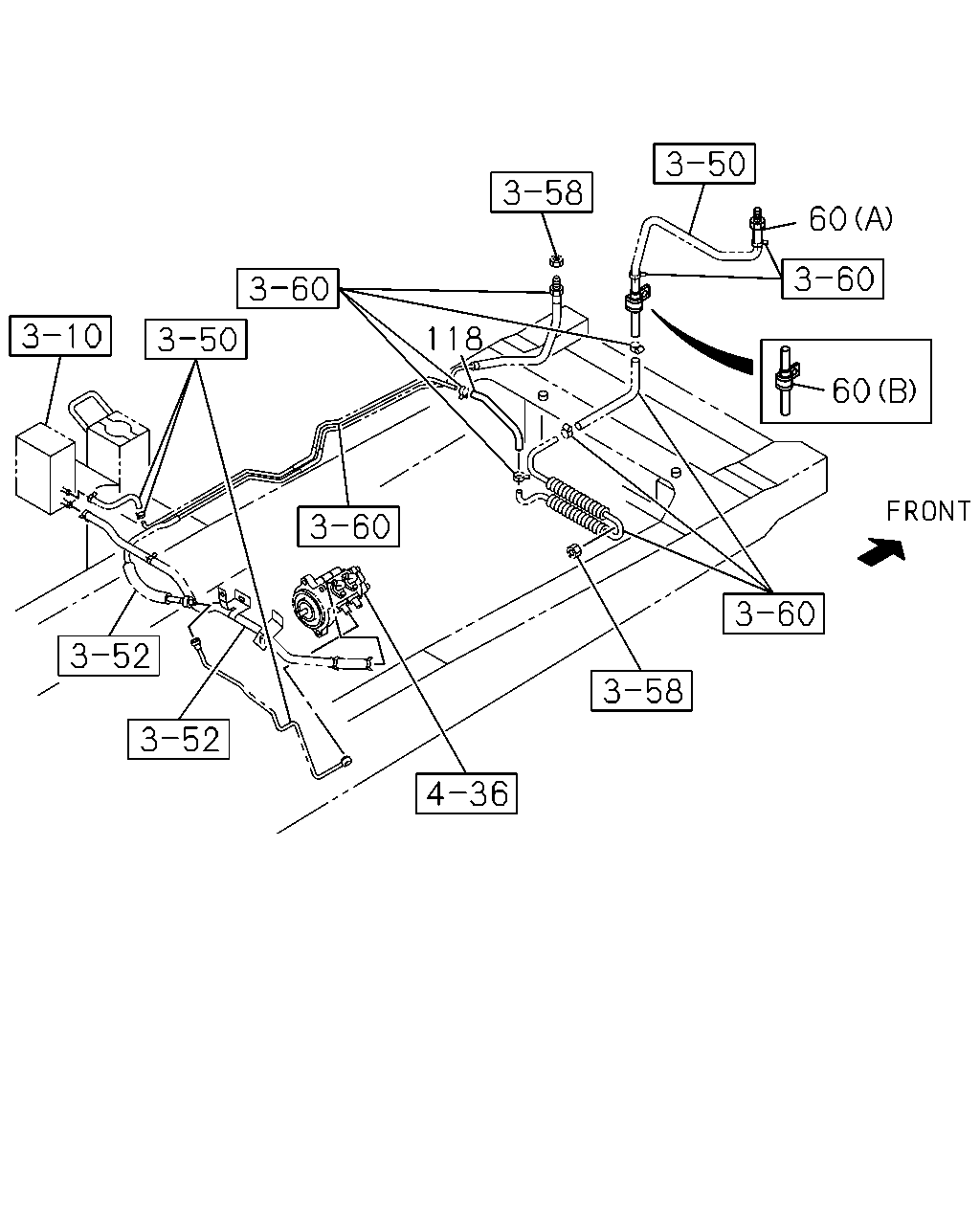

çizim 321466
60 118
BalonParca AdiParca NoAdetTipApplied Date
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1212-
60 04.685 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1212-
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1212-
