Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

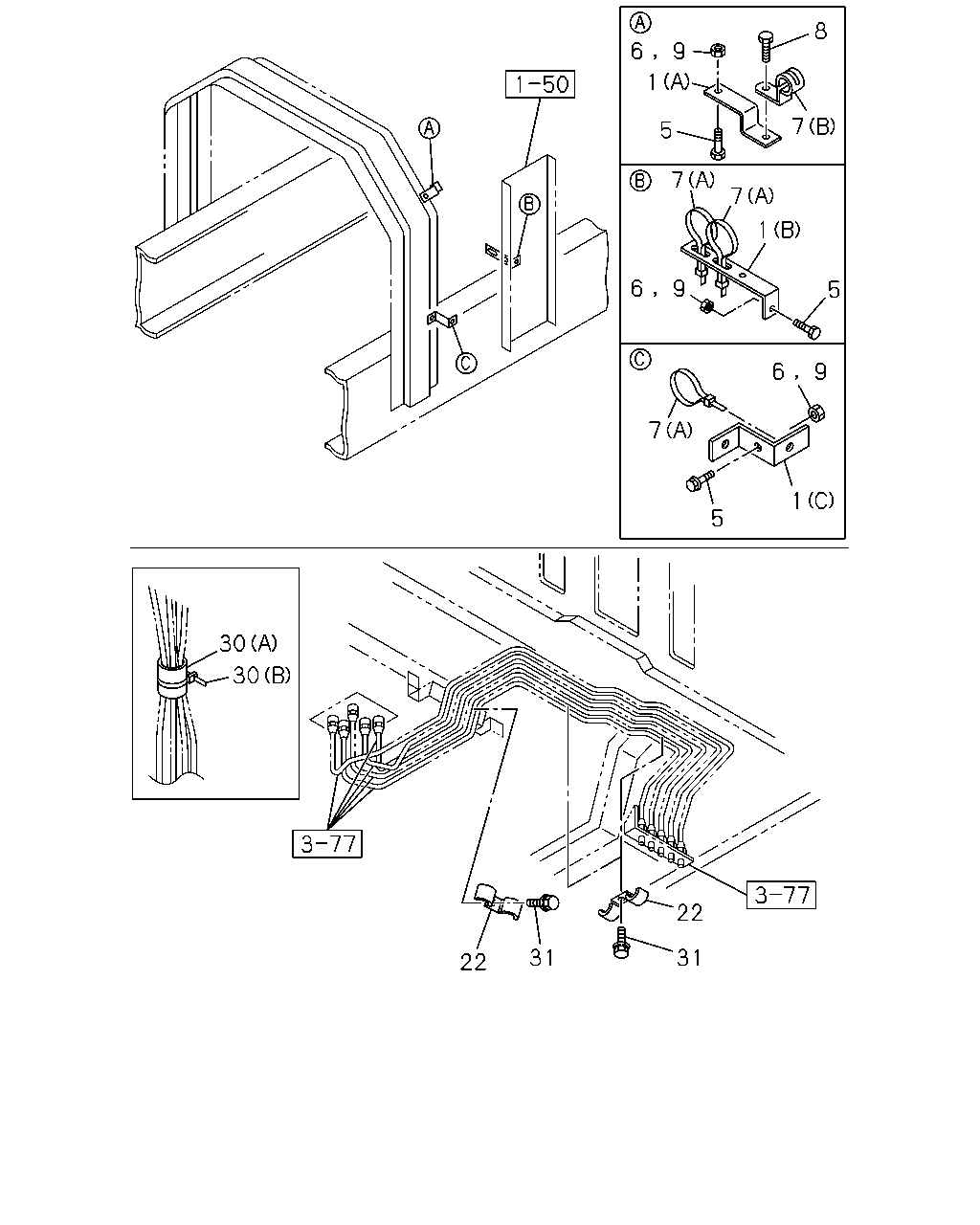

3-83 — FIXING PARTS; TRAILER PIPING
(#11126) — 18 parça
8
6
9
1
7
5
7
7
1
6
9
5
6
9
7
1
5
30
30
22
31
31
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
(A)
1-47477-908-1
01
1
0106-
1
BRACKET; CLIP
(C)
1-47478-462-0
02
1
0106-
1
BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (B) L=150 H=30
1-47477-629-2
01
1
0106-0109
5
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
0106-
5
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE
0-28680-830-0
01
1
0106-0109
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0106-
6
NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91150-108-0
01
1
0106-0109
7
CLIP; NYLON TUBE
(A) L=250
1-09707-126-0
05
1
0106-0109
7
CLIP; NYLON TUBE
(A) L=250
1-09707-126-0
04
1
0110-
7
CLIP; NYLON TUBE
EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=31.5 H=23 L=25
1-09701-017-0
02
1
0106-0109
7
CLIP; NYLON TUBE
(B) ID=31.5 H=23 L=25
1-09701-017-0
02
1
0110-
8
BOLT; TUBE CLIP
EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE
0-28680-830-0
02
1
0106-0109
8
BOLT; TUBE CLIP
M8X30 FLANGE
0-28680-830-0
02
1
0110-
9
NUT; TUBE CLIP
SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91150-108-0
02
1
0110-
22
CLIP; AIR PIPE
ID=9 & 9 L=15 & 15
1-09700-061-0
03
1
0106-
30
CLIP; BAND,FLEX HOSE
(A) L=175
1-09707-178-0
01
1
0106-
30
CLIP; BAND,FLEX HOSE
(B) L=250
5-09707-030-1
01
1
0106-
31
BOLT; CLIP,AIR PIPE
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0106-
