3-52 — BRAKE PIPING; OIL,FRONT (#111259) — 19 parça

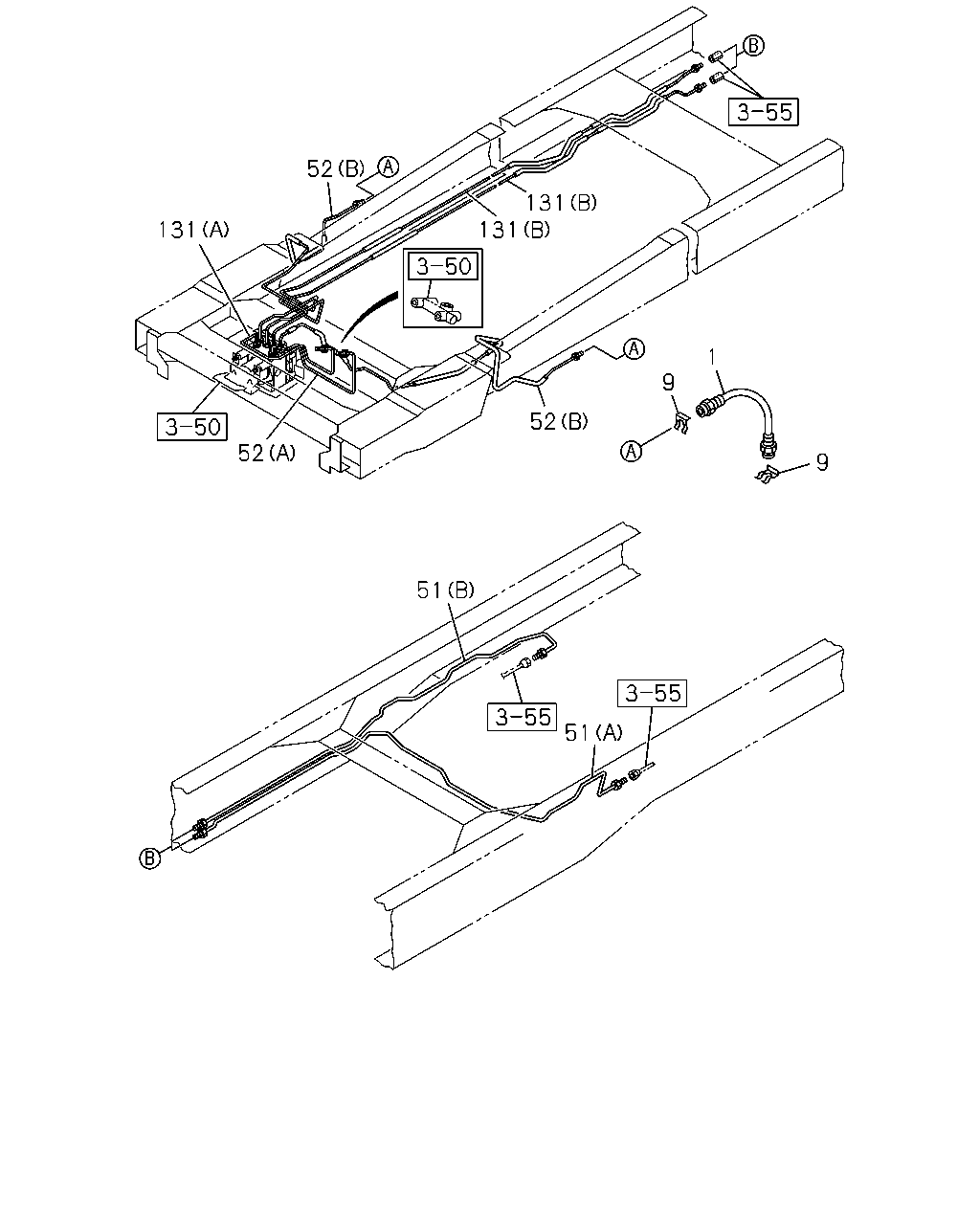

52 131 131 131 52 52 1 9 9 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	1212-
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1212-
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1212-
51	04.685 PIPE; BRK (A) BRAKE SYSTEM,RR LH 2WAY TO REAR	8-98033-778-1	01	1	1212-
51	04.685 PIPE; BRK (B) BRAKE SYSTEM,RR RH 2WAY TO REAR	8-98052-566-0	01	1	1212-
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1212-
52	04.685 PIPE; BRK (C)	8-98036-162-0	01	1	1212-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1212-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1212-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT (A) 4WAY TO HU,REAR	8-97389-372-2	01	1	1212-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR	8-98033-767-1	01	1	1212-
131	04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR	8-98033-768-1	01	1	1212-

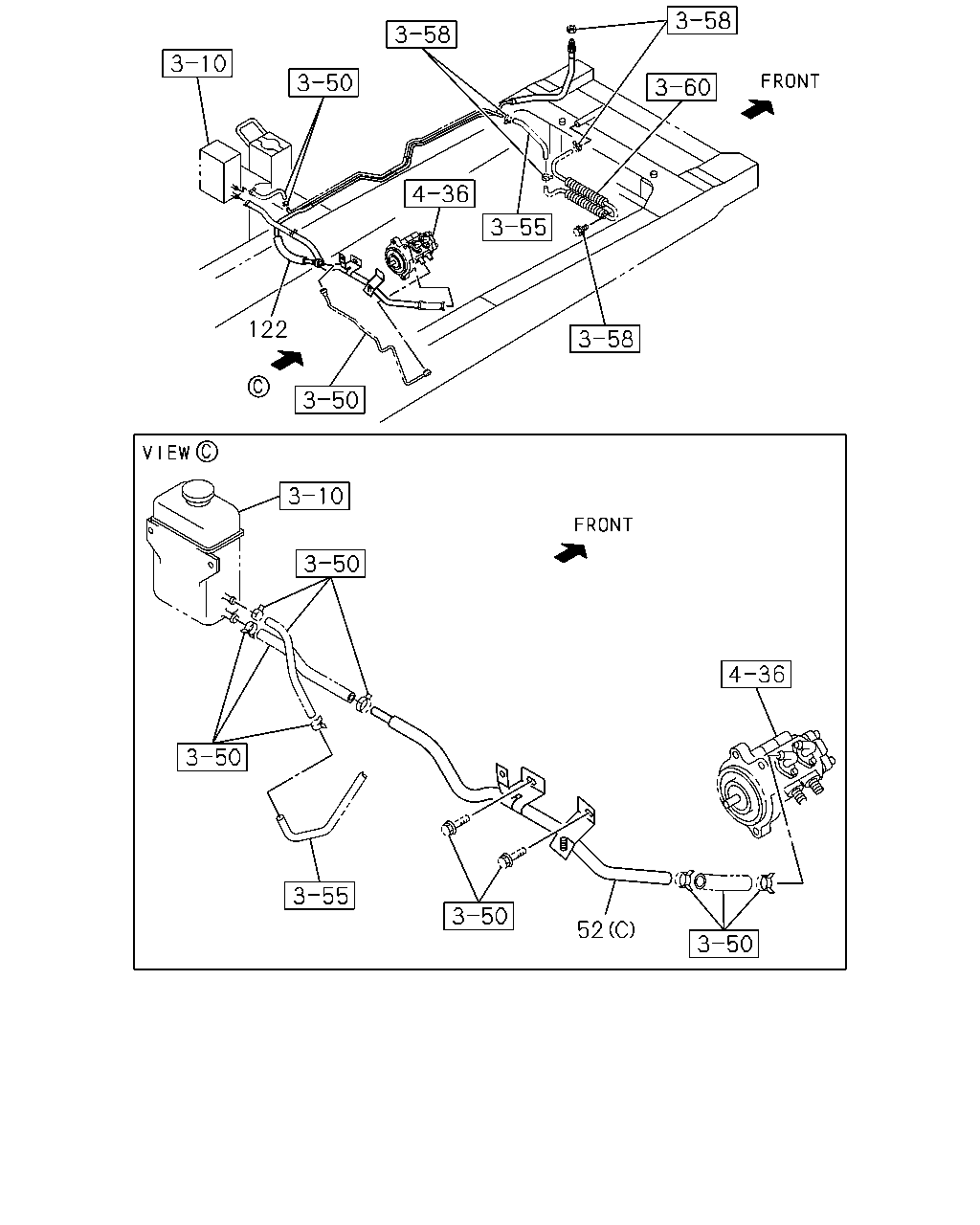

122 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	04.685 PIPE; BRK (A) 4WAY TO HU,FRONT	8-97389-369-1	01	1	1212-
52	04.685 PIPE; BRK (C)	8-98036-162-0	01	1	1212-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT	8-98053-032-1	01	1	1212-
52	04.685 PIPE; BRK (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT	8-98053-033-1	01	1	1212-
122	04.685 PIPE ASM; BRK,2 WAY L=1284	8-98136-575-0	01	1	1212-

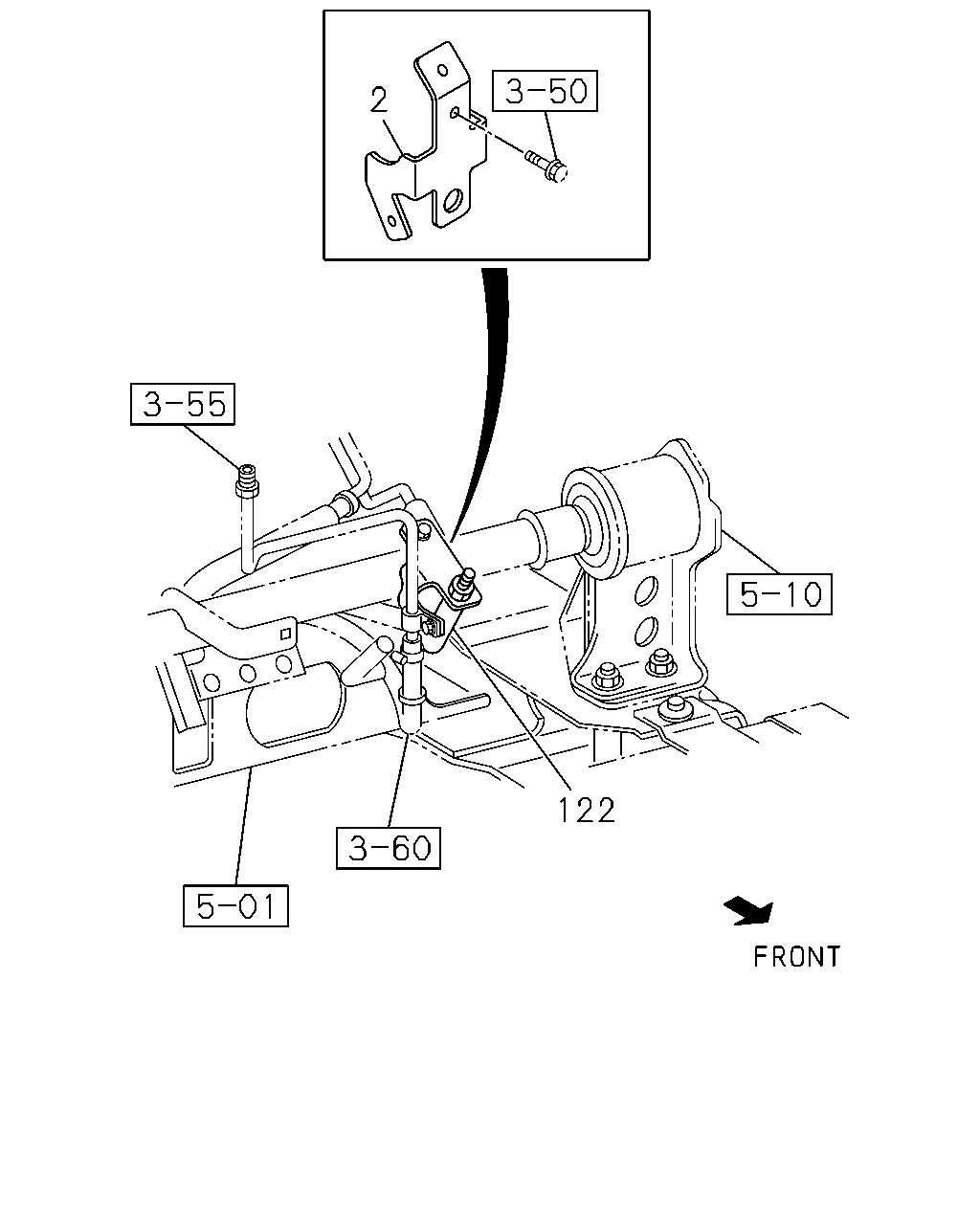

2 122

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98136-578-0	01	1	1212-
	122	04.685 PIPE ASM; BRK,2 WAY L=1284	8-98136-575-0	01	1	1212-
