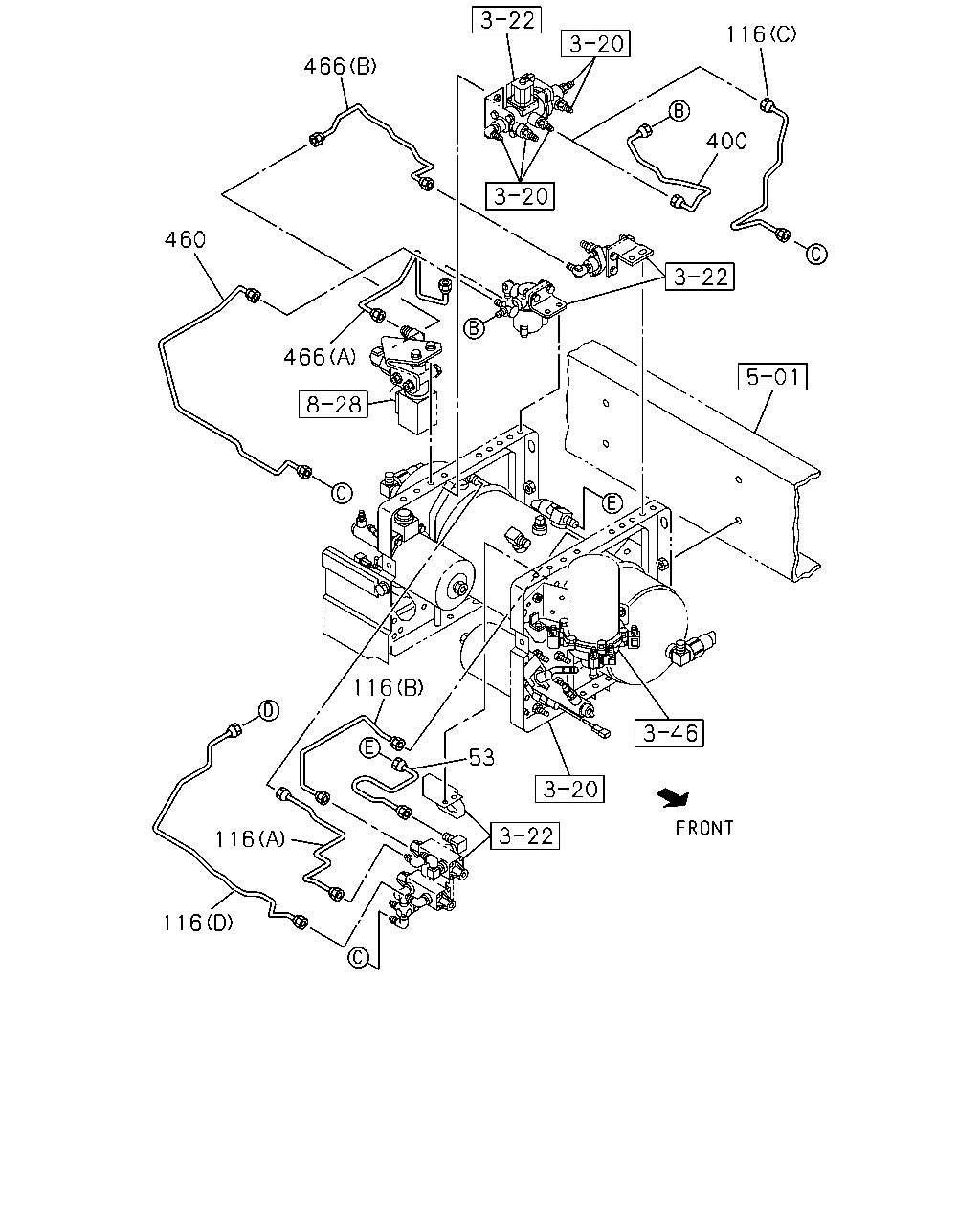

3-70 — BRAKE PIPING; AIR,AIR MASTER (#111255) — 77 parça

466 460 116 400 466 116 116 116 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1212-
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1212-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1212-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1212-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1212-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1212-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1212-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1212-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1212-

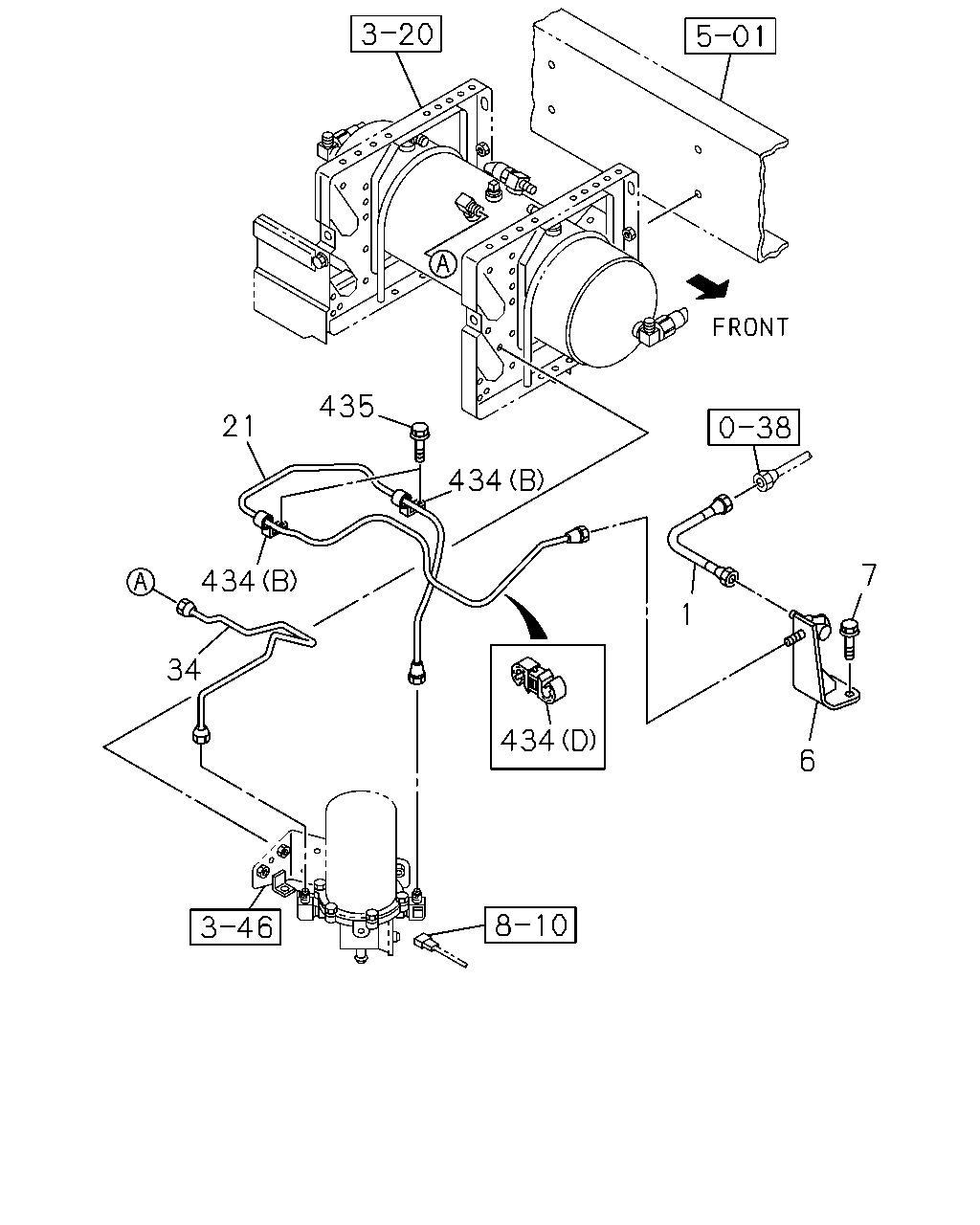

435 21 434 34 434 1 7 6 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-958-0	01	1	1212-
6	BRACKET; FLEX HOSE,AIR TANK	8-98079-987-1	01	1	1212-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1212-
21	PIPE; AIR,UNION TO AIR DRYER L=1816	8-98083-100-0	01	1	1212-
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1212-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1212-
434	CLIP (A) L=350	1-09707-183-0	01	1	1212-
434	CLIP (A) L=350	1-09707-183-0	13	1	1212-
434	CLIP (D) ID=10 & 15	1-09709-279-1	01	1	1212-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1212-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	03	1	1212-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	1212-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=350	1-09707-183-0	02	1	1212-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	04	1	1212-
434	CLIP WHEEL BASE 4800MM(48W) (A) L=350	1-09707-183-0	06	1	1212-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1212-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1212-

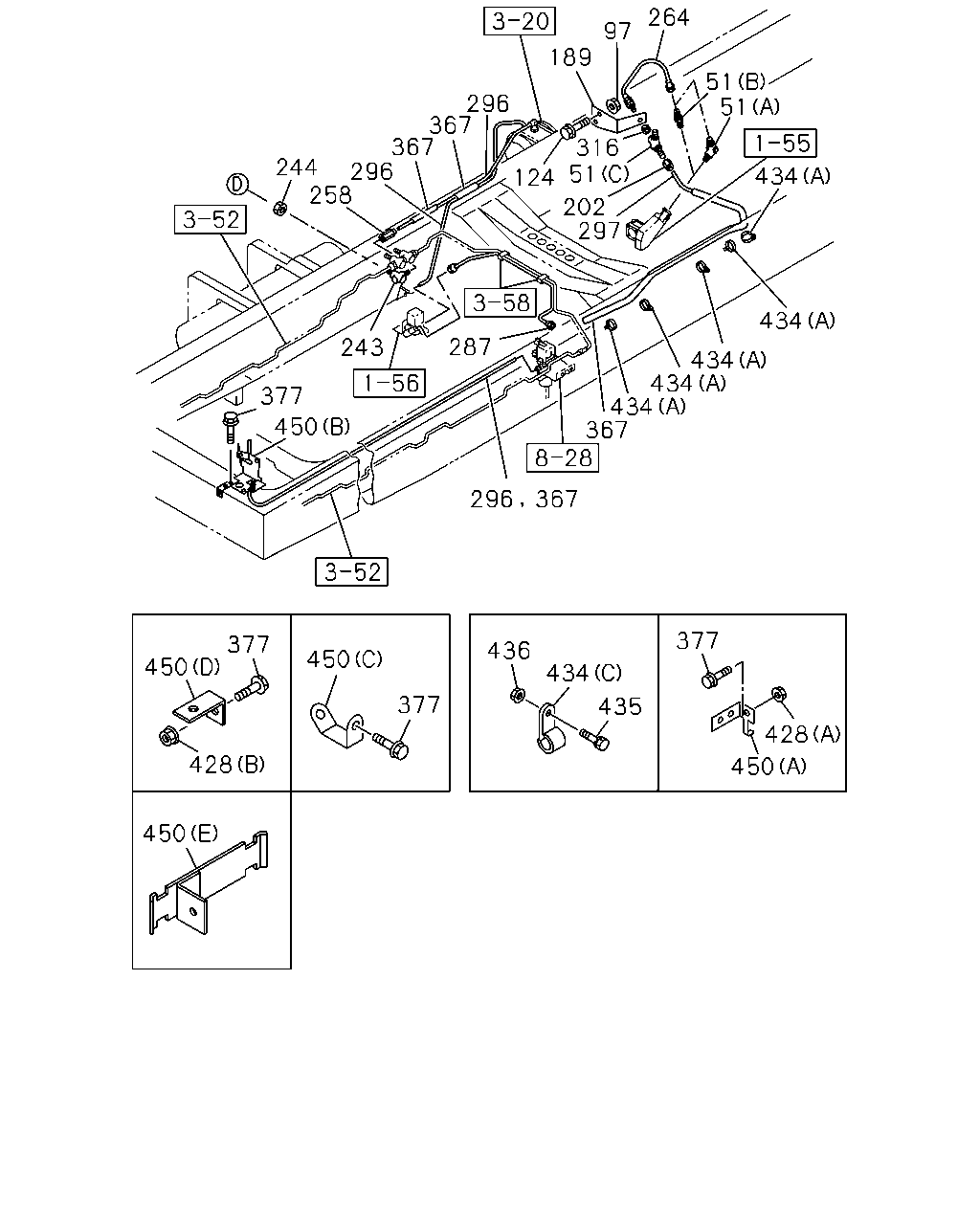

244 258 296 367 367 296 189 97 264 51 51 434 316 51 124 202 297 434 434 434 434 367 296 367 243 287 377 450 450 377 428 450 377 450 436 434 435 377 428 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	UNION WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1212-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (C) M12 ELBOW	0-92125-006-0	01	1	1212-
51	UNION WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1212-
97	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	02	1	1212-
97	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	02	1	1212-
124	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	02	1	1212-
124	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	02	1	1212-
189	BRACKET; FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W)	8-98054-640-0	01	1	1212-
189	BRACKET; FLEX HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)	1-47479-914-0	01	1	1212-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1212-
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1212-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1212-
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1212-
264	HOSE; FLEX WHEEL BASE 3700MM(37W) L=340	1-09363-622-0	01	1	1212-
264	HOSE; FLEX WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) L=240	1-09363-671-0	01	1	1212-
264	HOSE; FLEX WHEEL BASE 4800MM(48W) L=370	1-09363-621-0	01	1	1212-
287	PIPE; AIR,MAG VLV L=862 SERVICED BY L=900	1-47428-813-0	01	1	1212-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1212-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1212-
297	TUBE; NYLON WHEEL BASE 3700MM(37W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1212-
297	TUBE; NYLON WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1212-
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1212-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1212-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1212-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	1212-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1212-
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1212-
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1212-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1212-
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) M10X30 FLANGE	0-28651-030-0	01	1	1212-
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1212-
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1212-
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) M10 FLANGE	0-91180-210-0	01	1	1212-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1212-
434	CLIP (A) L=350	1-09707-183-0	01	1	1212-
434	CLIP (A) L=350	1-09707-183-0	13	1	1212-
434	CLIP (D) ID=10 & 15	1-09709-279-1	01	1	1212-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1212-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	03	1	1212-
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	07	1	1212-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A) L=350	1-09707-183-0	02	1	1212-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	04	1	1212-
434	CLIP WHEEL BASE 4800MM(48W) (A) L=350	1-09707-183-0	06	1	1212-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1212-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1212-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1212-
450	BRACKET; CLIP (D)	1-47477-694-0	01	1	1212-
450	BRACKET; CLIP (C)	8-98117-686-0	03	1	1212-
450	BRACKET; CLIP (B)	8-98180-947-0	01	1	1212-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) (E)	8-98116-680-0	01	1	1212-
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (A)	8-98100-216-1	01	1	1212-
