3-77 — BRAKE PIPING; AIR,REAR (#111254) — 109 parça

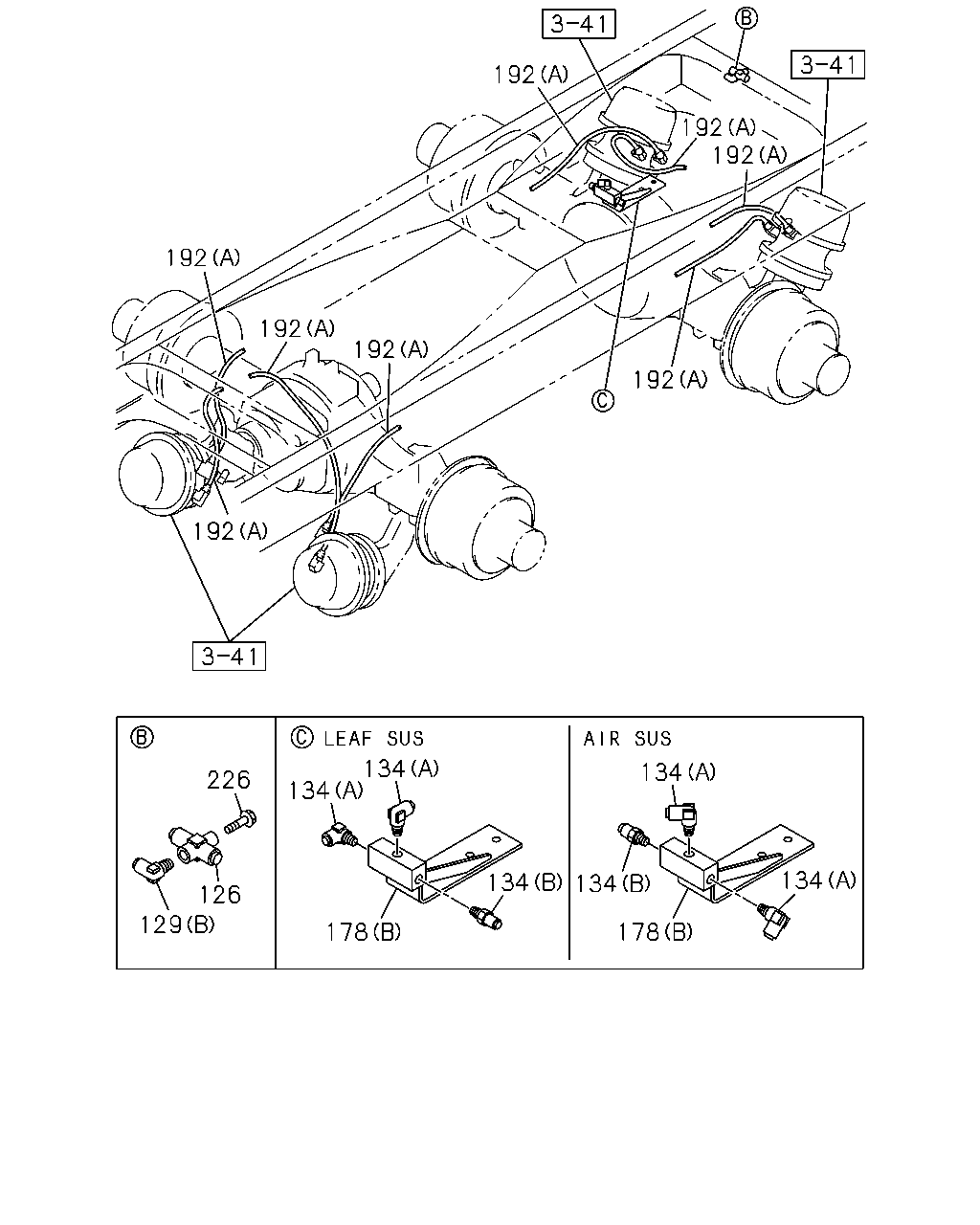

çizim 321011
192 192 192 192 192 192 192 192 134 134 178 134 134 178 134 134 226 126 129
BalonParca AdiParca NoAdetTipApplied Date A B
126 UNION; NYLON TUBE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1212- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1212- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1212- ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1212- ● ●
134 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1212- ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1212-1311 ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1312- ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1212-1311 ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (D) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1312- ● ●
134 CONNECTOR
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1212- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1212- ● ●
178 BRACKET; UNION
(B) 		8-98213-260-0 01 1 1212- ● ●
192 TUBE; NYLON
(B) 		8-98105-916-0 01 1 1212- ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1212- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
226 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1212-1311 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1212-1311 ●
226 BOLT; UNION
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1212-1311 ●
226 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●
226 BOLT; UNION
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1312- ●

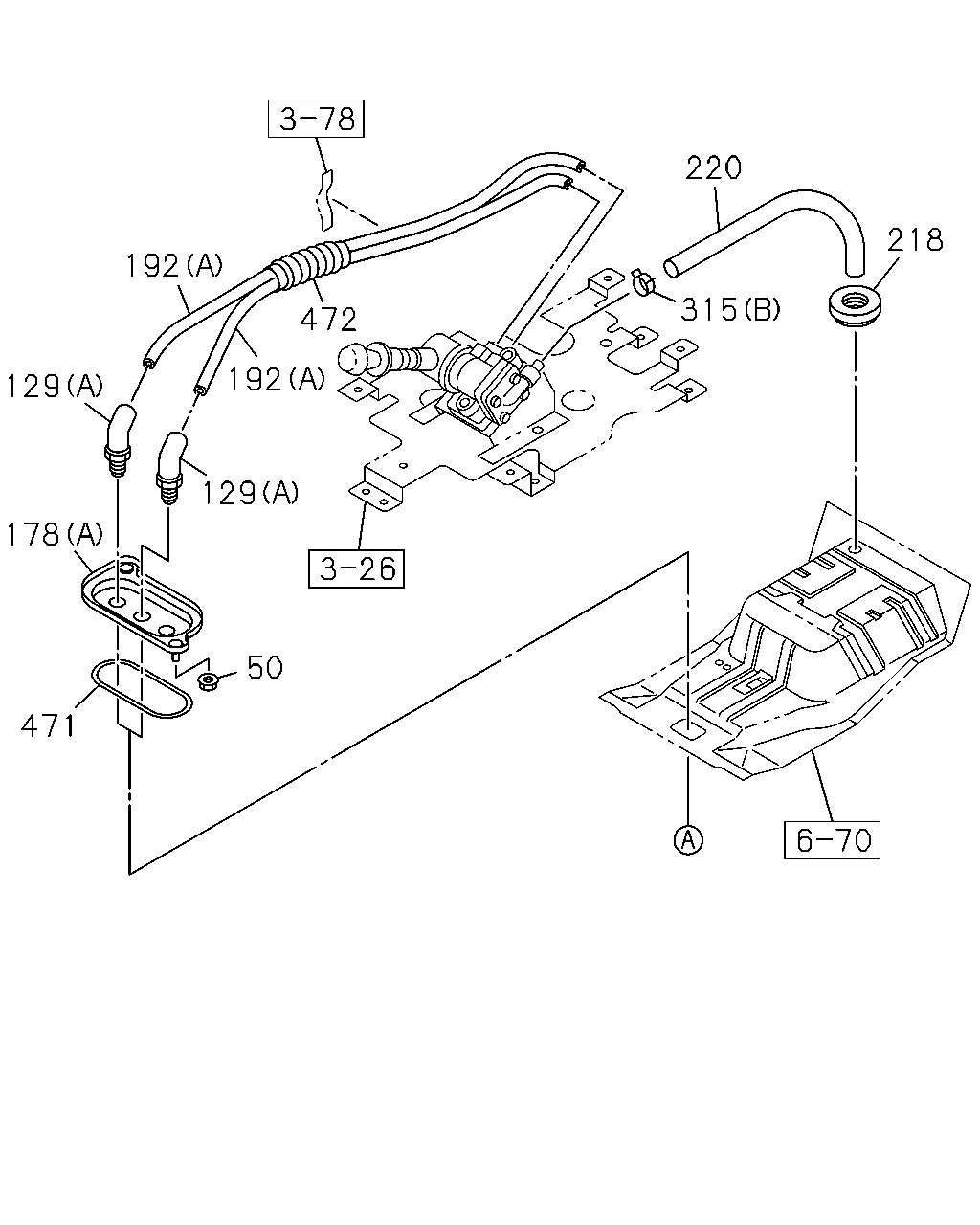

çizim 321467
220 218 315 50 471 178 129 192 472 192 129
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1212- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1212- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1212- ● ●
178 BRACKET; UNION
(B) 		8-98213-260-0 01 1 1212- ● ●
192 TUBE; NYLON
(B) 		8-98105-916-0 01 1 1212- ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1212- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1212- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1212- ● ●
315 CLIP
(A) L=350 		1-09707-183-0 01 1 1212- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1212- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1212- ● ●
472 TUBE; SPUTTER 8-98108-051-0 01 1 1212- ● ●

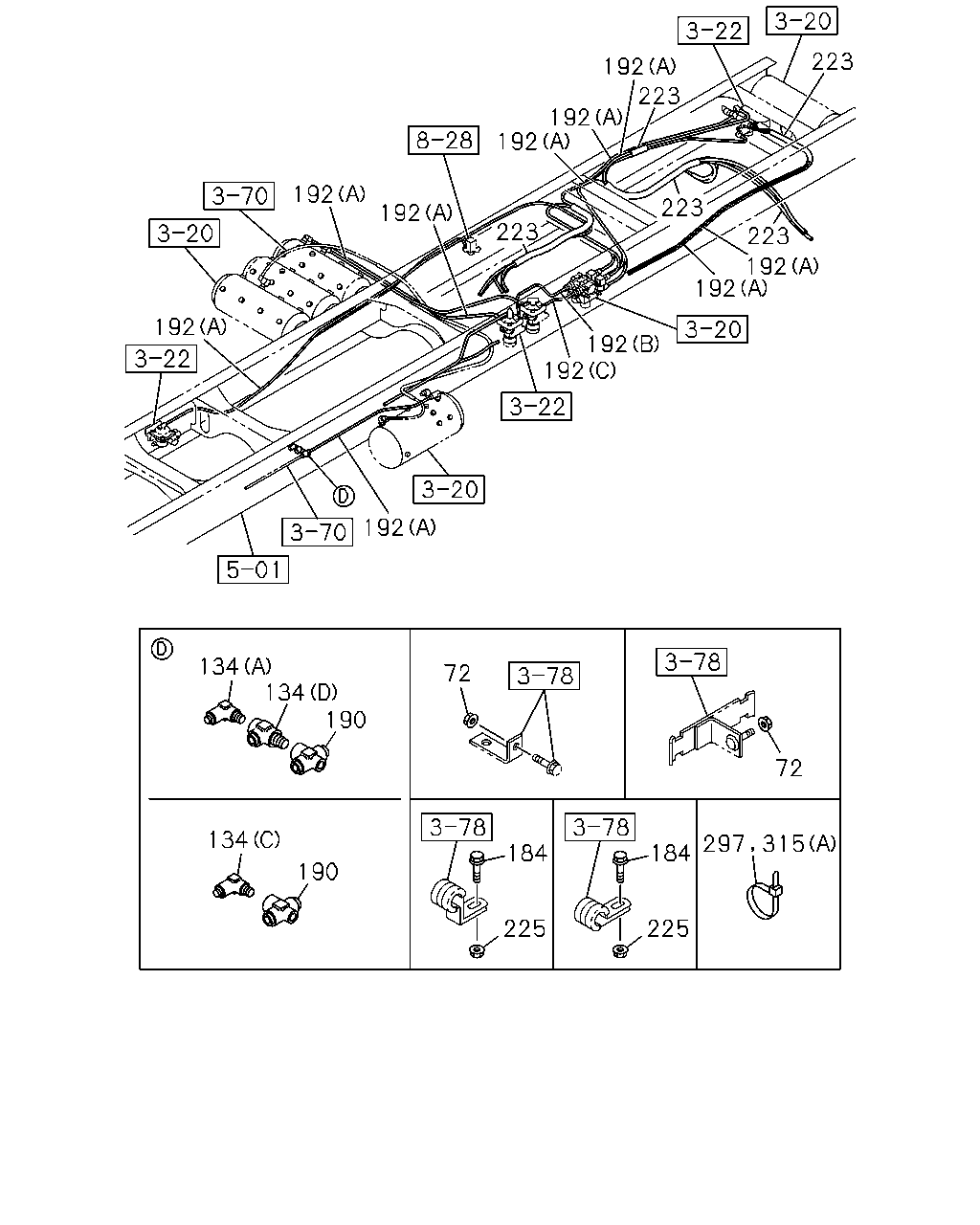

çizim 321492
192 192 192 134 134 190 134 190 72 184 225 225 184 315 297 72 192 192 192 192 223 192 192 223 192 223 192 223 223
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 03 1 1303- ●
72 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 05 1 1212- ●
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 07 1 1212- ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1212-1511 ● ●
72 NUT; BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
72 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 04 1 1212-1511 ●
72 NUT; BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
72 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 06 1 1212-1302 ●
72 NUT; BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1212- ● ●
134 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1212- ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1212-1311 ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1312- ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1212-1311 ● ●
134 CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (D) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1312- ● ●
134 CONNECTOR
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1212- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1212- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 1212- ● ●
190 UNION; 3 WAY
TRANSMISSION-FULLER RTO11908(Y5L) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1212-1311 ● ●
190 UNION; 3 WAY
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1212-1311 ●
190 UNION; 3 WAY
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1312- ● ●
190 UNION; 3 WAY
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1312- ●
192 TUBE; NYLON
(B) 		8-98105-916-0 01 1 1212- ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1212- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1212- ● ●
297 CLIP; BAND
ZF9S1310 M/T(Y5K) L=350 		1-09707-183-0 01 1 1212- ●
315 CLIP
(A) L=350 		1-09707-183-0 01 1 1212- ● ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1212- ● ●
çizim 322421
192 223 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
(B) 		8-98105-916-0 01 1 1212- ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1212- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1212- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●

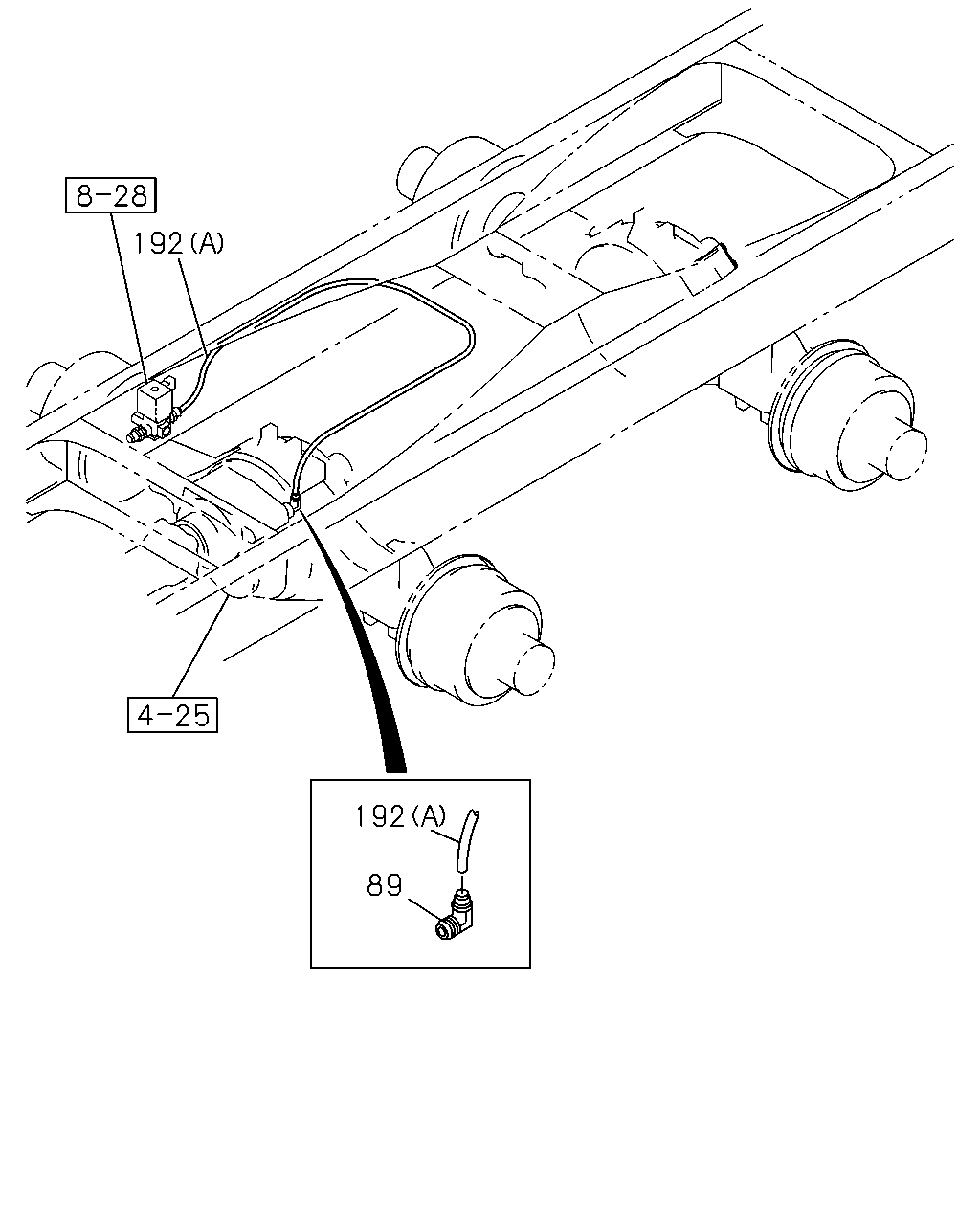

çizim 322422
192 192 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 03 1 1212- ● ●
192 TUBE; NYLON
(B) 		8-98105-916-0 01 1 1212- ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1212- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
