3-75 — BRAKE PIPING; AIR,FRONT (#111252) — 194 parça

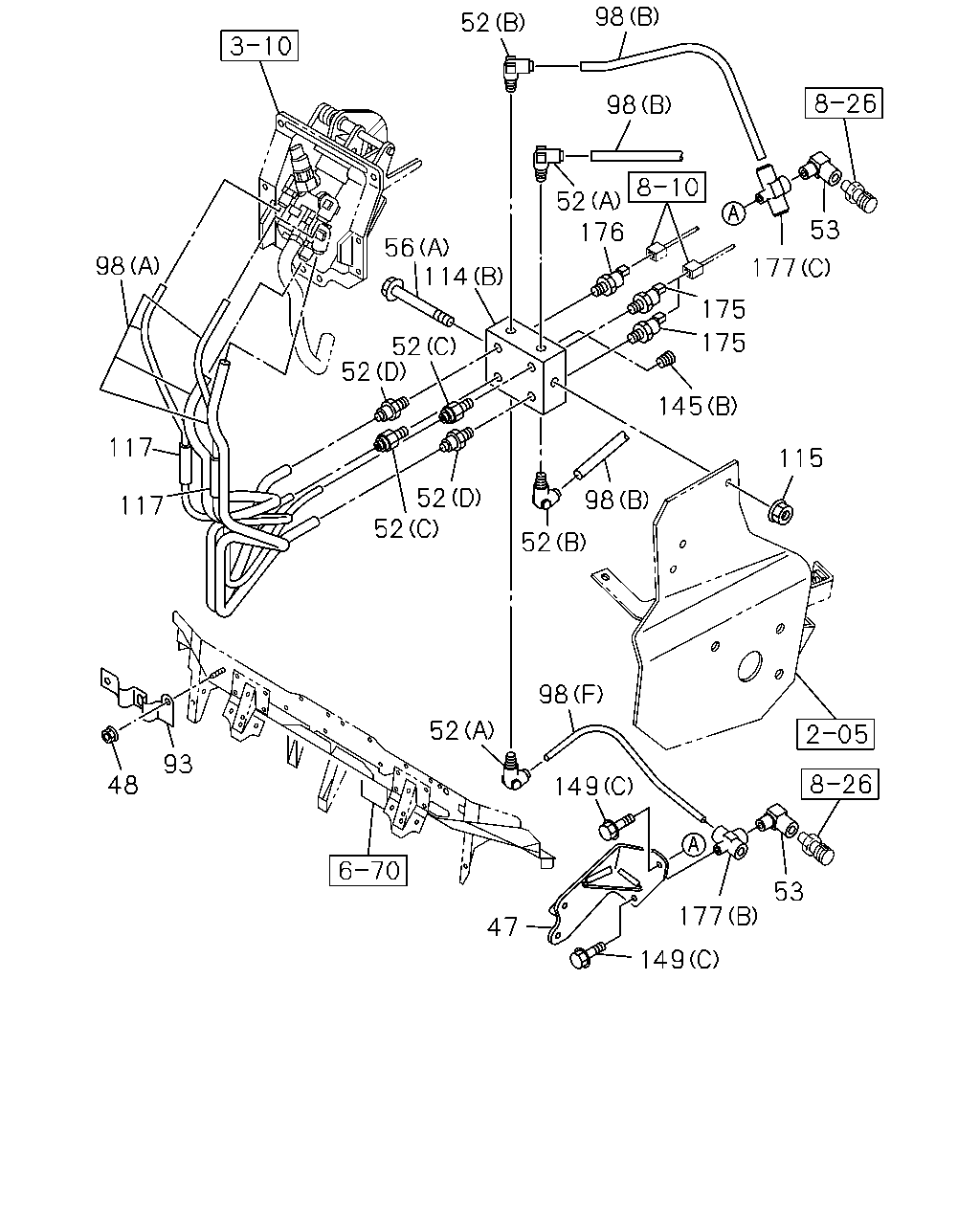

çizim 321436
52 98 98 52 175 53 177 175 145 115 98 52 52 52 52 52 56 117 117 52 98 149 177 149 47 93 48 53 176 114
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET; PIPE UNION
WHEEL BASE 5700MM(57W) 		8-98333-931-0 01 1 1512- ●
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1212- ● ●
53 UNION; ELBOW
WHEEL BASE 5700MM(57W) 		8-98142-243-0 02 1 1512- ●
56 BOLT; UNION BRKT
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1212- ● ●
56 BOLT; UNION BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1212- ● ●
93 BRACKET; UNION,TUBE 8-98186-924-0 01 1 1212- ● ●
98 TUBE; NYLON
WHEEL BASE 5700MM(57W) (F) 		8-98333-512-0 01 1 1512- ●
98 TUBE; NYLON
(E) L=240 OD=12 		8-98096-505-0 02 1 1212- ● ●
98 TUBE; NYLON
(A) 		8-98166-040-0 01 1 1212- ● ●
98 TUBE; NYLON
(C) 		8-98214-407-0 01 1 1212- ● ●
98 TUBE; NYLON
(D) 		8-98214-409-0 01 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1212- ● ●
114 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1212- ● ●
114 UNION; NYLON TUBE
(B) 		8-98057-394-1 01 1 1212- ● ●
115 NUT; TUBE UNION
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
115 NUT; TUBE UNION
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
115 NUT; TUBE UNION
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 03 1 1512- ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 03 1 1212-1511 ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1212- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 01 1 1212- ● ●
149 BOLT; UNION
WHEEL BASE 5700MM(57W) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1212- ● ●
149 BOLT; UNION
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1212- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1212- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1212- ● ●
177 CONNECTOR
WHEEL BASE 5700MM(57W) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1512- ●
177 CONNECTOR
WHEEL BASE 5700MM(57W) (C) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1512- ●
177 CONNECTOR
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1212- ● ●

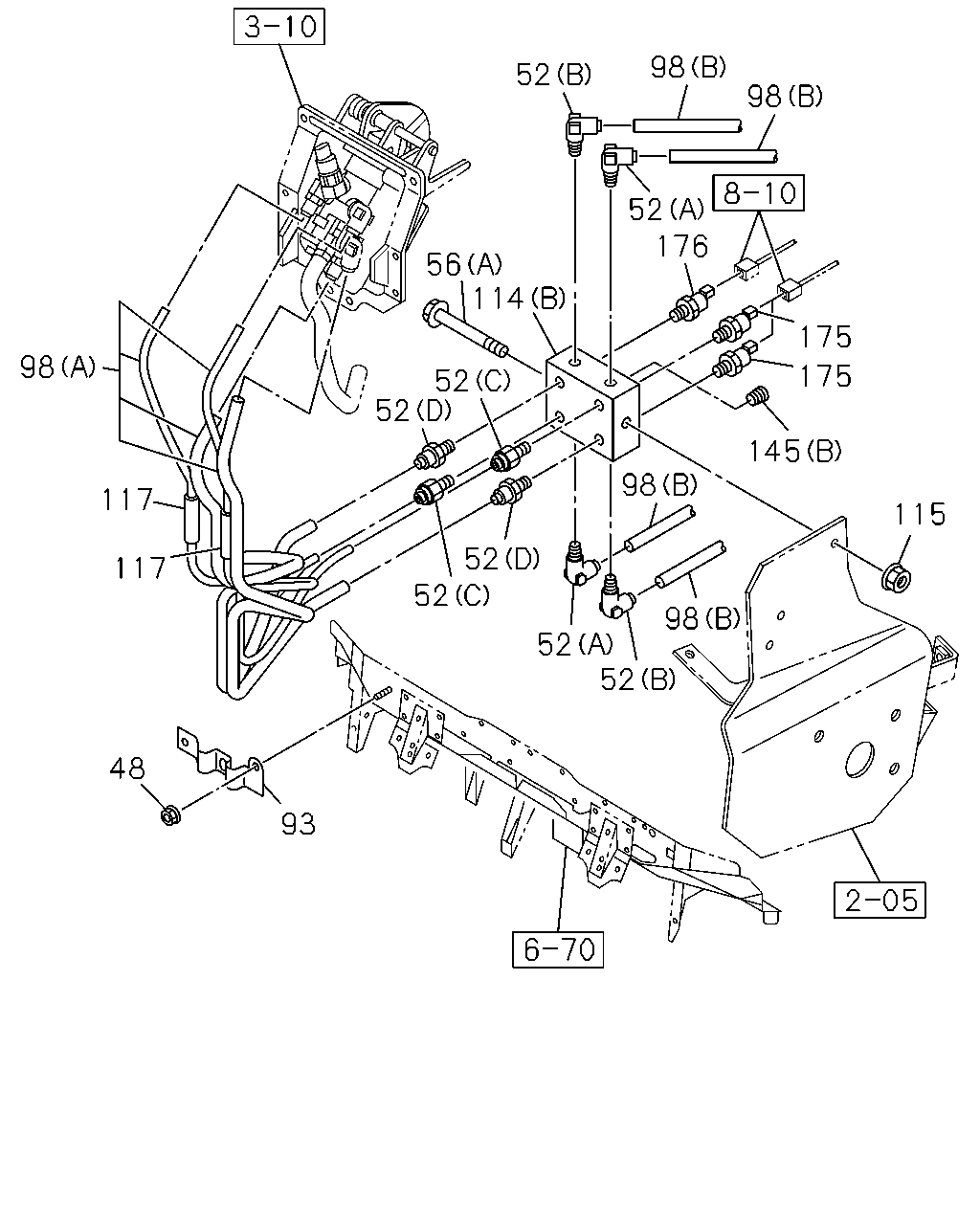

çizim 321592
98 117 117 48 93 52 52 52 52 52 52 56 114 52 98 98 52 176 175 145 175 115 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1212- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1212- ● ●
56 BOLT; UNION BRKT
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1212- ● ●
56 BOLT; UNION BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1212- ● ●
93 BRACKET; UNION,TUBE 8-98186-924-0 01 1 1212- ● ●
98 TUBE; NYLON
WHEEL BASE 5700MM(57W) (F) 		8-98333-512-0 01 1 1512- ●
98 TUBE; NYLON
(E) L=240 OD=12 		8-98096-505-0 02 1 1212- ● ●
98 TUBE; NYLON
(A) 		8-98166-040-0 01 1 1212- ● ●
98 TUBE; NYLON
(C) 		8-98214-407-0 01 1 1212- ● ●
98 TUBE; NYLON
(D) 		8-98214-409-0 01 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1212- ● ●
114 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1212- ● ●
114 UNION; NYLON TUBE
(B) 		8-98057-394-1 01 1 1212- ● ●
115 NUT; TUBE UNION
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
115 NUT; TUBE UNION
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
115 NUT; TUBE UNION
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 03 1 1512- ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 03 1 1212-1511 ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 1512- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1212- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 01 1 1212- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1212- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1212- ● ●

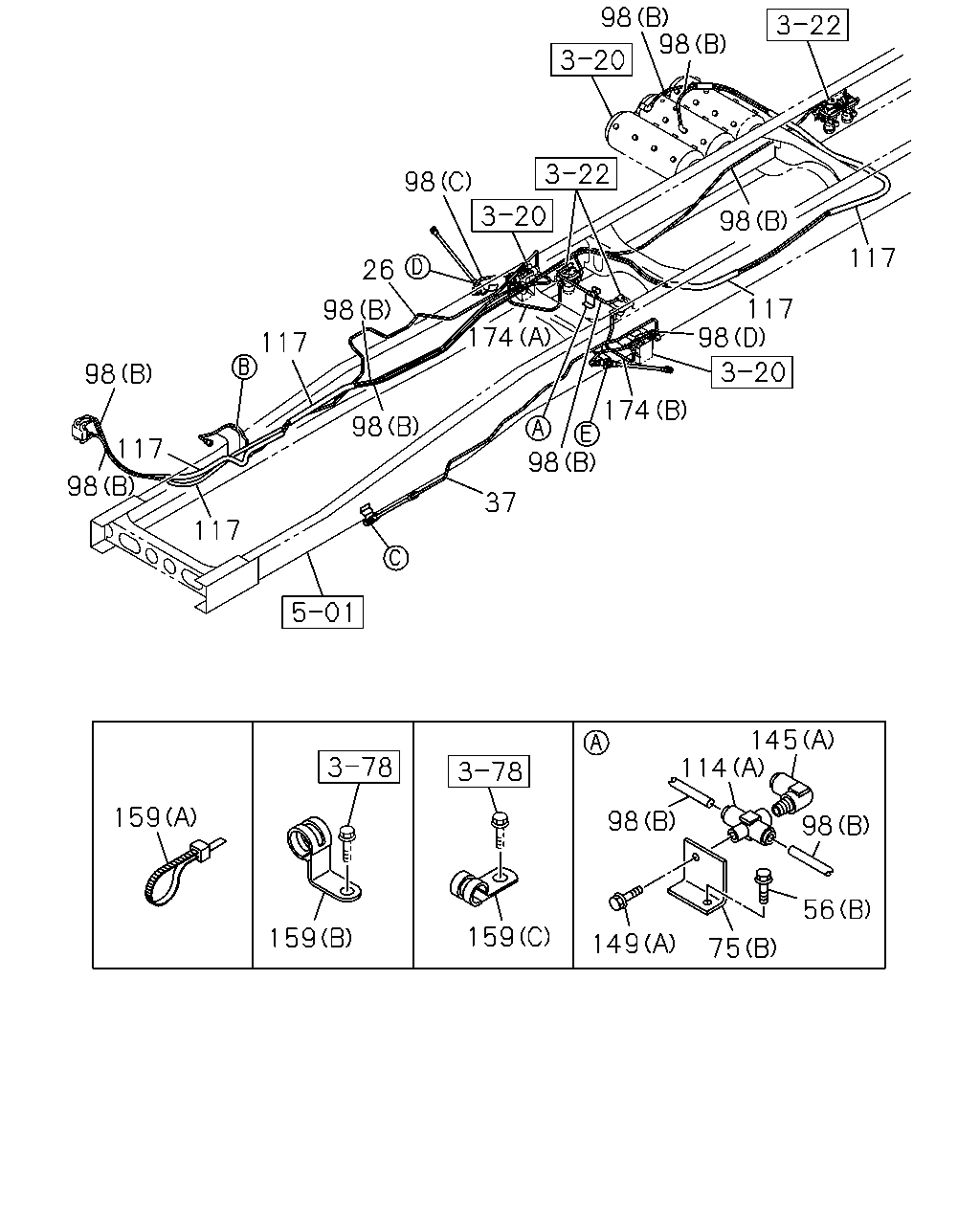

çizim 322286
98 98 117 98 174 98 37 117 117 98 98 117 98 26 98 174 98 98 117 145 98 56 114 98 149 75 159 159 159
BalonParca AdiParca NoAdetTipApplied Date A B
26 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 5700MM(57W) L=3533 		8-98333-525-0 01 1 1512- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3530 		8-98214-428-0 01 1 1212-1504 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3528 		8-98302-519-0 01 1 1505- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3535 		8-98226-219-0 01 1 1212-1504 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3533 		8-98302-520-0 01 1 1505-1511 ●
26 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=3533 		8-98302-520-0 01 1 1512- ●
37 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 5700MM(57W) L=2673 SERVICED BY L=2800 		1-49115-495-0 01 1 1512- ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=2567 SERVICED BY L=2800 		1-49115-495-0 01 1 1212-1504 ● ●
37 PIPE; AIR,UNION TO FLEX HOSE
L=2568 SERVICED BY L=2800 		1-49115-495-0 01 1 1505-1511 ● ●
37 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=2568 SERVICED BY L=2800 		1-49115-495-0 01 1 1512- ●
37 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=2568 SERVICED BY L=2800 		1-49115-495-0 01 1 1512- ●
56 BOLT; UNION BRKT
(A) M8X100 FLANGE 		0-28050-800-0 01 1 1212- ● ●
56 BOLT; UNION BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1212- ● ●
75 BRACKET; UNION
(A) 		8-98214-426-2 01 1 1212- ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1212- ● ●
75 BRACKET; UNION
(C) 		8-98214-415-0 01 1 1212- ● ●
75 BRACKET; UNION
(D) 		8-98219-777-0 01 1 1212- ● ●
75 BRACKET; UNION
(E) 		8-98214-416-0 01 1 1212- ● ●
75 BRACKET; UNION
(A) 		8-98226-220-1 01 1 1212- ●
98 TUBE; NYLON
WHEEL BASE 5700MM(57W) (F) 		8-98333-512-0 01 1 1512- ●
98 TUBE; NYLON
(E) L=240 OD=12 		8-98096-505-0 02 1 1212- ● ●
98 TUBE; NYLON
(A) 		8-98166-040-0 01 1 1212- ● ●
98 TUBE; NYLON
(C) 		8-98214-407-0 01 1 1212- ● ●
98 TUBE; NYLON
(D) 		8-98214-409-0 01 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1212- ● ●
114 UNION; NYLON TUBE
(A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1212- ● ●
114 UNION; NYLON TUBE
(B) 		8-98057-394-1 01 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1212- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1212- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 01 1 1212- ● ●
149 BOLT; UNION
WHEEL BASE 5700MM(57W) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1212- ● ●
149 BOLT; UNION
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1212- ● ●
159 CLIP; NYLON TUBE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1212- ● ●
159 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1212-1511 ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1512- ●
159 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1512- ●
159 CLIP; NYLON TUBE
(C) ID=26 L=27 		1-09701-006-0 01 1 1212- ● ●
159 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 16 1 1212- ● ●
159 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1212- ● ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 5700MM(57W) (A) L=614 		8-98334-111-0 01 1 1512- ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 5700MM(57W) (B) L=653 		8-98334-112-0 01 1 1512- ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
(A) L=571 		8-98192-237-0 01 1 1212-1511 ● ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=571 		8-98192-237-0 01 1 1512- ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=571 		8-98192-237-0 01 1 1512- ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
(B) L=660 		8-98214-480-0 01 1 1212-1511 ● ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=660 		8-98214-480-0 01 1 1512- ●
174 PIPE; AIR,RELAY VLV TO MODULATOR
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=660 		8-98214-480-0 01 1 1512- ●

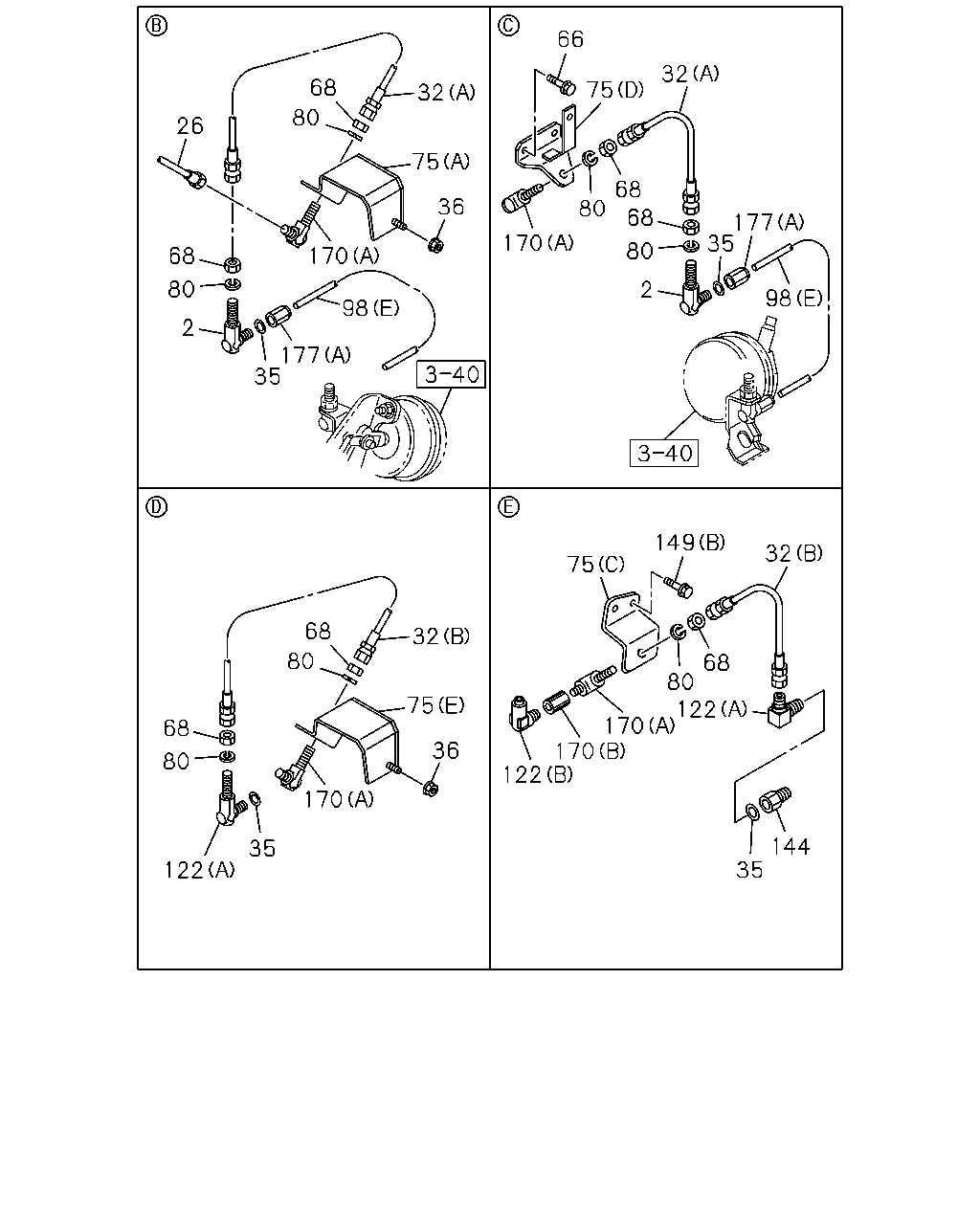

çizim 513763
26 68 2 80 177 170 36 75 32 68 80 98 35 170 68 80 80 75 66 32 177 35 98 75 149 32 68 122 80 170 170 122 144 35 32 75 36 170 35 122 80 80 68 68 1
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 02 1 1212- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 5700MM(57W) L=3533 		8-98333-525-0 01 1 1512- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3530 		8-98214-428-0 01 1 1212-1504 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3528 		8-98302-519-0 01 1 1505- ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3535 		8-98226-219-0 01 1 1212-1504 ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=3533 		8-98302-520-0 01 1 1505-1511 ●
26 PIPE; AIR,UNION TO FLEX HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=3533 		8-98302-520-0 01 1 1512- ●
32 HOSE; FLEX,FRT
(A) 		0-87847-470-1 02 1 1212- ● ●
32 HOSE; FLEX,FRT
(B) 		0-87847-530-1 02 1 1212- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1212- ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1212- ● ●
68 NUT; UNION
M20 		0-91111-520-0 03 1 1212- ● ●
68 NUT; UNION
M20 		0-91111-520-0 01 1 1212- ● ●
75 BRACKET; UNION
(A) 		8-98214-426-2 01 1 1212- ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1212- ● ●
75 BRACKET; UNION
(C) 		8-98214-415-0 01 1 1212- ● ●
75 BRACKET; UNION
(D) 		8-98219-777-0 01 1 1212- ● ●
75 BRACKET; UNION
(E) 		8-98214-416-0 01 1 1212- ● ●
75 BRACKET; UNION
(A) 		8-98226-220-1 01 1 1212- ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1212- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 03 1 1212- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 1212- ● ●
98 TUBE; NYLON
WHEEL BASE 5700MM(57W) (F) 		8-98333-512-0 01 1 1512- ●
98 TUBE; NYLON
(E) L=240 OD=12 		8-98096-505-0 02 1 1212- ● ●
98 TUBE; NYLON
(A) 		8-98166-040-0 01 1 1212- ● ●
98 TUBE; NYLON
(C) 		8-98214-407-0 01 1 1212- ● ●
98 TUBE; NYLON
(D) 		8-98214-409-0 01 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1212- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1212- ● ●
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 1212- ● ●
122 CONNECTOR; FLEX HOSE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1212- ● ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1212- ● ●
149 BOLT; UNION
WHEEL BASE 5700MM(57W) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1512- ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1212- ● ●
149 BOLT; UNION
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1212- ● ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-128-1 03 1 1212- ● ●
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 02 1 1212- ● ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-128-1 01 1 1212- ● ●
177 CONNECTOR
WHEEL BASE 5700MM(57W) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1512- ●
177 CONNECTOR
WHEEL BASE 5700MM(57W) (C) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1512- ●
177 CONNECTOR
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
