Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#111249) — 181 parça

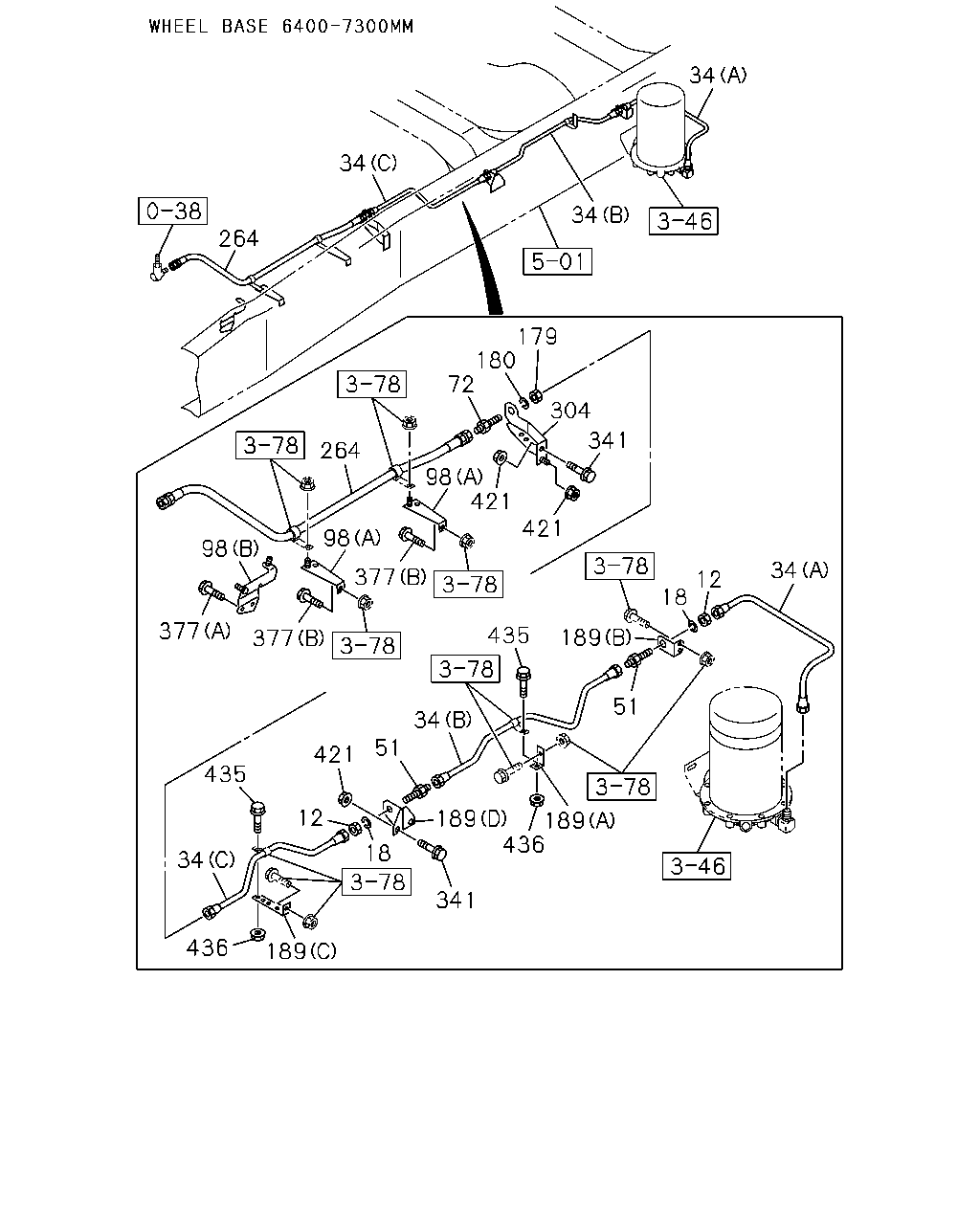

34 34 34 264 179 180 72 264 98 98 98 304 341 421 421 377 377 377 435 34 51 18 12 435 34 189 436 189 189 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M22	0-91111-522-0	02	1	1512-	●
12	NUT; UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M22	0-91111-522-0	02	1	1512-		●
12	NUT; UNION M22	0-91111-522-0	02	1	1212-1511	●	●
12	NUT; UNION WHEEL BASE 5700MM(57W) M22	0-91111-522-0	01	1	1512-	●	●
18	WASHER; LK,UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=22.5	0-91510-522-0	02	1	1512-	●
18	WASHER; LK,UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=22.5	0-91510-522-0	02	1	1512-		●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1212-1511	●	●
18	WASHER; LK,UNION WHEEL BASE 5700MM(57W) ID=22.5	0-91510-522-0	01	1	1512-	●	●
34	PIPE; AIR WHEEL BASE 5700MM(57W) (D) L=1025	8-98333-606-0	01	1	1512-	●	●
34	PIPE; AIR (A) L=647	8-98174-588-0	01	1	1212-1511	●	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=647	8-98174-588-0	01	1	1512-	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=647	8-98174-588-0	01	1	1512-		●
34	PIPE; AIR (B) L=774	8-98214-465-0	01	1	1212-	●	●
34	PIPE; AIR (C) L=599	8-98214-471-0	01	1	1212-1511	●	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=599	8-98214-471-0	01	1	1512-	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=599	8-98214-471-0	01	1	1512-		●
51	UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M22	0-92123-315-0	02	1	1512-	●
51	UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M22	0-92123-315-0	02	1	1512-		●
51	UNION M22	0-92123-315-0	02	1	1212-1511	●	●
51	UNION WHEEL BASE 5700MM(57W) M22	0-92123-315-0	01	1	1512-	●	●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1212-	●	●
98	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) (C)	8-98333-604-0	01	1	1512-	●	●
98	BRACKET; AIR PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97609-096-0	02	1	1512-	●
98	BRACKET; AIR PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97609-096-0	02	1	1512-		●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1212-1511	●	●
98	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) (A)	8-97609-096-0	01	1	1512-	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1212-	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (B)	1-47479-473-0	01	1	1212-1511	●	●
189	BRACKET; FLEX HOSE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47479-473-0	01	1	1512-	●
189	BRACKET; FLEX HOSE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47479-473-0	01	1	1512-		●
189	BRACKET; FLEX HOSE (D)	8-98229-108-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (A) L=55	1-47475-304-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (C)	1-82698-358-0	01	1	1212-	●	●
264	HOSE; FLEX A/T ALLISON 4430(Y5V) L=1160	8-98208-138-0	01	1	1212-	●	●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1212-1302	●	●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1303-1311	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1303-1311		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1312-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1312-		●
264	HOSE; FLEX ZF9S1310 M/T(Y5K) L=1150	1-09363-791-0	01	1	1212-1302		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1303-1311	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1303-1311		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1312-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1312-		●
304	BRACKET; UNION	8-97610-319-1	01	1	1212-	●	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE	0-28650-830-0	02	1	1512-		●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1212-1511	●	●
341	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	1212-	●	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28650-835-0	02	1	1212-	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1212-1511	●	●
421	NUT; BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1212-	●	●

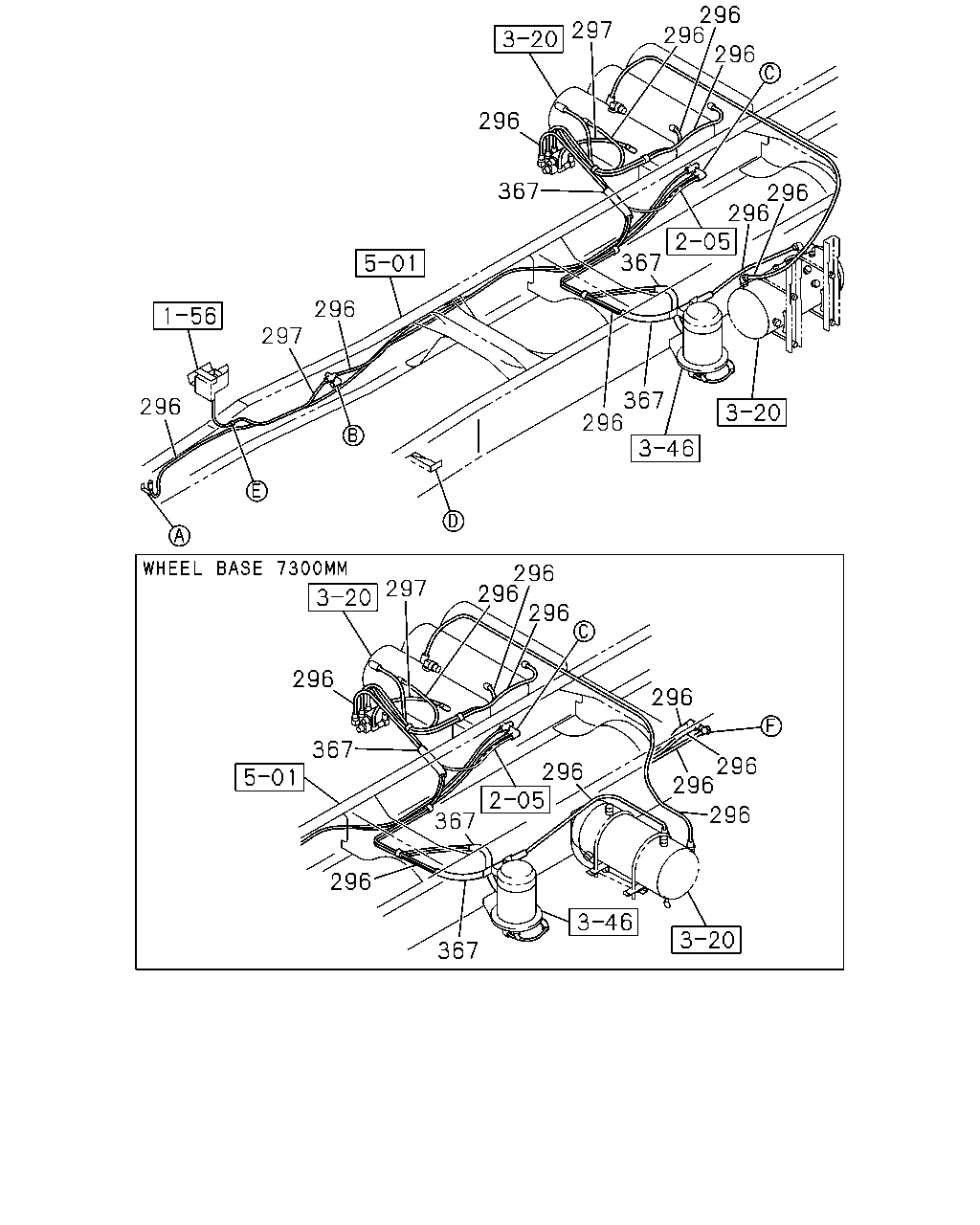

296 297 296 296 367 297 296 296 296 296 296 367 367 296 297 296 367 296 367 296 296 296 296 296 296 296 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1212-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1212-	●	●

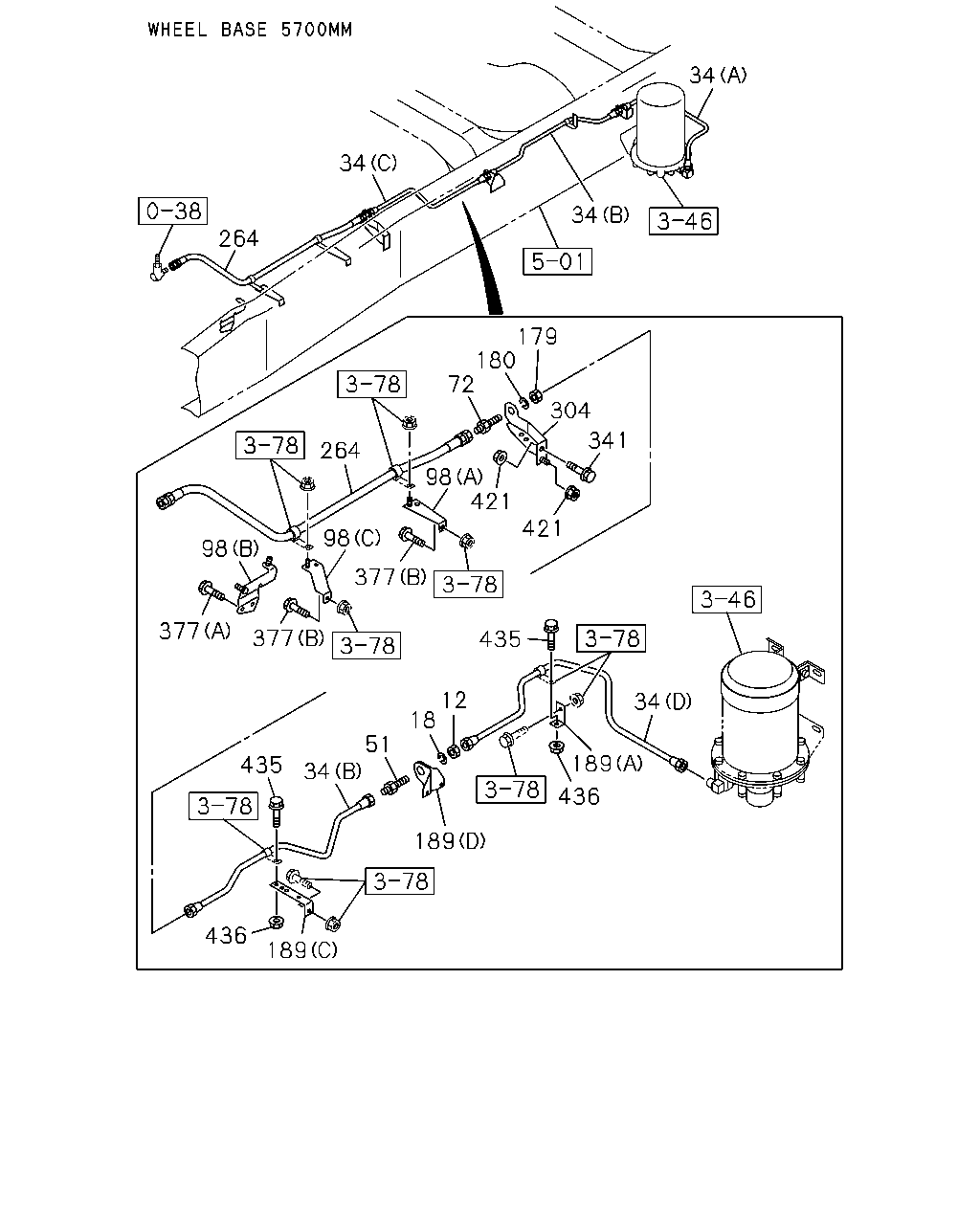

34 264 34 34 179 180 72 264 98 304 421 421 341 377 98 98 377 377 435 189 18 34 12 51 189 436 189 34 51 421 12 435 18 341 189 436 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M22	0-91111-522-0	02	1	1512-	●
12	NUT; UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M22	0-91111-522-0	02	1	1512-		●
12	NUT; UNION M22	0-91111-522-0	02	1	1212-1511	●	●
12	NUT; UNION WHEEL BASE 5700MM(57W) M22	0-91111-522-0	01	1	1512-	●	●
18	WASHER; LK,UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=22.5	0-91510-522-0	02	1	1512-	●
18	WASHER; LK,UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=22.5	0-91510-522-0	02	1	1512-		●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1212-1511	●	●
18	WASHER; LK,UNION WHEEL BASE 5700MM(57W) ID=22.5	0-91510-522-0	01	1	1512-	●	●
34	PIPE; AIR WHEEL BASE 5700MM(57W) (D) L=1025	8-98333-606-0	01	1	1512-	●	●
34	PIPE; AIR (A) L=647	8-98174-588-0	01	1	1212-1511	●	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=647	8-98174-588-0	01	1	1512-	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=647	8-98174-588-0	01	1	1512-		●
34	PIPE; AIR (B) L=774	8-98214-465-0	01	1	1212-	●	●
34	PIPE; AIR (C) L=599	8-98214-471-0	01	1	1212-1511	●	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=599	8-98214-471-0	01	1	1512-	●
34	PIPE; AIR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=599	8-98214-471-0	01	1	1512-		●
51	UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M22	0-92123-315-0	02	1	1512-	●
51	UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M22	0-92123-315-0	02	1	1512-		●
51	UNION M22	0-92123-315-0	02	1	1212-1511	●	●
51	UNION WHEEL BASE 5700MM(57W) M22	0-92123-315-0	01	1	1512-	●	●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1212-	●	●
98	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) (C)	8-98333-604-0	01	1	1512-	●	●
98	BRACKET; AIR PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	8-97609-096-0	02	1	1512-	●
98	BRACKET; AIR PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	8-97609-096-0	02	1	1512-		●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1212-1511	●	●
98	BRACKET; AIR PIPE WHEEL BASE 5700MM(57W) (A)	8-97609-096-0	01	1	1512-	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1212-	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (B)	1-47479-473-0	01	1	1212-1511	●	●
189	BRACKET; FLEX HOSE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47479-473-0	01	1	1512-	●
189	BRACKET; FLEX HOSE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47479-473-0	01	1	1512-		●
189	BRACKET; FLEX HOSE (D)	8-98229-108-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (A) L=55	1-47475-304-0	01	1	1212-	●	●
189	BRACKET; FLEX HOSE (C)	1-82698-358-0	01	1	1212-	●	●
264	HOSE; FLEX A/T ALLISON 4430(Y5V) L=1160	8-98208-138-0	01	1	1212-	●	●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1212-1302	●	●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1303-1311	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1303-1311		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1312-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1312-		●
264	HOSE; FLEX ZF9S1310 M/T(Y5K) L=1150	1-09363-791-0	01	1	1212-1302		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1303-1311	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1303-1311		●
264	HOSE; FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1312-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1312-		●
304	BRACKET; UNION	8-97610-319-1	01	1	1212-	●	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE	0-28650-830-0	02	1	1512-		●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1212-1511	●	●
341	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	1212-	●	●
377	BOLT; BRKT FIX (B) M8X35 FLANGE	0-28650-835-0	02	1	1212-	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1212-1511	●	●
421	NUT; BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1212-	●	●

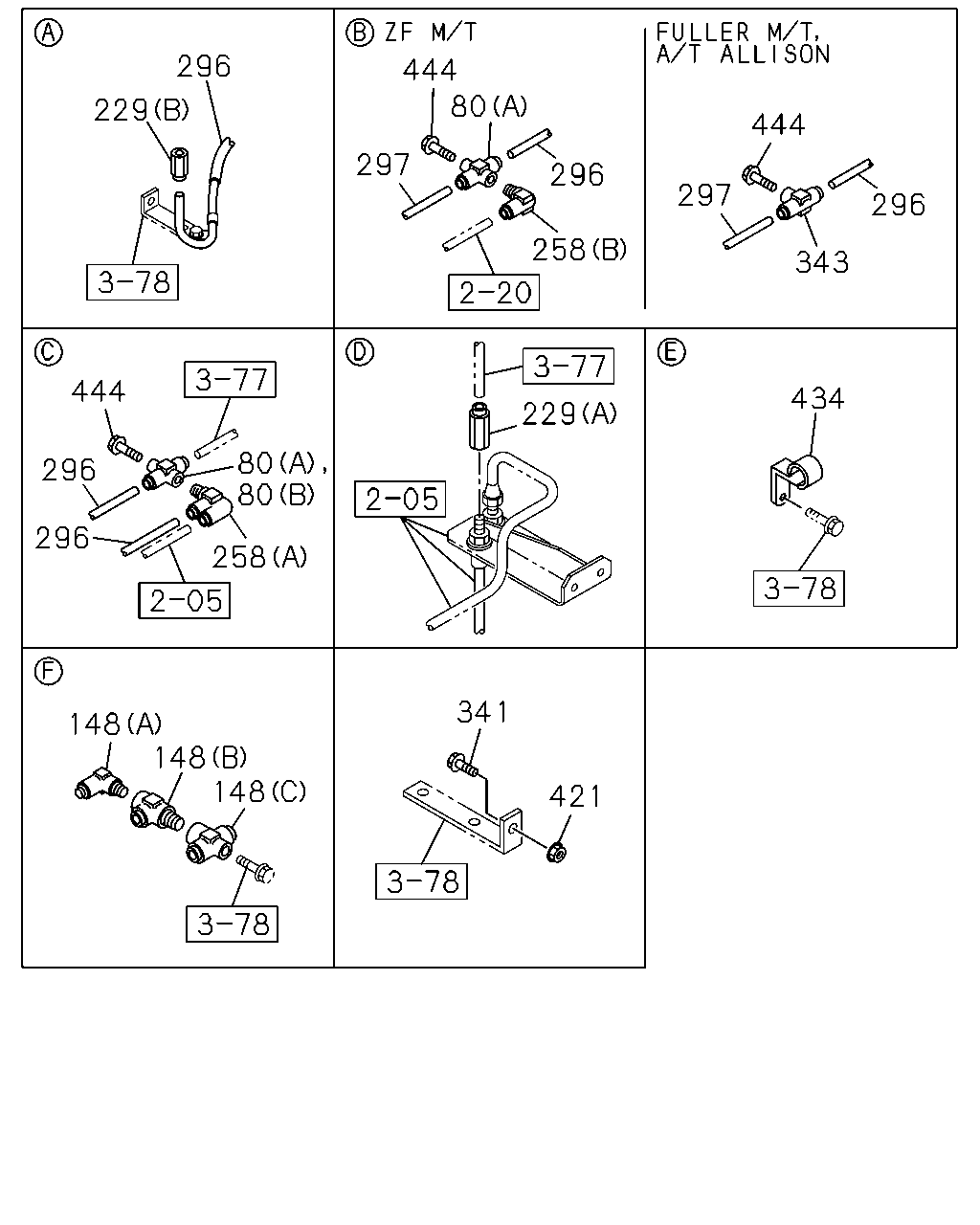

229 296 444 296 296 258 80 80 148 148 148 341 421 434 229 343 296 444 297 258 296 297 80 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	UNION; 3 WAY (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1212-	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1212-		●
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1212-		●
148	CONNECTOR; UNION WHEEL BASE 7300MM(73W) (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-		●
148	CONNECTOR; UNION WHEEL BASE 7300MM(73W) (C) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1303-		●
148	CONNECTOR; UNION WHEEL BASE 7300MM(73W) (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1303-		●
229	ADAPTER; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1212-1311	●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1212-1311		●
229	ADAPTER; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-	●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1312-		●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1212-	●	●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1212-	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1212-	●	●
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1212-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1212-	●	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
341	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE	0-28650-830-0	02	1	1512-		●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1212-1511	●	●
341	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1512-	●	●
343	UNION; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1212-1311	●	●
343	UNION; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V),TRANSMISSION-FULLER RTO11909(Y5Y) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1312-	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
421	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1212-1511	●	●
421	NUT; BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	01	1	1512-	●	●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	1212-	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
