3-60 — BRAKE PIPING; VACUUM (#111248) — 114 parça

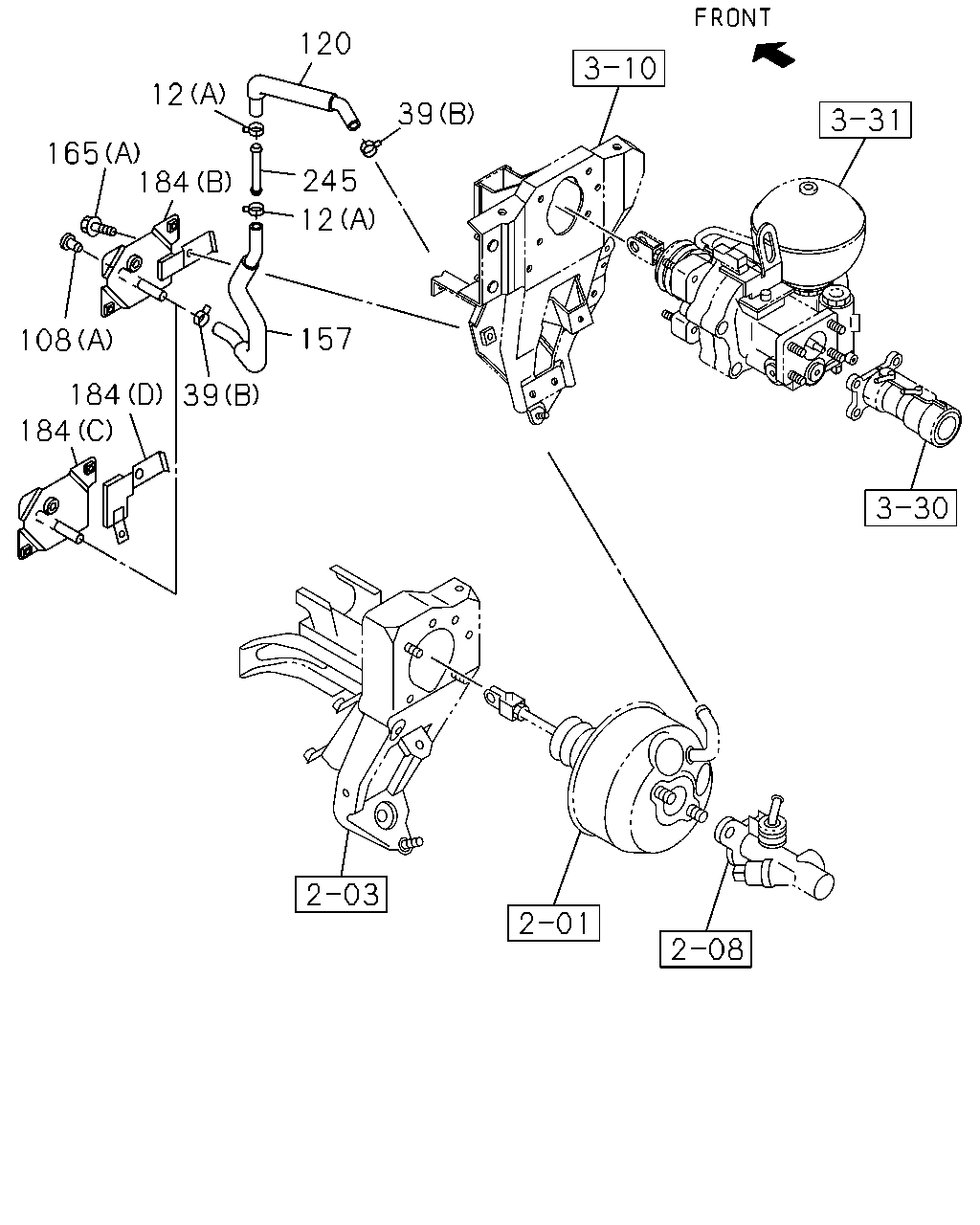

çizim 321502
120 39 245 157 12 12 184 165 108 184 39 184
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 06 1 1212-
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1212-
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1212-
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) 		8-98060-857-3 01 1 1212-
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) 		8-98060-860-2 01 1 1212-
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1212-
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1212-
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-541-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(B) 		8-98183-471-1 01 1 1212-1311
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-538-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(A) 		8-98211-373-0 01 1 1212-
245 04.931 JOINT; 2 WAY
POWER ASSIST CLUTCH(S2T) 04.681 		8-98048-075-0 01 1 1212-

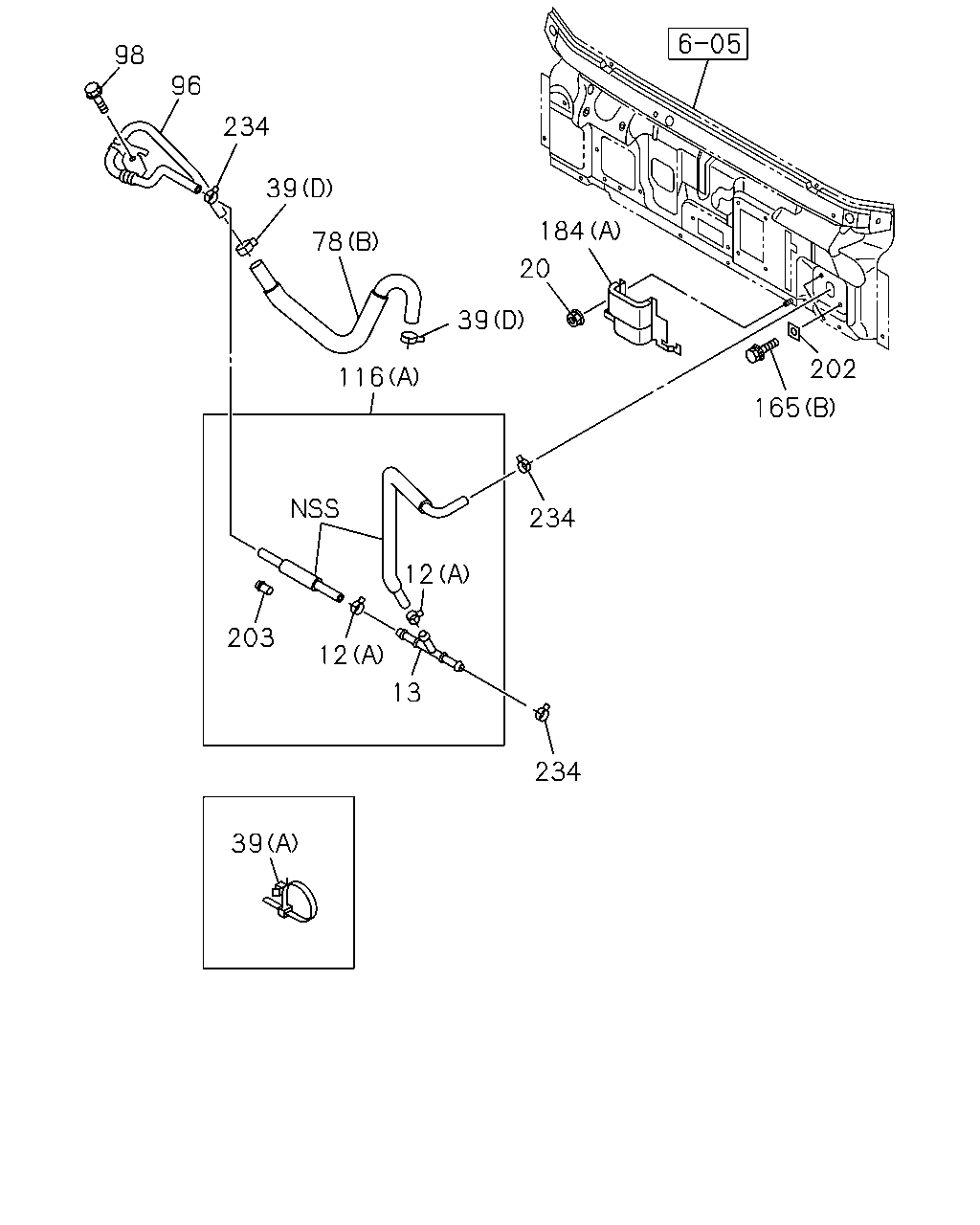

çizim 321503
98 96 234 39 78 184 20 39 116 234 165 202 234 13 12 12 203 39
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1212-
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 02 1 1212-
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 06 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-614-0 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1212-
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T) 		8-98082-321-0 01 1 1212-
98 04.931 BOLT; VAC PIPE FIX
POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1212-
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1212-
98 04.931 BOLT; VAC PIPE FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1212-
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1212-
165 04.686 BOLT; BRKT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1212-
165 04.686 BOLT; BRKT
02.762 (B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1212-
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-541-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(B) 		8-98183-471-1 01 1 1212-1311
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-538-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(A) 		8-98211-373-0 01 1 1212-
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1212-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) 		8-94104-021-0 01 1 1212-
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1212-

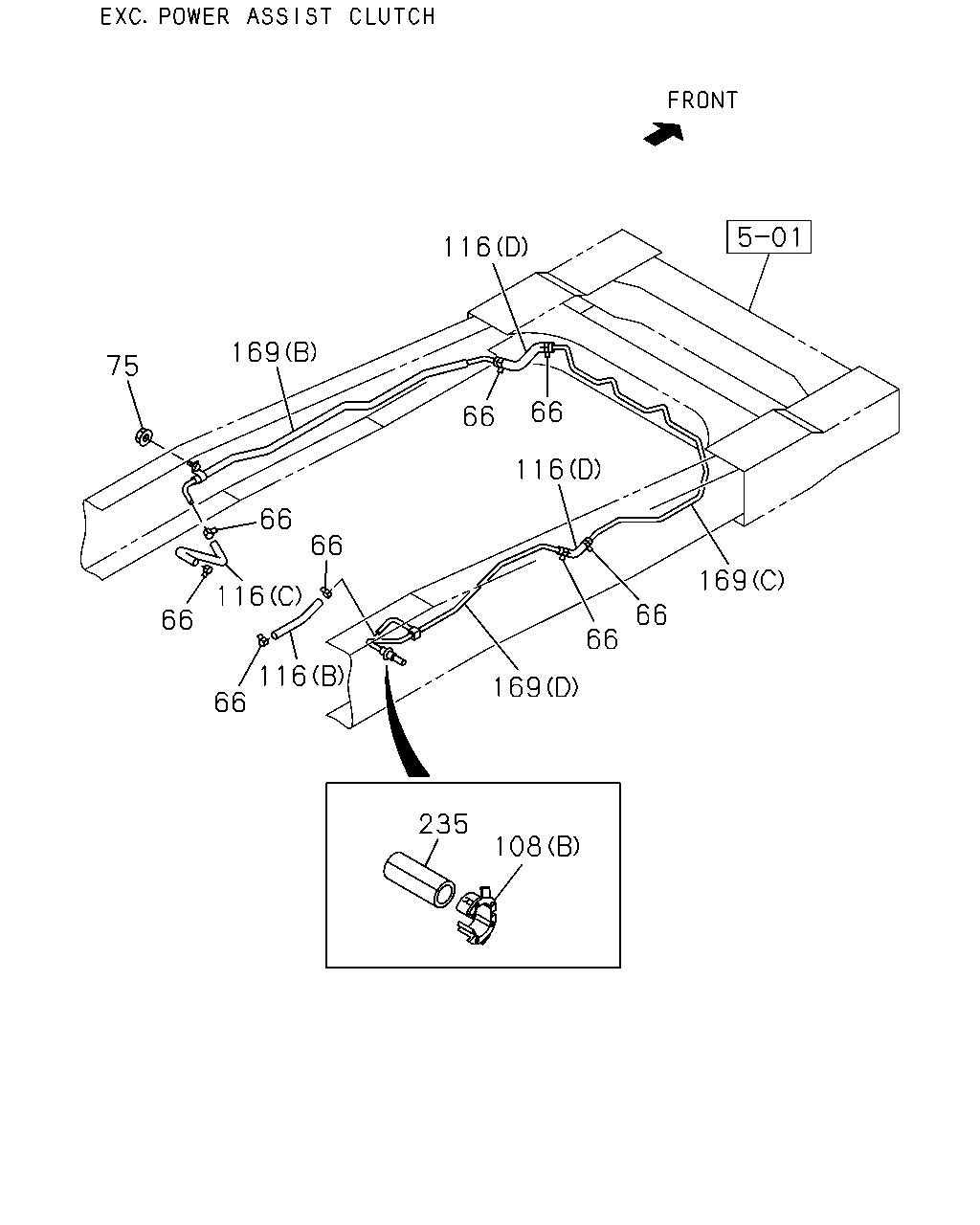

çizim 321512
116 66 66 116 169 75 66 66 66 116 116 66 169 66 66 169 235 108
BalonParca AdiParca NoAdetTipApplied Date
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1212-
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1212-
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212-
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1212-
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1212-
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98140-330-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
(D) 		8-98040-479-3 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1212-
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1212-

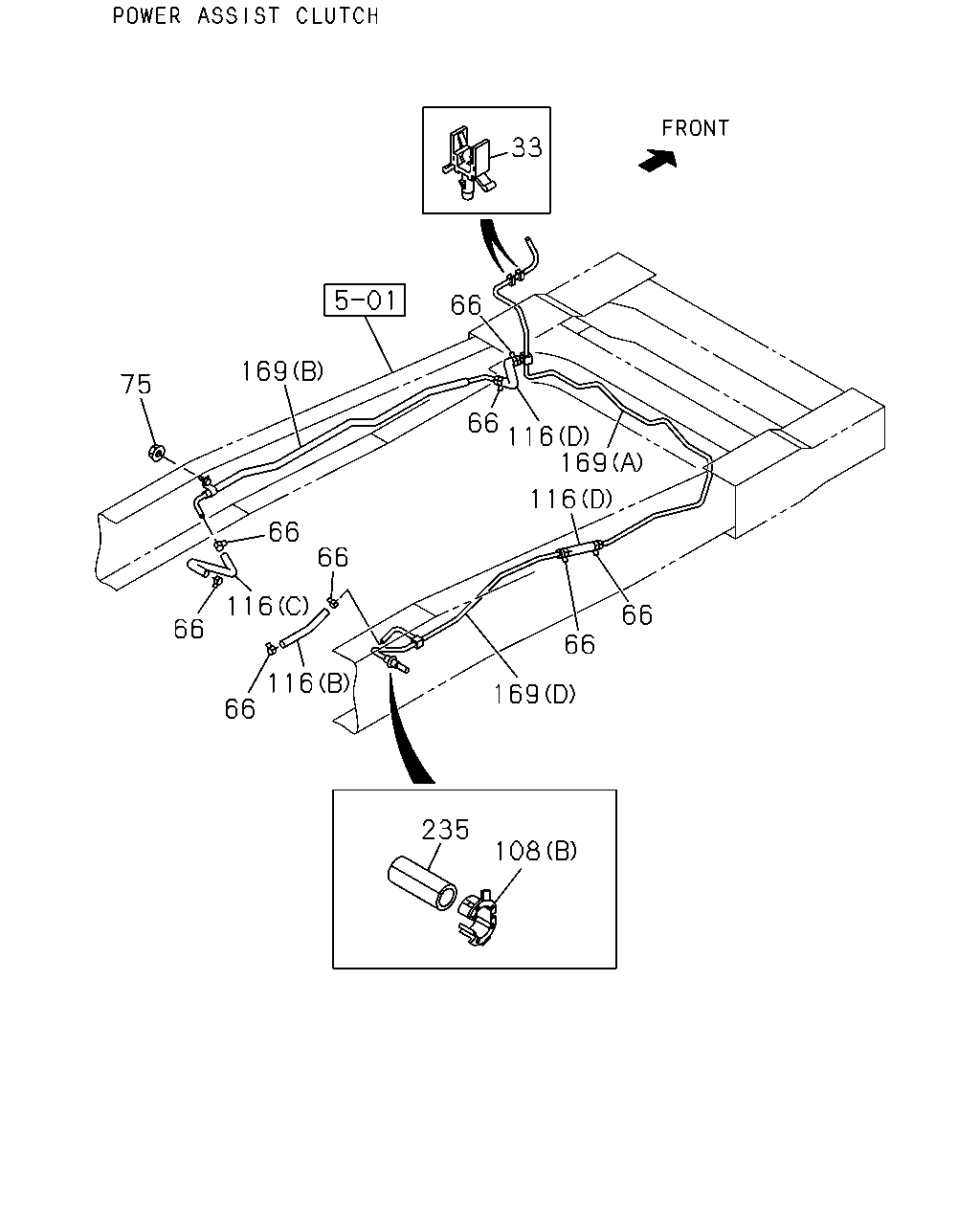

çizim 321513
33 66 169 75 66 66 116 66 66 116 235 108 169 66 66 116 169 116 66
BalonParca AdiParca NoAdetTipApplied Date
33 04.930 CLIP; VAC PIPE
POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1212-
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1212-
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1212-
75 04.930 NUT; CLIP,VAC HOSE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212-
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1212-
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-98113-000-1 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(D) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1212-
116 04.931 HOSE; VAC,M/VAC
03.630 (B) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1212-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98158-378-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98140-330-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
(D) 		8-98040-479-3 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. POWER ASSIST CLUTCH(S2T) 04.685 (C) 		8-98048-901-0 01 1 1212-
169 04.930 PIPE; VAC,BOOSTER SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1212-
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1212-

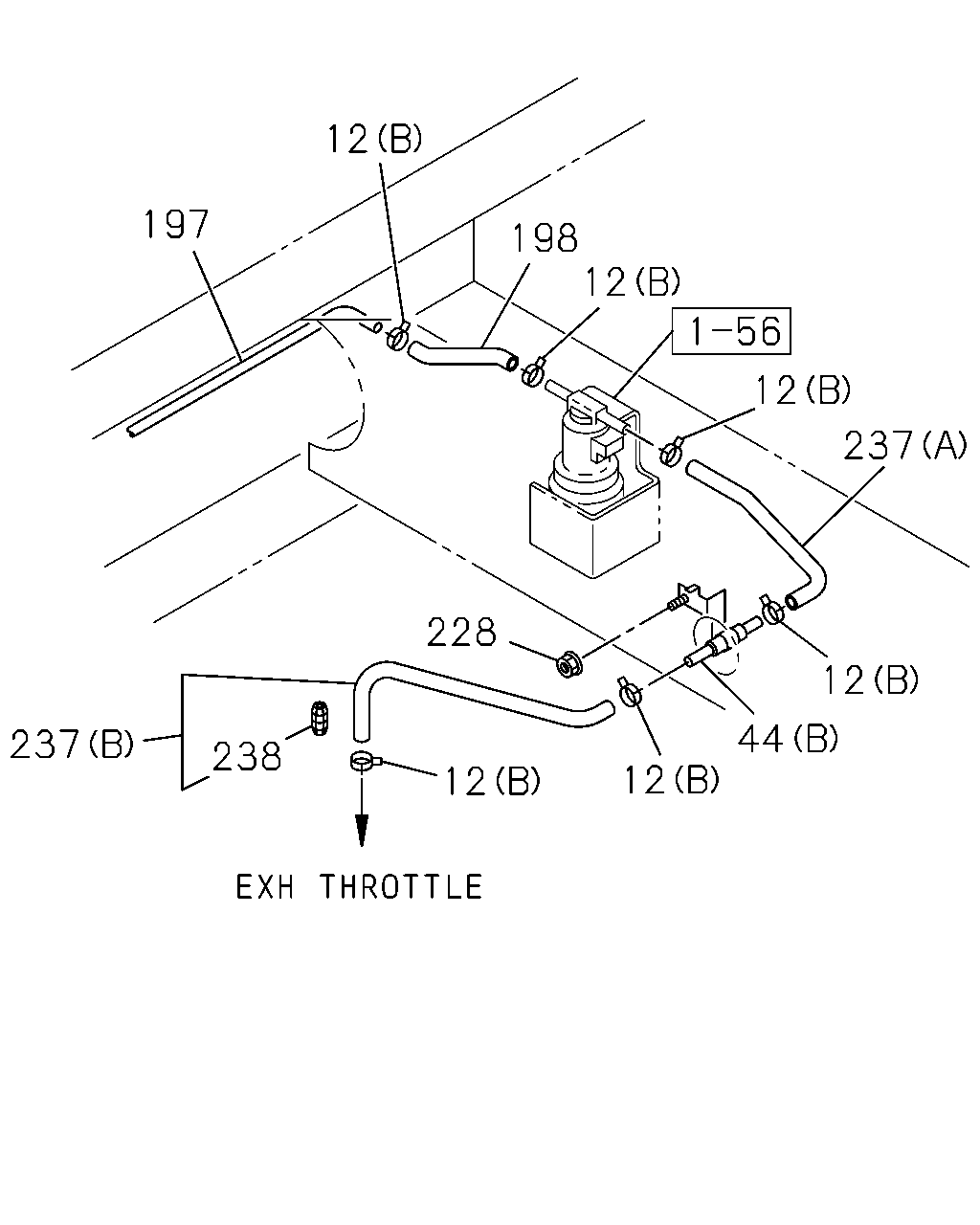

çizim 321524
12 197 198 12 12 237 12 44 12 228 12 238 237
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 02 1 1212-
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 04 1 1212-
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 1212-
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 1212-
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98133-641-0 01 1 1212-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 L=230 SERVICED BY L=3000 		0-08258-300-0 01 1 1212-
228 04.930 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212-
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-97378-771-0 01 1 1212-
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98040-785-1 01 1 1212-
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1212-
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 1212-

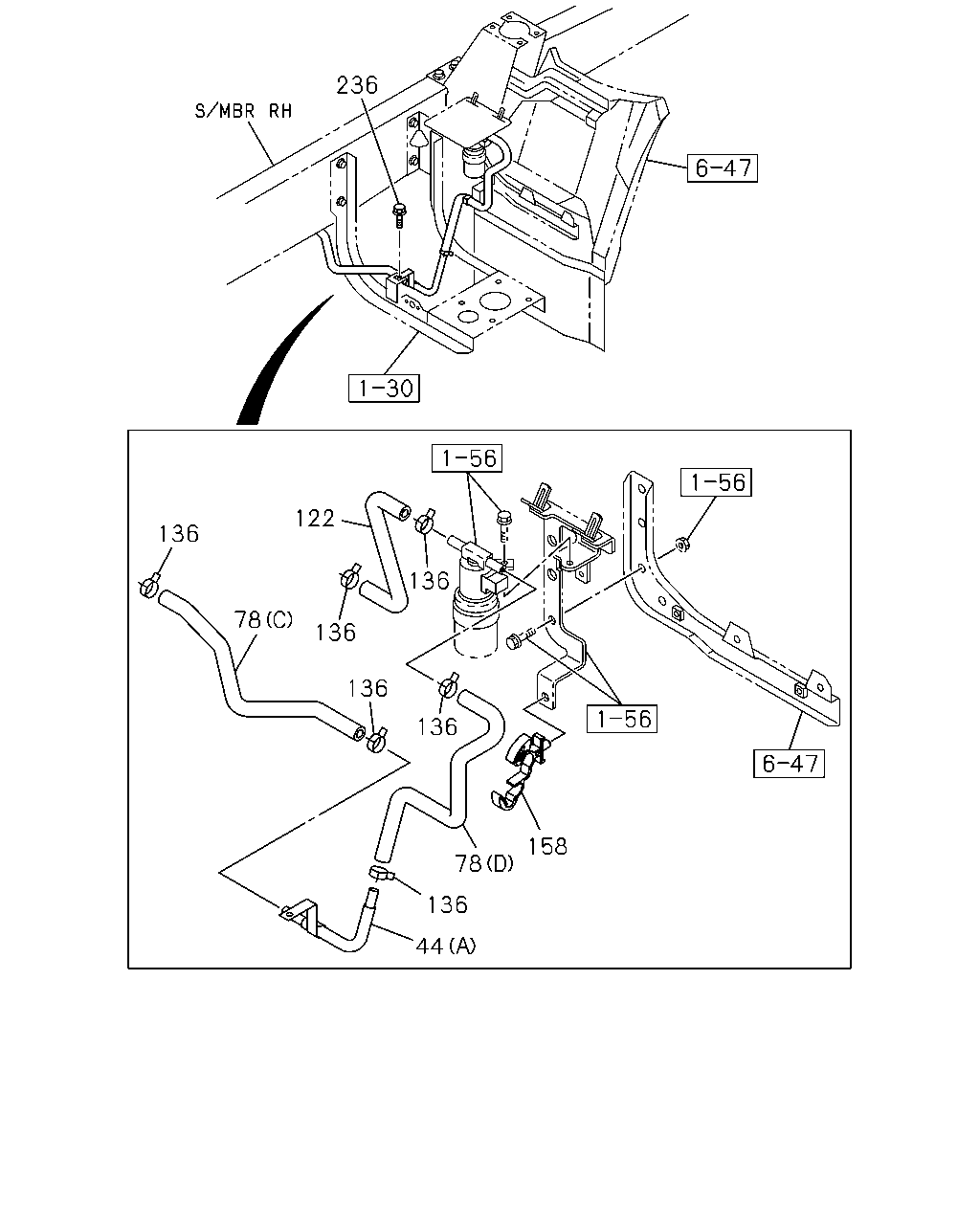

çizim 321525
236 122 136 78 136 136 136 136 158 78 136 44
BalonParca AdiParca NoAdetTipApplied Date
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98034-281-1 01 1 1212-
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98040-807-1 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-614-0 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1212-
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1212-
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1212-
158 04.681 CLIP; HOSE
02.559 ID=14-20 		8-97061-603-0 01 1 1212-
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212-

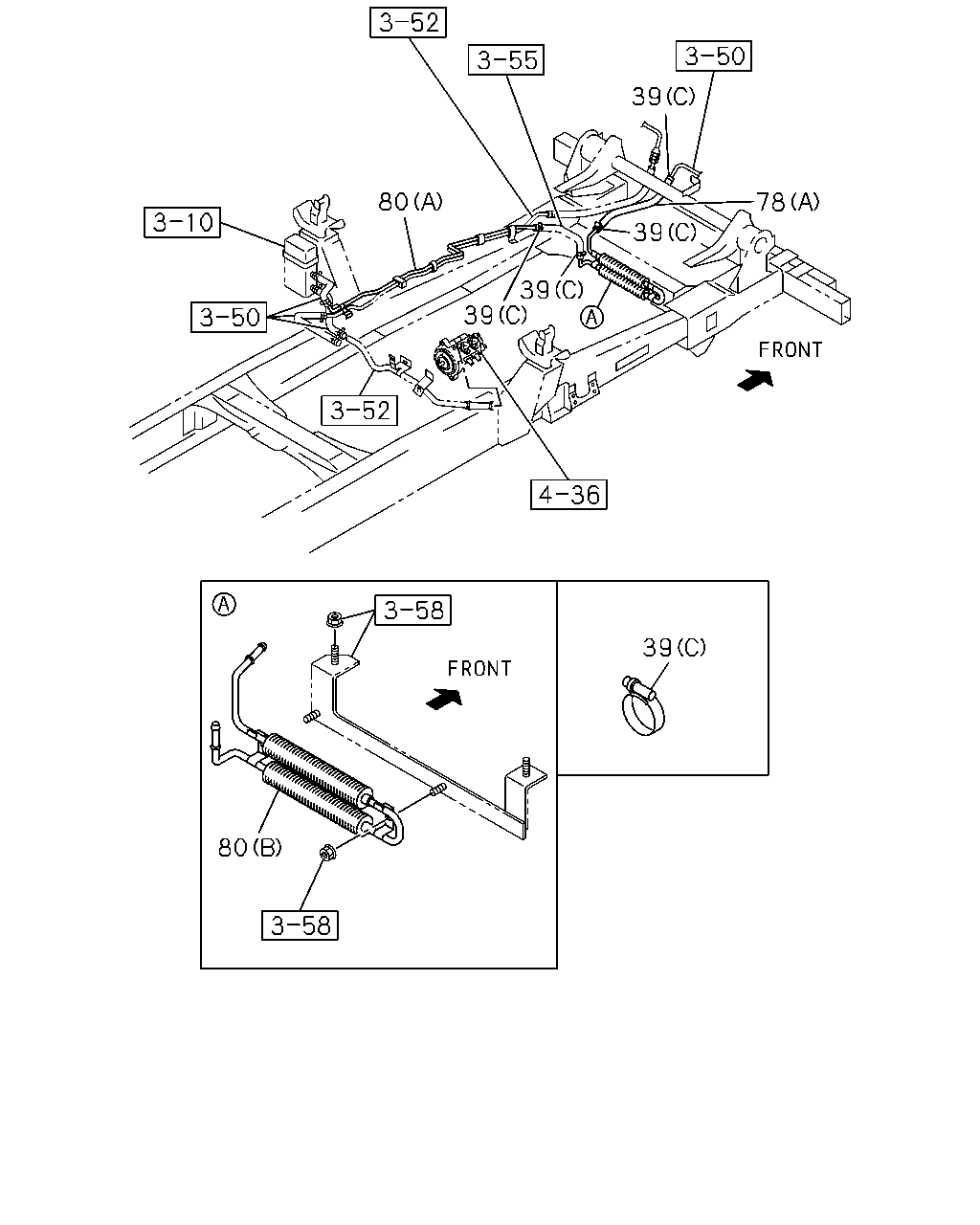

çizim 321526
39 78 39 39 39 80 80 39
BalonParca AdiParca NoAdetTipApplied Date
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3 		1-09987-182-0 01 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 01.097 (D) ID=16 		8-97329-628-0 02 1 1212-
39 04.681 CLIP; HOSE,VAC
(C) ID=11-17 		8-98173-762-1 06 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
POWER ASSIST CLUTCH(S2T) (B) 		8-98081-681-2 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98133-654-1 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98136-614-0 01 1 1212-
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98189-106-0 01 1 1212-
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98039-753-0 01 1 1212-
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98097-788-0 01 1 1212-
