3-78 — FIXING PARTS; AIR PIPING (#111246) — 81 parça

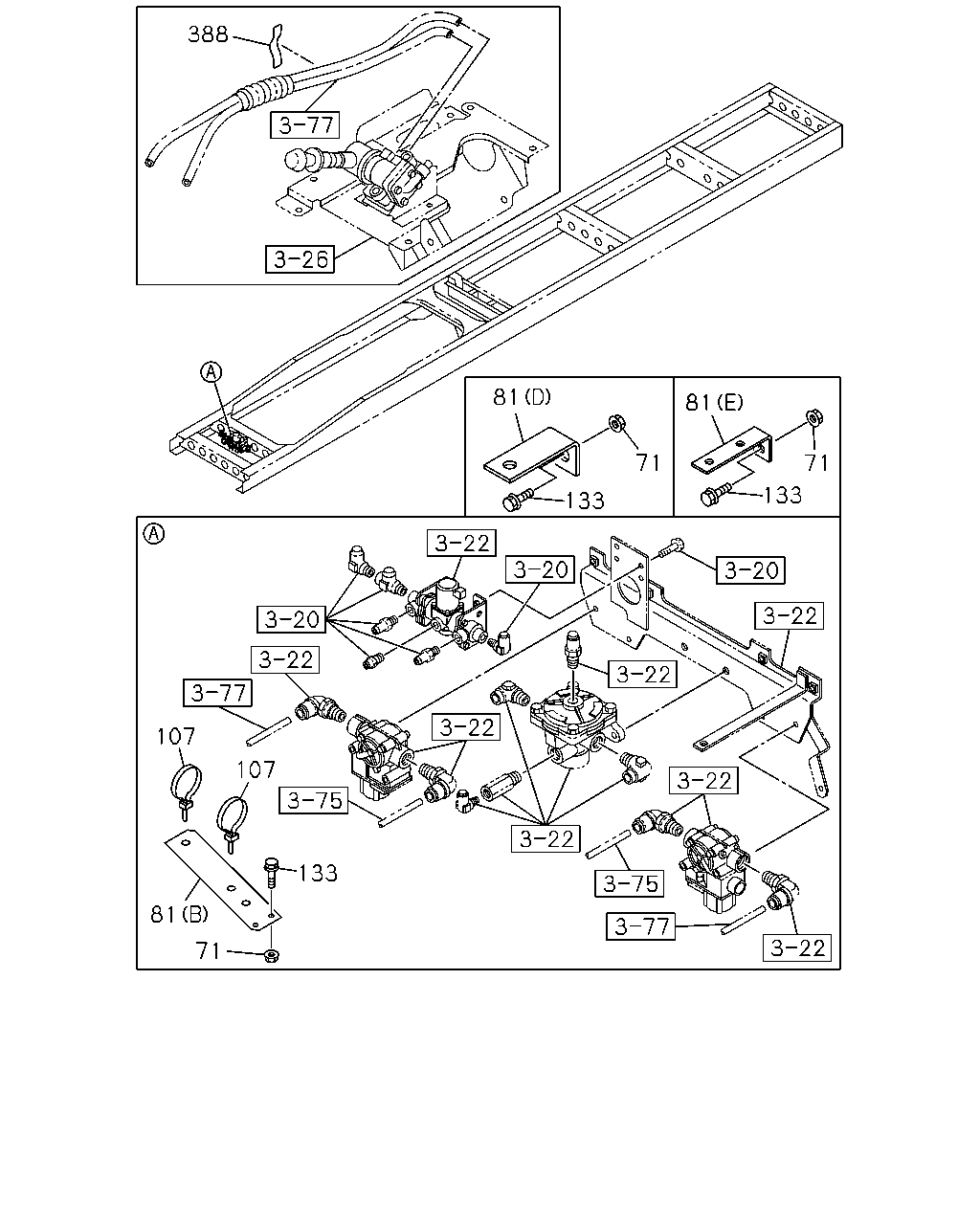

388 81 71 133 81 71 133 107 107 133 81 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1212-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1212-
71	NUT; BRKT H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1212-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1212-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1212-
81	BRACKET; CLIP (E) L=60 H=30	1-47477-716-1	02	1	1212-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	1212-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1212-
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	1212-
81	BRACKET; CLIP (I)	8-98186-380-0	01	1	1212-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (H)	8-98177-873-0	04	1	1212-
81	BRACKET; CLIP H.S.A SYSTEM<6EP> (A) L=100 H=30	1-47477-645-2	01	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (H)	8-98177-873-0	02	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (G)	8-98182-331-0	01	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C)	8-98182-760-0	01	1	1212-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> L=350	1-09707-183-0	01	1	1212-
107	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W) L=350	1-09707-183-0	37	1	1212-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	39	1	1212-1402
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	40	1	1403-
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	42	1	1212-1402
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	45	1	1403-
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	43	1	1212-1402
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1212-
133	BOLT; BRKT H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1212-
133	BOLT; BRKT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M8X30 FLANGE	0-28650-830-0	03	1	1212-
388	SEAL 100X40	1-72498-022-1	03	1	1212-

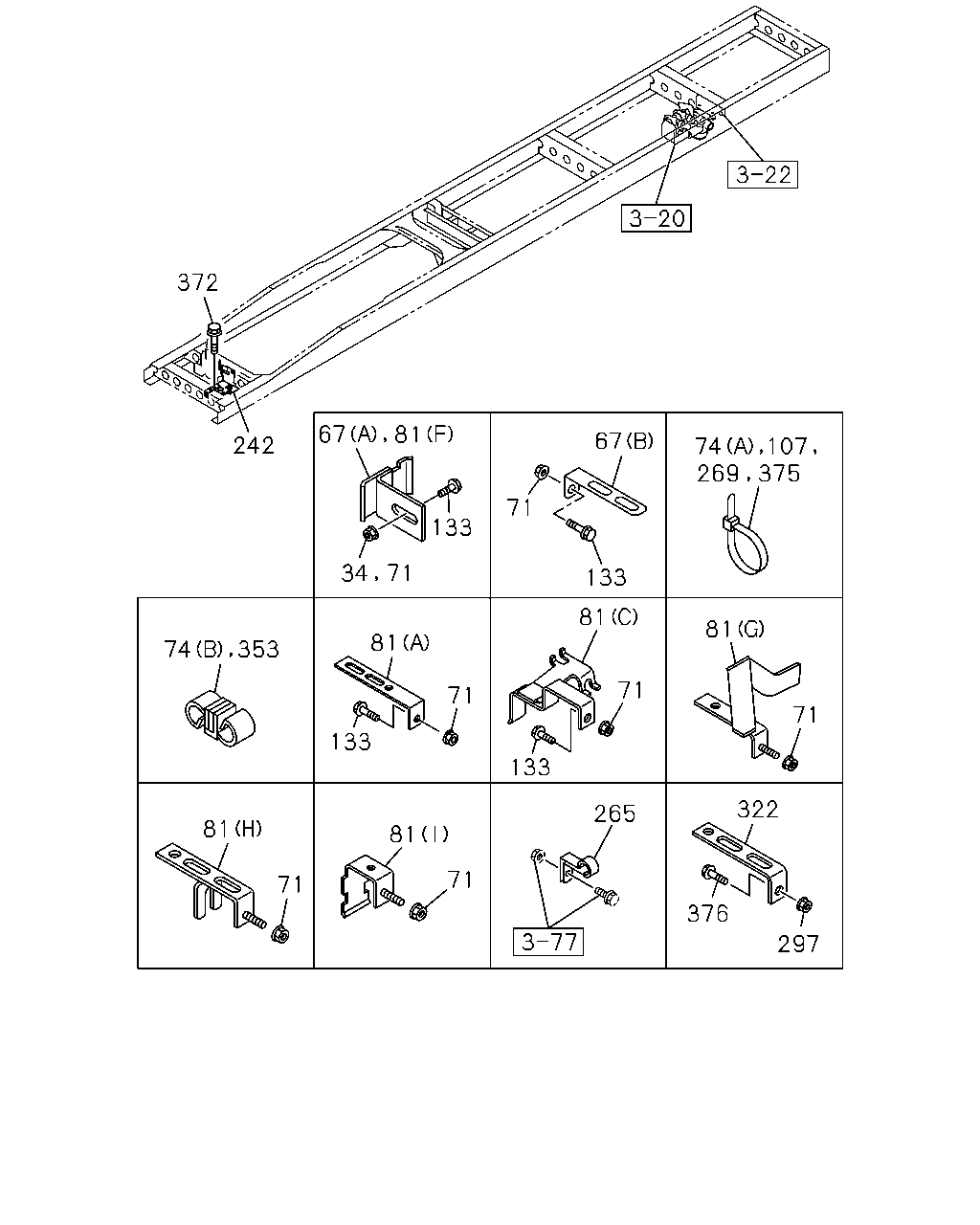

372 242 67 81 34 71 133 71 67 133 74 107 269 375 74 353 81 133 71 81 71 133 81 71 81 71 81 71 265 322 376 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1212-
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1212-
67	BRACKET; CLIP (A)	1-47479-693-0	01	1	1212-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1212-
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1212-
71	NUT; BRKT H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1212-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1212-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1212-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	1212-
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1212-
74	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	10	1	1212-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	11	1	1212-
74	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) (A) L=350	1-09707-183-0	14	1	1212-
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	15	1	1212-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1212-
81	BRACKET; CLIP (E) L=60 H=30	1-47477-716-1	02	1	1212-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	1212-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1212-
81	BRACKET; CLIP (D) L=65 B=25	8-98135-584-0	01	1	1212-
81	BRACKET; CLIP (I)	8-98186-380-0	01	1	1212-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (H)	8-98177-873-0	04	1	1212-
81	BRACKET; CLIP H.S.A SYSTEM<6EP> (A) L=100 H=30	1-47477-645-2	01	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (H)	8-98177-873-0	02	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (G)	8-98182-331-0	01	1	1212-
81	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C)	8-98182-760-0	01	1	1212-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> L=350	1-09707-183-0	01	1	1212-
107	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W) L=350	1-09707-183-0	37	1	1212-
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	39	1	1212-1402
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	40	1	1403-
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	42	1	1212-1402
107	CLIP; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	45	1	1403-
107	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) L=350	1-09707-183-0	43	1	1212-1402
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1212-
133	BOLT; BRKT H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1212-
133	BOLT; BRKT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M8X30 FLANGE	0-28650-830-0	03	1	1212-
242	BRACKET; PIPE CLIP	8-98158-602-0	01	1	1212-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1212-
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	1212-
297	NUT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1212-
322	BRACKET; CLIP ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-47479-598-0	02	1	1212-
353	CLIP; AIR PIPE ID=18 & 18	8-94323-068-0	01	1	1212-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1212-1402
375	CLIP; AIR PIPE EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1212-1402
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) L=350	1-09707-183-0	01	1	1403-
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1403-
376	BOLT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	1212-
