◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#111245) — 364 parça

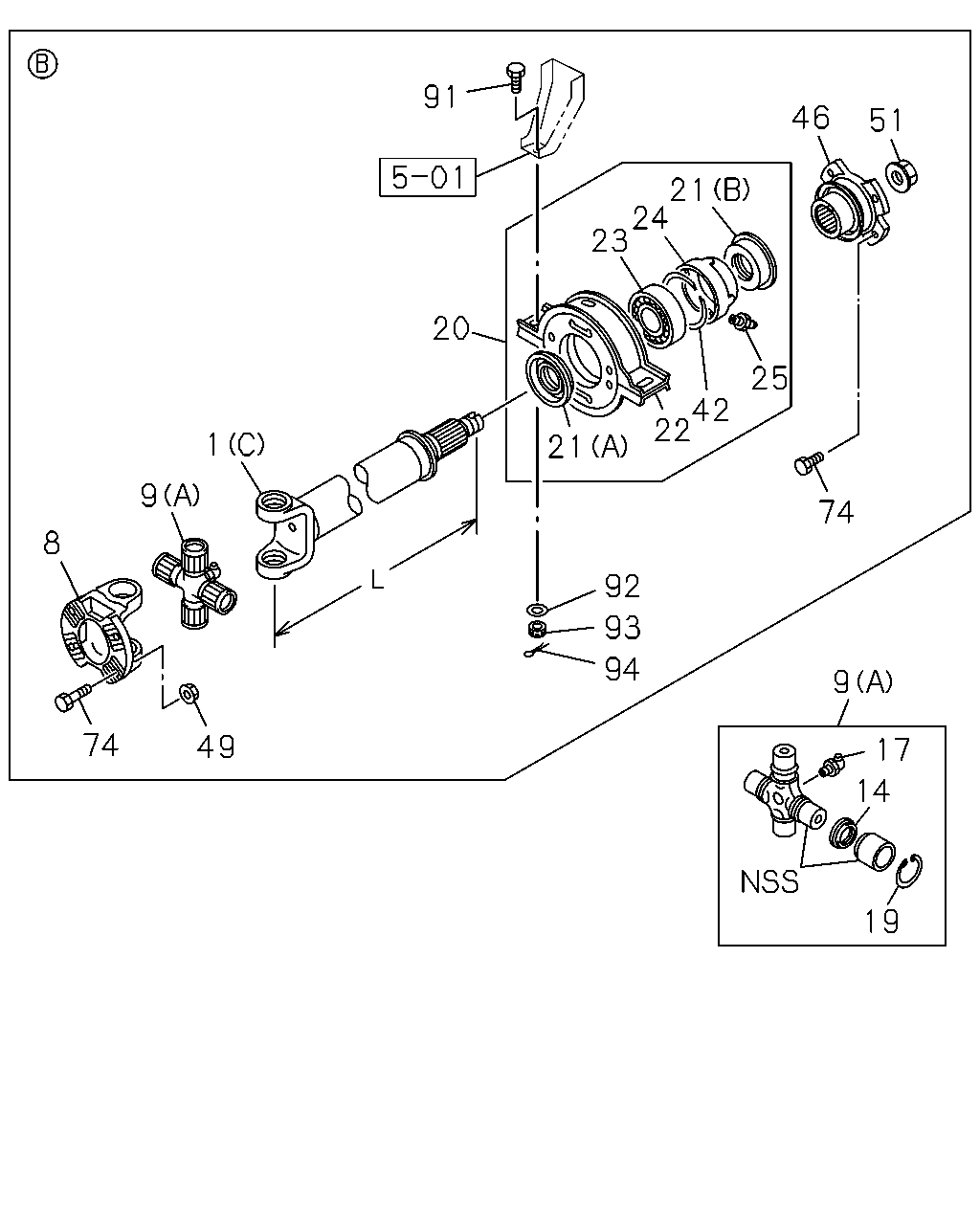

çizim 321424
91 20 23 24 21 46 51 74 25 42 22 21 92 93 94 9 17 14 19 1 9 8 74 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=940 		1-37125-337-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1280 		1-37125-341-0 01 1 1303- ●
1 SHAFT; PROP
(C) L=1182 		8-98234-821-0 01 1 1303- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 1212- ●
1 SHAFT; PROP
(D) L=435.3 		1-37124-894-0 01 1 1212- ● ● ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1212-1511 ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1512- ● ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1087 		8-98213-784-0 01 1 1212-1311 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1312-1511 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1512- ● ● ●
1 SHAFT; PROP
(C) L=729 		1-37153-589-0 01 1 1212- ●
1 SHAFT; PROP
(A) L=1070 		8-98094-187-0 01 1 1212- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1212-1302 ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1303- ●
1 SHAFT; PROP
(B) L=1257 		8-98149-457-0 01 1 1303- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1212-1511 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1212-1302 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1303-1511 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1212-1302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1303- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1212-1511 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1212-1302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 1212- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1212-1302 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1303- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1212-1511 ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1512- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1212-1302 ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1303-1511 ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1212-1302 ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1303- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1212-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1212-1302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1212-1302 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1303- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 1212-1302 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 1212-1302 ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1303-1511 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1303-1511 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1512- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1212-1302 ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1212-1302 ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1303-1511 ● ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1303-1511 ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1512- ● ● ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1212-1302 ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1212-1302 ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1303-1511 ● ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1303-1511 ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1512- ● ● ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1512- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1212-1302 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1212-1302 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1303-1511 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1303-1511 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1512- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1512- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1212-1302 ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1212-1302 ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1303-1511 ● ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1303-1511 ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1512- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1512- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1212-1302 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1212-1302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1303-1511 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1303-1511 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1512- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1512- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1212-1302 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1212-1302 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1303-1511 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1303-1511 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1512- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1512- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 1212-1302 ● ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 1212-1302 ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1303-1511 ● ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1303-1511 ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1512- ● ● ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1512- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1212-1302 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1212-1302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1303-1511 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1303-1511 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1512- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1512- ● ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1212-1302 ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1212-1302 ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1212-1302 ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1303-1511 ● ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1303-1511 ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1512- ● ● ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1512- ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L) M14X50 		1-09000-645-0 04 1 1212-1302 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1212-1302 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1212-1302 ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1311 ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L) M14X50 		1-09000-645-0 04 1 1303-1311 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1311 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1312-1511 ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14X50 		1-09000-645-0 04 1 1312-1511 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1312-1511 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14X50 		1-09000-645-0 04 1 1512- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1212-1302 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1303- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1212-1302 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1303- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1212-1302 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1303- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1212-1302 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1303- ● ●

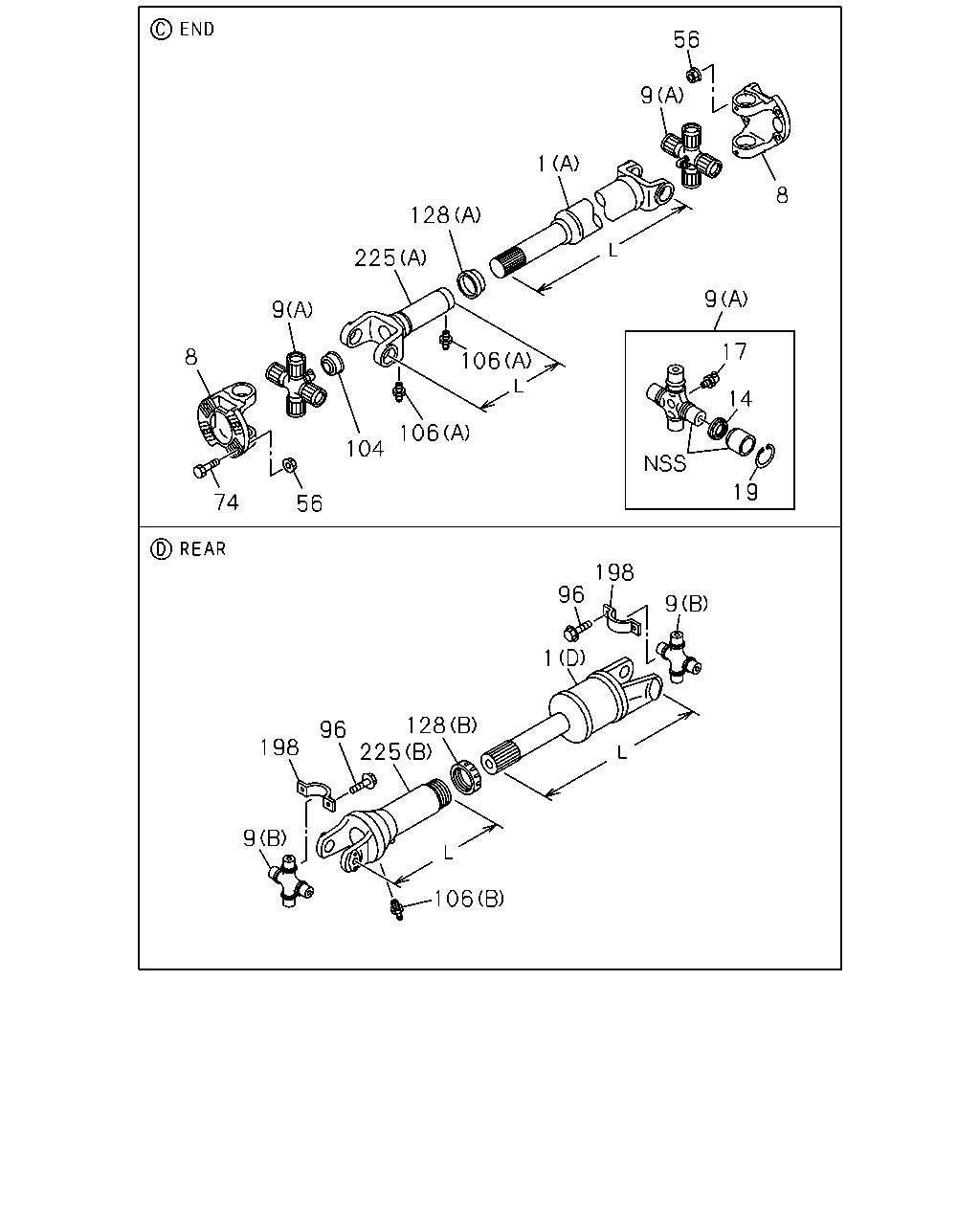

çizim 321482
56 9 1 128 225 9 8 74 56 104 106 106 8 9 17 14 19 9 198 96 1 128 225 96 198 9 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=940 		1-37125-337-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1280 		1-37125-341-0 01 1 1303- ●
1 SHAFT; PROP
(C) L=1182 		8-98234-821-0 01 1 1303- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 1212- ●
1 SHAFT; PROP
(D) L=435.3 		1-37124-894-0 01 1 1212- ● ● ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1212-1511 ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1512- ● ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1087 		8-98213-784-0 01 1 1212-1311 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1312-1511 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1512- ● ● ●
1 SHAFT; PROP
(C) L=729 		1-37153-589-0 01 1 1212- ●
1 SHAFT; PROP
(A) L=1070 		8-98094-187-0 01 1 1212- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1212-1302 ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1303- ●
1 SHAFT; PROP
(B) L=1257 		8-98149-457-0 01 1 1303- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1212-1511 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1212-1302 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1303-1511 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1212-1302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1303- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1212-1511 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1212-1302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 1212- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1212-1302 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1303- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1212-1511 ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1512- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1212-1302 ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1303-1511 ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1212-1302 ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1303- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1212-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1212-1302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1212-1302 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1303- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1212-1302 ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1212-1302 ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1510 ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303-1510 ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1511- ● ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1511- ● ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L) M14X50 		1-09000-645-0 04 1 1212-1302 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1212-1302 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1212-1302 ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1311 ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L) M14X50 		1-09000-645-0 04 1 1303-1311 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303-1311 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1312-1511 ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14X50 		1-09000-645-0 04 1 1312-1511 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1312-1511 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ● ● ●
74 BOLT; YOKE,TRANS
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14X50 		1-09000-645-0 04 1 1512- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1512- ● ●
96 BOLT; PROP SHAFT 1-09088-009-0 08 1 1212- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1212-1302 ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1303-1511 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1212-1302 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1303-1511 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1512- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) 		1-09380-013-0 01 1 1212- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1212-1302 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1303-1511 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1512- ● ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-025-0 01 1 1212- ● ● ● ●
198 PLATE; PROP SHAFT 1-37319-010-0 04 1 1212- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 1212-1302 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 1303-1511 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=339 		1-37241-140-0 01 1 1512- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=297 		1-37241-142-0 01 1 1212- ● ● ● ●

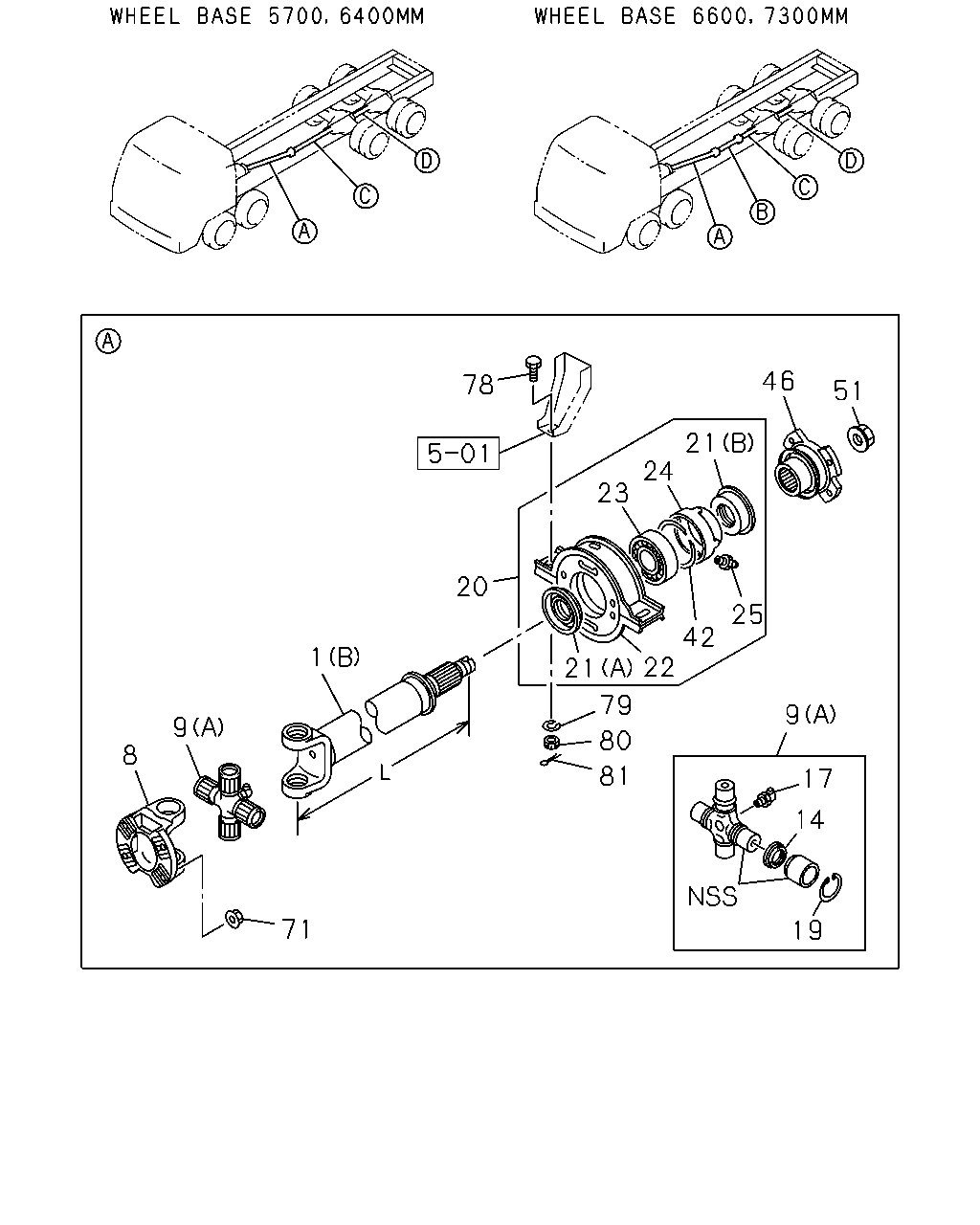

çizim 321581
78 20 1 9 8 71 23 24 21 25 42 22 21 79 80 81 46 51 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=940 		1-37125-337-0 01 1 1512- ●
1 SHAFT; PROP
(A) L=1280 		1-37125-341-0 01 1 1303- ●
1 SHAFT; PROP
(C) L=1182 		8-98234-821-0 01 1 1303- ●
1 SHAFT; PROP
(A) L=1640 		1-37125-293-0 01 1 1212- ●
1 SHAFT; PROP
(D) L=435.3 		1-37124-894-0 01 1 1212- ● ● ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1212-1511 ● ●
1 SHAFT; PROP
A/T ALLISON 4430(Y5V) (B) L=1272 		8-98213-785-0 01 1 1512- ● ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1087 		8-98213-784-0 01 1 1212-1311 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1312-1511 ● ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) L=1087 		8-98213-784-0 01 1 1512- ● ● ●
1 SHAFT; PROP
(C) L=729 		1-37153-589-0 01 1 1212- ●
1 SHAFT; PROP
(A) L=1070 		8-98094-187-0 01 1 1212- ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1212-1302 ●
1 SHAFT; PROP
ZF9S1310 M/T(Y5K) (B) L=1257 		8-98149-457-0 01 1 1303- ●
1 SHAFT; PROP
(B) L=1257 		8-98149-457-0 01 1 1303- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1212-1511 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1512- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1212-1302 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1303-1511 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1512- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1212-1302 ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 03 1 1303- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1212-1511 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1512- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1212-1302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1303-1511 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1512- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-115-0 02 1 1212- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1212-1302 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 03 1 1303- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1212-1511 ●
14 COVER; DUST,SPIDER 1-37249-133-0 08 1 1512- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1212-1302 ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1303-1511 ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 04 1 1512- ● ● ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1212-1302 ●
14 COVER; DUST,SPIDER 1-37249-133-0 12 1 1303- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1212-1511 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1212-1302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1303-1511 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1512- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1212-1302 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1212-1511 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1512- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1212-1302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1303-1511 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1512- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 12 1 1303- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1212-1302 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 12 1 1303- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 1212-1302 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 1212-1302 ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1303-1511 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1303-1511 ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1512- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1212-1302 ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1212-1302 ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1303-1511 ● ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1303-1511 ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1512- ● ● ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1512- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1212-1302 ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1212-1302 ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1303-1511 ● ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1303-1511 ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1512- ● ● ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1512- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1212-1302 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1212-1302 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1303-1511 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1303-1511 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1512- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1512- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1212-1302 ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1212-1302 ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1303-1511 ● ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1303-1511 ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1512- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1512- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1212-1302 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1212-1302 ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1303-1511 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1303-1511 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1512- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1512- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1212-1302 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1212-1302 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1303-1511 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1303-1511 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1512- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1512- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 1212-1302 ● ●
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 1212-1302 ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1303-1511 ● ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1303-1511 ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1512- ● ● ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1512- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1212-1302 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1212-1302 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1303-1511 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1303-1511 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1512- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1512- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1212-1302 ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1212-1302 ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1303-1511 ● ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1303-1511 ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1512- ● ● ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1512- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1212- ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1212-1302 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1303-1510 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1511- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1212-1302 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1303-1510 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1511- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1212-1302 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1303-1510 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1511- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1212-1302 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1303-1510 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1511- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
