Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#111243) — 40 parça
◀
[378A] NO.1 (16 parça)
[378A] NO.2 (11 parça)
[378A] NO.3 (13 parça)
▶

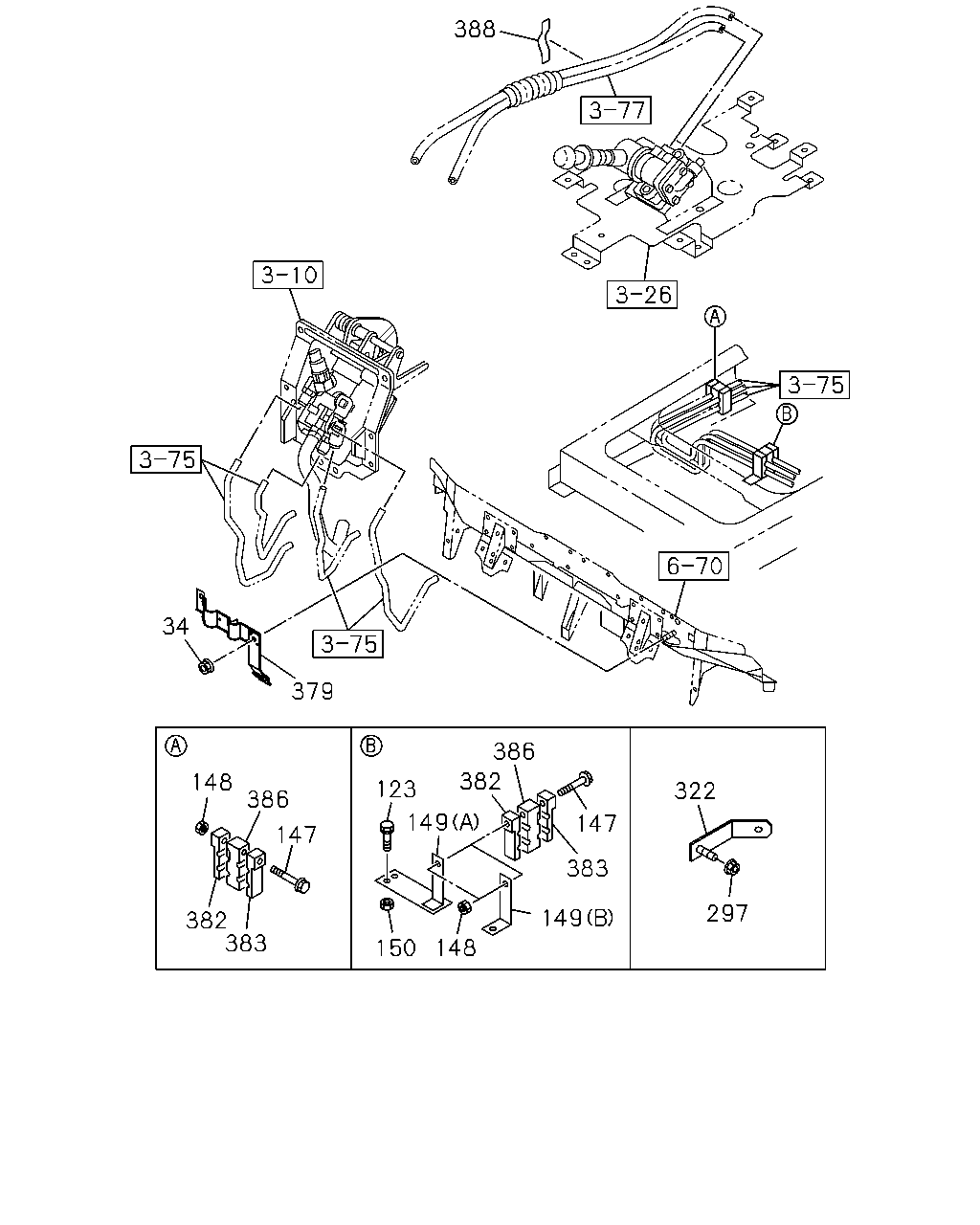

388
379
34
148
386
147
383
382
150
148
149
383
147
386
382
149
123
322
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1212-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
03
1
1212-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
05
1
1212-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
05
1
1212-
149
BRACKET; PIPE CLIP
(A)
8-98090-114-0
01
1
1212-
149
BRACKET; PIPE CLIP
(B) L=85
8-98094-937-0
01
1
1212-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
1212-
297
NUT; BRKT
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W) M8 FLANGE
0-91180-108-0
02
1
1212-
297
NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W) M8 FLANGE
0-91180-108-0
01
1
1212-
322
BRACKET; CLIP
WHEEL BASE 3700MM(37W),WHEEL BASE 4800MM(48W)
1-47479-936-1
02
1
1212-
322
BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 5500MM(55W)
1-47479-936-1
01
1
1212-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
1212-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
05
1
1212-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
05
1
1212-
386
CLIP; CENTER
ID=10
1-09709-242-0
05
1
1212-
388
SEAL
100X40
1-72498-022-1
03
1
1212-

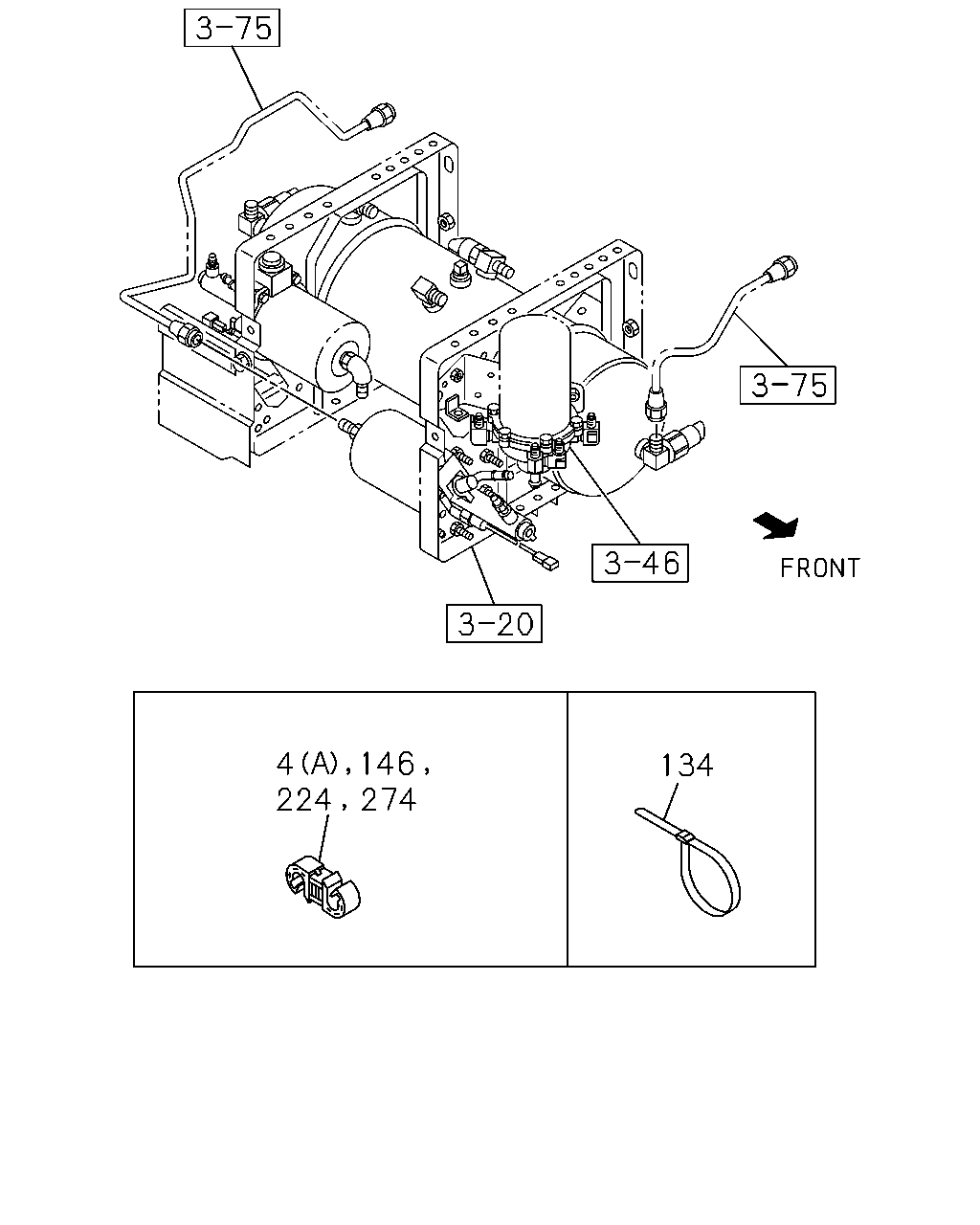

4
146
224
274
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1212-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1212-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1212-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
07
1
1212-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1212-
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
1212-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
02
1
1212-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
03
1
1212-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
1212-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
05
1
1212-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0
1-09709-305-0
01
1
1212-

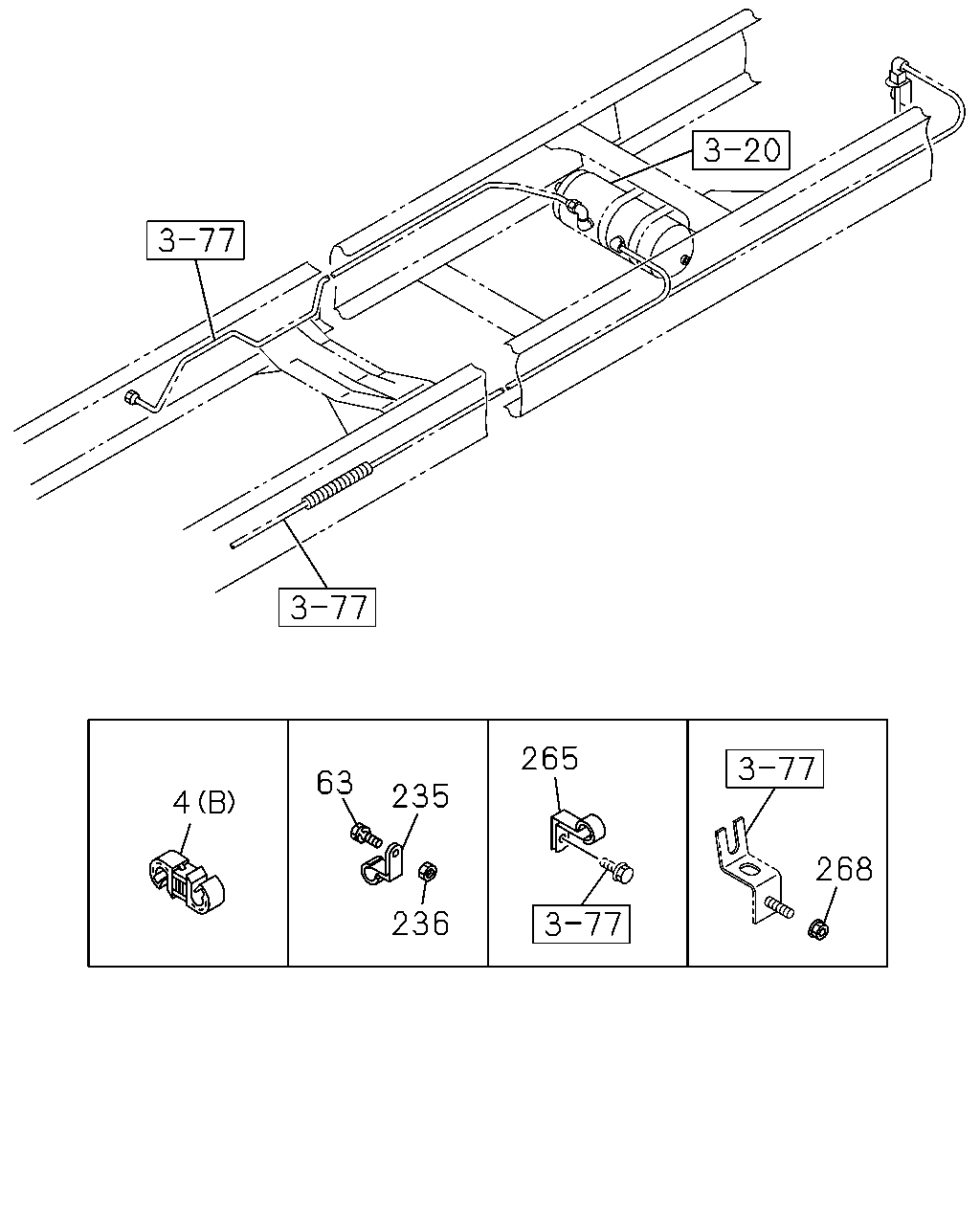

4
63
235
236
265
268
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1212-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1212-
63
BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE
0-28650-825-0
02
1
1212-
63
BOLT; CLIP
WHEEL BASE 4300MM(43W) M8X25 FLANGE
0-28650-825-0
04
1
1212-
63
BOLT; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8X25 FLANGE
0-28650-825-0
06
1
1212-
235
CLIP; AIR PIPE
WHEEL BASE 3700MM(37W) ID=11 H=20 L=20
8-98033-780-0
02
1
1212-
235
CLIP; AIR PIPE
WHEEL BASE 4300MM(43W) ID=11 H=20 L=20
8-98033-780-0
04
1
1212-
235
CLIP; AIR PIPE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20
8-98033-780-0
06
1
1212-
236
NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE
0-91180-108-0
02
1
1212-
236
NUT; CLIP
WHEEL BASE 4300MM(43W) M8 FLANGE
0-91180-108-0
04
1
1212-
236
NUT; CLIP
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M8 FLANGE
0-91180-108-0
06
1
1212-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
1212-
268
NUT; CLIP BRKT
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) M10 FLANGE
0-91180-210-0
01
1
1212-
