◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#111242) — 455 parça

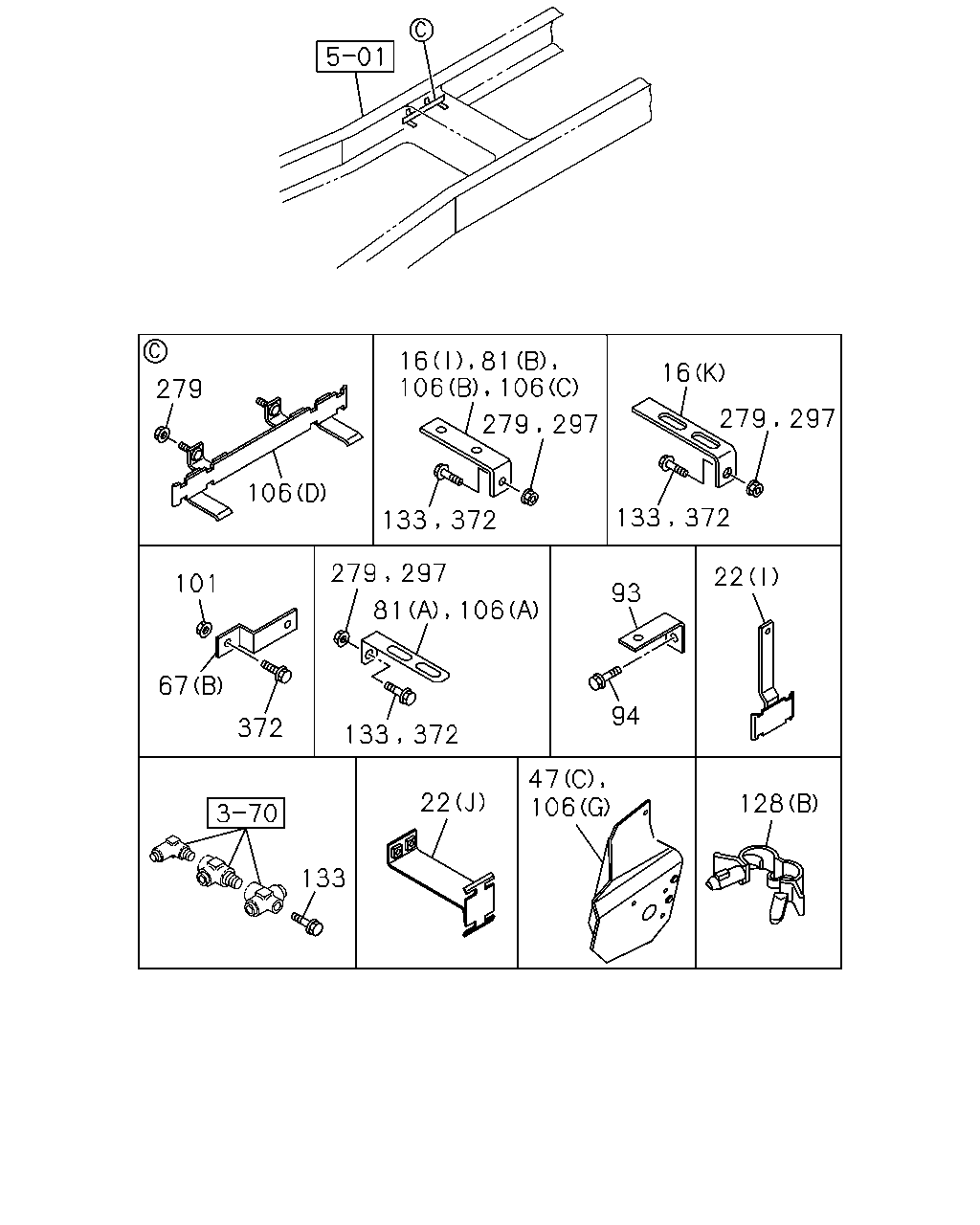

çizim 321548
279 106 16 106 81 279 106 133 372 279 297 81 106 101 67 372 133 372 22 133 297 16 279 297 133 372 93 22 94 47 106 128
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(C) 		1-47479-546-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-720-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-901-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-34656-009-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(J) 		1-47476-699-2 01 1 1212- ●
16 BRACKET; PIPE CLIP
(G) 		1-47478-588-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-249-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-598-0 01 1 1212- ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (I) 		8-97632-445-1 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (J) 		8-98333-605-0 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 02 1 1303- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1212- ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1212- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 04 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (C) L=150 H=30 		1-47477-629-2 03 1 1512- ● ●
22 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) L=60 H=30 		1-47477-716-1 01 1 1512- ● ●
22 BRACKET; CLIP
(E) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
22 BRACKET; CLIP
(G) L=95 		1-82698-557-0 01 1 1212- ● ●
22 BRACKET; CLIP
(H) 		1-82699-208-1 01 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1212-1302 ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1303- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A) 		8-98214-410-0 01 1 1303- ●
47 BRACKET; PIPE CLIP
WHEEL BASE 5700MM(57W) (C) 		8-98333-511-0 01 1 1512- ●
47 BRACKET; PIPE CLIP
(A) 		8-98166-030-1 01 1 1212- ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) (B) 		8-98209-935-0 01 1 1212-1402 ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) (B) 		8-98255-491-0 01 1 1403-1511 ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) 		8-98255-491-0 01 1 1512- ● ●
67 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) 		1-82698-358-0 01 1 1512- ●
67 BRACKET; CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
67 BRACKET; CLIP
(B) L=80 H=20 		1-82699-304-0 01 1 1212- ● ●
67 BRACKET; CLIP
(C) 		8-98214-427-0 01 1 1212-1511 ● ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) 		8-98214-427-0 01 1 1512- ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) 		8-98214-427-0 01 1 1512- ●
81 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (A) L=150 H=30 		1-47477-629-2 01 1 1512- ● ●
81 BRACKET; CLIP
WHEEL BASE 7300MM(73W) (A) L=150 H=30 		1-47477-629-2 04 1 1303- ●
81 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 03 1 1212- ● ●
81 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 02 1 1212- ● ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (C) 		8-98214-410-0 01 1 1212-1302 ● ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (C) 		8-98214-410-0 01 1 1303- ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (C) 		8-98214-410-0 01 1 1303- ●
93 BRACKET; PIPE CLIP
L=95 		1-82699-085-0 02 1 1212- ● ●
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (F) L=150 H=30 		1-47477-629-2 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (G) 		8-97632-445-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1212- ● ●
106 BRACKET; TUBE CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(C) L=90 		1-47477-755-1 02 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-553-0 01 1 1212- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-82699-182-0 01 1 1212- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) (B) ID=13-18 L=18 		1-09709-291-0 02 1 1512- ●
128 CLIP; NYLON TUBE
WHEEL BASE 7300MM(73W) (A) L=350 		1-09707-183-0 05 1 1304- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 06 1 1212- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1212-1303 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 04 1 1304-1511 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 04 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ● ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 01 1 1303- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 10 1 1212-1511 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1512- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1212- ● ●
297 NUT; BRKT
WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 03 1 1212- ● ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1512- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1303-1511 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 05 1 1512- ● ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1212-1302 ● ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1303- ● ●
372 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1212-1302 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1303- ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) M8X25 FLANGE 		0-28650-825-0 02 1 1303- ●

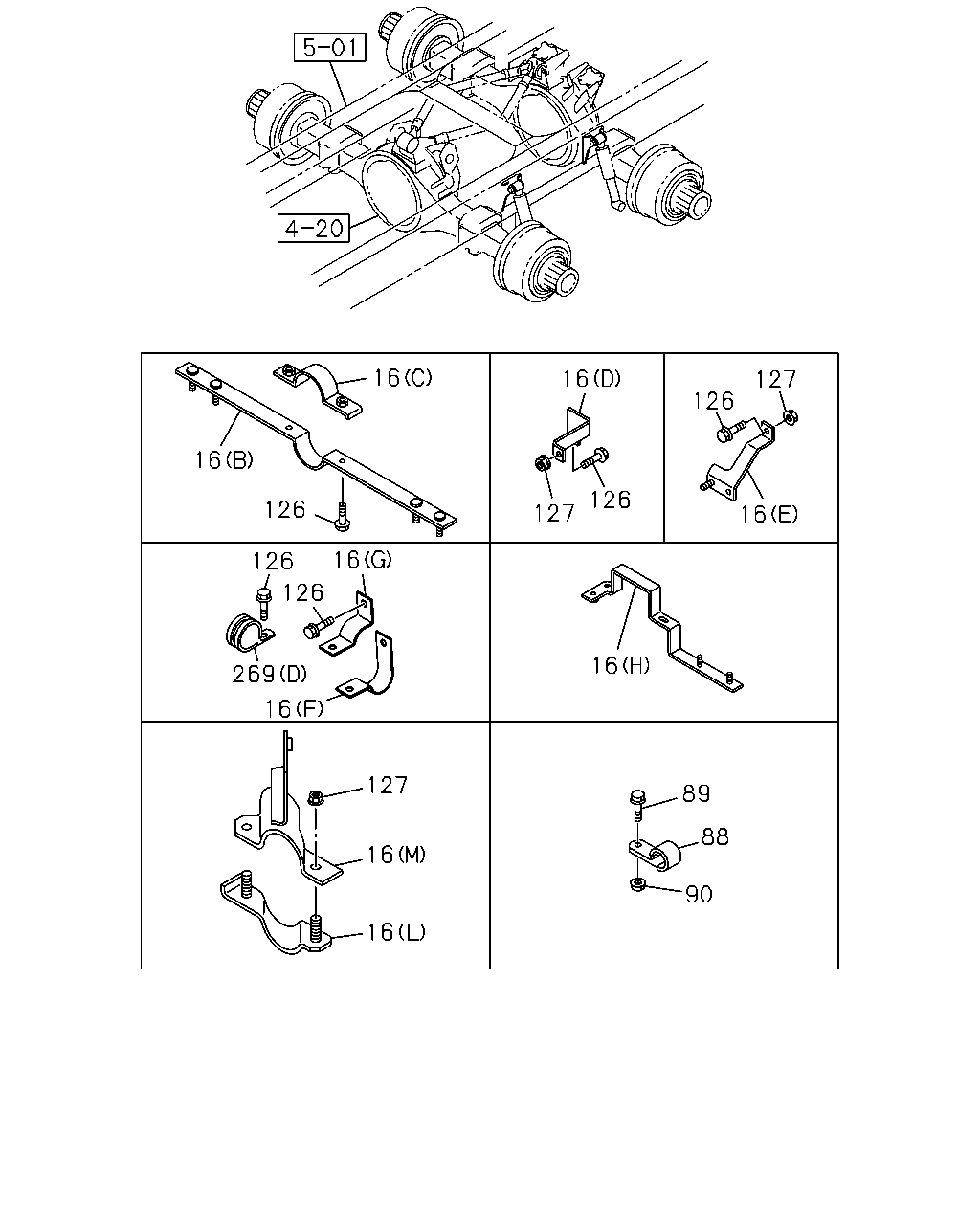

çizim 321559
16 16 126 126 126 269 16 127 16 16 127 126 16 126 127 16 16 89 88 90 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(C) 		1-47479-546-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-720-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-901-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-34656-009-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(J) 		1-47476-699-2 01 1 1212- ●
16 BRACKET; PIPE CLIP
(G) 		1-47478-588-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-249-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-598-0 01 1 1212- ●
88 CLIP; AIR PIPE
ID=16 L=20 		0-95235-535-0 02 1 1212- ● ●
89 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1212- ● ●
90 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1212- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 1212-1212 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1212- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ●
126 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1212-1212 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1212-1212 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1212-1212 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1212- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1212-1212 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 05 1 1212- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1212-1212 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) (A) L=350 		1-09707-183-0 25 1 1512- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6400MM(64W) (A) L=350 		1-09707-183-0 35 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 37 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1212- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1212- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=33 L=30 		8-97619-250-0 01 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6400MM(64W) (A) L=350 		1-09707-183-0 36 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 38 1 1212-1302 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A) L=350 		1-09707-183-0 38 1 1303- ●

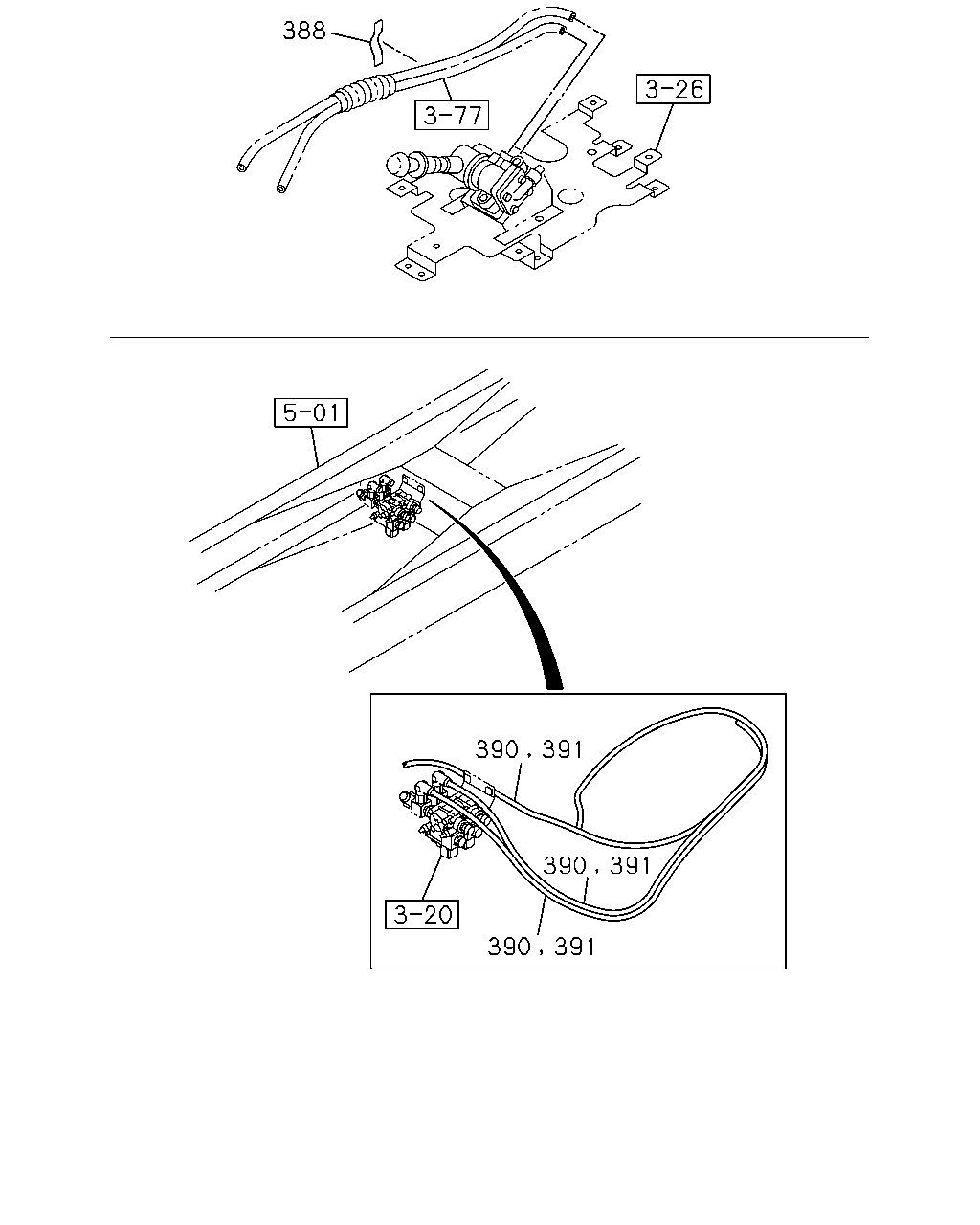

çizim 322416
388 390 391 390 391 390 391
BalonParca AdiParca NoAdetTipApplied Date A B
388 SEAL
100X40 		1-72498-022-1 03 1 1212- ● ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1212- ● ●
390 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1212- ● ●
390 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1212- ● ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1212- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1212- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1212- ● ●

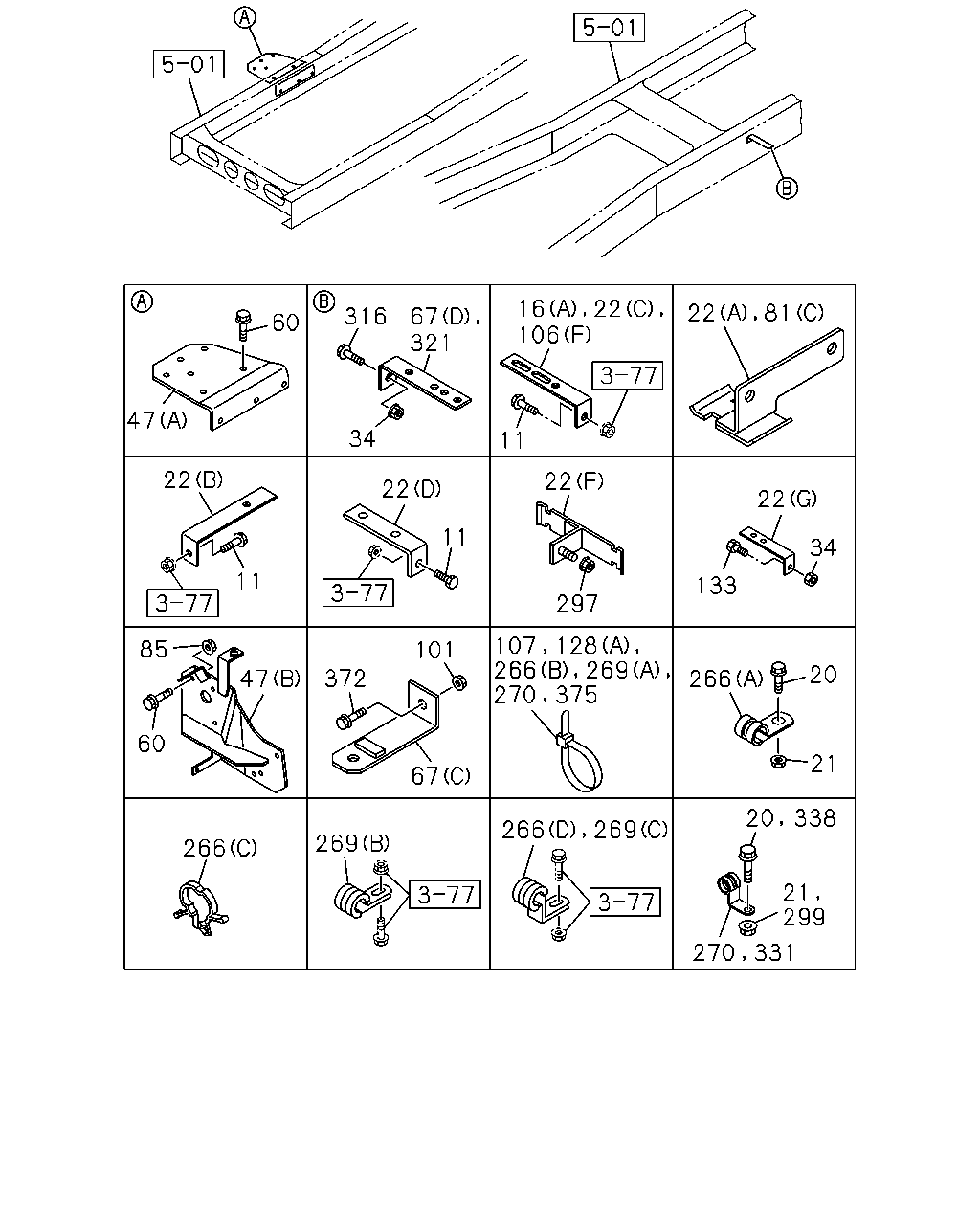

çizim 322427
60 47 22 11 60 85 47 266 269 372 22 11 34 316 67 11 67 101 297 128 107 269 266 270 375 266 20 21 21 20 299 331 270 269 266 338 133 34 22 22 81 22 16 106 321 22
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1303- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 03 1 1303- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1212-1511 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6400MM(64W) M8X25 FLANGE 		0-28650-825-0 01 1 1212-1511 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1212-1302 ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1303- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1212-1302 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1303- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) M8X25 FLANGE 		0-28650-825-0 03 1 1303- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-546-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-720-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-901-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-34656-009-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(J) 		1-47476-699-2 01 1 1212- ●
16 BRACKET; PIPE CLIP
(G) 		1-47478-588-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-249-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-598-0 01 1 1212- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1212- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1212- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1212- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (I) 		8-97632-445-1 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (J) 		8-98333-605-0 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 02 1 1303- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1212- ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1212- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 04 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (C) L=150 H=30 		1-47477-629-2 03 1 1512- ● ●
22 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) L=60 H=30 		1-47477-716-1 01 1 1512- ● ●
22 BRACKET; CLIP
(E) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
22 BRACKET; CLIP
(G) L=95 		1-82698-557-0 01 1 1212- ● ●
22 BRACKET; CLIP
(H) 		1-82699-208-1 01 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1212-1302 ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1303- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A) 		8-98214-410-0 01 1 1303- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
47 BRACKET; PIPE CLIP
WHEEL BASE 5700MM(57W) (C) 		8-98333-511-0 01 1 1512- ●
47 BRACKET; PIPE CLIP
(A) 		8-98166-030-1 01 1 1212- ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) (B) 		8-98209-935-0 01 1 1212-1402 ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) (B) 		8-98255-491-0 01 1 1403-1511 ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) 		8-98255-491-0 01 1 1512- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
67 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) 		1-82698-358-0 01 1 1512- ●
67 BRACKET; CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
67 BRACKET; CLIP
(B) L=80 H=20 		1-82699-304-0 01 1 1212- ● ●
67 BRACKET; CLIP
(C) 		8-98214-427-0 01 1 1212-1511 ● ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) 		8-98214-427-0 01 1 1512- ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) 		8-98214-427-0 01 1 1512- ●
81 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (A) L=150 H=30 		1-47477-629-2 01 1 1512- ● ●
81 BRACKET; CLIP
WHEEL BASE 7300MM(73W) (A) L=150 H=30 		1-47477-629-2 04 1 1303- ●
81 BRACKET; CLIP
(A) L=150 H=30 		1-47477-629-2 03 1 1212- ● ●
81 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 02 1 1212- ● ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (C) 		8-98214-410-0 01 1 1212-1302 ● ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (C) 		8-98214-410-0 01 1 1303- ●
81 BRACKET; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (C) 		8-98214-410-0 01 1 1303- ●
85 NUT; CLIP BRKT
A/T ALLISON 4430(Y5V) M10 FLANGE 		0-91180-210-0 03 1 1212- ● ●
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (F) L=150 H=30 		1-47477-629-2 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (G) 		8-97632-445-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1212- ● ●
106 BRACKET; TUBE CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(C) L=90 		1-47477-755-1 02 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-553-0 01 1 1212- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-82699-182-0 01 1 1212- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 07 1 1512- ●
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1212-1511 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 02 1 1512- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=350 		1-09707-183-0 02 1 1512- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) (B) ID=13-18 L=18 		1-09709-291-0 02 1 1512- ●
128 CLIP; NYLON TUBE
WHEEL BASE 7300MM(73W) (A) L=350 		1-09707-183-0 05 1 1304- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 06 1 1212- ●
128 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 04 1 1212-1303 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 04 1 1304-1511 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 04 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ● ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 01 1 1303- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 10 1 1212-1511 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1512- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
266 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 1512- ● ●
266 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) (B) L=350 		1-09707-183-0 12 1 1512- ● ●
266 CLIP; NYLON TUBE
WHEEL BASE 7300MM(73W) (B) L=350 		1-09707-183-0 18 1 1303- ●
266 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 17 1 1212- ● ●
266 CLIP; NYLON TUBE
(A) ID=26 L=27 		1-09701-006-0 01 1 1212-1511 ● ●
266 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=26 L=27 		1-09701-006-0 01 1 1512- ●
266 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=26 L=27 		1-09701-006-0 01 1 1512- ●
266 CLIP; NYLON TUBE
(C) ID=18-24 L=14.5 		1-09709-298-0 01 1 1212-1511 ● ●
266 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=18-24 L=14.5 		1-09709-298-0 01 1 1512- ●
266 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=18-24 L=14.5 		1-09709-298-0 01 1 1512- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) (A) L=350 		1-09707-183-0 25 1 1512- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6400MM(64W) (A) L=350 		1-09707-183-0 35 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 37 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1212- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 1212- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 09 1 1212- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=33 L=30 		8-97619-250-0 01 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6400MM(64W) (A) L=350 		1-09707-183-0 36 1 1212- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 38 1 1212-1302 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A) L=350 		1-09707-183-0 38 1 1303- ●
270 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1212- ●
297 NUT; BRKT
WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 03 1 1212- ● ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1512- ● ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1212- ● ●
321 BRACKET; CLIP 1-82698-358-0 01 1 1212- ● ●
331 CLIP; NYLON TUBE
ID=6 H=20 L=20 		1-09700-603-0 01 1 1212- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1212- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1303-1511 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 05 1 1512- ● ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 07 1 1212-1302 ● ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1303- ● ●
372 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1212-1302 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1303- ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) M8X25 FLANGE 		0-28650-825-0 02 1 1303- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1212- ● ●

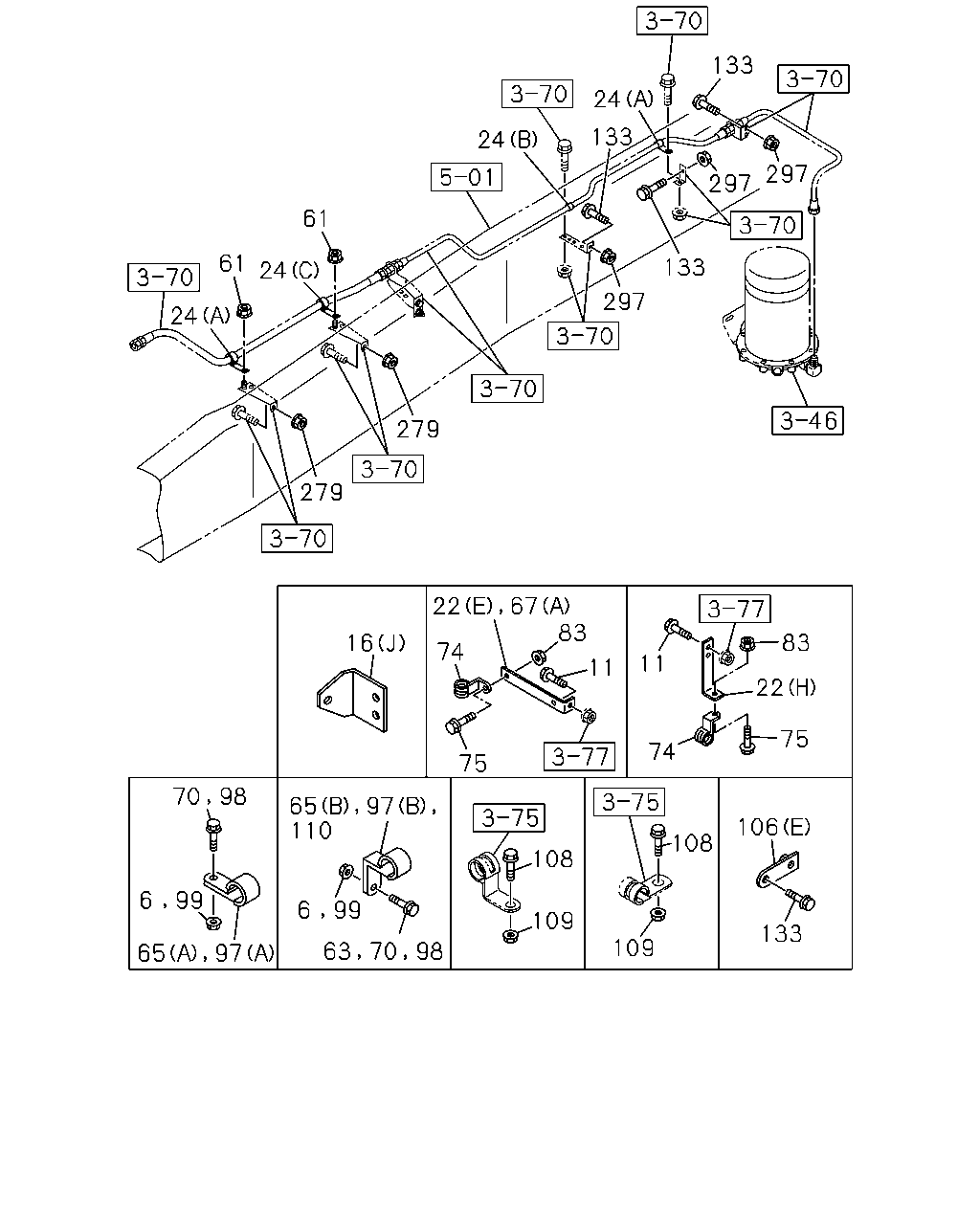

çizim 322429
24 24 61 61 279 279 297 133 297 297 133 24 24 133 16 70 6 99 65 97 63 70 98 110 65 97 6 99 108 109 108 109 133 11 74 75 74 22 67 83 11 83 22 75 106 98
BalonParca AdiParca NoAdetTipApplied Date A B
6 NUT; PIPE CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 01 1 1512- ●
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1212-1511 ● ●
6 NUT; PIPE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
6 NUT; PIPE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 04 1 1512- ●
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 02 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1303- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 03 1 1303- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1212-1511 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6400MM(64W) M8X25 FLANGE 		0-28650-825-0 01 1 1212-1511 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1512- ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1212-1302 ● ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1303- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1212-1302 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1303- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) M8X25 FLANGE 		0-28650-825-0 03 1 1303- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-546-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-720-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-901-0 02 1 1212- ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1212- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-34656-009-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(J) 		1-47476-699-2 01 1 1212- ●
16 BRACKET; PIPE CLIP
(G) 		1-47478-588-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(L) 		8-98212-967-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-249-0 02 1 1212-1212 ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(M) 		8-98212-968-0 01 1 1212- ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-598-0 01 1 1212- ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (I) 		8-97632-445-1 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (J) 		8-98333-605-0 01 1 1512- ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 04 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) L=60 H=30 		1-47477-716-1 02 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 7300MM(73W) (C) L=150 H=30 		1-47477-629-2 02 1 1303- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1212- ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1212- ● ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 04 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (C) L=150 H=30 		1-47477-629-2 03 1 1512- ● ●
22 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) L=60 H=30 		1-47477-716-1 01 1 1512- ● ●
22 BRACKET; CLIP
(E) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
22 BRACKET; CLIP
(G) L=95 		1-82698-557-0 01 1 1212- ● ●
22 BRACKET; CLIP
(H) 		1-82699-208-1 01 1 1212-1511 ● ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (H) 		1-82699-208-1 01 1 1512- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1212-1302 ● ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) 		8-98214-410-0 01 1 1303- ●
22 BRACKET; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (A) 		8-98214-410-0 01 1 1303- ●
24 CLIP; PIPE
(A) ID=16 L=40 		0-95235-576-0 01 1 1212- ● ●
24 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1212- ● ●
24 CLIP; PIPE
A/T ALLISON 4430(Y5V) (B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1212- ● ●
24 CLIP; PIPE
TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V) (C) ID=25 L=50 		1-09701-019-0 02 1 1212-1302 ● ●
24 CLIP; PIPE
A/T ALLISON 4430(Y5V) (C) ID=25 L=50 		1-09701-019-0 02 1 1303-1311 ● ●
24 CLIP; PIPE
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 02 1 1303-1311 ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 02 1 1303-1311 ●
24 CLIP; PIPE
A/T ALLISON 4430(Y5V) (C) ID=25 L=50 		1-09701-019-0 02 1 1312- ● ●
24 CLIP; PIPE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 02 1 1312- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 02 1 1312- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (C) ID=25 L=50 		1-09701-019-0 03 1 1212-1302 ●
24 CLIP; PIPE
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 03 1 1303-1311 ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 03 1 1303-1311 ●
24 CLIP; PIPE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 03 1 1312- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. ENGINE REAR PTO(SV1) (C) ID=25 L=50 		1-09701-019-0 03 1 1312- ●
61 NUT; CLIP FIX
A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 03 1 1212- ●
61 NUT; CLIP FIX
ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 03 1 1212- ●
61 NUT; CLIP FIX
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 1212-1311 ● ●
61 NUT; CLIP FIX
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1212- ● ●
65 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=13 L=20 		0-95235-235-0 02 1 1512- ●
65 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=13 L=20 		0-95235-235-0 02 1 1512- ●
65 CLIP; AIR PIPE
(A) ID=13 L=20 		0-95235-235-0 02 1 1212-1511 ● ●
65 CLIP; AIR PIPE
WHEEL BASE 5700MM(57W) (A) ID=13 L=20 		0-95235-235-0 01 1 1512- ● ●
65 CLIP; AIR PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 04 1 1212- ● ●
67 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (D) 		1-82698-358-0 01 1 1512- ●
67 BRACKET; CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 1212- ● ●
67 BRACKET; CLIP
(B) L=80 H=20 		1-82699-304-0 01 1 1212- ● ●
67 BRACKET; CLIP
(C) 		8-98214-427-0 01 1 1212-1511 ● ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) 		8-98214-427-0 01 1 1512- ●
67 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) 		8-98214-427-0 01 1 1512- ●
70 BOLT; CLIP,AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
70 BOLT; CLIP,AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1212-1511 ● ●
70 BOLT; CLIP,AIR PIPE
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
70 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 04 1 1212- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ID=28 H=45 L=30 		1-09700-948-0 02 1 1512- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ID=28 H=45 L=30 		1-09700-948-0 02 1 1512- ●
74 CLIP; NYLON TUBE
ID=28 H=45 L=30 		1-09700-948-0 02 1 1212-1511 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5700MM(57W) ID=28 H=45 L=30 		1-09700-948-0 01 1 1512- ● ●
75 BOLT; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
75 BOLT; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1212-1511 ● ●
75 BOLT; CLIP
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ● ●
83 NUT; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
83 NUT; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 02 1 1512- ●
83 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212-1511 ● ●
83 NUT; CLIP
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
97 CLIP; AIR PIPE
WHEEL BASE 5700MM(57W) (B) ID=12 H=24 L=20 		1-09700-605-0 03 1 1512- ●
97 CLIP; AIR PIPE
(A) ID=13 L=20 		0-95235-235-0 03 1 1212-1511 ● ●
97 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=13 L=20 		0-95235-235-0 03 1 1512- ●
97 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=13 L=20 		0-95235-235-0 03 1 1512- ●
97 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 03 1 1212-1511 ● ●
97 CLIP; AIR PIPE
WHEEL BASE 5700MM(57W) (A) ID=13 L=20 		0-95235-235-0 02 1 1512- ●
97 CLIP; AIR PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 02 1 1212-1511 ● ●
97 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 1512- ●
97 CLIP; AIR PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=12 H=24 L=20 		1-09700-605-0 02 1 1512- ●
98 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1212- ● ●
98 BOLT; PIPE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
99 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (F) L=150 H=30 		1-47477-629-2 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5700MM(57W) (G) 		8-97632-445-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1212- ● ●
106 BRACKET; TUBE CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=60 H=30 		1-47477-716-1 01 1 1512- ●
106 BRACKET; TUBE CLIP
(C) L=90 		1-47477-755-1 02 1 1212-1511 ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=90 		1-47477-755-1 02 1 1512- ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-553-0 01 1 1212- ● ●
106 BRACKET; TUBE CLIP
(E) 		1-82699-182-0 01 1 1212- ● ●
108 BOLT; TUBE CLIP
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1212- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1212-1511 ● ●
108 BOLT; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
108 BOLT; TUBE CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 02 1 1512- ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
110 CLIP; BAND,NYLON TUBE
ID=12 H=24 L=20 		1-09700-605-0 01 1 1212- ● ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ● ●
133 BOLT; BRKT
WHEEL BASE 5700MM(57W) M8X30 FLANGE 		0-28650-830-0 03 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE 		0-28650-830-0 09 1 1512- ●
133 BOLT; BRKT
WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 01 1 1303- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 10 1 1212-1511 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1512- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1212- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1212- ● ●
297 NUT; BRKT
WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 07 1 1512- ●
297 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 03 1 1212- ● ●
297 NUT; BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1212-1511 ● ●
297 NUT; BRKT
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
