Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#11124) — 195 parça

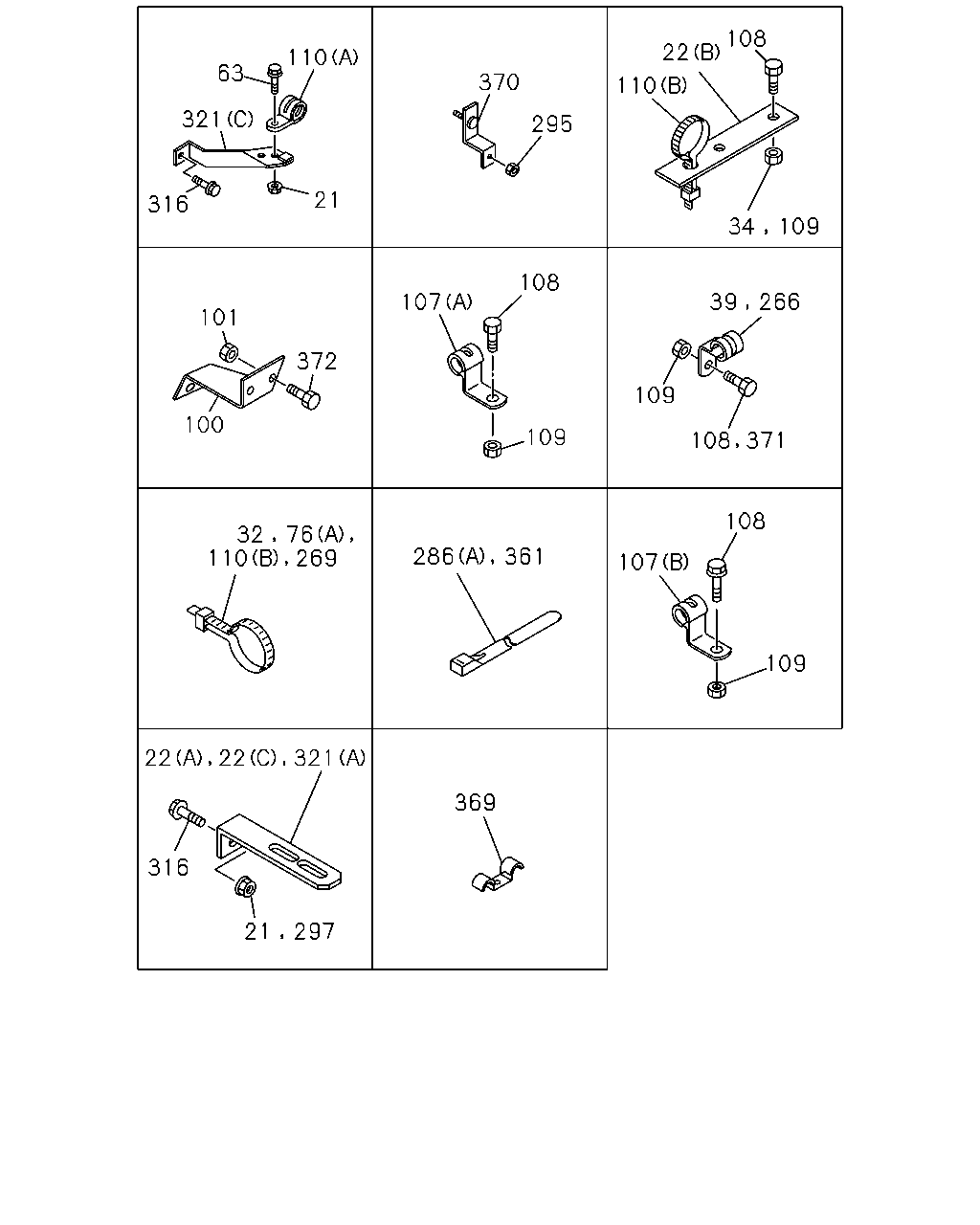

108 22 110 63 370 110 321 295 21 316 34 109 108 107 101 372 109 100 109 108 286 361 107 109 22 369 316 21 297 39 266 32 76 110 269 22 321 108 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0106-
22	BRACKET; CLIP (C) L=225	1-47477-646-3	01	1	0106-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0106-
32	CLIP; BAND,RUBBER SLEEVE ZF M/T<X9E> L=250	1-09707-126-0	01	1	0305-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0201-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0106-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0106-
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0112
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	01	1	0201-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0106-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0106-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0106-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0106-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-
109	NUT; TUBE CLIP FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE (B) L=700	1-09707-190-0	01	1	0302-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0106-
266	CLIP; NYLON TUBE AIR DRYER<PS7> ID=18 H=23 L=28	1-09700-860-0	01	1	0106-0201
266	CLIP; NYLON TUBE AIR DRYER<PS7> ID=21 L=30 H=40	1-09700-991-1	01	1	0202-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	20	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	0106-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0112
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0201-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0106-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0108-
321	BRACKET; CLIP (B)	1-47477-472-1	01	1	0106-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0106-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0106-
321	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0108-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0106-
369	CLIP; AIR PIPE AIR DRYER<PS7> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-
370	BRACKET; PIPE CLIP AIR DRYER<PS7>	1-47477-669-1	01	1	0106-
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0201-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0106-
372	BOLT; CLIP BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0106-

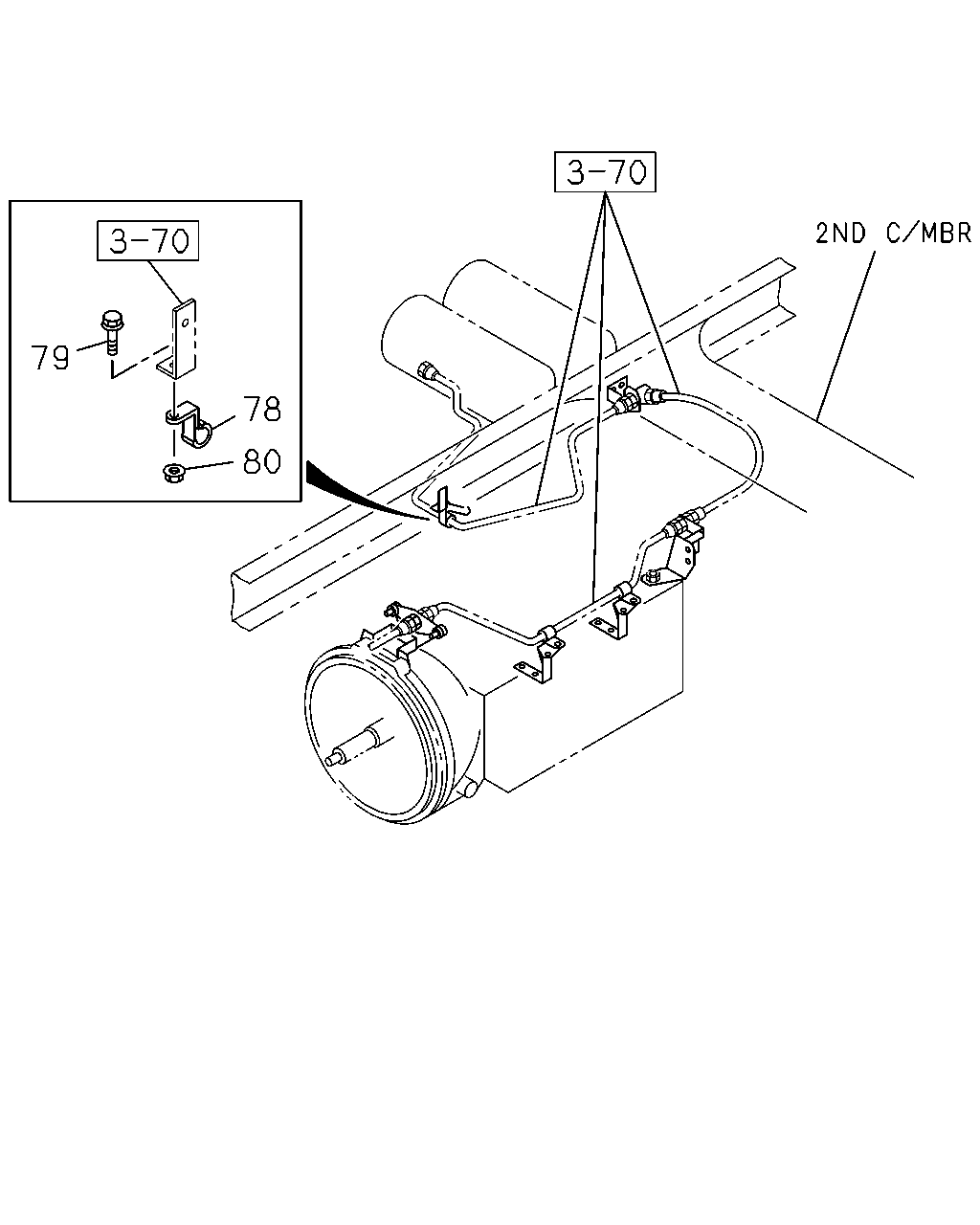

79 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
78	CLIP; AIR PIPE AIR DRYER<PS7> ID=15 H=24 L=20	1-09700-606-0	01	1	0106-0112
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0201-
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0106-0112
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0201-
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-0112
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0201-

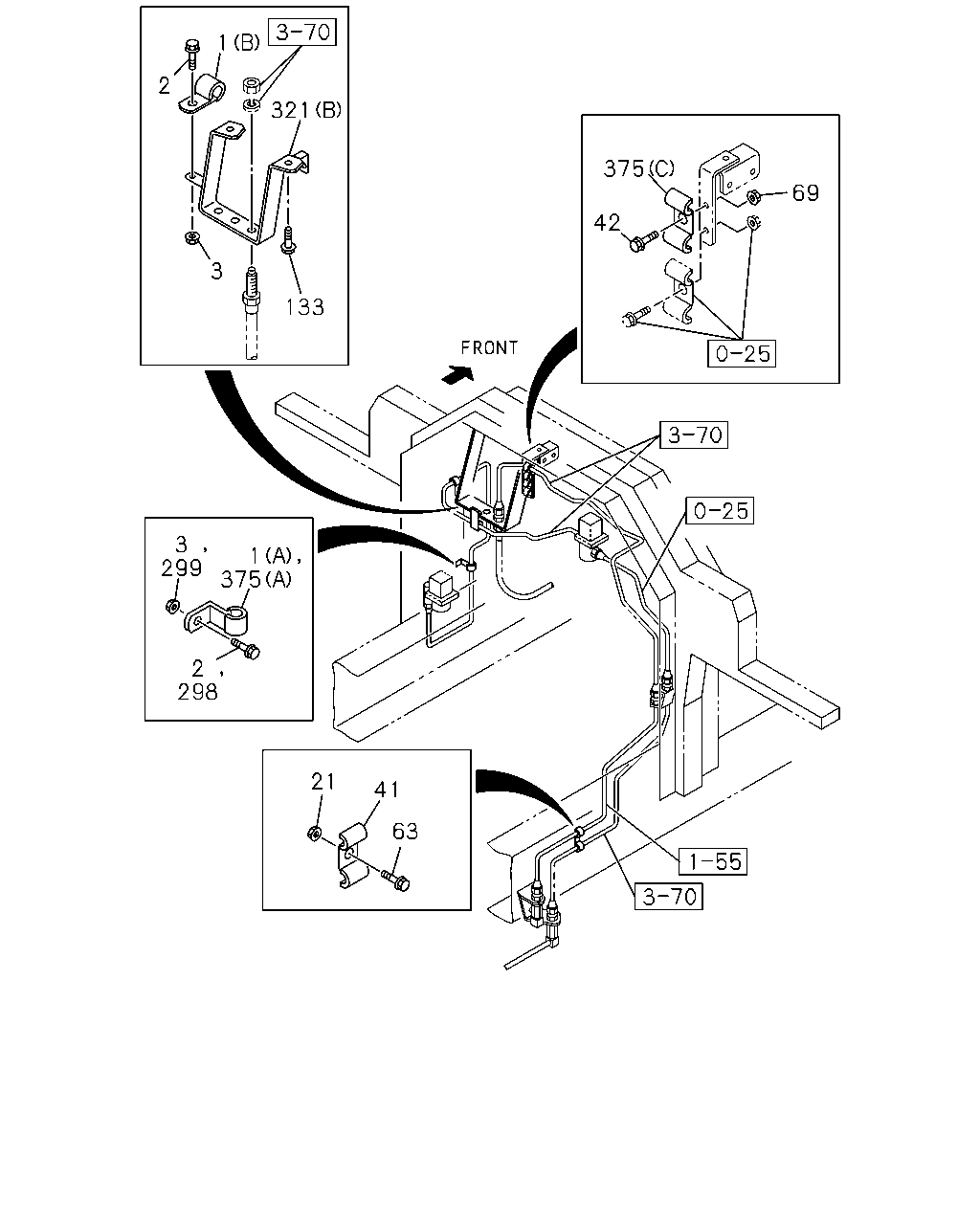

1 2 321 375 69 42 3 133 3 299 1 375 2 298 21 41 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0112
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0201-
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=20	9-09524-635-0	01	1	0106-0112
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (B) ID=7 L=20	9-09524-635-0	01	1	0201-
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	0106-0112
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	02	1	0201-
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	0106-0112
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	02	1	0201-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-
41	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-0112
41	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0201-
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0106-0112
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) M8X20 FLANGE	0-28680-820-0	01	1	0201-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0112
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	0201-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0106-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-
321	BRACKET; CLIP (B)	1-47477-472-1	01	1	0106-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0106-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0106-
321	BRACKET; CLIP (C) L=60 H=30	1-47477-716-1	01	1	0108-
375	CLIP; AIR PIPE (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0201-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=16	9-09524-625-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (B) ID=7 L=16	9-09524-625-0	01	1	0201-0202
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	02	1	0203-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0202
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	9-09524-635-0	01	1	0106-

298 110 353 375 21 294 299 107 108 107 27 364 63 354 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0106-0112
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L) ID=10 & 10	1-09709-277-1	01	1	0201-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0106-0107
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0106-0107
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	0106-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0106-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-
110	CLIP; BAND,NYLON TUBE (B) L=700	1-09707-190-0	01	1	0302-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0106-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	0106-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
294	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0106-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0106-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-
353	CLIP; AIR PIPE ID=9 L=16	9-09524-822-0	01	1	0204-
354	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	0204-0211
354	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0212-
364	CLIP; AIR PIPE ID=8.3 & 10	8-94176-792-0	01	1	0204-
375	CLIP; AIR PIPE (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0201-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=16	9-09524-625-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (B) ID=7 L=16	9-09524-625-0	01	1	0201-0202
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	02	1	0203-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0202
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	9-09524-635-0	01	1	0106-

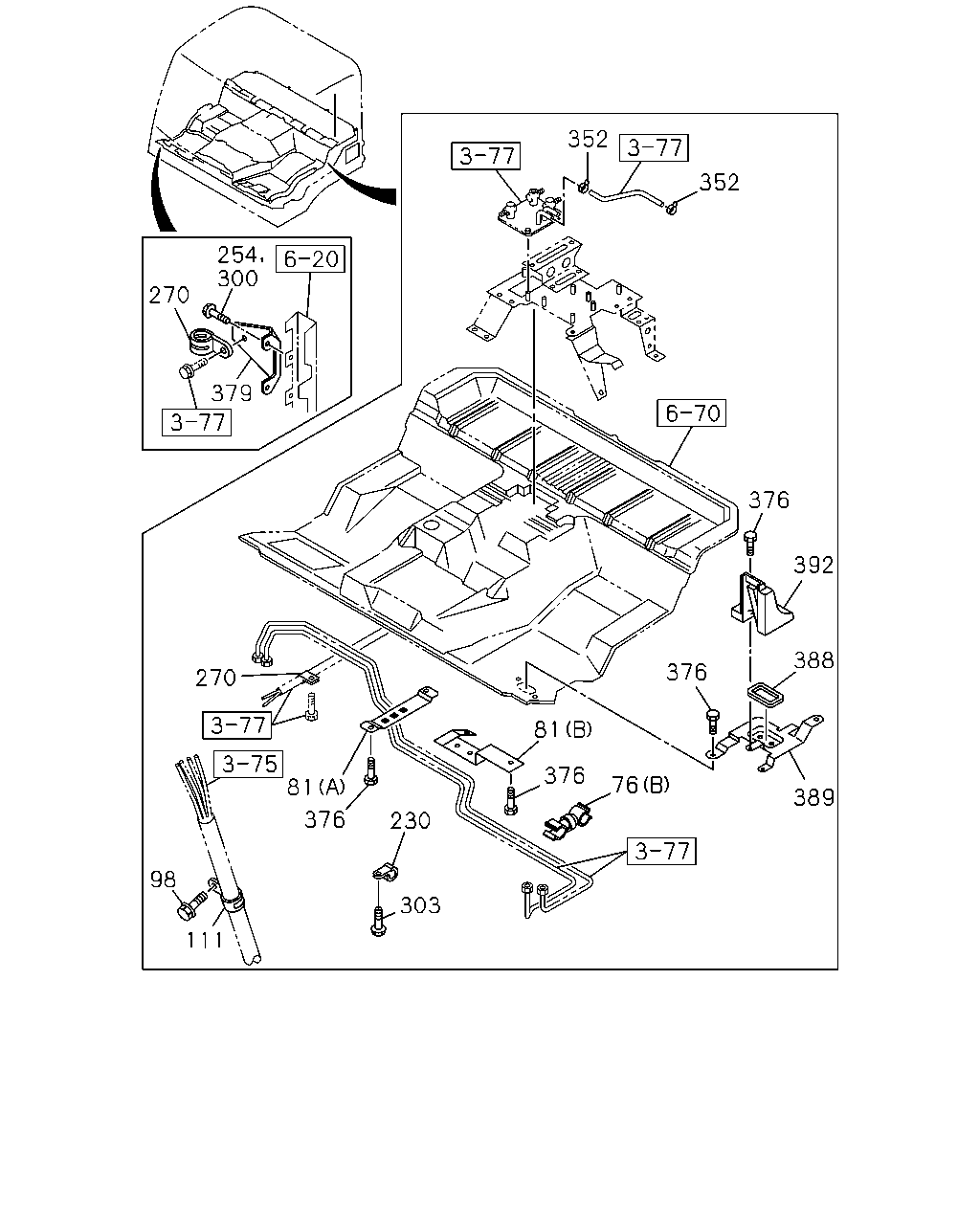

352 352 254 300 270 379 376 392 388 376 270 81 376 76 81 389 376 230 98 303 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0106-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0106-
76	CLIP; NYLON TUBE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-0112
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	01	1	0201-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0106-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0106-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0106-
230	CLIP; PIPE,AIR ID=9 L=16	9-09524-822-0	03	1	0106-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE ID=35 L=33	1-09700-945-0	03	1	0106-
270	CLIP; NYLON TUBE ID=26 L=26	1-09701-236-0	01	1	0106-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0106-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0106-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0106-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0106-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0106-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0106-
388	SEAL L=215	1-79738-794-1	01	1	0106-
389	BRACKET; UNION	1-79738-790-1	01	1	0106-
392	COVER; BRKT	1-73996-264-1	01	1	0106-

376 367 319 322 348 375 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
319	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) L=50	1-47475-299-2	01	1	0106-0112
319	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L) L=50	1-47475-299-2	01	1	0201-
322	BRACKET; CLIP L=50	1-47475-299-2	01	1	0106-
348	CLIP; AIR PIPE ID=13X2 L=16	9-09535-225-0	03	1	0106-
357	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	0106-
367	BRACKET ASM	1-42119-080-0	01	1	0106-
375	CLIP; AIR PIPE (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0106-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0201-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=16	9-09524-625-0	01	1	0106-0112
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L) (B) ID=7 L=16	9-09524-625-0	01	1	0201-0202
375	CLIP; AIR PIPE (B) ID=7 L=16	9-09524-625-0	02	1	0203-
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-0202
375	CLIP; AIR PIPE 6WF1 TC-C(1B8) (B) ID=7 L=20	9-09524-635-0	01	1	0106-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0106-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0106-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
