Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

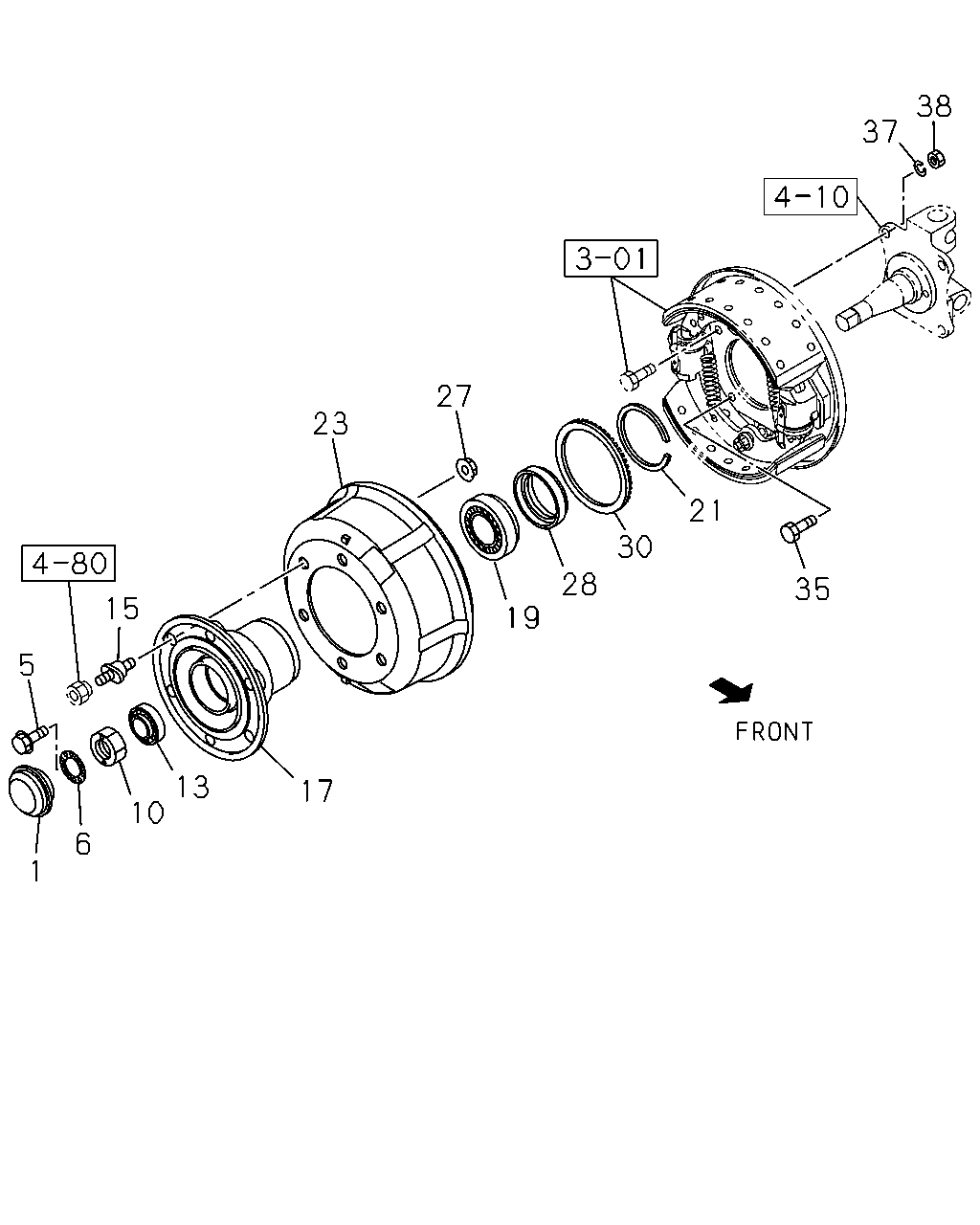

4-11 — FRONT HUB AND DRUM OR ROTOR
(#111239) — 17 parça
38
37
35
21
30
28
19
27
23
15
5
1
6
10
13
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-032-0
02
1
1212-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
1212-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
1212-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
1212-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-207-0
02
1
1212-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X49.5 RH THREAD
1-42331-148-1
06
1
1212-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X49.5 RH THREAD
1-42332-148-1
06
1
1212-
17
HUB; FRT AXLE
8-98039-295-1
02
1
1212-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-206-0
02
1
1212-
21
RING; SNAP,HUB
OD=117
1-09587-001-0
02
1
1212-
23
DRUM; BRK,FRT
1-42315-395-1
02
1
1212-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
12
1
1212-
28
SEAL; OIL,FRT HUB
1-09625-568-0
02
1
1212-
30
RING; EXCITER,FRT HUB
1-42319-208-0
02
1
1212-
35
BOLT; DRUM COVER
M14X40
0-20951-440-0
04
1
1212-
37
WASHER; LK,BACK PLATE
ID=14.2
0-91510-814-0
08
1
1212-
38
NUT; BACK PLATE
M14
0-91110-514-0
08
1
1212-
