◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#111238) — 117 parça

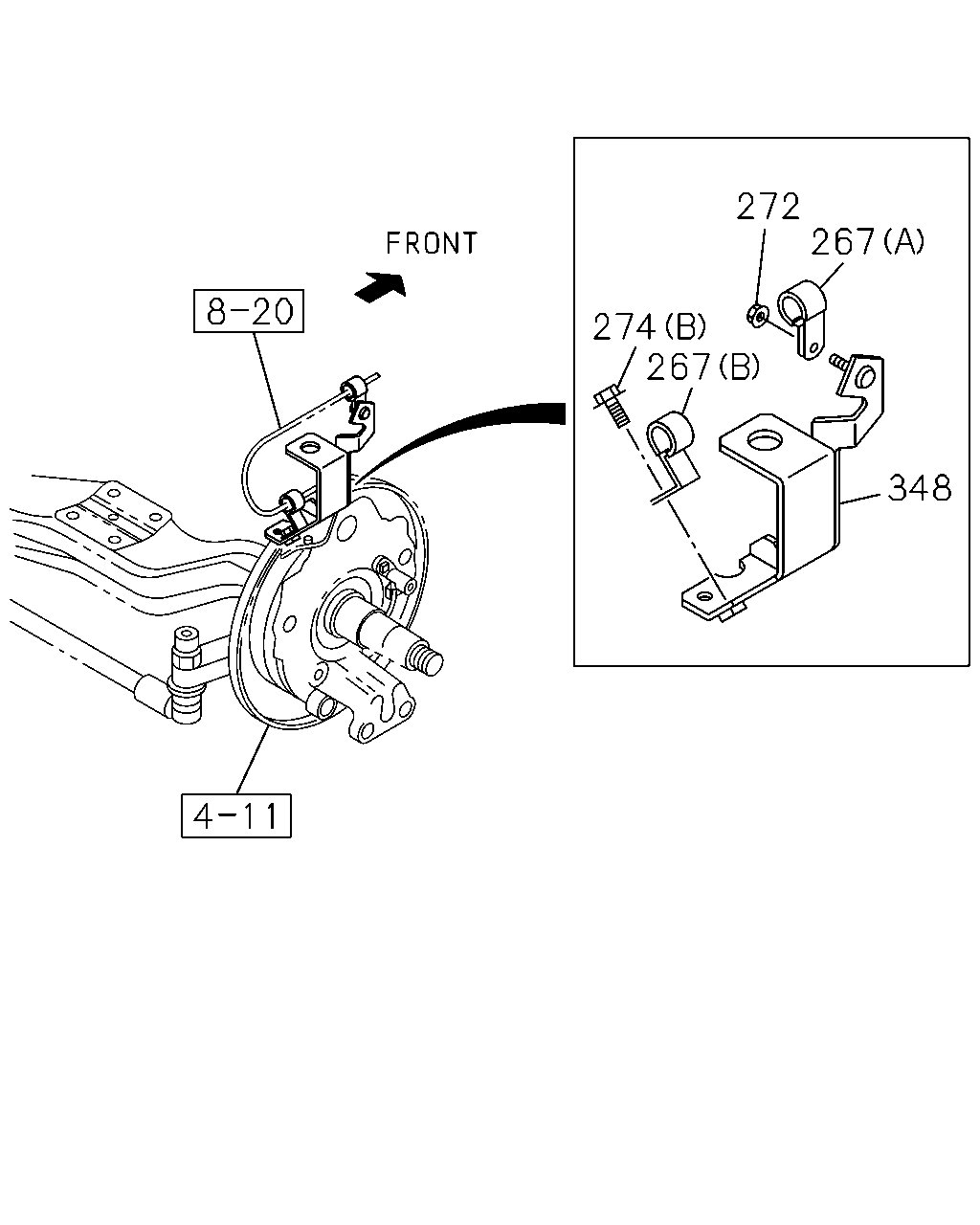

çizim 321550
267 272 274 348 267
BalonParca AdiParca NoAdetTipApplied Date A B
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1212- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1212- ● ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1408- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1212-1407 ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1408- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1212- ● ●
348 BRACKET; CLIP 8-98072-900-1 01 1 1212- ● ●
348 BRACKET; CLIP 8-98072-899-1 01 1 1212- ● ●

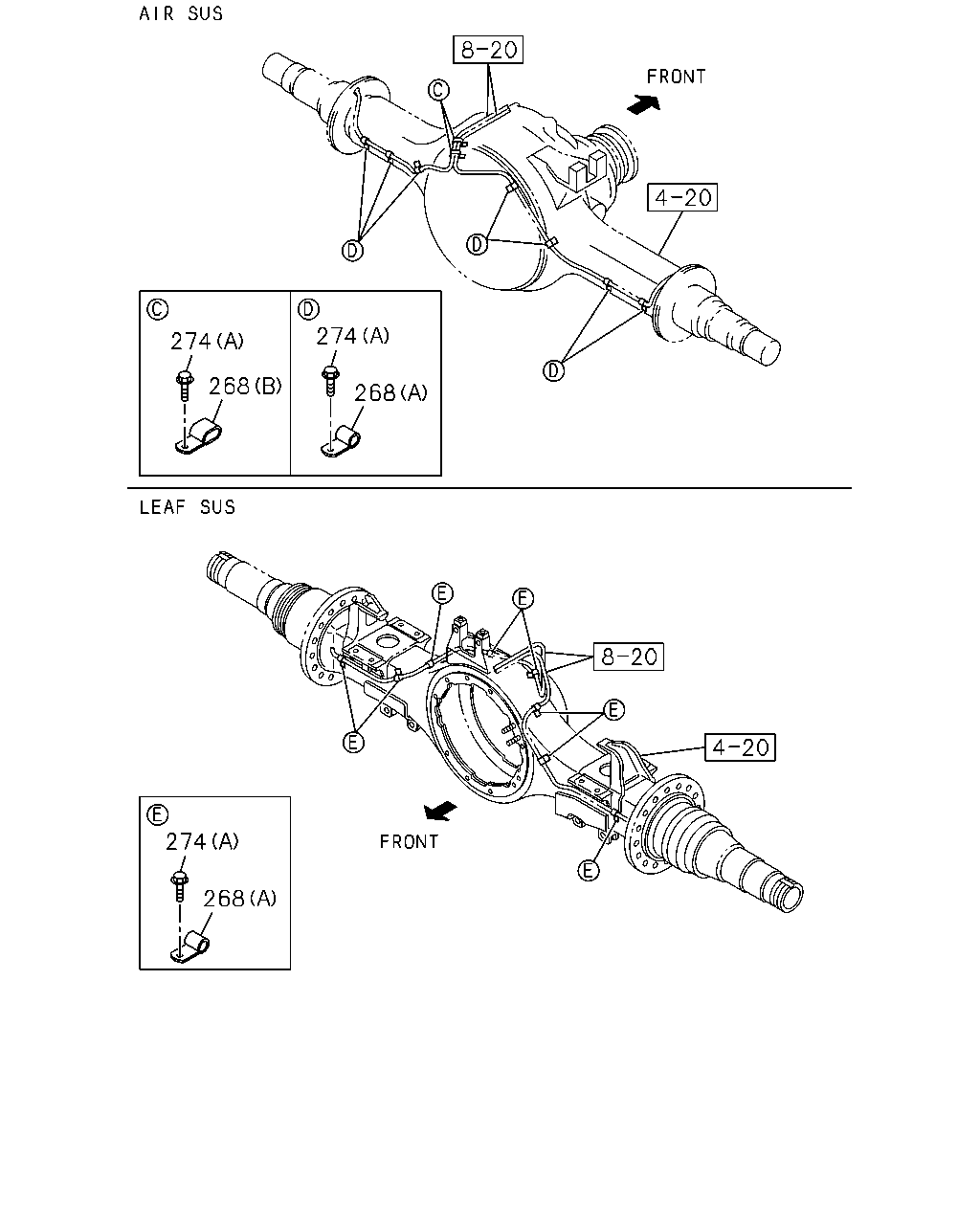

çizim 321551
274 268 274 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1212- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1212- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 01 1 1212-1407 ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1408- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1408- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1212-1407 ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1408- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1212- ● ●

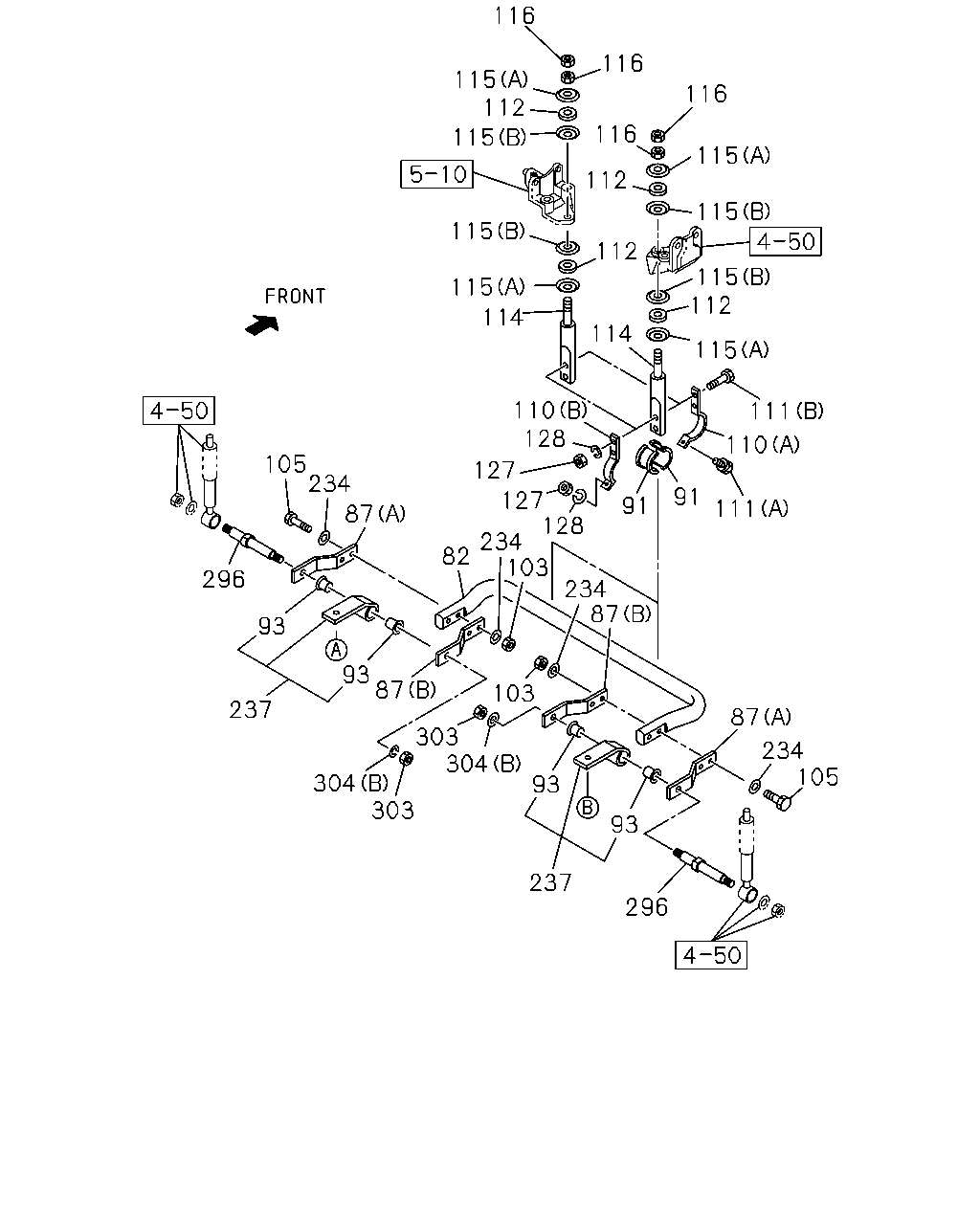

çizim 322433
105 87 234 93 93 296 237 304 303 304 303 237 93 296 93 87 87 234 105 114 115 115 115 112 115 116 116 16 112 112 114 10 127 128 128 127 234 82 103 234 103 87 111 110 91 91 111 115 112 115 115 115 116
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1212- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1212- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1212- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1212- ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1212- ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1212- ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1212- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1212- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1212- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1212- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1212- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1212- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-071-2 02 1 1212- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1212- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1212- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1212- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1212- ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1212- ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-98212-419-0 02 1 1212- ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1212- ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1212- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1212- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1212- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1212- ● ●

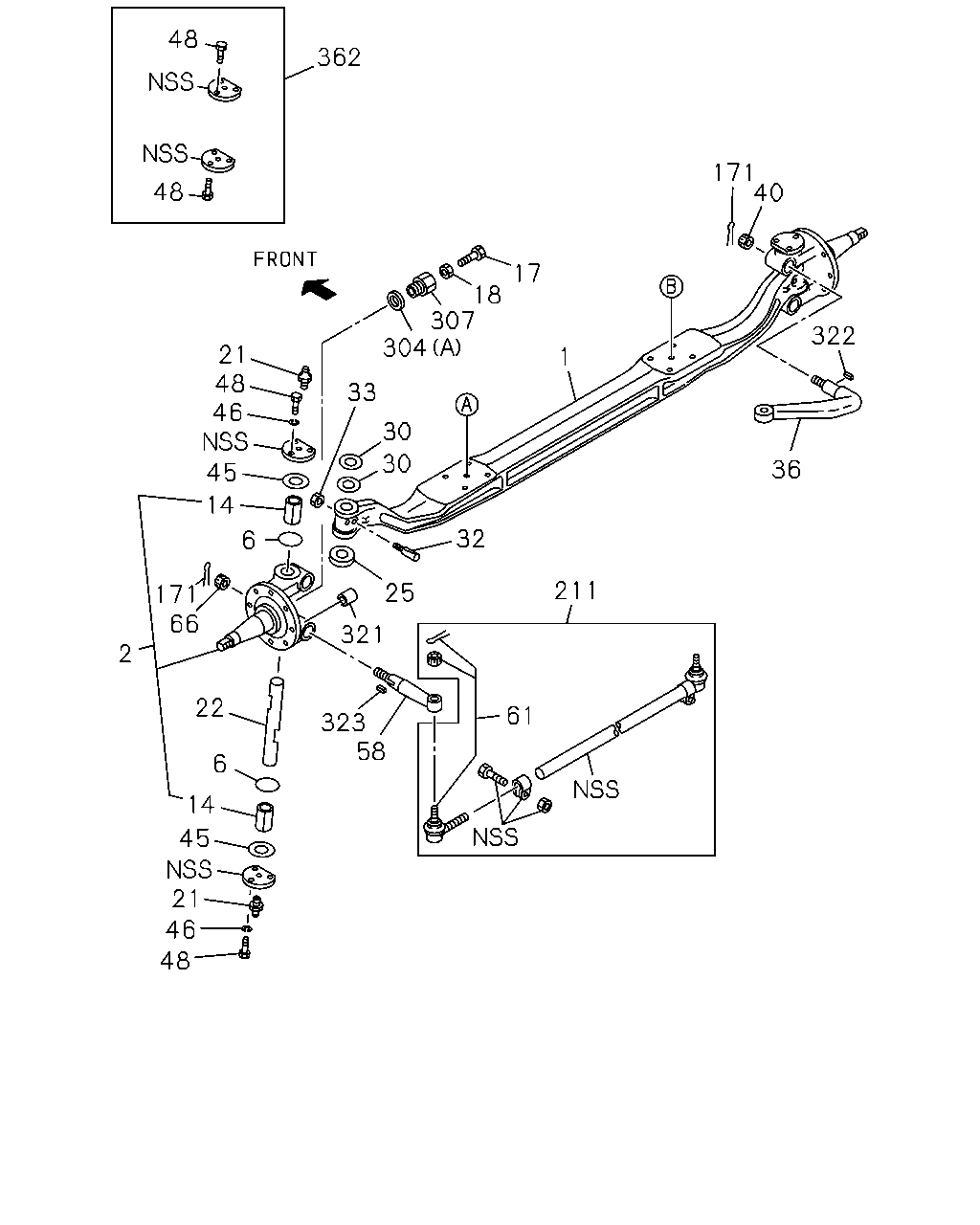

çizim 322441
48 48 362 21 48 46 45 14 171 66 2 22 6 14 45 21 46 48 58 323 321 25 32 30 30 33 304 307 18 17 171 40 322 36 11 61 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-167-0 01 1 1212- ● ●
1 AXLE; FRT 1-43111-167-0 01 1 1212- ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 1212- ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 1212- ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 1212- ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 1212- ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 1212- ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 1212- ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1212- ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1212- ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 1212- ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 1212- ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 1212- ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 1212- ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 1212- ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 1212- ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1212- ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1212- ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 1212- ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 1212- ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 1212- ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 1212- ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 1212- ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 1212- ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 1212- ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 1212- ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 1212- ● ●
36 ARM; KNUCKLE 1-43133-088-0 01 1 1212- ● ●
36 ARM; KNUCKLE 1-43133-088-0 01 1 1212- ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 1212- ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 1212- ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 1212- ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 1212- ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1212- ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1212- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1212- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1212- ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 1212- ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 1212- ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 1212- ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 1212- ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 1212- ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 1212- ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 1212- ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 1212- ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 1212- ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 1212- ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1212- ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1212- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1212- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1212- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1212- ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1212- ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1212- ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1212- ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1212- ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1212- ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1212- ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1212- ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1212- ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1212- ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1212- ● ●
