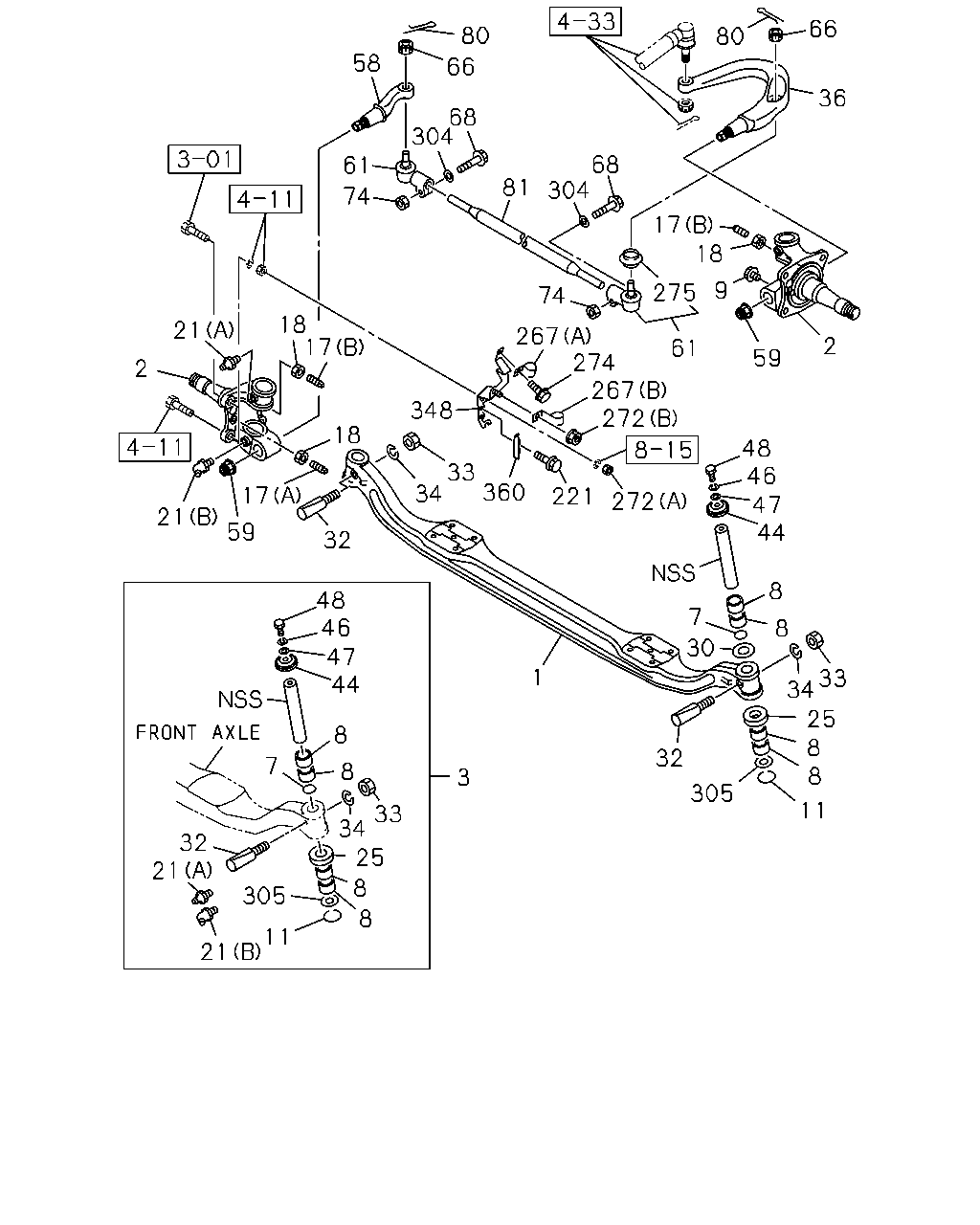

1 |
AXLE; FRT
|
8-98057-479-2 |
01 |
1 |
1212- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43131-127-1 |
01 |
1 |
1212- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43132-127-1 |
01 |
1 |
1212- |
| |
3 |
KING PIN SET
|
1-87831-295-3 |
01 |
1 |
1212- |
| |
3 |
KING PIN SET
|
1-87831-296-3 |
01 |
1 |
1212- |
| |
7 |
SEAL; OIL,KING PIN
|
1-09625-005-1 |
02 |
1 |
1212- |
| |
8 |
BEARING; NEEDLE,KING PIN
NSK
|
1-09811-339-0 |
08 |
1 |
1212- |
| |
9 |
PLUG; KNUCKLE
M14X14
|
8-97329-621-0 |
01 |
1 |
1212- |
| |
11 |
RING; SNAP,KNUCKLE PLUG
|
1-09589-017-1 |
02 |
1 |
1212- |
| |
17 |
BOLT; STOPPER KNUCKLE
(A)
M14X47
|
1-09009-191-0 |
01 |
1 |
1212- |
| |
17 |
BOLT; STOPPER KNUCKLE
(B)
M14X53
|
8-98065-261-0 |
02 |
1 |
1212- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
M14
|
0-91112-814-0 |
03 |
1 |
1212- |
| |
21 |
NIPPLE; GREASE,KING PIN
(A)
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1212- |
| |
21 |
NIPPLE; GREASE,KING PIN
(B)
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
1212- |
| |
25 |
BEARING; THRUST,KING PIN
NSK
|
1-09829-031-0 |
01 |
1 |
1212- |
| |
25 |
BEARING; THRUST,KING PIN
NSK
|
1-09829-033-1 |
01 |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.900
|
1-43171-261-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.912
|
1-43171-262-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.925
|
1-43171-263-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.937
|
1-43171-264-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.950
|
1-43171-265-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.962
|
1-43171-266-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.975
|
1-43171-267-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=3.987
|
1-43171-268-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.000
|
1-43171-269-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.012
|
1-43171-270-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.025
|
1-43171-271-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.037
|
1-43171-272-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.050
|
1-43171-273-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.062
|
1-43171-274-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.075
|
1-43171-275-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.087
|
1-43171-276-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.100
|
1-43171-277-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.112
|
1-43171-278-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.125
|
1-43171-279-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.137
|
1-43171-280-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.150
|
1-43171-281-1 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.162
|
1-43171-311-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.175
|
1-43171-312-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.187
|
1-43171-313-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.200
|
1-43171-314-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.212
|
1-43171-315-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.225
|
1-43171-316-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.237
|
1-43171-317-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.250
|
1-43171-318-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.262
|
1-43171-319-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.275
|
1-43171-320-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.287
|
1-43171-321-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.300
|
1-43171-322-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.312
|
1-43171-323-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.325
|
1-43171-324-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.337
|
1-43171-325-0 |
AR |
1 |
1212- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.350
|
1-43171-326-0 |
AR |
1 |
1212- |
| |
32 |
BOLT; KEY,KING PIN
|
1-43116-013-1 |
02 |
1 |
1212- |
| |
33 |
NUT; KEY BOLT
M10
|
0-91110-510-0 |
02 |
1 |
1212- |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
0-91510-510-0 |
02 |
1 |
1212- |
| |
36 |
ARM; KNUCKLE
|
8-98057-563-0 |
01 |
1 |
1212- |
| |
44 |
COVER; KING PIN
|
1-43175-031-0 |
02 |
1 |
1212- |
| |
46 |
WASHER; LK,COVER
ID=12.2
|
0-91510-812-0 |
02 |
1 |
1212- |
| |
47 |
WASHER; PL,COVER,KING PIN
ID=12.5 OD=32
|
0-91614-712-0 |
02 |
1 |
1212- |
| |
48 |
BOLT; COVER
M12X25
|
1-09009-081-0 |
02 |
1 |
1212- |
| |
58 |
ARM; TIE ROD
|
8-98057-564-2 |
01 |
1 |
1212- |
| |
59 |
NUT; TIE ROD ARM
M27 FLANGE
|
1-09449-082-0 |
02 |
1 |
1212- |
| |
61 |
ROD END; TIE ROD
|
1-43150-748-1 |
01 |
1 |
1212- |
| |
61 |
ROD END; TIE ROD
|
1-43150-749-1 |
01 |
1 |
1212- |
| |
66 |
NUT; TIE ROD END
M16 SLOTTED
|
1-09442-031-0 |
02 |
1 |
1212- |
| |
68 |
BOLT; TIE ROD END
M12X45 FLANGE
|
0-28061-245-0 |
02 |
1 |
1212- |
| |
74 |
NUT; TIE ROD END
M12
|
0-91110-512-0 |
02 |
1 |
1212- |
| |
80 |
PIN; SPLIT,ROD END
OD=3.7 L=22
|
0-81124-022-0 |
02 |
1 |
1212- |
| |
81 |
ROD; TIE
|
8-98038-703-1 |
01 |
1 |
1212- |
| |
221 |
BOLT; BRKT,SENSOR
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1212- |
| |
267 |
CLIP; HARNESS
(A)
ID=11 L=16
|
0-95235-025-0 |
02 |
1 |
1212- |
| |
267 |
CLIP; HARNESS
(B)
ID=11 H=20 L=20
|
8-98033-780-0 |
02 |
1 |
1212- |
| |
272 |
NUT; CLIP
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1212- |
| |
272 |
NUT; CLIP
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1212- |
| |
274 |
BOLT; CLIP
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1212- |
| |
275 |
BOOT; ROD END,TIE
|
1-85574-046-0 |
02 |
1 |
1212- |
| |
304 |
WASHER; PL
ID=12.5
|
0-91614-512-0 |
02 |
1 |
1212- |
| |
305 |
COVER; KNUCKLE
|
1-43175-030-0 |
02 |
1 |
1212- |
| |
348 |
BRACKET; CLIP
|
8-98055-138-1 |
01 |
1 |
1212- |
| |
348 |
BRACKET; CLIP
|
8-98055-137-1 |
01 |
1 |
1212- |
| |
360 |
COVER; SENSOR
|
8-98018-401-0 |
01 |
1 |
1212- |
| |
360 |
COVER; SENSOR
|
8-98018-400-0 |
01 |
1 |
1212- |
