Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-43 - POWER STEERING BOOSTER
▶

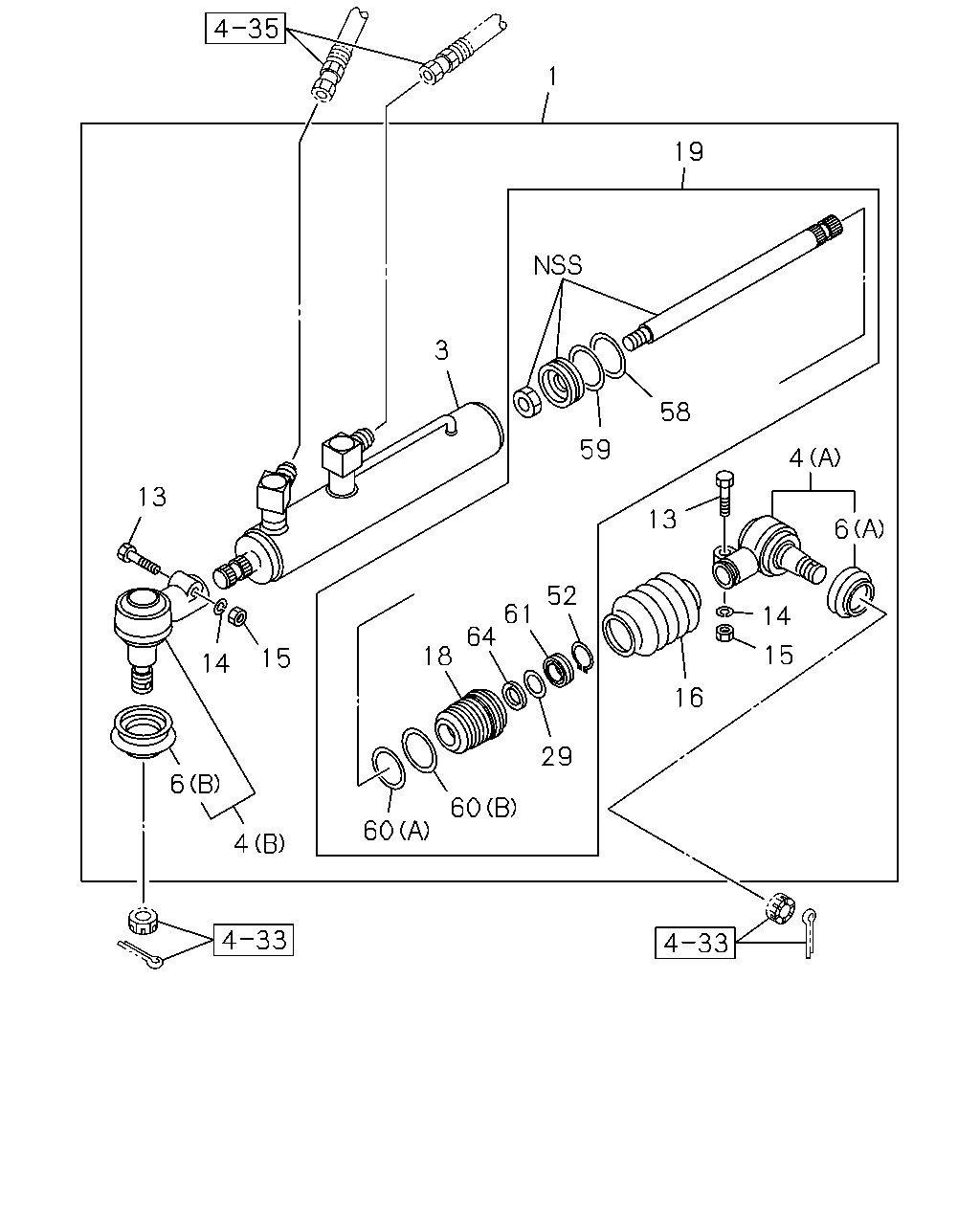

4-43 — POWER STEERING BOOSTER
(#111233) — 28 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀
[443A] COMPONENT (20 parça)
[443A] REPAIR KIT (8 parça)
▶
1
19
3
13
59
58
4
13
6
14
14
15
52
61
64
18
60
6
4
60
16
29
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BOOSTER ASM; POWER STRG
1-44510-124-2
01
1
1212-
●
●
3
CYLINDER ASM; POWER STRG BOOSTER
1-44511-035-0
01
1
1212-
●
●
4
SOCKET ASM; BALL,POWER STRG BOOSTER
(B)
1-44517-021-0
01
1
1212-
●
●
4
SOCKET ASM; BALL,POWER STRG BOOSTER
(A)
1-44517-022-0
01
1
1212-
●
●
6
COVER; DUST,POWER STRG BOOSTER
(A)
1-43159-091-0
01
1
1212-
●
●
6
COVER; DUST,POWER STRG BOOSTER
(B)
1-43159-078-0
01
1
1212-
●
●
13
BOLT; SOCKET,POWER STRG BOOSTER
1-44519-247-0
02
1
1212-
●
●
14
WASHER; SOCKET,POWER STRG BOOSTER
1-44519-248-0
02
1
1212-
●
●
15
NUT; SOCKET,POWER STRG BOOSTER
1-44519-249-0
02
1
1212-
●
●
16
BOOT; POWER STRG BOOSTER
1-44519-246-0
01
1
1212-
●
●
18
BEARING; POWER STRG BOOSTER
1-44519-237-0
01
1
1212-
●
●
19
PISTON & ROD ASM; POWER STRG BOOSTER
1-44520-008-0
01
1
1212-
●
●
29
RING; BACKUP,POWER STRG BOOSTER
1-44519-239-0
01
1
1212-
●
●
52
RING; RET,POWER STRG BOOSTER
1-44519-241-0
01
1
1212-
●
●
58
RING; SEAL,POWER STRG BOOSTER
1-44519-245-0
01
1
1212-
●
●
59
GASKET; PISTON,POWER STRG BOOSTER
1-44519-244-0
01
1
1212-
●
●
60
GASKET; BRG,POWER STRG BOOSTER
(A)
1-44519-242-0
01
1
1212-
●
●
60
GASKET; BRG,POWER STRG BOOSTER
(B)
1-44519-243-0
01
1
1212-
●
●
61
SEAL; DUST,POWER STRG BOOSTER
1-44519-240-0
01
1
1212-
●
●
64
GASKET; POWER STRG BOOSTER
1-44519-238-0
01
1
1212-
●
●
2
59
58
64
60
61
29
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; POWER STRG BOOSTER
1-44519-250-0
01
1
1212-
●
●
29
RING; BACKUP,POWER STRG BOOSTER
1-44519-239-0
01
1
1212-
●
●
58
RING; SEAL,POWER STRG BOOSTER
1-44519-245-0
01
1
1212-
●
●
59
GASKET; PISTON,POWER STRG BOOSTER
1-44519-244-0
01
1
1212-
●
●
60
GASKET; BRG,POWER STRG BOOSTER
(A)
1-44519-242-0
01
1
1212-
●
●
60
GASKET; BRG,POWER STRG BOOSTER
(B)
1-44519-243-0
01
1
1212-
●
●
61
SEAL; DUST,POWER STRG BOOSTER
1-44519-240-0
01
1
1212-
●
●
64
GASKET; POWER STRG BOOSTER
1-44519-238-0
01
1
1212-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
