◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#11123) — 157 parça

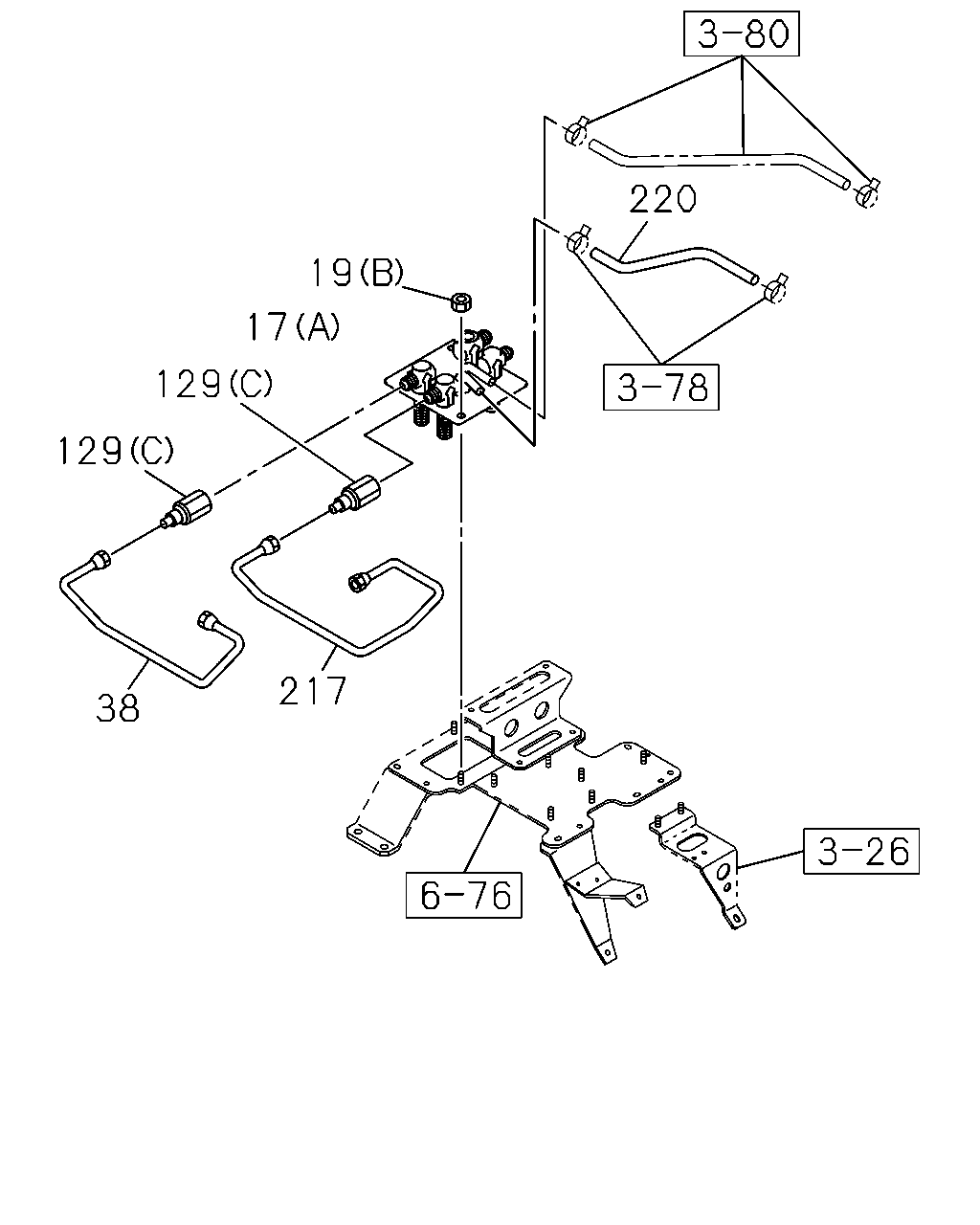

çizim 23203
220 19 17 129 129 217 38
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) 		1-47470-490-2 01 1 0106-
17 UNION; AIR PIPE
(A) 		1-47470-493-1 01 1 0106-0111
17 UNION; AIR PIPE
(A) 		1-47470-493-1 01 1 0112-
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0106-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0106-0111
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
38 PIPE; AIR,UNION TO MAG VLV 1-49123-433-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0204-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0106-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 0204-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0203
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0204-

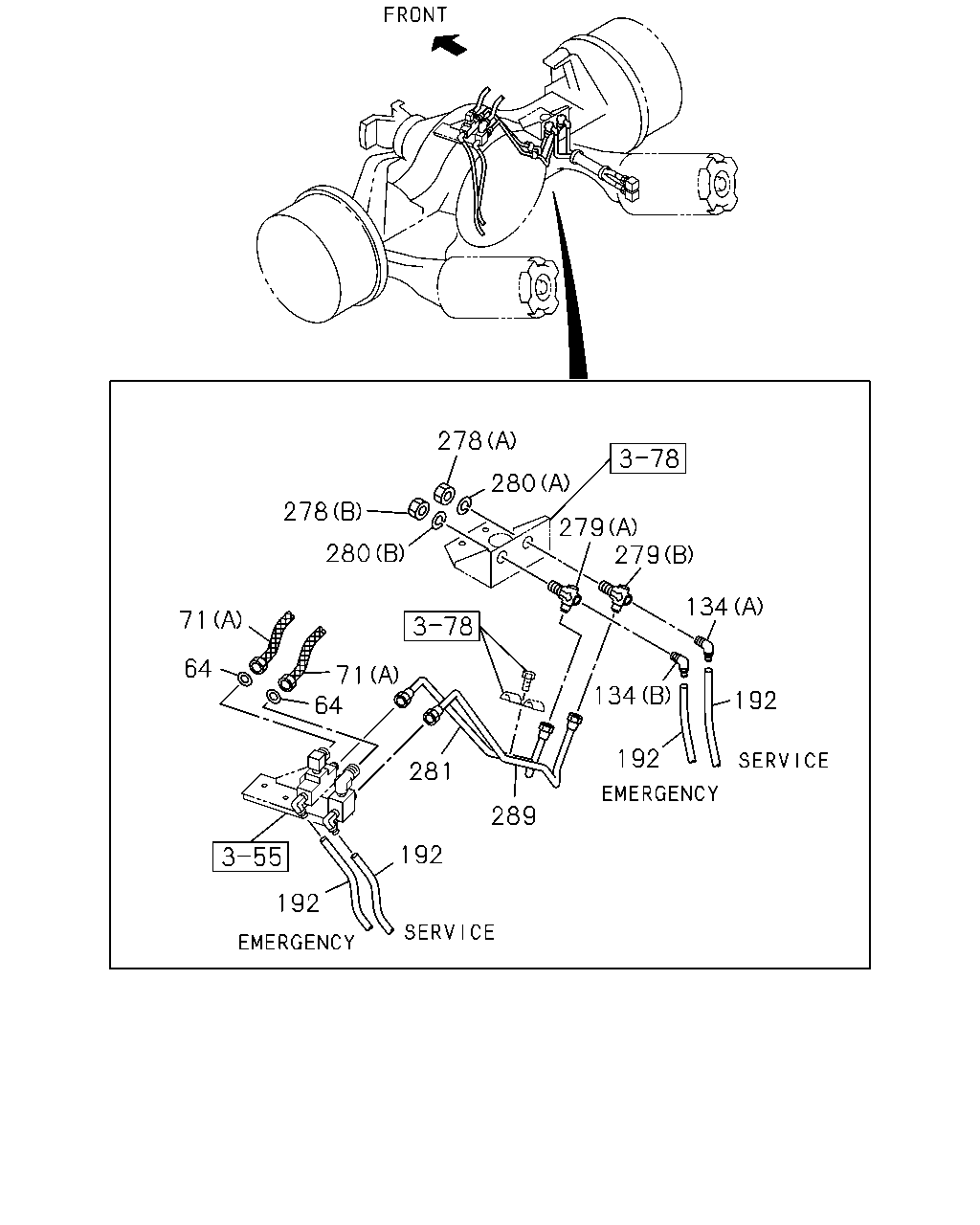

çizim 75330
278 280 278 279 279 280 134 71 64 71 64 134 192 192 281 289 192 192
BalonParca AdiParca NoAdetTipApplied Date
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 0106-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0106-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0106-
134 CONNECTOR
(D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-0109
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0110-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0106-0109
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0110-0110
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0110-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0110-0110
134 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0111-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0110-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
278 NUT; UNION
(A) M16 		9-99111-416-0 01 1 0106-
278 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0106-
279 UNION; AIR PIPE
(A) M14X35 		1-09650-272-2 01 1 0106-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0106-
279 UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
280 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0106-
280 WASHER; LK
(B) ID=20.2 		9-09150-520-0 01 1 0106-
281 PIPE; AIR,EMERGENCY 1-49117-109-0 01 1 0106-
289 PIPE; AIR,MODULATOR TO RELAY VLV 1-49117-108-0 01 1 0106-

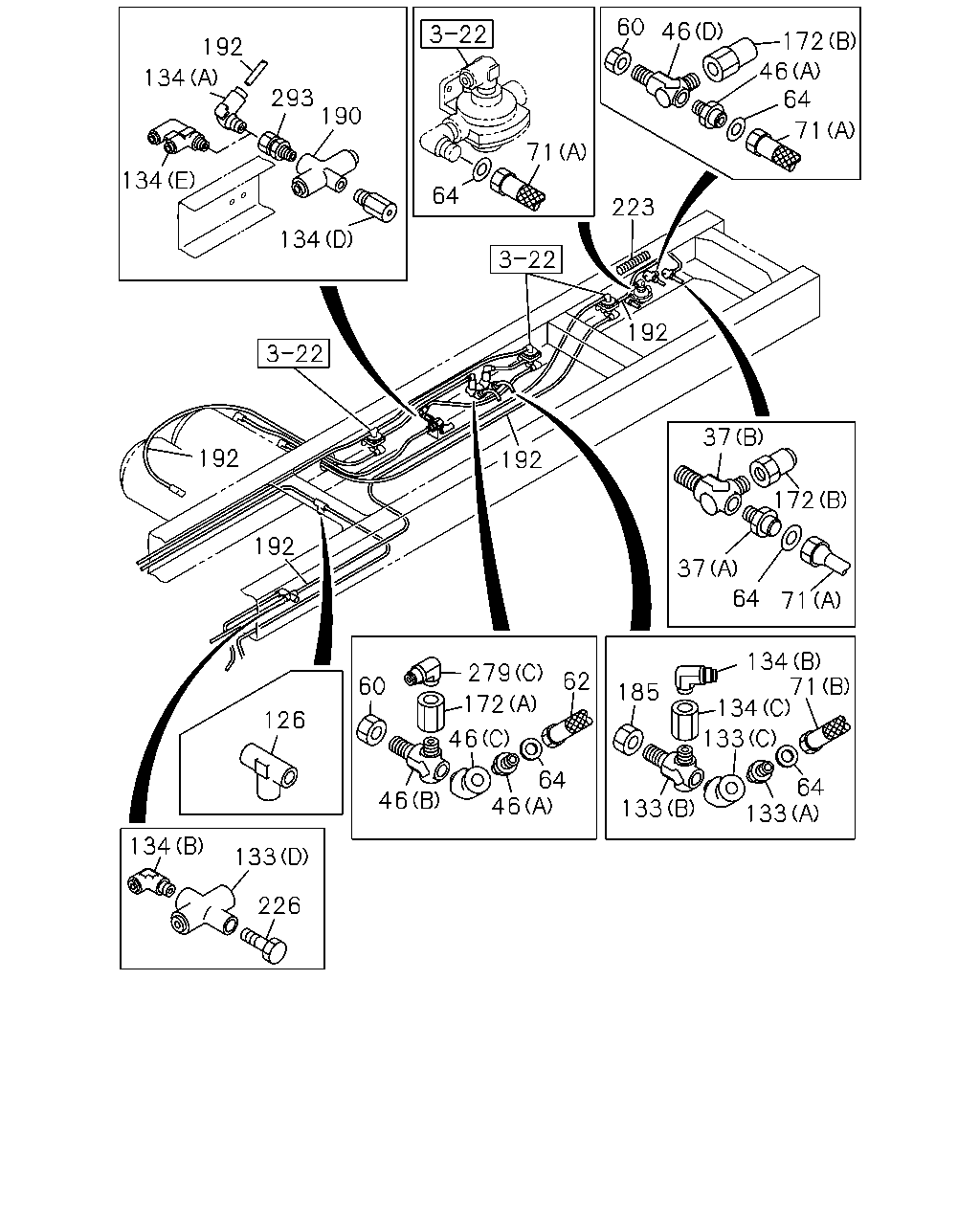

çizim 75652
60 46 172 192 46 64 134 293 190 71 71 134 64 223 134 192 37 192 192 172 192 37 64 71 134 71 134 279 62 60 185 172 126 133 46 64 46 64 133 46 133 134 133 226
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0106-0109
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0110-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0106-0109
37 UNION; AIR PIPE
(B) 		1-09650-251-1 02 1 0110-
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0106-0109
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0110-
46 NIPPLE; AIR PIPE
(B) 		1-09650-251-1 01 1 0106-
46 NIPPLE; AIR PIPE
(D) M14X35 		1-09650-272-2 01 1 0106-0109
46 NIPPLE; AIR PIPE
(C) 		1-09664-209-0 01 1 0106-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 04 1 0106-
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0106-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 0106-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0106-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0106-
126 UNION; NYLON TUBE 1-09661-133-0 01 1 0106-
133 UNION; NIPPLE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0106-
133 UNION; NIPPLE
(B) 		1-09650-251-1 01 1 0106-
133 UNION; NIPPLE
(D) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0106-
133 UNION; NIPPLE
(C) 		1-09664-209-0 01 1 0106-
134 CONNECTOR
(D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-0109
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0110-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0106-0109
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0110-0110
134 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0110-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0110-0110
134 CONNECTOR
(E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0111-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0110-
172 ADAPTER; UNION
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106-
172 ADAPTER; UNION
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
185 NUT; NIPPLE
M20 		9-99111-420-0 01 1 0106-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0106-0109
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0110-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
279 UNION; AIR PIPE
(A) M14X35 		1-09650-272-2 01 1 0106-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0106-
279 UNION; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
293 VALVE; CHECK 1-48320-013-2 01 1 0106-

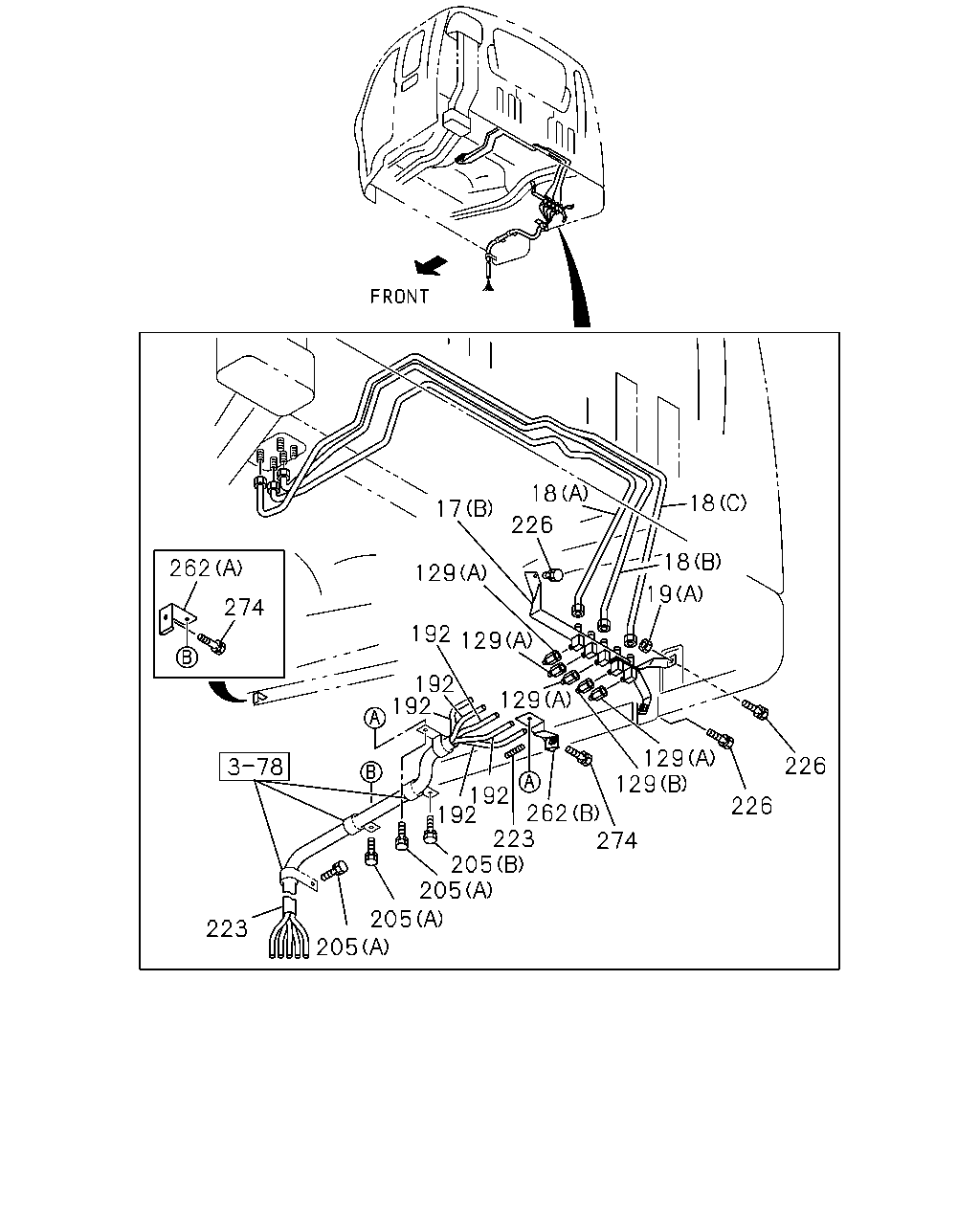

çizim 76062
18 18 17 226 18 262 129 19 274 192 129 192 192 129 129 129 226 192 192 226 262 223 274 205 205 205 205 223
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) 		1-47470-490-2 01 1 0106-
17 UNION; AIR PIPE
(A) 		1-47470-493-1 01 1 0106-0111
17 UNION; AIR PIPE
(A) 		1-47470-493-1 01 1 0112-
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
(C) L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0106-
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0106-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0106-0111
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0204-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0106-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0106-
205 BOLT; TUBE CLIP
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 0106-0211
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0110-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
262 BRACKET
(A) 		1-79996-143-0 01 1 0106-
262 BRACKET
(B) 		1-79996-258-1 01 1 0106-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0106-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0106-

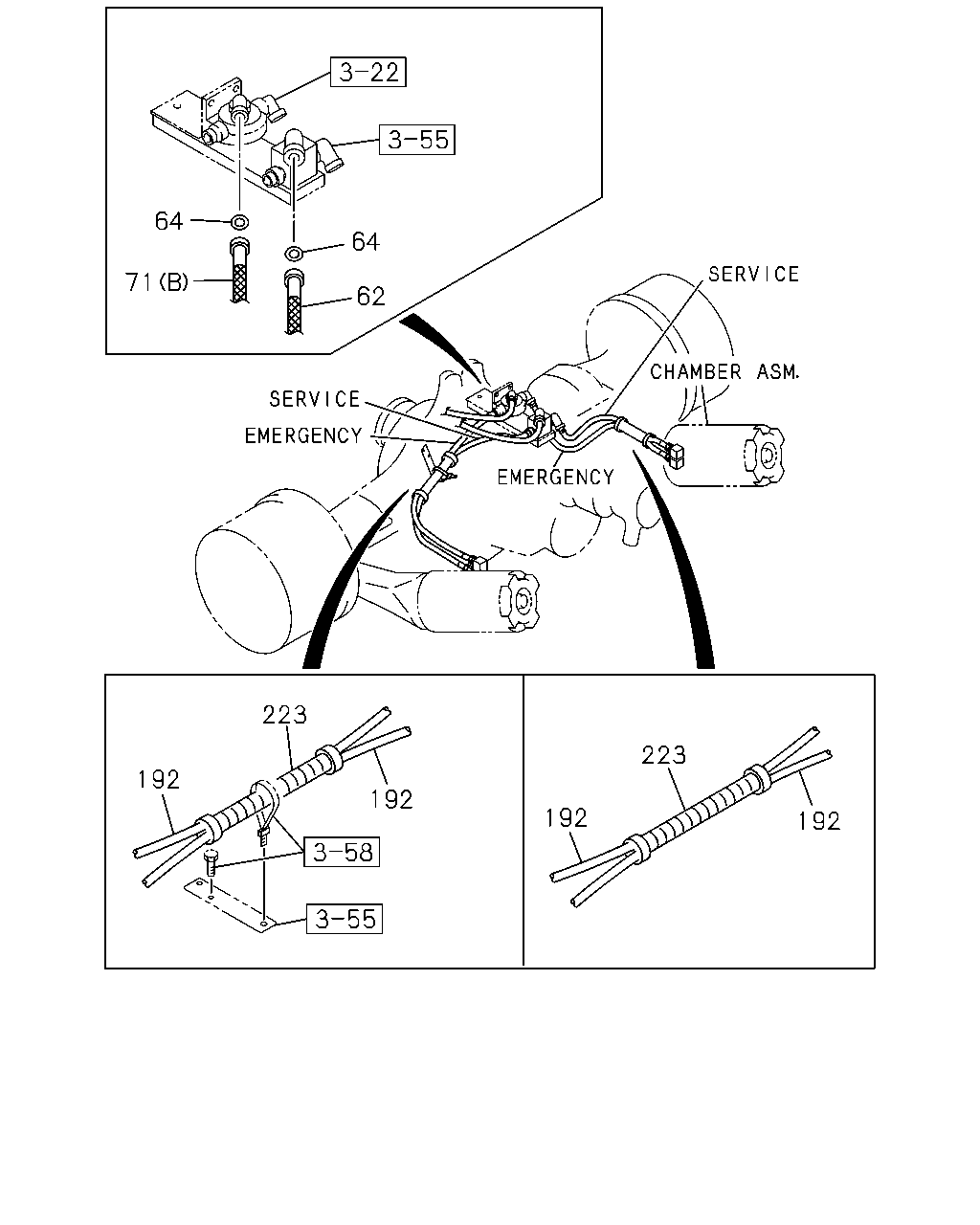

çizim 76258
64 64 71 62 223 223 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0106-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 0106-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0106-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
