4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#111225) — 163 parça

166 234 262 262 166 263 49 264 256 257 239 255 79 76 63 65 277 61 262 166 61 58 58 54 62 59 66 61 61 58 58 66 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

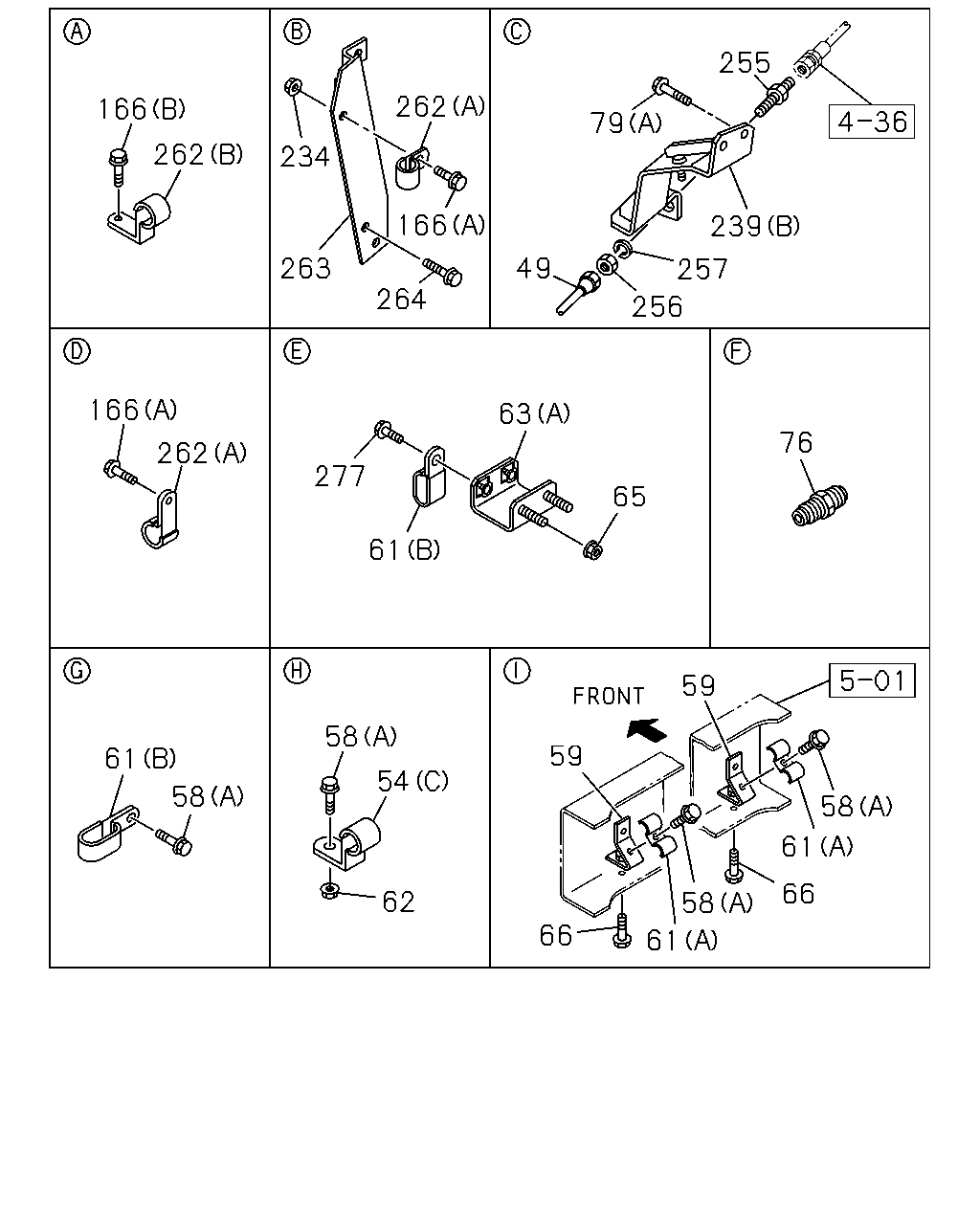

49	PIPE; OIL,FLEX HOSE TO UNION	8-98191-963-0	01	1	1212-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1303-	●	●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (C) ID=12 H=24 L=20	1-09700-605-0	02	1	1512-	●	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-		●
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1212-	●	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	05	1	1212-1511	●	●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (B) ID=13X2 L=20	0-95325-236-0	04	1	1512-	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	1212-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
59	BRACKET; CLIP,OIL PIPE	1-47479-521-0	02	1	1212-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1212-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1212-	●	●
62	NUT; CLIP FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
62	NUT; CLIP FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	01	1	1212-	●	●
63	BRACKET; CLIP,P/S (A)	8-98191-966-0	01	1	1212-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28050-820-0	02	1	1212-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1212-	●	●
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1212-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1212-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1212-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1212-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1212-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1212-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1212-	●	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1212-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●

41 280 41 157 266 195 257 111 256 54 62 58 63 79 58 58 54 54 238 45 48 81 81 238 238 39 84 64 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

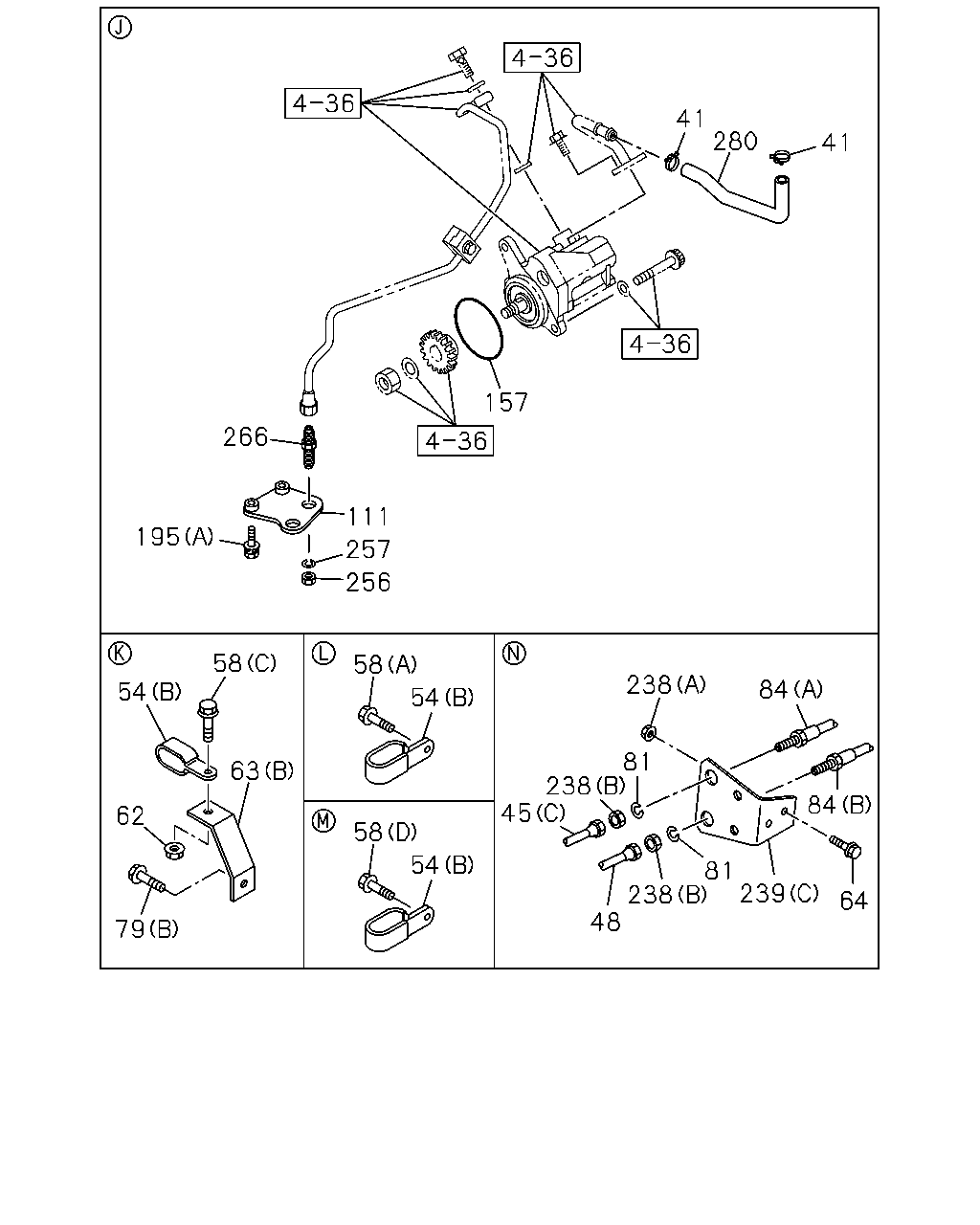

39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1212-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1212-	●	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 5700MM(57W) (C)	8-98333-546-0	01	1	1512-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98233-173-0	01	1	1212-1511	●	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98233-173-0	01	1	1512-	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C)	8-98233-173-0	01	1	1512-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98166-065-0	01	1	1212-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98166-066-0	01	1	1212-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 5700MM(57W)	8-98333-547-0	01	1	1512-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98214-430-1	01	1	1212-1511	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98214-430-1	01	1	1512-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-98214-430-1	01	1	1512-		●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (C) ID=12 H=24 L=20	1-09700-605-0	02	1	1512-	●	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-		●
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1212-	●	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	05	1	1212-1511	●	●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (B) ID=13X2 L=20	0-95325-236-0	04	1	1512-	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	1212-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
62	NUT; CLIP FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
62	NUT; CLIP FIX WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1512-		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	04	1	1512-	●	●
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	01	1	1212-	●	●
63	BRACKET; CLIP,P/S (A)	8-98191-966-0	01	1	1212-	●	●
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1212-	●	●
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1212-	●	●
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1212-	●	●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1212-	●	●
111	BRACKET; OIL PIPE	8-98131-436-0	01	1	1212-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1212-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1212-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1212-	●	●
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1212-	●	●
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1212-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1212-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1212-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1212-	●	●

49 261 45 48 45 45 280 268 84 84 34 68 280 41 54 41 277 39 37 58 31 37 268 58 261 37 37 239 195 1 55 7 8 20 19 12 19 2 2 3 5 15 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

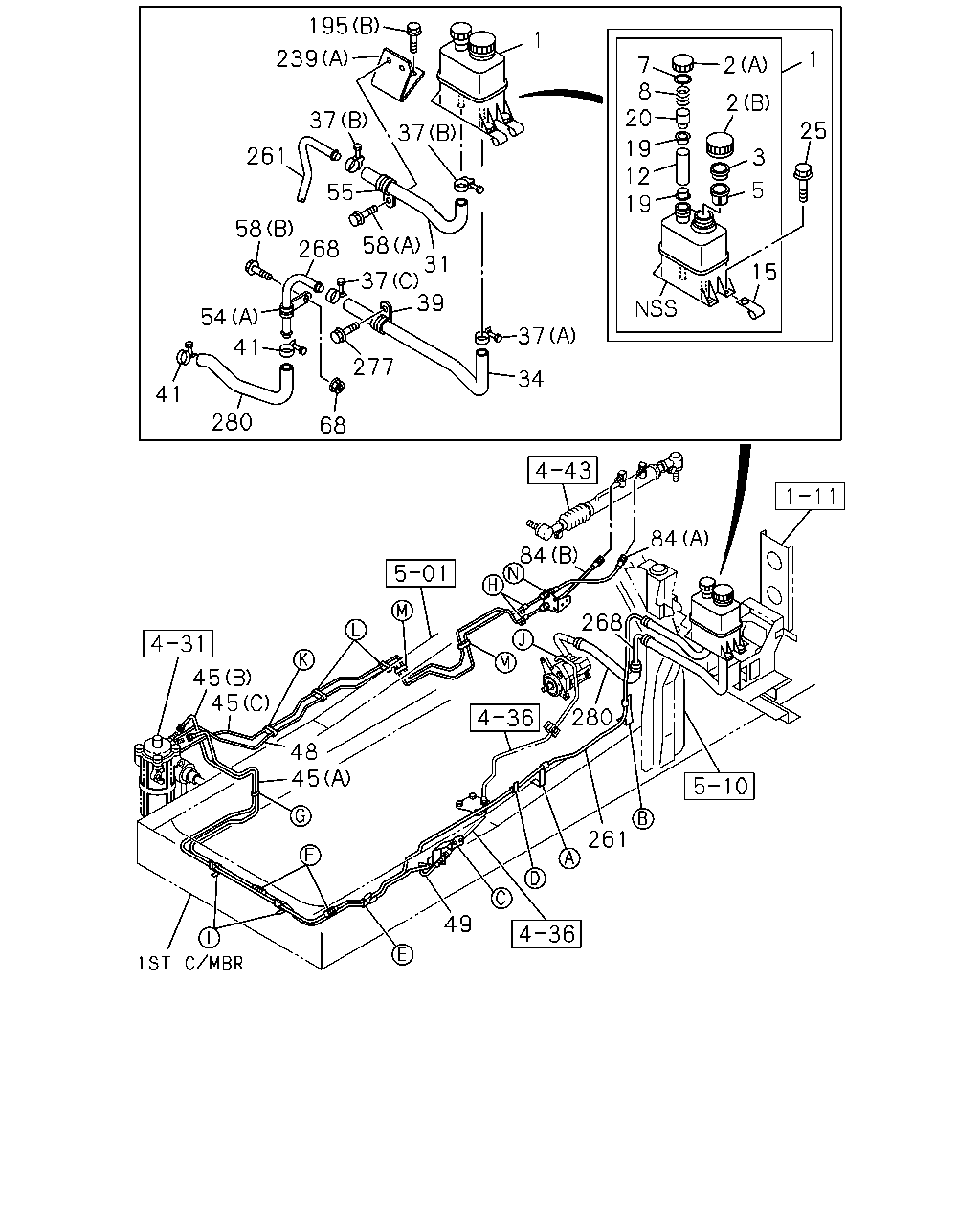

1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1212-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1212-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1212-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1212-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1212-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1212-	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1212-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1212-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1212-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	1212-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1212-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1212-	●	●
31	HOSE; P/S OIL TANK,INL	8-98166-662-0	01	1	1212-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98166-663-0	01	1	1212-	●	●
37	CLIP; HOSE,P/S (C) ID=32	1-09704-085-0	01	1	1212-	●	●
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	1212-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1212-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1212-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1212-	●	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 5700MM(57W) (C)	8-98333-546-0	01	1	1512-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98233-173-0	01	1	1212-1511	●	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C)	8-98233-173-0	01	1	1512-	●
45	PIPE; OIL,P/S UNIT TO UNION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C)	8-98233-173-0	01	1	1512-		●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98166-065-0	01	1	1212-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98166-066-0	01	1	1212-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 5700MM(57W)	8-98333-547-0	01	1	1512-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98214-430-1	01	1	1212-1511	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98214-430-1	01	1	1512-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-98214-430-1	01	1	1512-		●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98191-963-0	01	1	1212-1302	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-633-0	01	1	1303-	●	●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (C) ID=12 H=24 L=20	1-09700-605-0	02	1	1512-	●	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-	●
54	CLIP; OIL PIPE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13X2 L=20	0-95325-236-0	05	1	1512-		●
54	CLIP; OIL PIPE (A) ID=19 L=60	0-95235-896-0	01	1	1212-	●	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	05	1	1212-1511	●	●
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (B) ID=13X2 L=20	0-95325-236-0	04	1	1512-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1212-	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
58	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	1212-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 5700MM(57W) (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1512-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
58	BOLT; CLIP (D) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
58	BOLT; CLIP WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1212-	●	●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1212-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1212-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1212-	●	●
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1212-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1212-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1212-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98191-965-0	01	1	1212-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1212-	●	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98191-607-0	01	1	1212-	●	●
