4-60 — REAR SUSPENSION (#111214) — 103 parça

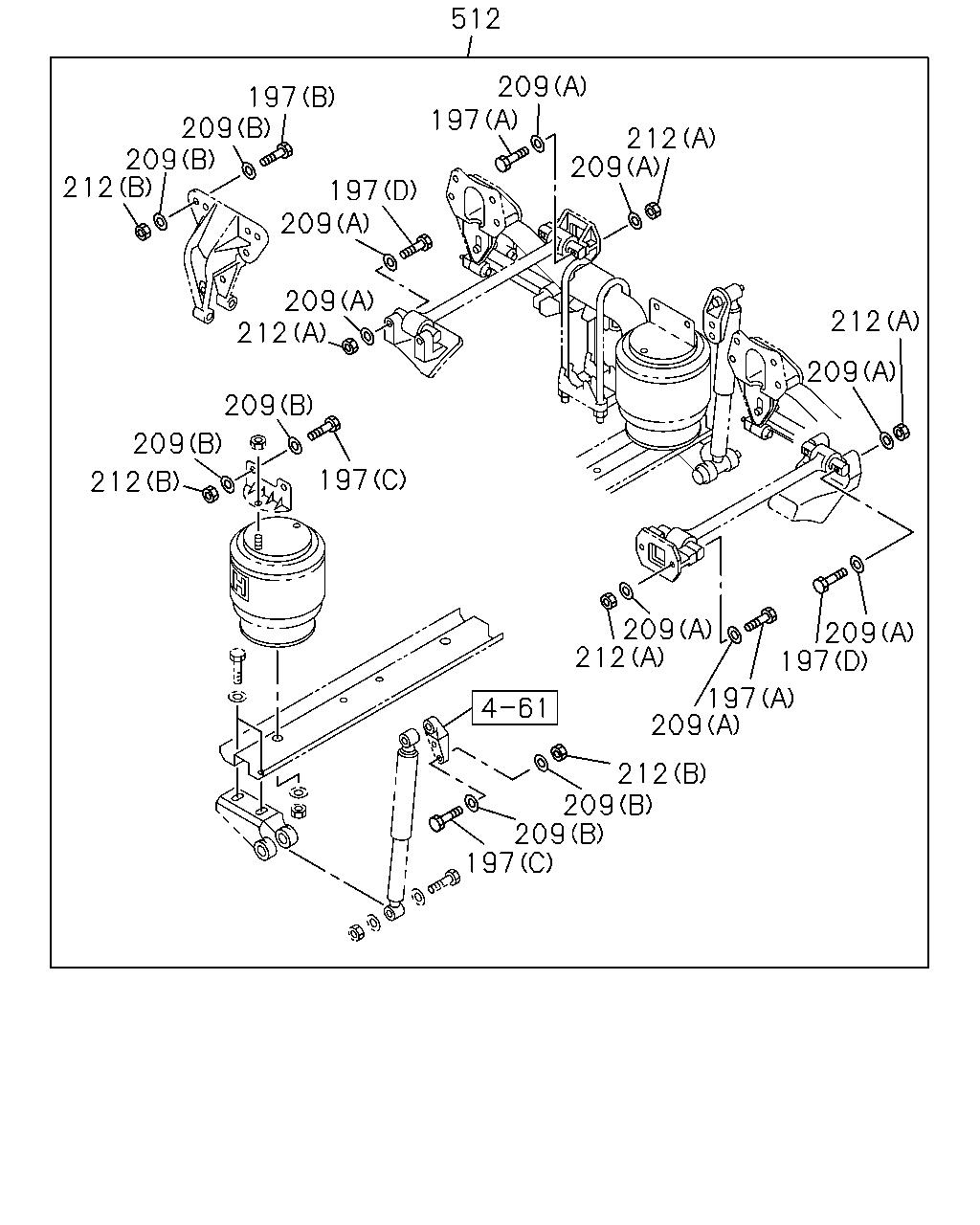

çizim 321598
212 209 209 197 197 209 212 209 209 197 212 209 212 209 209 197 209 209 212 212 209 209 197 209 197 209 212 197 512
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 1212- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1212- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1212- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1212- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1212- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1212- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1212- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1212- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1212- ●

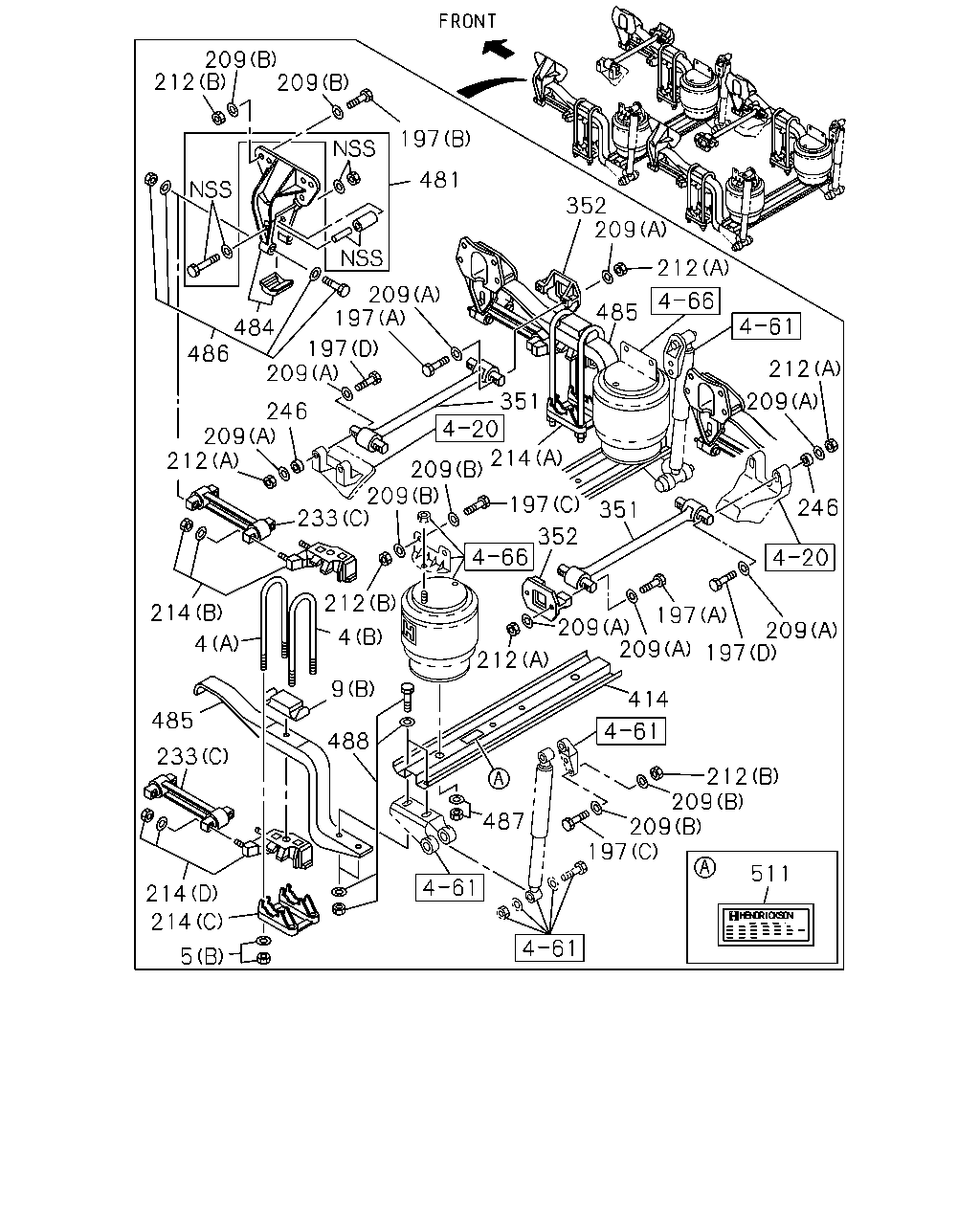

çizim 322328
209 197 481 214 214 233 485 214 4 9 4 212 488 209 209 351 209 212 352 209 212 212 209 246 197 209 197 209 209 212 487 5 197 209 209 212 197 414 351 352 485 209 484 197 197 209 246 209 212 233 511 214 486
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1212- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1212- ●
5 NUT; U-BOLT,RR SPR
(B) 		1-52179-039-0 02 1 1212- ●
5 NUT; U-BOLT,RR SPR
(A) M27 FLANGE 		1-09440-058-0 08 1 1212- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-073-0 04 1 1212- ●
9 PAD; U BOLT,RR SPR
(A) 		8-98177-265-0 02 1 1212- ●
197 BOLT
(D) 		1-09000-767-0 04 1 1212- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1212- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1212- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1212- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1212- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1212- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1212- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1212- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1212- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1212- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1212- ●
214 SEAT; SPR
(B) 		8-98227-596-0 02 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5700MM(57W) (D) L=540 		1-51511-674-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=550 		1-51511-659-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=366 		1-51510-855-0 04 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 03 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 03 1 1212-1511 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 01 1 1512- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1212- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1212- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1212- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1212- ●
481 ROLLER; REBOUND 1-53357-044-0 02 1 1212- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1212- ●
485 SPRING; LEAF 1-51410-259-0 04 1 1212- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1212- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1212- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1212- ●
511 LABEL 1-51399-034-0 01 1 1212- ●

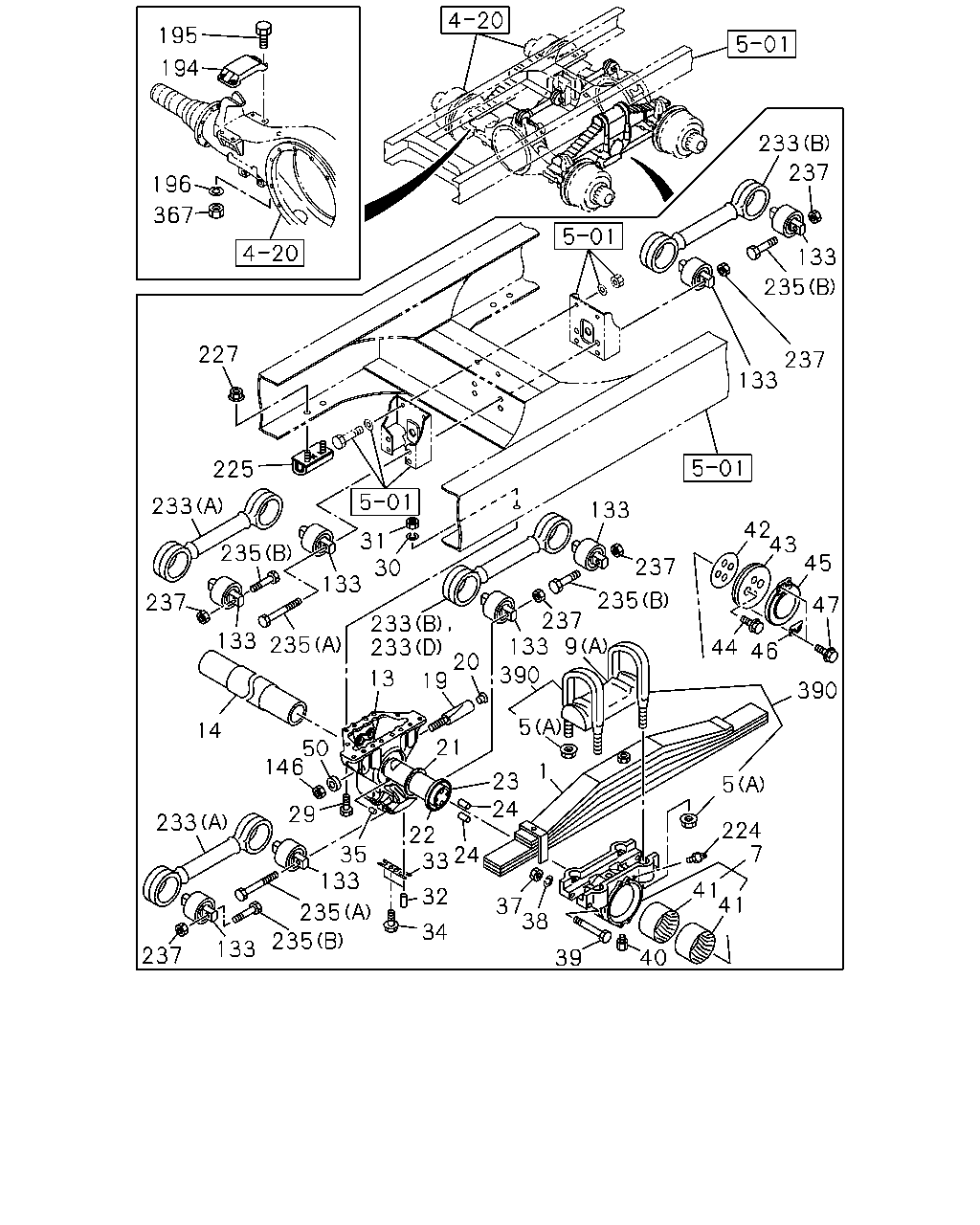

çizim 322334
233 237 133 235 237 133 42 43 45 47 390 46 44 237 235 237 133 390 5 23 24 22 24 33 32 35 133 235 225 227 233 235 237 133 235 14 146 50 29 233 5 224 7 41 41 40 39 38 37 34 235 133 237 233 233 13 19 20 133 133 31 30 195 194 196 367 21 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98102-211-1 02 1 1212- ●
5 NUT; U-BOLT,RR SPR
(B) 		1-52179-039-0 02 1 1212- ●
5 NUT; U-BOLT,RR SPR
(A) M27 FLANGE 		1-09440-058-0 08 1 1212- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1212- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-073-0 04 1 1212- ●
9 PAD; U BOLT,RR SPR
(A) 		8-98177-265-0 02 1 1212- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1212- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1212- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1212- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1212- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1212- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1212- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1212- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1212- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1212- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1212- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1212- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1212- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1212- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1212- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1212- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1212- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1212- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1212- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1212- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1212- ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1212- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1212- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1212- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1212- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1212- ●
46 BRACKET; COVER 1-51387-015-2 02 1 1212- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1212- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1212- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 1212-1511 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 12 1 1212-1511 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1512- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1212- ●
194 PAD; CONTACT 1-42124-101-0 04 1 1212- ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 1212- ●
196 WASHER; LK
ID=14.2 		0-91510-814-0 16 1 1212- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1212- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-077-3 02 1 1212- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-100-2 02 1 1212- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5700MM(57W) (D) L=540 		1-51511-674-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=550 		1-51511-659-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=366 		1-51510-855-0 04 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=525 		1-51511-656-0 03 1 1212- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 03 1 1212-1511 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=550 		1-51511-659-0 01 1 1512- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1212- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1212- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1212- ●
367 NUT
M14 		0-91110-514-0 16 1 1212- ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 1212- ●
