4-55 — FRONT LEAF SPRING (#111212) — 122 parça

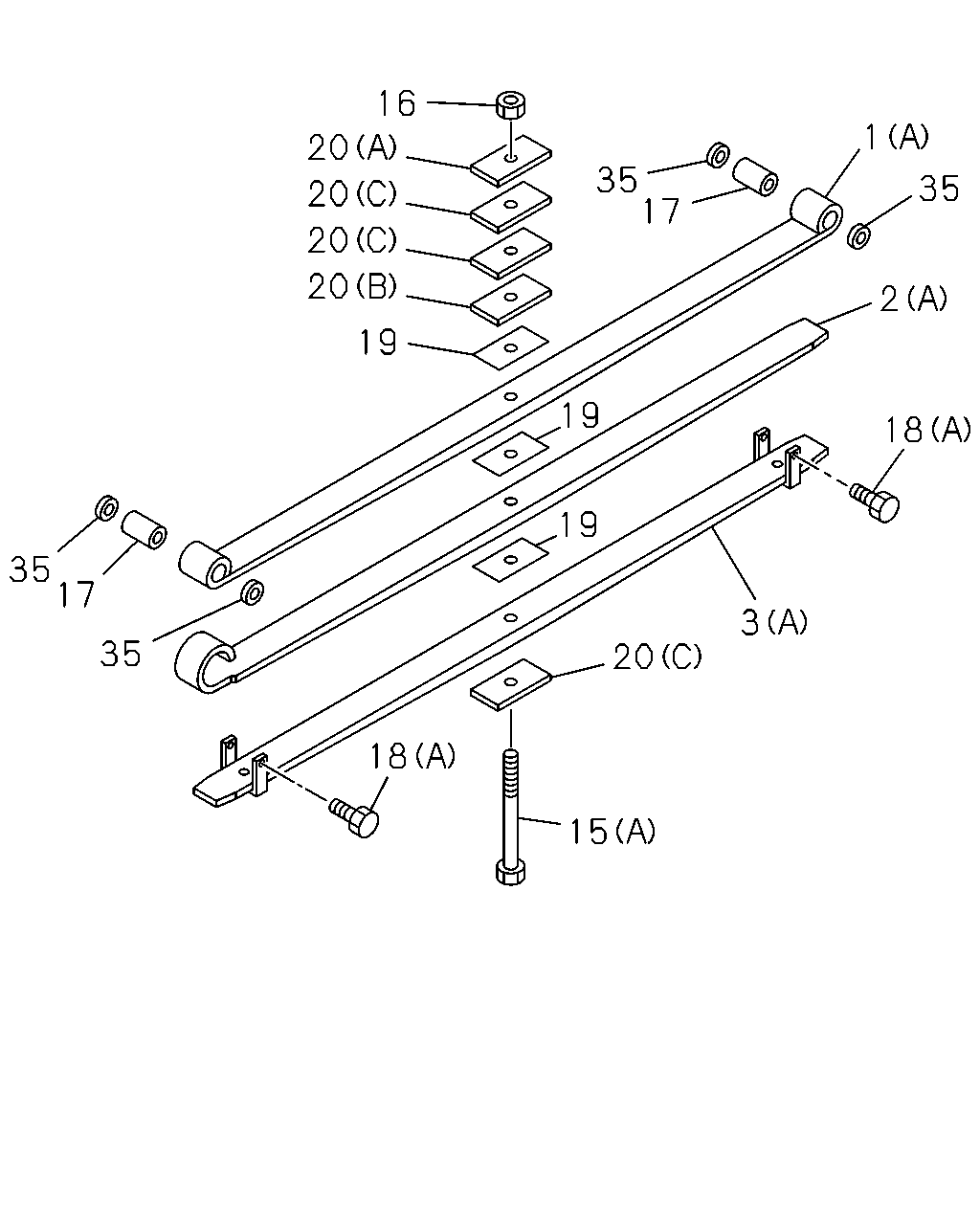

çizim 321497
16 20 20 20 20 19 35 17 35 18 15 20 19 19 3 35 17 1 35 2 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-388-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-391-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-389-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-392-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-393-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=150 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: D = 8-98225-734-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98225-732-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98212-517-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: C = 8-98225-732-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98212-516-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: C = 8-98225-732-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: D = 8-98225-734-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=11 ASM PART: D = 8-98225-734-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: C = 8-98225-732-0 		1-51177-353-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: B = 8-98212-517-0 		1-51177-353-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: A = 8-98212-516-0, D = 8-98225-734-0 		1-51177-353-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51177-321-0 04 1 -

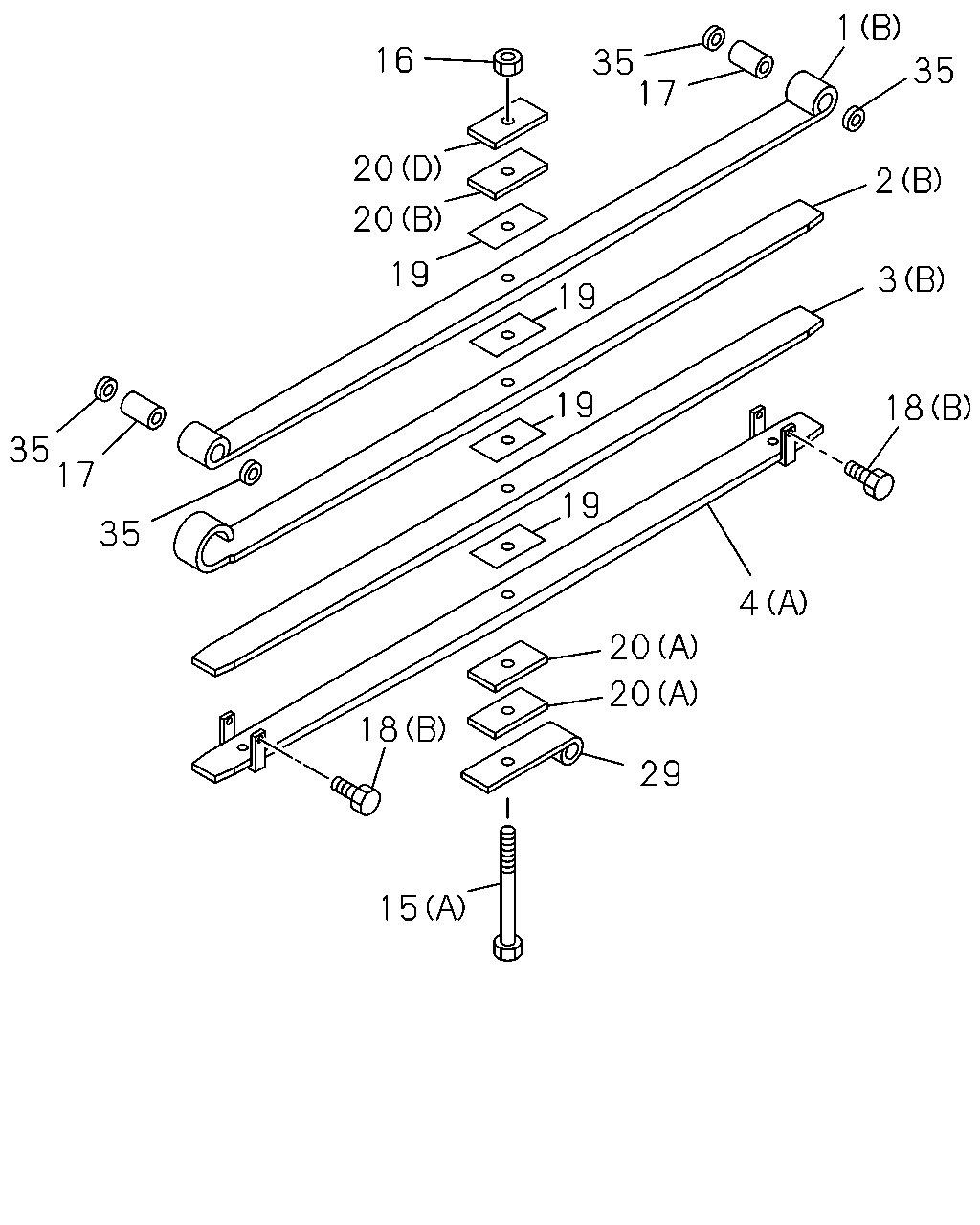

çizim 321532
35 17 35 16 20 20 19 18 15 19 19 19 20 20 29 35 17 1 35 2 3 18 4
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-388-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-391-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-389-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-392-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-393-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98212-517-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98225-734-0 		8-98217-394-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=150 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: D = 8-98225-734-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98225-732-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98212-517-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: C = 8-98225-732-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98212-516-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: C = 8-98225-732-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: D = 8-98225-734-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=11 ASM PART: D = 8-98225-734-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: C = 8-98225-732-0 		1-51177-353-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: B = 8-98212-517-0 		1-51177-353-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: A = 8-98212-516-0, D = 8-98225-734-0 		1-51177-353-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51177-321-0 04 1 -

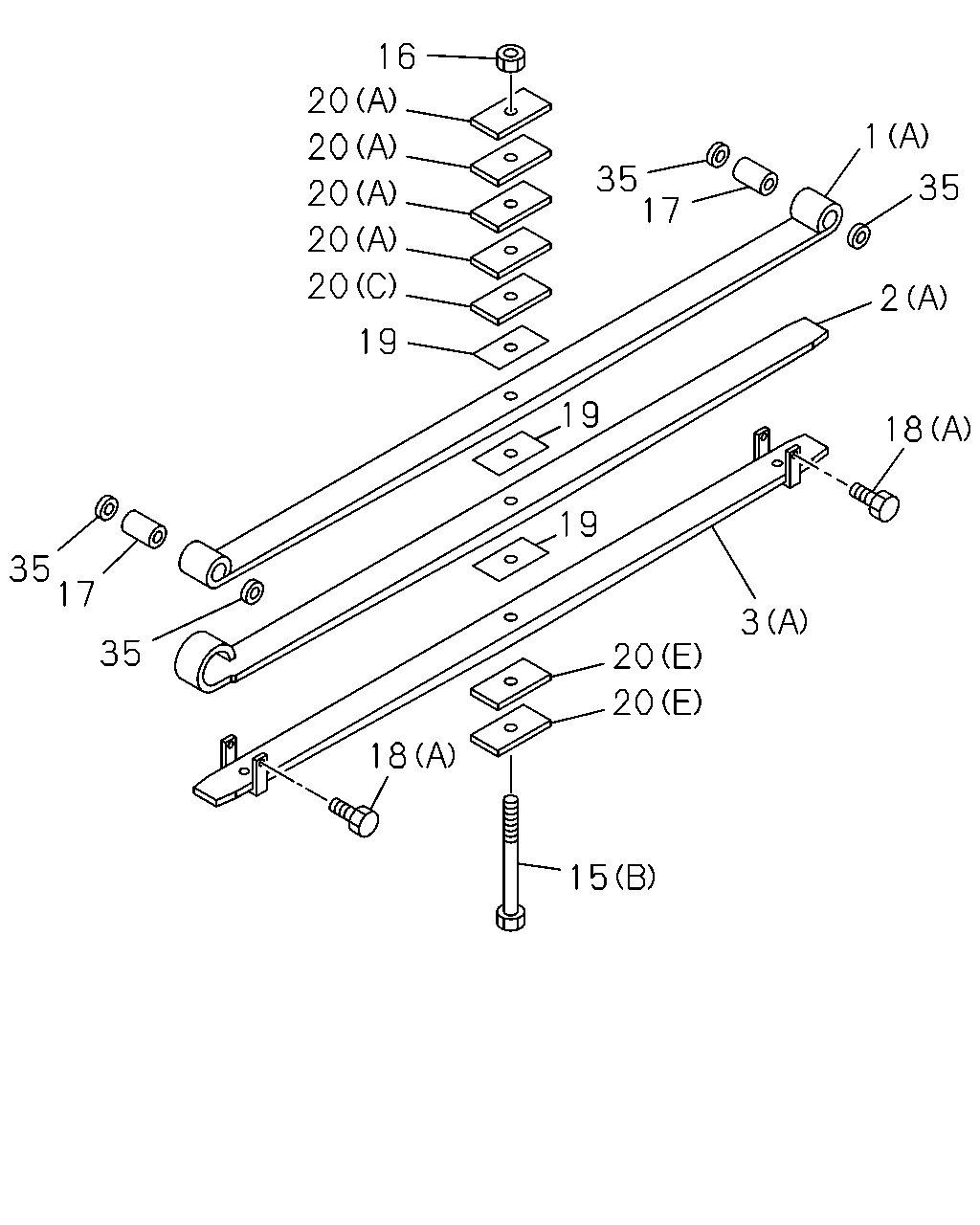

çizim 321555
16 20 20 20 20 20 19 35 17 35 18 19 19 35 17 1 35 2 18 3 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-388-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-391-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-389-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-392-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-393-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=150 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: D = 8-98225-734-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98225-732-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98212-517-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: C = 8-98225-732-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98212-516-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: C = 8-98225-732-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: D = 8-98225-734-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=11 ASM PART: D = 8-98225-734-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: C = 8-98225-732-0 		1-51177-353-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: B = 8-98212-517-0 		1-51177-353-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: A = 8-98212-516-0, D = 8-98225-734-0 		1-51177-353-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51177-321-0 04 1 -

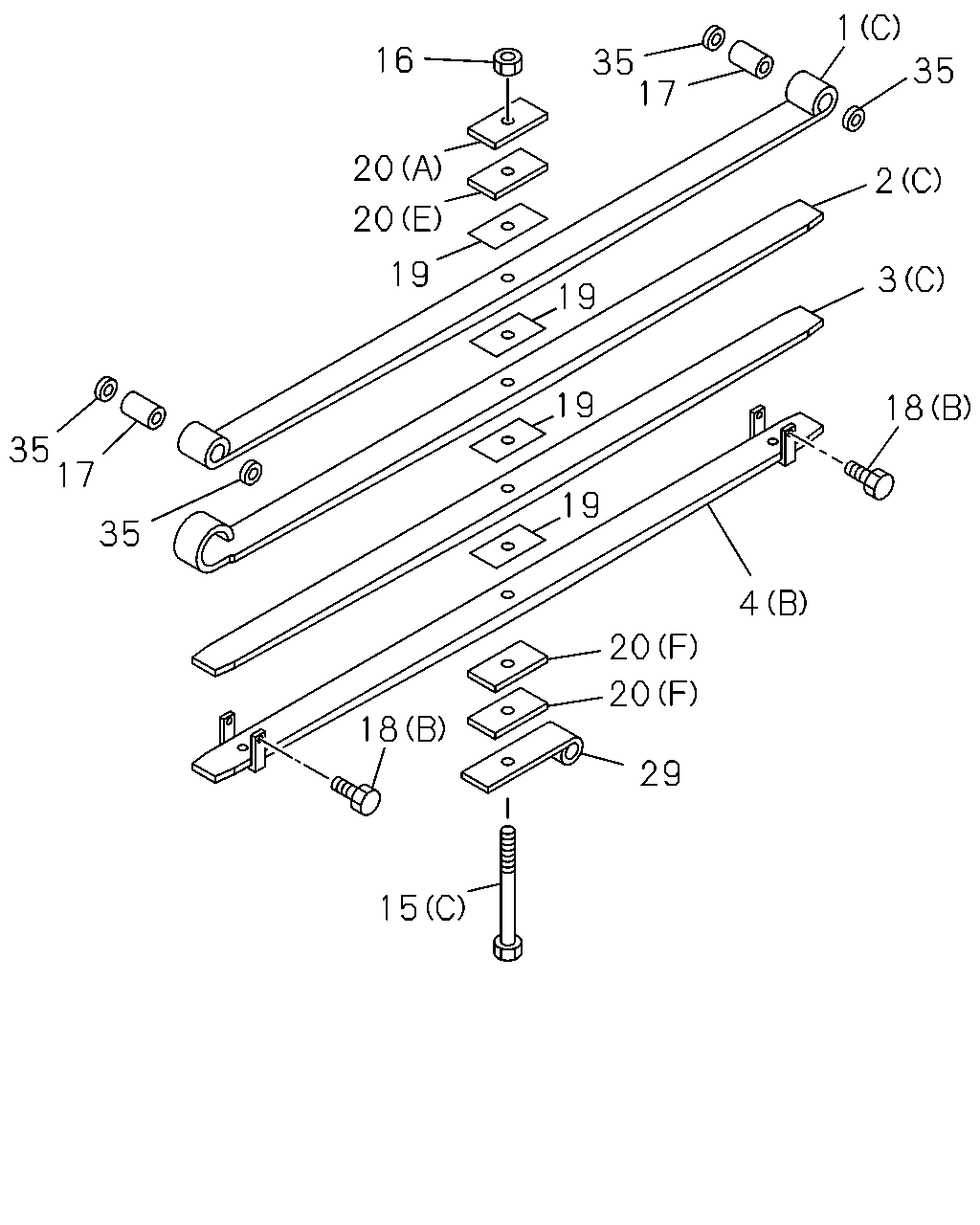

çizim 321562
35 17 1 35 2 3 18 16 20 19 19 19 20 20 29 20 19 35 17 35 18 15 4
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-388-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-391-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-389-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-392-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98212-517-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		8-98217-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: D = 8-98225-734-0 		8-98217-393-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-98212-517-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98225-734-0 		8-98217-394-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=150 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: D = 8-98225-734-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98225-732-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98212-516-0, C = 8-98225-732-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: B = 8-98212-517-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: C = 8-98225-732-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 8-98212-516-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=14 ASM PART: A = 8-98212-516-0, B = 8-98212-517-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: C = 8-98225-732-0 		1-51177-346-0 02 1 -
20 SEAT; LEAF SPR,FRT
(E), T=13 ASM PART: D = 8-98225-734-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(F), T=11 ASM PART: D = 8-98225-734-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: C = 8-98225-732-0 		1-51177-353-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: B = 8-98212-517-0 		1-51177-353-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=8 ASM PART: A = 8-98212-516-0, D = 8-98225-734-0 		1-51177-353-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98212-517-0, D = 8-98225-734-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-98212-516-0, B = 8-98212-517-0, C = 8-98225-732-0, D = 8-98225-734-0 		1-51177-321-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
