◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#11121) — 269 parça

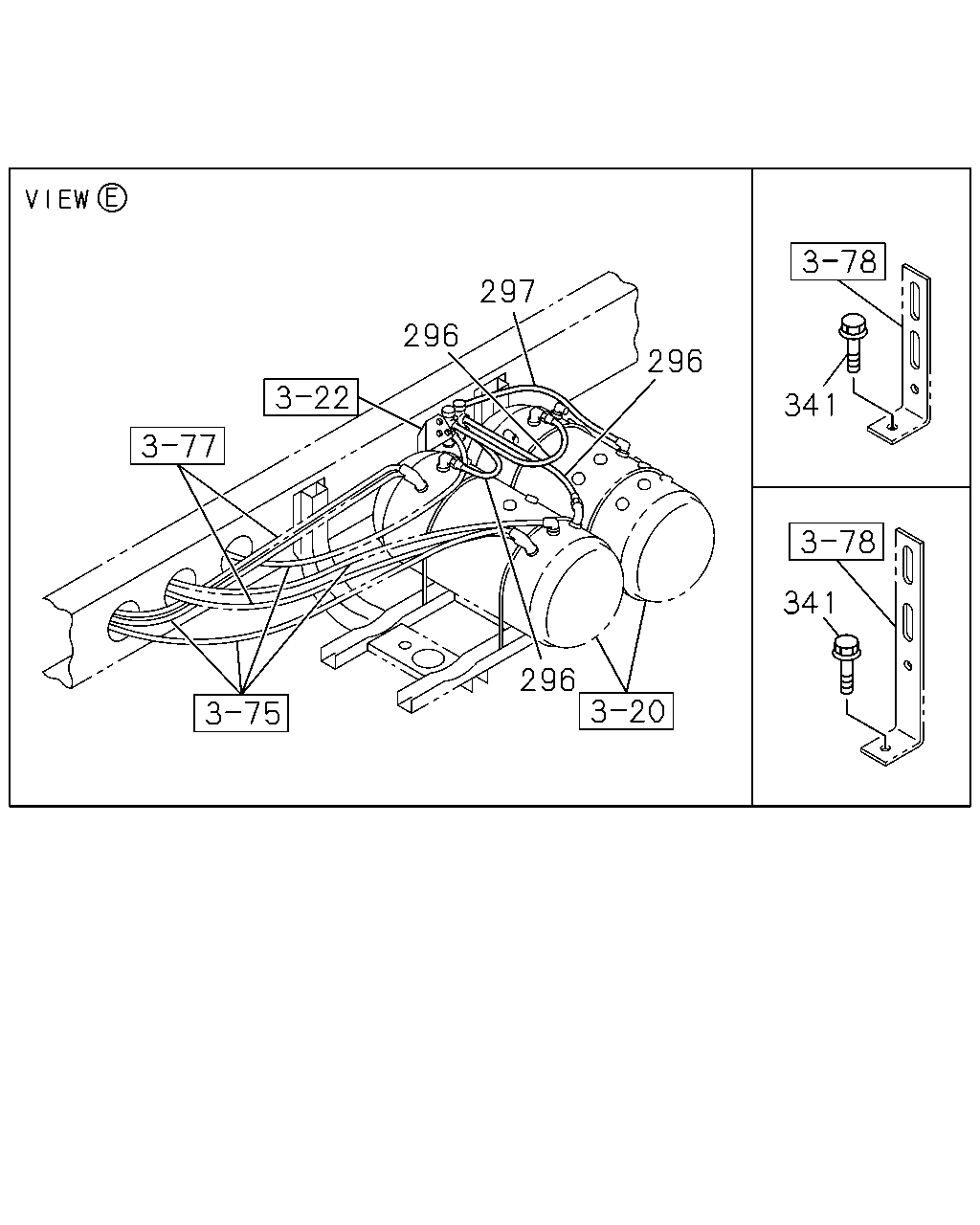

çizim 22416
297 296 296 341 341 296
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0106-

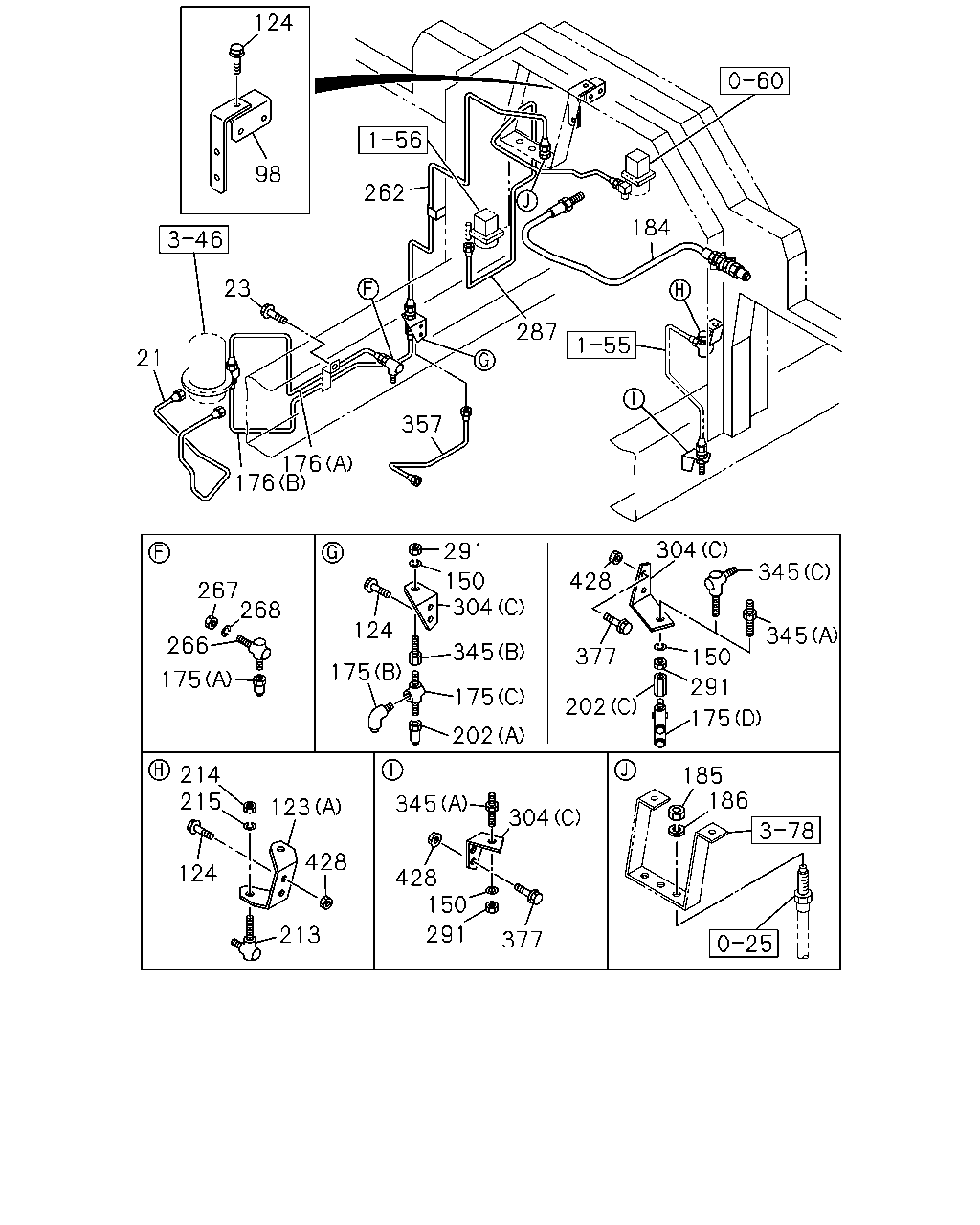

çizim 23691
124 98 262 184 23 287 21 357 176 176 304 291 428 345 150 304 267 268 266 124 345 345 377 150 175 175 291 175 202 175 202 214 215 185 186 345 123 304 428 124 428 150 291 213 377
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0106-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49124-042-0 01 1 0303-
23 BOLT; BRKT,AIR PIPE
AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 0106-
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-47477-471-0 01 1 0106-0112
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L) 		1-47477-471-0 01 1 0201-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0106-
124 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0106-
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) M8X25 FLANGE 		0-28680-825-0 01 1 0201-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0106-
175 CONNECTOR; AIR PIPE
(C) 		1-09650-070-3 01 1 0106-0112
175 CONNECTOR; AIR PIPE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
175 CONNECTOR; AIR PIPE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0106-0112
175 CONNECTOR; AIR PIPE
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0201-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> (B) 		1-49123-083-0 01 1 0106-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> (A) 		1-49123-084-0 01 1 0106-
184 HOSE; FLEX,AIR GOV
6WF1 TC-C(1B8) OD=12.7 L=450 		1-09363-631-0 01 1 0106-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0106-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0106-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0201-
202 ADAPTER
(C) 		1-09660-879-0 01 1 0201-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0305
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-
202 ADAPTER
FULLER M/T<X9B> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0106-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0106-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0106-
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-49122-366-0 01 1 0106-0112
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-N(71L) 		1-49122-366-0 01 1 0201-0201
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-N(71L) 		1-49123-421-0 01 1 0202-0202
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-N(71L) 		1-49123-506-0 01 1 0203-
262 PIPE; AIR,UNION TO FLEX
6WF1 TC-C(1B8) 		1-49123-026-0 01 1 0106-0112
262 PIPE; AIR,UNION TO FLEX
6WF1 TC-C(1B8) 		1-49123-422-0 01 1 0201-0202
262 PIPE; AIR,UNION TO FLEX
6WF1 TC-C(1B8) 		1-49123-507-0 01 1 0203-
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0106-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0106-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0106-
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) 		1-49122-364-0 01 1 0106-0202
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) L=1314 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-49122-365-0 01 1 0106-0112
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L) 		1-49122-365-0 01 1 0201-0202
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L) L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0106-
304 BRACKET; UNION
(C) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0106-0112
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0201-
345 UNION; AIR PIPE
(B) 		1-09654-280-1 01 1 0106-0112
345 UNION; AIR PIPE
(C) M12 2WAY 		1-09654-257-1 01 1 0201-0406
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0106-0406
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0407-
357 PIPE; AIR,UNION TO UNION
EXC. AIR DRYER<PS7> 		1-49119-840-0 01 1 0106-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0106-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-
çizim 23815
421 304 1 179 180 72 163 221 35
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> 		1-09363-856-0 01 1 0106-0112
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> 		1-09363-856-0 01 1 0201-
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) ZF M/T<X9E> L=1050 		1-09363-789-0 01 1 0106-
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0106-
35 NUT; BRKT
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0106-0112
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0201-
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09654-318-1 01 1 0106-0112
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L) AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09654-318-1 01 1 0201-
163 BRACKET; AIR PIPE
AIR DRYER<PS7> 		1-34656-009-0 01 1 0106-0112
163 BRACKET; AIR PIPE 1-34656-009-0 01 1 0201-
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M22 		9-09111-422-0 01 1 0106-0112
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L) M22 		9-09111-422-0 01 1 0201-
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=22.5 		9-09150-522-0 01 1 0106-0112
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-N(71L) ID=22.5 		9-09150-522-0 01 1 0201-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
304 BRACKET; UNION
(C) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0106-0112
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0201-
421 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0106-0112
421 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0201-

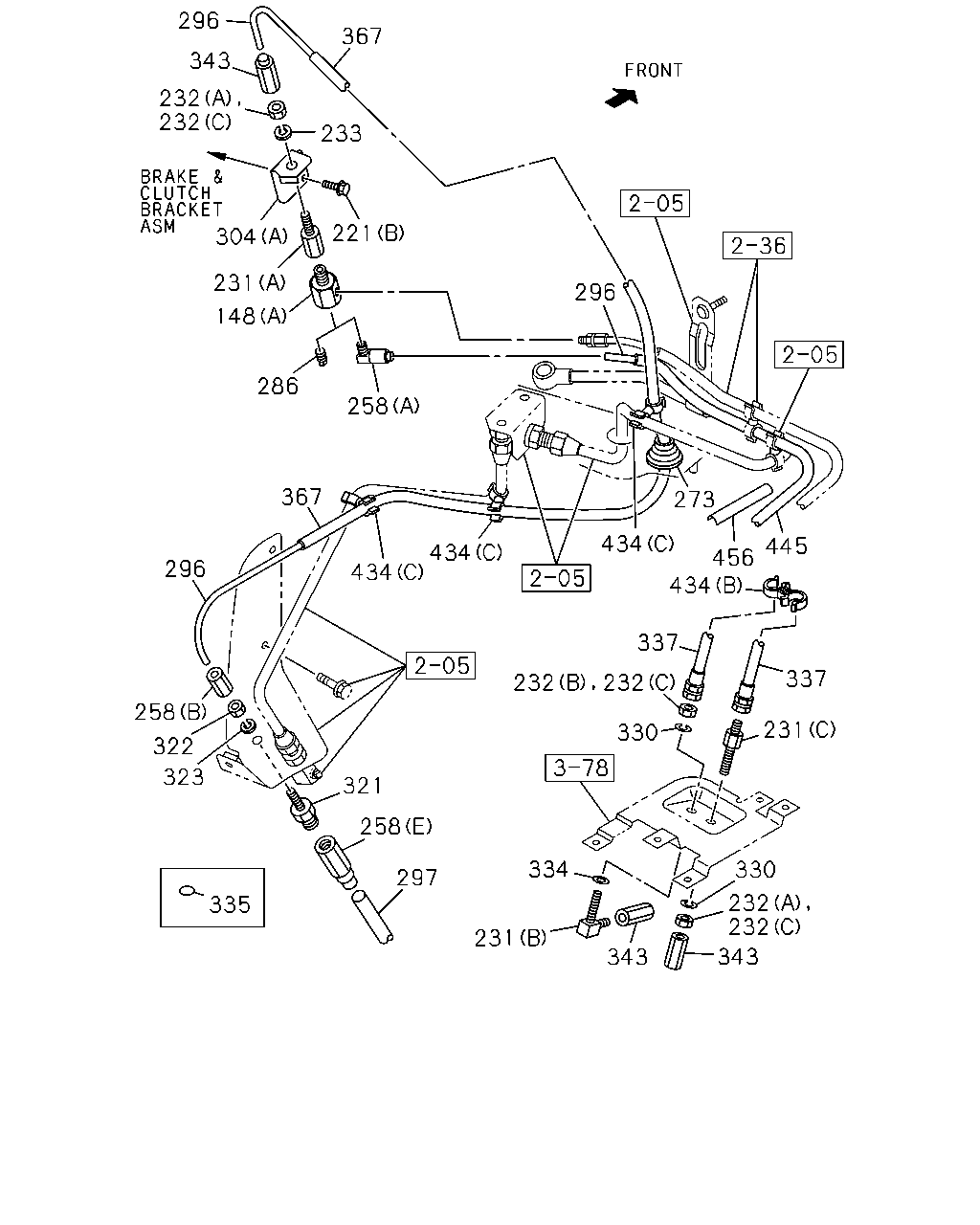

çizim 24205
296 367 343 232 232 233 304 221 231 296 148 286 258 367 273 434 445 434 434 456 434 296 337 337 258 231 330 322 323 321 258 334 330 297 232 232 335 231 343 343 232 232
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0106-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0106-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0106-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0106-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0106-
232 NUT; UNION,AIR PIPE
(C) M10 H=8 		1-09400-029-0 02 1 0106-0312
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0401-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0106-0312
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0106-0312
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0401-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
273 GROMMET
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0106-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0106-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0106-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
304 BRACKET; UNION
(C) 		1-47476-556-0 02 1 0106-
304 BRACKET; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-71117-210-0 01 1 0106-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0106-0112
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (B) 		1-47477-757-1 01 1 0201-
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0106-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0106-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0106-0301
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0106-0301
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0106-0301
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0106-0301
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0106-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0106-
335 SEAL; UNION
FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0106-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0106-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0106-
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0106-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0106-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300 		1-09707-001-1 01 1 0106-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0106-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0201-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0201-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 02 1 0106-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800 		1-83129-031-1 01 1 0106-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 0106-

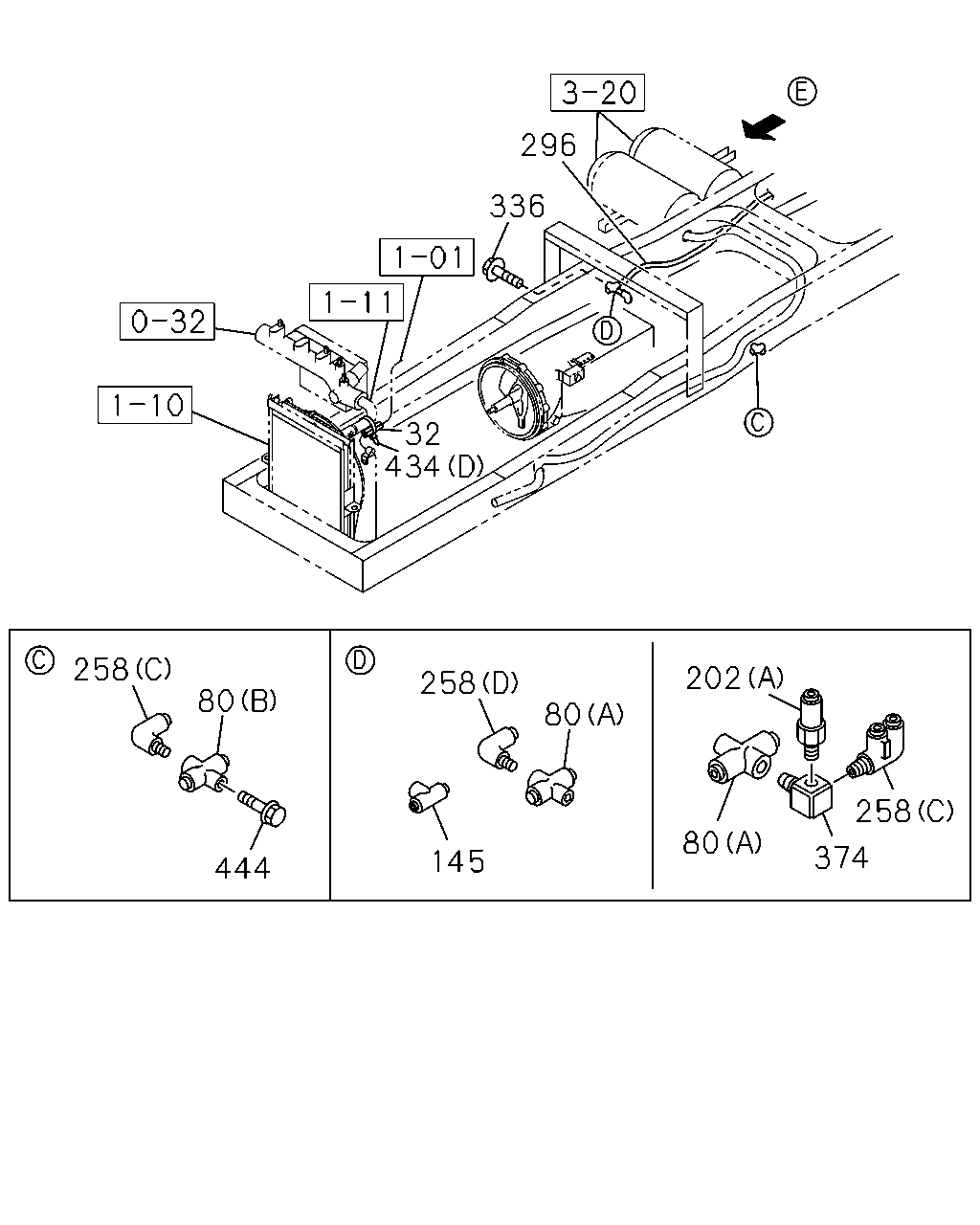

çizim 75814
296 336 32 434 258 202 258 80 80 258 80 374 145 444
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 OD=10 L=70 		1-09376-512-0 01 1 0106-0106
80 UNION; 3 WAY
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-
80 UNION; 3 WAY
ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0106-
145 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> 		1-09661-133-0 01 1 0106-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0201-
202 ADAPTER
(C) 		1-09660-879-0 01 1 0201-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0305
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-
202 ADAPTER
FULLER M/T<X9B> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-
374 CONNECTOR
M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0106-0404
374 CONNECTOR
M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300 		1-09707-001-1 01 1 0106-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0106-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0201-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0201-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 02 1 0106-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0106-

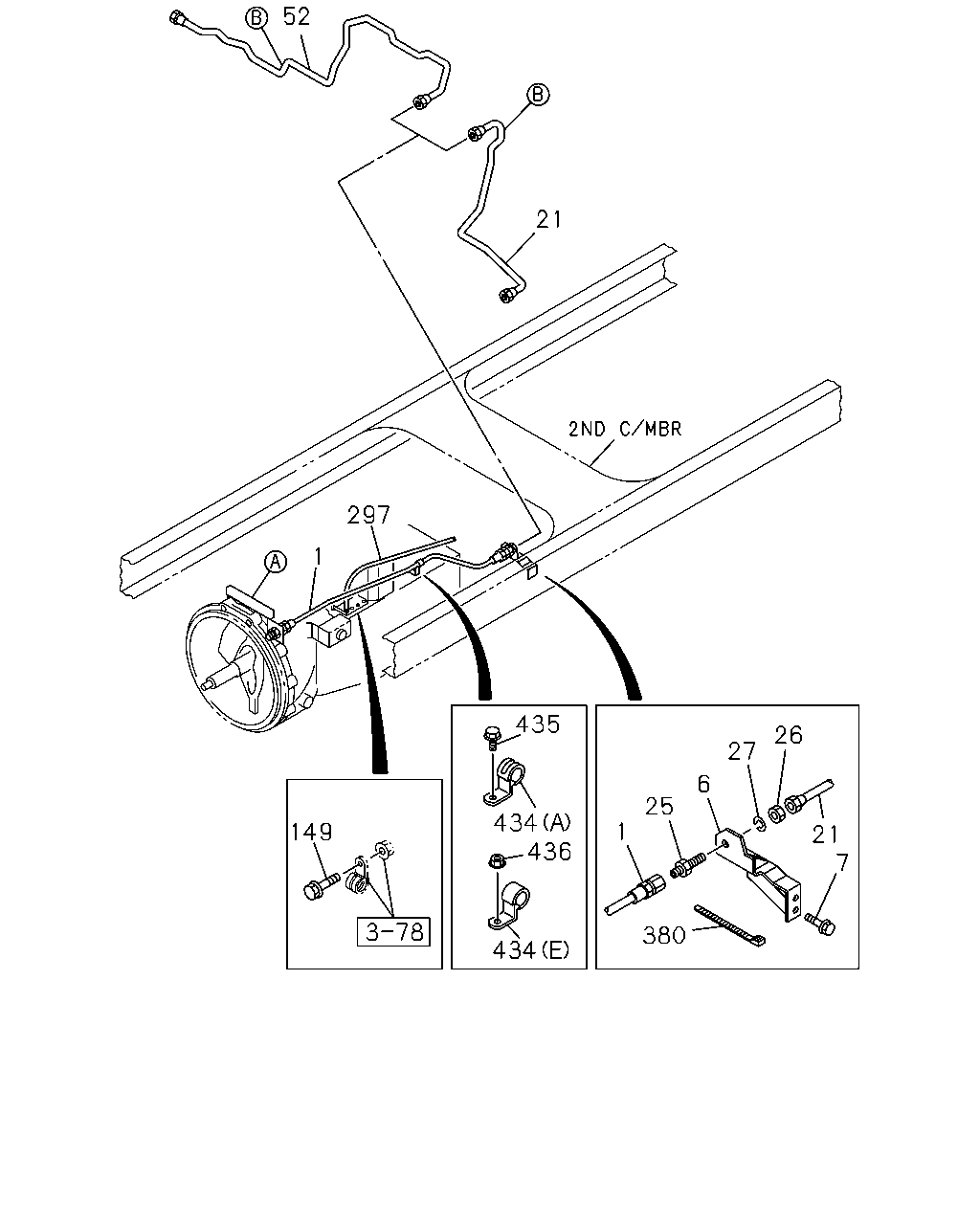

çizim 75927
52 21 297 1 435 26 27 6 25 434 436 1 149 21 7 380 434
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> 		1-09363-856-0 01 1 0106-0112
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> 		1-09363-856-0 01 1 0201-
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) ZF M/T<X9E> L=1050 		1-09363-789-0 01 1 0106-
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0106-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0106-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0106-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49122-866-0 01 1 0106-0110
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49124-042-0 01 1 0303-
25 VALVE; CHECK
AIR DRYER<PS7> 		1-48320-042-0 01 1 0106-0112
25 VALVE; CHECK 1-48320-042-1 01 1 0201-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
AIR DRYER<PS7> M20 		9-99111-420-0 01 1 0106-0112
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 0201-
27 WASHER; LK,CHECK VLV
AIR DRYER<PS7> ID=20.2 		9-09150-520-0 01 1 0106-0112
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 0201-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49122-974-0 01 1 0201-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0106-
380 BAND; FLEX HOSE
ZF M/T<X9E> L=175 		1-09707-178-0 01 1 0305-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0106-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300 		1-09707-001-1 01 1 0106-0504
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350 		1-09707-183-0 01 1 0505-
434 CLIP
FULLER M/T<X9B> (A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0106-
434 CLIP
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0106-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0106-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 01 1 0201-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-0112
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0201-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (E) D=24 L=21 		1-09700-380-0 02 1 0106-
435 BOLT; CLIP
FULLER M/T<X9B> M8X20 FLANGE 		0-28680-820-0 02 1 0106-
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0106-0107
436 NUT; CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0106-0107
436 NUT; CLIP
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-

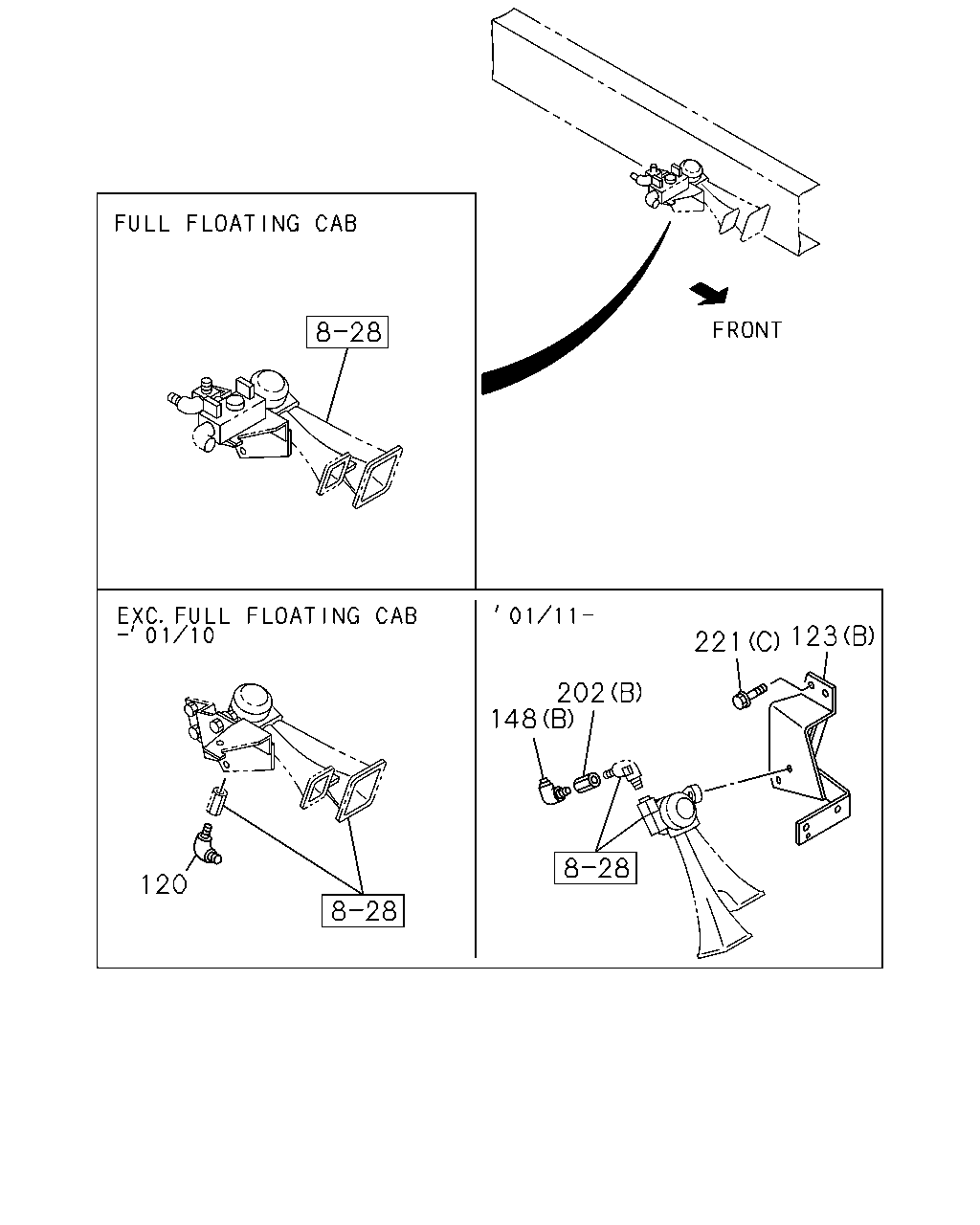

çizim 81582
123 221 202 148 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0106-0110
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0106-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0201-
202 ADAPTER
(C) 		1-09660-879-0 01 1 0201-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-0305
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0306-
202 ADAPTER
FULLER M/T<X9B> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
221 BOLT; BRKT
AIR DRYER<PS7> (A) M8X35 FLANGE 		0-28680-835-0 01 1 0106-0112
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0201-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
