◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#111208) — 116 parça

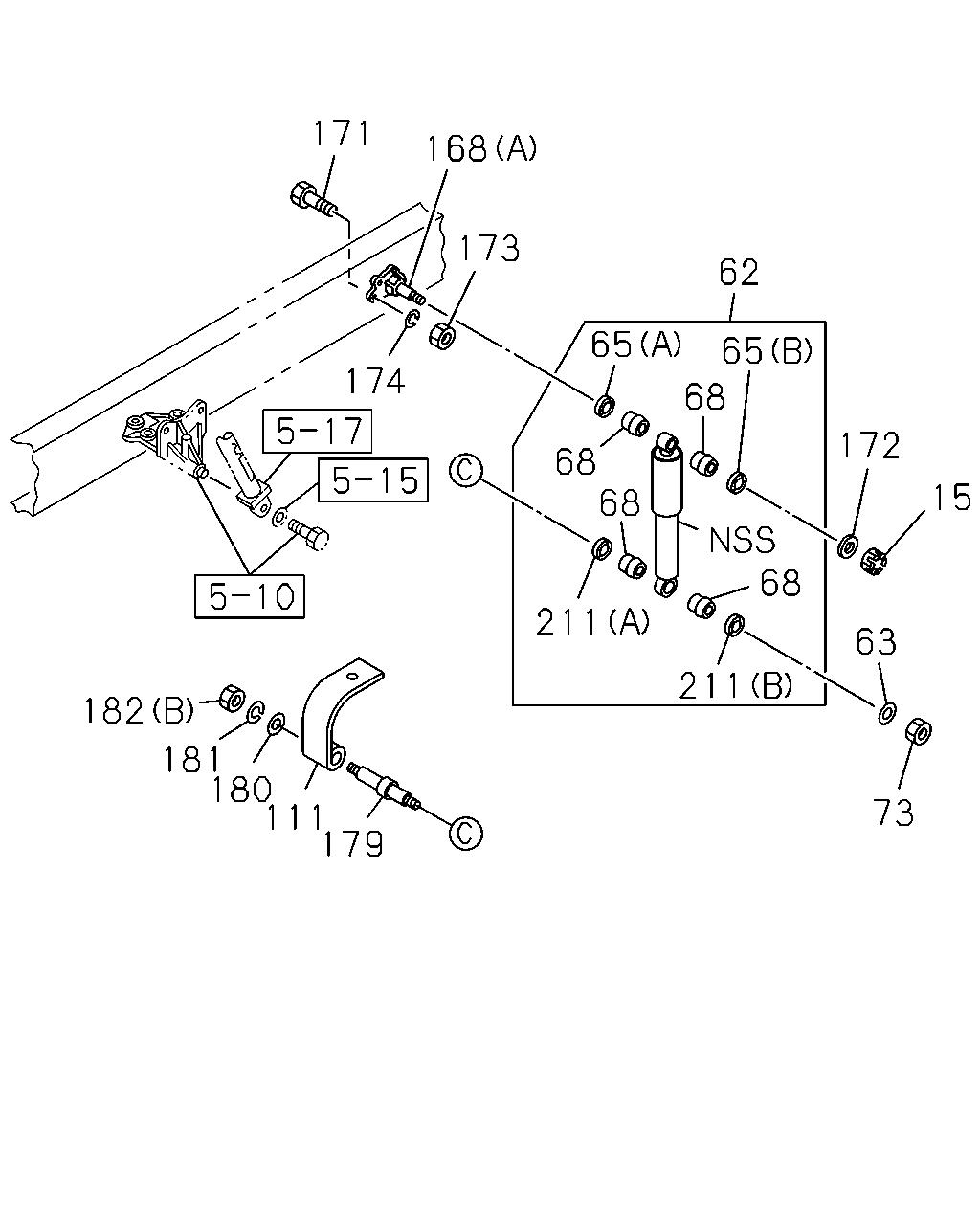

çizim 321470
171 173 168 174 182 180 111 179 211 211 73 181 65 65 62 172 68 15 68 68 68 63
BalonParca AdiParca NoAdetTipApplied Date A B
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1212- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98212-528-0 02 1 1212- ●
62 ABSORBER ASM; SHOCK,FRT 8-98169-268-0 02 1 1212- ●
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1212- ● ●
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1212- ● ●
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1212- ● ●
68 BUSHING; S/ABS 9-51631-026-0 16 1 1212- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 1212- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-627-0 02 1 1212- ● ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1212- ● ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1212- ● ●
171 BOLT; S/ABS BRKT
M14X45 		0-20951-445-0 08 1 1212- ● ●
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1212- ● ●
173 NUT; S/ABS
M14 		0-91110-514-0 08 1 1212- ● ●
174 WASHER; LK,S/ABS
ID=15 		8-98010-627-1 08 1 1212- ● ●
179 PIN 1-51682-094-1 02 1 1212- ● ●
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1212- ● ●
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1212- ● ●
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1212- ● ●
181 WASHER; LK,PIN
ID=24.5 		8-98177-166-0 02 1 1212- ● ●
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		8-98177-166-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1212- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1212- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1212- ● ●
çizim 321471
140 137 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1212- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1212- ● ●

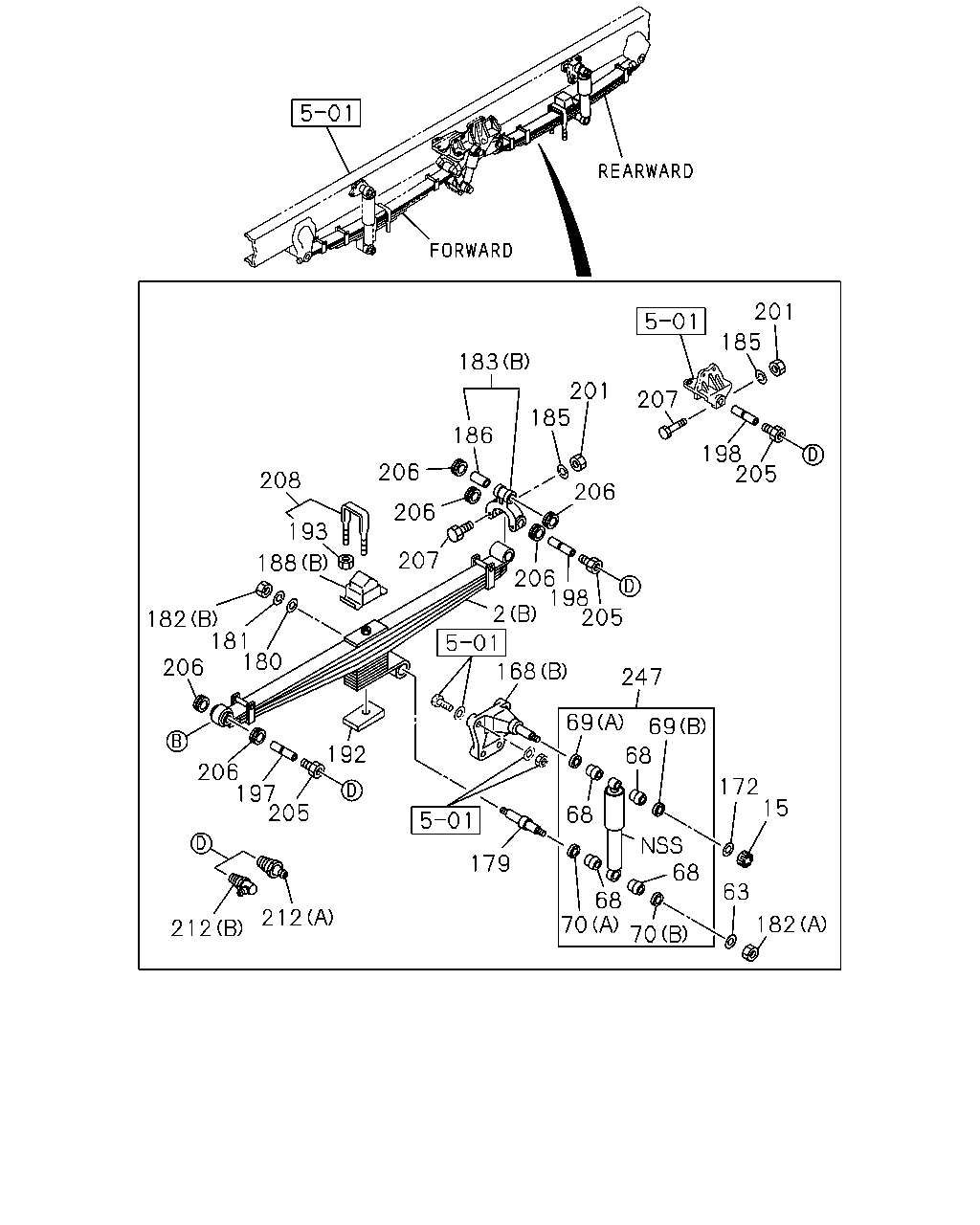

çizim 322337
208 193 188 182 181 180 206 206 197 205 192 212 212 206 206 207 183 186 185 201 206 206 198 205 2 168 247 179 69 69 68 68 68 68 70 70 172 15 63 182 207 198 205 185 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98212-516-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98212-517-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98225-732-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98225-734-0 02 1 1212- ●
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1212- ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 1212- ● ●
68 BUSHING; S/ABS 9-51631-026-0 16 1 1212- ● ●
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1212- ● ●
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1212- ● ●
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1212- ● ●
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1212- ● ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1212- ● ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1212- ● ●
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1212- ● ●
179 PIN 1-51682-094-1 02 1 1212- ● ●
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1212- ● ●
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 1212- ● ●
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1212- ● ●
181 WASHER; LK,PIN
ID=24.5 		8-98177-166-0 02 1 1212- ● ●
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		8-98177-166-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 1212- ● ●
182 NUT; S/ABS LWR
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1212- ● ●
183 SHACKLE; FRT SUSP
(A) 		8-98229-106-0 02 1 1212- ● ●
183 SHACKLE; FRT SUSP
(B) 		1-51162-029-5 02 1 1212- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1212- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1212- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-081-1 02 1 1212- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-096-2 02 1 1212- ● ●
192 PIECE; DIST 1-51177-281-1 02 1 1212-1308 ● ●
192 PIECE; DIST 8-98200-748-0 02 1 1309- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1212- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1212- ● ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 06 1 1212- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 1212- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 14 1 1212- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1212- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1212- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 08 1 1212- ●
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-493-0 04 1 1212- ●
208 U-BOLT SET; FRT SPRING
FORWARD L=250 		1-87870-494-0 04 1 1212- ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1212- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 10 1 1212- ● ●
247 ABSORBER ASM; SHOCK,RWD FRT 8-98169-268-0 02 1 1212- ●
247 ABSORBER ASM; SHOCK,RWD FRT 8-98162-765-0 02 1 1212- ●

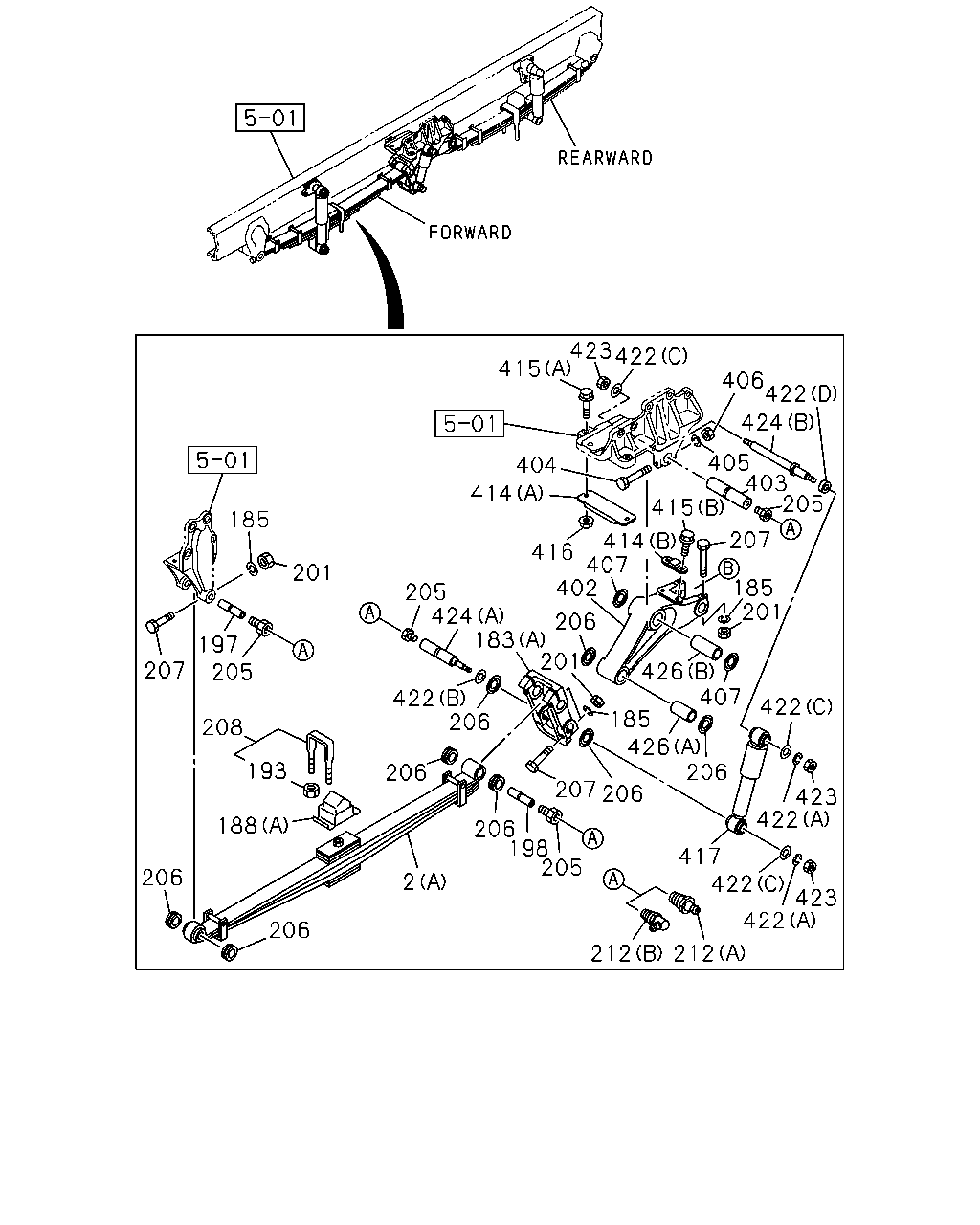

çizim 322351
185 201 207 205 208 193 188 206 206 206 2 422 424 205 414 404 415 423 422 406 422 424 405 414 207 415 205 403 416 407 402 206 185 201 426 407 422 423 422 206 426 185 201 183 206 207 206 206 198 205 417 422 422 423 212 212 197
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98212-516-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98212-517-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 3-LEAF 		8-98225-732-0 02 1 1212- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) 4-LEAF 		8-98225-734-0 02 1 1212- ●
183 SHACKLE; FRT SUSP
(A) 		8-98229-106-0 02 1 1212- ● ●
183 SHACKLE; FRT SUSP
(B) 		1-51162-029-5 02 1 1212- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1212- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-081-1 02 1 1212- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-096-2 02 1 1212- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1212- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1212- ● ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 06 1 1212- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 1212- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 14 1 1212- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1212- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1212- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 08 1 1212- ●
208 U-BOLT SET; FRT SPRING
REARWARD L=230 		1-87870-493-0 04 1 1212- ●
208 U-BOLT SET; FRT SPRING
FORWARD L=250 		1-87870-494-0 04 1 1212- ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1212- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 10 1 1212- ● ●
402 LEVER; EQUALIZER 8-98212-415-1 02 1 1212- ● ●
403 PIN; LEVER 8-98212-492-0 02 1 1212- ● ●
404 BOLT; PIN LOCK
M14X80 		0-10856-480-0 04 1 1212- ● ●
405 NUT; PIN LOCK
M14 		0-91110-514-0 04 1 1212- ● ●
406 WASHER; LK,PIN LOCK
ID=14.2 		0-91510-514-0 04 1 1212- ● ●
407 WASHER; LK,LEVER 8-98212-416-0 04 1 1212- ● ●
414 RUBBER; BUFFER
(A) 		1-53366-162-0 02 1 1212- ● ●
414 RUBBER; BUFFER
(B) 		1-53366-163-0 02 1 1212- ● ●
415 BOLT; RUBBER
(B) M10X16 FLANGE 		0-28051-016-0 04 1 1212- ● ●
415 BOLT; RUBBER
(A) M10X40 FLANGE 		0-28651-040-0 04 1 1212- ● ●
416 NUT; RUBBER
M10 FLANGE 		0-91180-210-0 04 1 1212- ● ●
417 ABSORBER; SHOCK,LINK ARM 8-98212-491-0 02 1 1212- ● ●
422 WASHER; S/ABS
(A) ID=12.2 		0-91510-812-0 04 1 1212- ● ●
422 WASHER; S/ABS
(B) ID=17 		0-91614-516-0 02 1 1212- ● ●
422 WASHER; S/ABS
(C) ID=12.5 		1-09503-171-0 05 1 1212- ● ●
422 WASHER; S/ABS
(D) ID=17 		8-98213-709-0 02 1 1212- ● ●
423 NUT; S/ABS
M12 		0-91110-512-0 05 1 1212- ● ●
424 PIN; LWR
(A) 		1-51161-053-0 02 1 1212- ● ●
424 PIN; LWR
(B) 		8-98212-417-1 01 1 1212- ● ●
424 PIN; LWR
(B) 		8-98212-418-1 01 1 1212- ● ●
426 BUSHING; LEVER
(A) OD=38 		8-98081-829-0 02 1 1212- ● ●
426 BUSHING; LEVER
(B) 		8-98190-109-0 02 1 1212- ● ●
