4-50 — FRONT SUSPENSION (#111206) — 39 parça
çizim 321455
138 377 140 377 137 377 140 377 138 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-98128-356-1 02 1 1212-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 06 1 1212-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 06 1 1212-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1212-

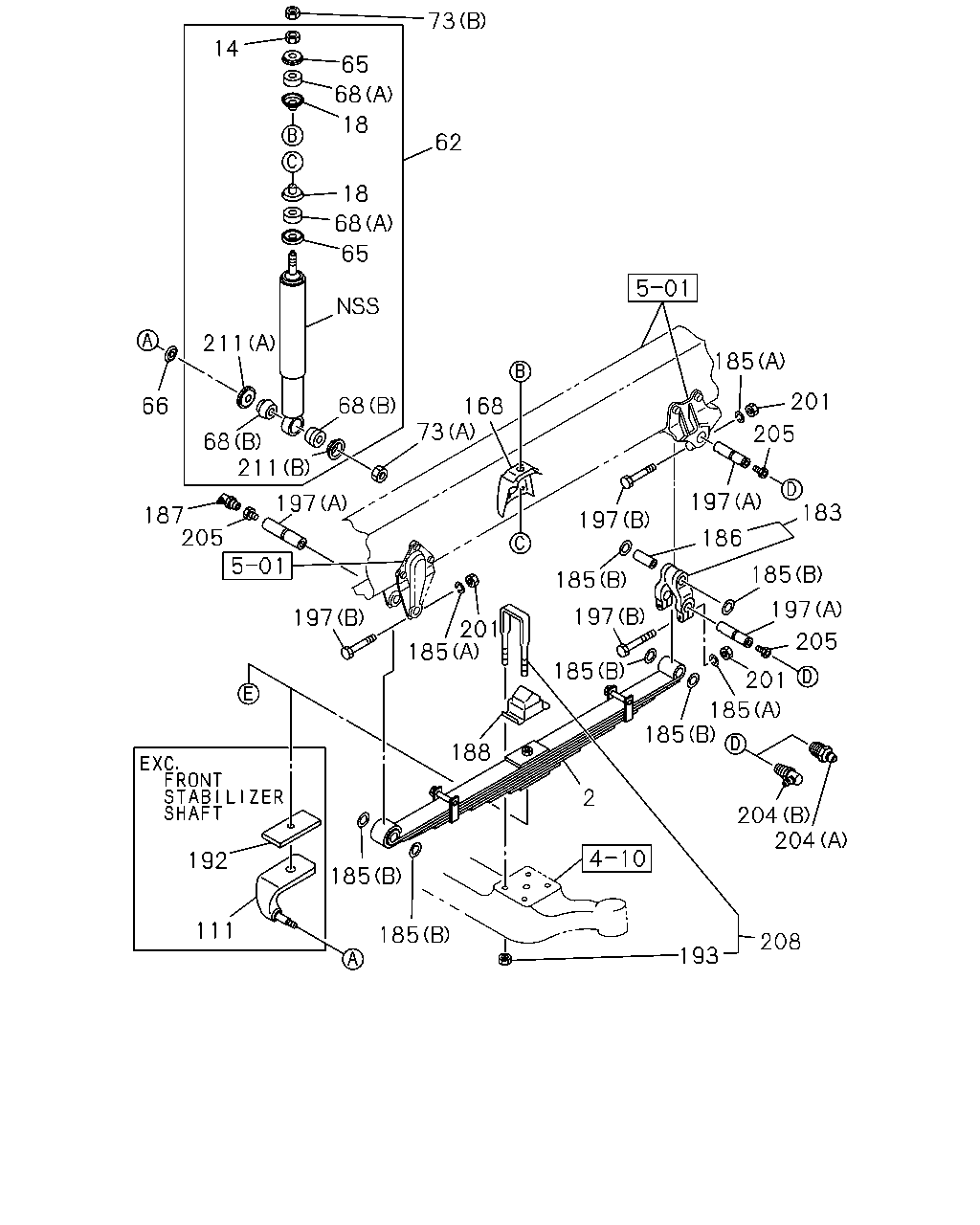

çizim 322355
14 73 65 68 18 62 18 68 65 211 66 187 68 211 68 197 73 168 185 201 205 183 197 186 185 197 205 201 185 204 204 208 193 2 185 185 197 185 197 201 185 188 185 185 111 192 197 205
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98029-096-0 02 1 1212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 		8-98029-096-0 02 1 1212-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98010-512-0 02 1 1212-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1212-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 1212-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98029-372-0 02 1 1212-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 1212-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 1212-
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 1212-
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1212-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1212-
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 1212-
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1212-
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1212-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1212-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1212-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1212-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1212-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1212-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1212-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-125-1 02 1 1212-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-51172-096-2 02 1 1212-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1212-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1212-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1212-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1212-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1212-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1212-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1212-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1212-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1212-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1212-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1212-
