Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#111202) — 373 parça

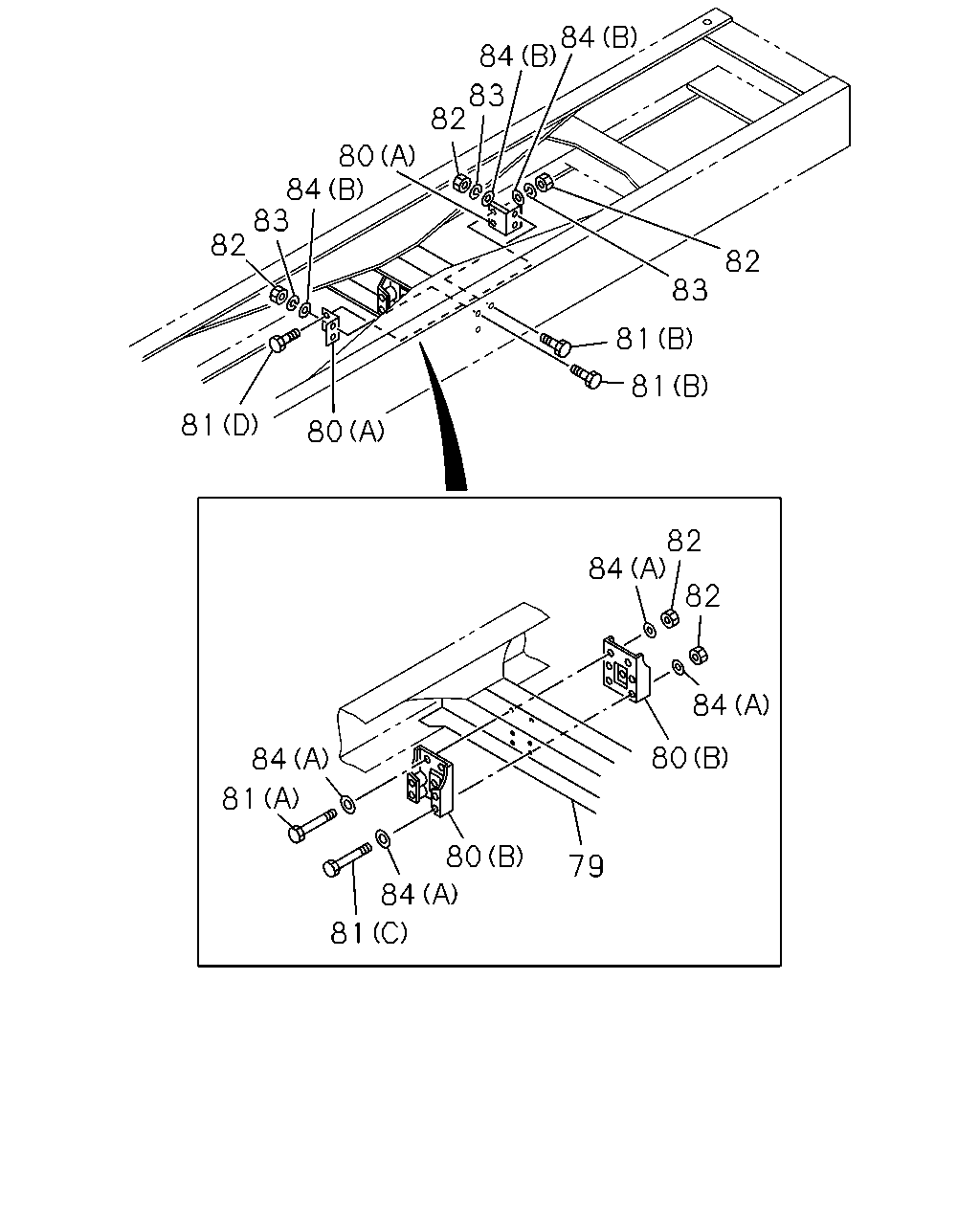

84 84 82 83 80 84 83 82 81 80 81 83 82 81 84 82 84 80 79 80 84 81 81 84 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
79	MEMBER; CROSS,TRUNNION ASM FGH(FG****)	8-98191-628-1	01	1	1212-1511	●	●
79	MEMBER; CROSS,TRUNNION ASM FGH(FG****)	8-98191-628-1	01	1	1512-	●	●	●
80	BRACKET; C/MBR FGH(FG****) (A)	1-53167-610-0	04	1	1212-1511	●	●
80	BRACKET; C/MBR FGH(FG****) (A)	1-53167-610-0	04	1	1512-	●	●	●
80	BRACKET; C/MBR FGH(FG****) (B)	1-53363-031-2	02	1	1212-1511	●	●
80	BRACKET; C/MBR FGH(FG****) (B)	1-53363-031-2	02	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (B) M14X40	0-20951-440-0	08	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (B) M14X40	0-20951-440-0	08	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (A) M14X50	0-20951-450-0	07	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (A) M14X50	0-20951-450-0	07	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (D) M14X55	0-20951-455-0	04	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (D) M14X55	0-20951-455-0	04	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (C) M14X205	1-09000-147-0	02	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (C) M14X205	1-09000-147-0	02	1	1512-	●	●	●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1212-1302	●	●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1303-1511	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	09	1	1303-1511				●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1512-	●	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	09	1	1512-				●
82	NUT; BRKT FGH(FG****) M14	0-91110-514-0	12	1	1212-1511	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1512-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1212-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1303-1511	●	●		●
82	NUT; BRKT FGH(FG****) M14	0-91110-514-0	12	1	1512-	●	●	●
83	WASHER; LK,BRKT FGH(FG****) ID=14.2	0-91510-614-0	12	1	1212-1511	●	●
83	WASHER; LK,BRKT FGH(FG****) ID=14.2	0-91510-614-0	12	1	1512-	●	●	●
84	WASHER; PL,BRKT FGH(FG****) (B) ID=15 OD=26	0-91614-514-0	16	1	1212-1511	●	●
84	WASHER; PL,BRKT FGH(FG****) (B) ID=15 OD=26	0-91614-514-0	16	1	1512-	●	●	●
84	WASHER; PL,BRKT FGH(FG****) (A) ID=15	8-98010-627-1	08	1	1212-1511	●	●
84	WASHER; PL,BRKT FGH(FG****) (A) ID=15	8-98010-627-1	08	1	1512-	●	●	●

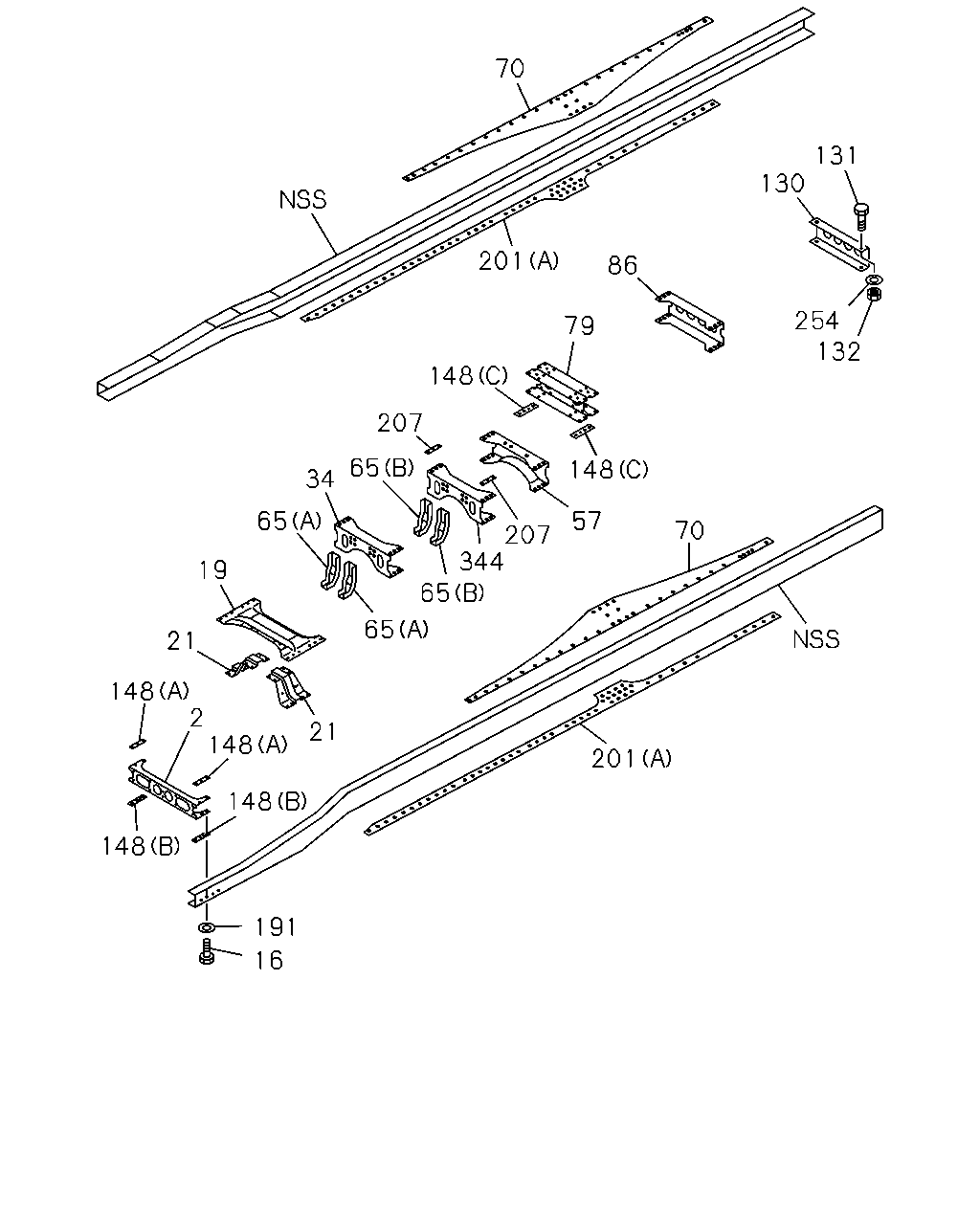

201 86 130 131 254 70 132 148 57 207 344 65 65 21 201 16 148 191 148 2 148 148 21 19 65 34 65 207 148 79 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1212-1302	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1303-1511	●	●		●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1512-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1212-1302	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1303-1511	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1512-	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1212-1302	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1303-1511	●	●		●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1512-	●	●	●	●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1212-1302	●	●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1303-1511	●	●		●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1512-	●	●	●	●
34	MEMBER; CROSS,3RD TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98238-306-0	01	1	1512-			●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1212-1302	●	●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1303-1511	●	●		●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1512-	●	●		●
34	MEMBER; CROSS,3RD A/T ALLISON 4430(Y5V)	8-98191-627-0	01	1	1512-			●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1212-1302	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1303-1511	●	●		●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1512-	●	●	●	●
65	BRACKET; CENTER BRG TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-97614-126-0	02	1	1512-			●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1212-1302	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-391-0	02	1	1212-1302	●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1303-1311	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-391-0	02	1	1303-1311	●
65	BRACKET; CENTER BRG (A)	8-98103-391-0	02	1	1303-1311				●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1312-	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98103-391-0	02	1	1312-	●
65	BRACKET; CENTER BRG (A)	8-98103-391-0	02	1	1312-				●
65	BRACKET; CENTER BRG FGH(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-392-0	02	1	1212-	●
65	BRACKET; CENTER BRG FGH(FG****) (A)	8-98103-392-0	02	1	1212-		●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97611-328-0	02	1	1212-1306	●
65	BRACKET; CENTER BRG FGH(FG****) (B)	8-98103-393-0	02	1	1212-		●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1212-1302		●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1303-1306		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1303-1306				●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97623-448-0	02	1	1307-1511	●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1307-1511		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1307-1511				●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97623-448-0	02	1	1512-	●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1512-		●	●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1512-				●
65	BRACKET; CENTER BRG FGJ(FG****) (B)	8-98120-236-0	02	1	1212-		●
70	GUSSET; TRUNNION,UPR FGH(FG****)	8-98153-300-0	02	1	1212-1511	●
70	GUSSET; TRUNNION,UPR FGH(FG****)	8-98153-300-0	02	1	1512-	●		●
70	GUSSET; TRUNNION,UPR FGH(FG****)	8-98191-623-0	02	1	1212-		●
79	MEMBER; CROSS,TRUNNION ASM FGH(FG****)	8-98191-628-1	01	1	1212-1511	●	●
79	MEMBER; CROSS,TRUNNION ASM FGH(FG****)	8-98191-628-1	01	1	1512-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FGH(FG****)	8-98105-054-1	01	1	1212-1511	●	●
86	MEMBER; CROSS,RR SUSP RR FGH(FG****)	8-98105-054-1	01	1	1512-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1212-1302	●	●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1303-1511	●	●
86	MEMBER; CROSS,RR SUSP RR	8-97623-455-1	01	1	1303-1511				●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1512-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-97623-455-1	01	1	1512-				●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1212-1302	●	●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1303-1511	●	●		●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1512-	●	●	●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1212-1302	●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1303-1511	●	●		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1512-	●	●	●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1212-1302	●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1303-1511	●	●		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1512-	●	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1212-1302	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1303-1511	●	●		●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1512-	●	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1212-1302	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1303-1511	●	●		●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1512-	●	●	●	●
148	SPACER; C/MBR FGH(FG****) (C)	8-97623-201-0	02	1	1212-1511	●	●
148	SPACER; C/MBR FGH(FG****) (C)	8-97623-201-0	02	1	1512-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1212-1302	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-1511	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1512-	●	●	●	●
201	GUSSET; C/MBR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98328-558-0	02	1	1512-			●
201	GUSSET; C/MBR FGH(FG****) (A)	8-98153-301-0	02	1	1212-	●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1212-1302	●	●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1303-1511	●	●
201	GUSSET; C/MBR (C)	1-53167-544-1	02	1	1303-1511				●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1512-	●	●	●
201	GUSSET; C/MBR (C)	1-53167-544-1	02	1	1512-				●
201	GUSSET; C/MBR FGH(FG****) (A)	8-98191-727-0	02	1	1212-		●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1212-1302	●	●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1303-1511	●	●
201	GUSSET; C/MBR (B)	8-98191-632-0	02	1	1303-1511				●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1512-	●	●	●
201	GUSSET; C/MBR (B)	8-98191-632-0	02	1	1512-				●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1212-1302		●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1303-		●		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1212-1302	●	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1303-1511	●	●		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1512-	●	●	●	●
344	MEMBER; CROSS,4TH	8-98105-393-0	01	1	1212-1302		●
344	MEMBER; CROSS,4TH	8-98105-393-0	01	1	1303-		●		●

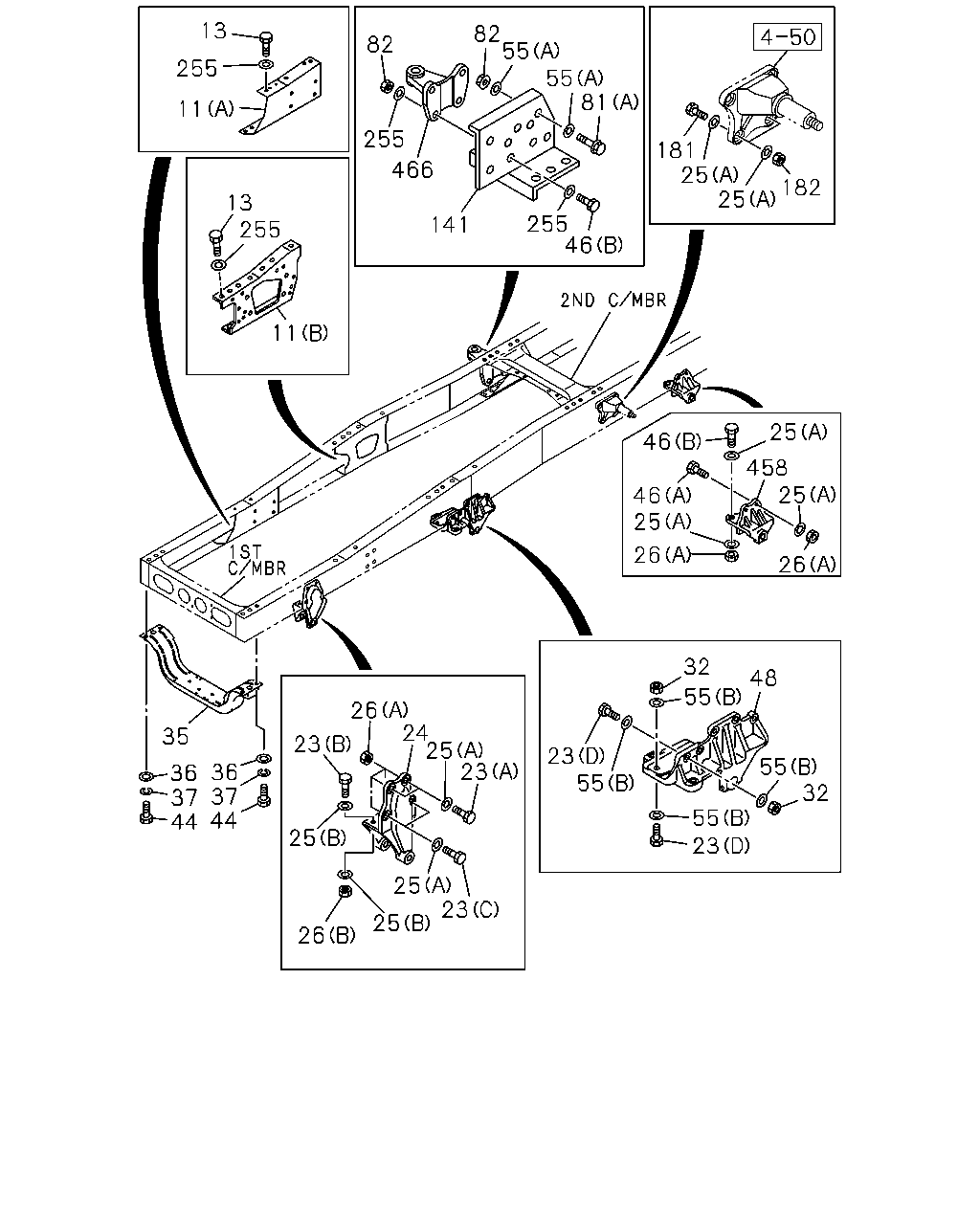

13 255 11 13 255 11 35 36 36 37 37 44 44 23 26 25 26 24 25 23 25 23 25 23 55 55 55 23 32 48 32 55 46 46 25 25 26 25 26 458 82 255 82 466 141 55 81 55 181 25 25 182 255 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG A/T ALLISON 4430(Y5V) (B)	8-98233-358-0	01	1	1212-1511	●
11	BRACKET; ENG MTG FGH(FG****) (B)	8-98233-358-0	01	1	1212-1511		●
11	BRACKET; ENG MTG A/T ALLISON 4430(Y5V) (B)	8-98233-358-0	01	1	1512-	●		●
11	BRACKET; ENG MTG FGH(FG****) (B)	8-98233-358-0	01	1	1512-		●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98055-432-1	01	1	1212-1302	●
11	BRACKET; ENG MTG FGJ(FG****) (B)	8-98055-432-1	01	1	1212-1302		●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98055-432-1	01	1	1303-1311	●
11	BRACKET; ENG MTG FGJ(FG****) (B)	8-98055-432-1	01	1	1303-1311		●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1303-1311				●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98055-432-1	01	1	1312-1511	●
11	BRACKET; ENG MTG FGJ(FG****) (B)	8-98055-432-1	01	1	1312-1511		●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1312-1511				●
11	BRACKET; ENG MTG TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98055-432-1	01	1	1512-	●		●
11	BRACKET; ENG MTG FGJ(FG****) (B)	8-98055-432-1	01	1	1512-		●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1512-				●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1212-1302	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1303-1511	●	●		●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1512-	●	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1212-1302	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1303-1511	●	●		●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1512-	●	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1212-1302	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1303-1511	●	●		●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1512-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1212-1302	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1303-1511	●	●		●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1512-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1212-1302	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1303-1511	●	●		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1512-	●	●	●	●
13	BOLT; BRKT,ENG MTG M14X50	0-20951-450-0	04	1	1212-1302	●	●
13	BOLT; BRKT,ENG MTG M14X50	0-20951-450-0	04	1	1303-1511	●	●		●
13	BOLT; BRKT,ENG MTG M14X50	0-20951-450-0	04	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1212-1302	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1303-1511	●	●		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1212-1302	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1303-1511	●	●		●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (D) M16X60	0-20951-660-0	16	1	1212-1302	●	●
23	BOLT; BRKT,SPR (D) M16X60	0-20951-660-0	16	1	1303-1511	●	●		●
23	BOLT; BRKT,SPR (D) M16X60	0-20951-660-0	16	1	1512-	●	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1212-1302	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1303-1511	●	●		●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1512-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1212-1302	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1303-1511	●	●		●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1512-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1212-1302	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1303-1511	●	●		●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1512-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	36	1	1212-1302	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	36	1	1303-1511	●	●		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	36	1	1512-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1212-1302	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1303-1511	●	●		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1512-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1212-1302	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1303-1511	●	●		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1512-	●	●	●	●
32	NUT; BRKT FIX M16	0-91110-516-0	16	1	1212-1302	●	●
32	NUT; BRKT FIX M16	0-91110-516-0	16	1	1303-1511	●	●		●
32	NUT; BRKT FIX M16	0-91110-516-0	16	1	1512-	●	●	●	●
35	MEMBER; UNDER A/T ALLISON 4430(Y5V)	1-53174-301-3	01	1	1212-1511	●	●
35	MEMBER; UNDER A/T ALLISON 4430(Y5V)	1-53174-301-3	01	1	1512-	●	●	●
35	MEMBER; UNDER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-53174-263-2	01	1	1212-1302	●	●
35	MEMBER; UNDER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-53174-263-2	01	1	1303-1311	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1303-1311				●
35	MEMBER; UNDER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y)	1-53174-263-2	01	1	1312-1511	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1312-1511				●
35	MEMBER; UNDER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y)	1-53174-263-2	01	1	1512-	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1512-				●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1212-1302	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1303-1511	●	●		●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1512-	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1212-1302	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1303-1511	●	●		●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1512-	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1212-1302	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1303-1511	●	●		●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1512-	●	●	●	●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	04	1	1212-1302	●	●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	04	1	1303-1511	●	●		●
46	BOLT; BRKT FIX (A) M14X50	0-20951-450-0	04	1	1512-	●	●	●	●
46	BOLT; BRKT FIX (B) M14X60	0-20951-460-0	08	1	1212-1302	●	●
46	BOLT; BRKT FIX (B) M14X60	0-20951-460-0	08	1	1303-1511	●	●		●
46	BOLT; BRKT FIX (B) M14X60	0-20951-460-0	08	1	1512-	●	●	●	●
48	BRACKET; MIDDLE,FRT SPR	8-98212-405-0	01	1	1212-1302	●	●
48	BRACKET; MIDDLE,FRT SPR	8-98212-405-0	01	1	1303-1511	●	●		●
48	BRACKET; MIDDLE,FRT SPR	8-98212-405-0	01	1	1512-	●	●	●	●
48	BRACKET; MIDDLE,FRT SPR	8-98212-406-0	01	1	1212-1302	●	●
48	BRACKET; MIDDLE,FRT SPR	8-98212-406-0	01	1	1303-1511	●	●		●
48	BRACKET; MIDDLE,FRT SPR	8-98212-406-0	01	1	1512-	●	●	●	●
55	WASHER; PL FGH(FG****) (B) ID=16.2	1-09503-316-0	32	1	1212-1511	●	●
55	WASHER; PL FGH(FG****) (B) ID=16.2	1-09503-316-0	32	1	1512-	●	●	●
55	WASHER; PL FGH(FG****) (A) ID=15	8-98010-627-1	10	1	1212-1511	●	●
55	WASHER; PL FGH(FG****) (A) ID=15	8-98010-627-1	10	1	1512-	●	●	●
55	WASHER; PL FGJ(FG****) (B) ID=16.2	1-09503-316-0	48	1	1212-1302	●	●
55	WASHER; PL FGJ(FG****) (B) ID=16.2	1-09503-316-0	48	1	1303-1511	●	●
55	WASHER; PL (B) ID=16.2	1-09503-316-0	48	1	1303-1511				●
55	WASHER; PL FGJ(FG****) (B) ID=16.2	1-09503-316-0	48	1	1512-	●	●	●
55	WASHER; PL (B) ID=16.2	1-09503-316-0	48	1	1512-				●
55	WASHER; PL FGJ(FG****) (A) ID=15	8-98010-627-1	18	1	1212-1302	●	●
55	WASHER; PL FGJ(FG****) (A) ID=15	8-98010-627-1	18	1	1303-1511	●	●
55	WASHER; PL (A) ID=15	8-98010-627-1	18	1	1303-1511				●
55	WASHER; PL FGJ(FG****) (A) ID=15	8-98010-627-1	18	1	1512-	●	●	●
55	WASHER; PL (A) ID=15	8-98010-627-1	18	1	1512-				●
81	BOLT; BRKT FGH(FG****) (B) M14X40	0-20951-440-0	08	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (B) M14X40	0-20951-440-0	08	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (A) M14X50	0-20951-450-0	07	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (A) M14X50	0-20951-450-0	07	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (D) M14X55	0-20951-455-0	04	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (D) M14X55	0-20951-455-0	04	1	1512-	●	●	●
81	BOLT; BRKT FGH(FG****) (C) M14X205	1-09000-147-0	02	1	1212-1511	●	●
81	BOLT; BRKT FGH(FG****) (C) M14X205	1-09000-147-0	02	1	1512-	●	●	●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1212-1302	●	●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1303-1511	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	09	1	1303-1511				●
81	BOLT; BRKT FGJ(FG****) (A) M14X50	0-20951-450-0	09	1	1512-	●	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	09	1	1512-				●
82	NUT; BRKT FGH(FG****) M14	0-91110-514-0	12	1	1212-1511	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1512-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1212-1302	●	●
82	NUT; BRKT M14	0-91110-514-0	13	1	1303-1511	●	●		●
82	NUT; BRKT FGH(FG****) M14	0-91110-514-0	12	1	1512-	●	●	●
141	STIFFENER	8-98152-320-0	01	1	1212-1302	●	●
141	STIFFENER	8-98152-320-0	01	1	1303-1511	●	●		●
141	STIFFENER	8-98152-320-0	01	1	1512-	●	●	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1212-1302	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1303-1511	●	●		●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	1512-	●	●	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1212-1302	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1303-1511	●	●		●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	1512-	●	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	28	1	1212-1302	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	28	1	1303-1511	●	●		●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	28	1	1512-	●	●	●	●
458	BRACKET; LEAF SPRING	1-53352-067-3	02	1	1212-1302	●	●
458	BRACKET; LEAF SPRING	1-53352-067-3	02	1	1303-1511	●	●		●
458	BRACKET; LEAF SPRING	1-53352-067-3	02	1	1512-	●	●	●	●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1212-1302	●	●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1303-1511	●	●		●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	1512-	●	●	●	●

456 456 456 456 456 456 456 456 456 456 207 201 57 201 143 130 131 254 86 132 201 201 207 344 65 65 65 34 65 19 21 2 148 148 148 148 191 16 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1212-1302	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1303-1511	●	●		●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1512-	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1212-1302	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1303-1511	●	●		●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1512-	●	●	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1212-1302	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1303-1511	●	●		●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1512-	●	●	●	●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1212-1302	●	●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1303-1511	●	●		●
21	GUSSET; 2ND CROSS	8-98098-306-0	02	1	1512-	●	●	●	●
34	MEMBER; CROSS,3RD TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98238-306-0	01	1	1512-			●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1212-1302	●	●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1303-1511	●	●		●
34	MEMBER; CROSS,3RD	8-98191-627-0	01	1	1512-	●	●		●
34	MEMBER; CROSS,3RD A/T ALLISON 4430(Y5V)	8-98191-627-0	01	1	1512-			●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1212-1302	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1303-1511	●	●		●
57	MEMBER; CROSS,RR SUSP FRT	8-98100-869-0	01	1	1512-	●	●	●	●
65	BRACKET; CENTER BRG TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-97614-126-0	02	1	1512-			●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1212-1302	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-391-0	02	1	1212-1302	●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1303-1311	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-391-0	02	1	1303-1311	●
65	BRACKET; CENTER BRG (A)	8-98103-391-0	02	1	1303-1311				●
65	BRACKET; CENTER BRG FGH(FG****) A/T ALLISON 4430(Y5V) (A)	8-98103-391-0	02	1	1312-	●
65	BRACKET; CENTER BRG FGJ(FG****) TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98103-391-0	02	1	1312-	●
65	BRACKET; CENTER BRG (A)	8-98103-391-0	02	1	1312-				●
65	BRACKET; CENTER BRG FGH(FG****) TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98103-392-0	02	1	1212-	●
65	BRACKET; CENTER BRG FGH(FG****) (A)	8-98103-392-0	02	1	1212-		●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97611-328-0	02	1	1212-1306	●
65	BRACKET; CENTER BRG FGH(FG****) (B)	8-98103-393-0	02	1	1212-		●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1212-1302		●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1303-1306		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1303-1306				●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97623-448-0	02	1	1307-1511	●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1307-1511		●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1307-1511				●
65	BRACKET; CENTER BRG FGJ(FG****) A/T ALLISON 4430(Y5V) (A)	8-97623-448-0	02	1	1512-	●
65	BRACKET; CENTER BRG FGJ(FG****) (A)	8-97623-448-0	02	1	1512-		●	●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1512-				●
65	BRACKET; CENTER BRG FGJ(FG****) (B)	8-98120-236-0	02	1	1212-		●
86	MEMBER; CROSS,RR SUSP RR FGH(FG****)	8-98105-054-1	01	1	1212-1511	●	●
86	MEMBER; CROSS,RR SUSP RR FGH(FG****)	8-98105-054-1	01	1	1512-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1212-1302	●	●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1303-1511	●	●
86	MEMBER; CROSS,RR SUSP RR	8-97623-455-1	01	1	1303-1511				●
86	MEMBER; CROSS,RR SUSP RR FGJ(FG****)	8-97623-455-1	01	1	1512-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	8-97623-455-1	01	1	1512-				●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1212-1302	●	●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1303-1511	●	●		●
130	MEMBER; CROSS,END	8-98105-203-0	01	1	1512-	●	●	●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1212-1302	●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1303-1511	●	●		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1512-	●	●	●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1212-1302	●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1303-1511	●	●		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1512-	●	●	●	●
143	MEMBER; CROSS,7TH FGJ(FG****)	8-98105-054-0	01	1	1212-1302	●	●
143	MEMBER; CROSS,7TH FGJ(FG****)	8-98105-054-1	01	1	1303-1511	●	●
143	MEMBER; CROSS,7TH	8-98105-054-1	01	1	1303-1511				●
143	MEMBER; CROSS,7TH FGJ(FG****)	8-98105-054-1	01	1	1512-	●	●	●
143	MEMBER; CROSS,7TH	8-98105-054-1	01	1	1512-				●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1212-1302	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1303-1511	●	●		●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1512-	●	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1212-1302	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1303-1511	●	●		●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1512-	●	●	●	●
148	SPACER; C/MBR FGH(FG****) (C)	8-97623-201-0	02	1	1212-1511	●	●
148	SPACER; C/MBR FGH(FG****) (C)	8-97623-201-0	02	1	1512-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1212-1302	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1303-1511	●	●		●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1512-	●	●	●	●
201	GUSSET; C/MBR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98328-558-0	02	1	1512-			●
201	GUSSET; C/MBR FGH(FG****) (A)	8-98153-301-0	02	1	1212-	●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1212-1302	●	●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1303-1511	●	●
201	GUSSET; C/MBR (C)	1-53167-544-1	02	1	1303-1511				●
201	GUSSET; C/MBR FGJ(FG****) (C)	1-53167-544-1	02	1	1512-	●	●	●
201	GUSSET; C/MBR (C)	1-53167-544-1	02	1	1512-				●
201	GUSSET; C/MBR FGH(FG****) (A)	8-98191-727-0	02	1	1212-		●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1212-1302	●	●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1303-1511	●	●
201	GUSSET; C/MBR (B)	8-98191-632-0	02	1	1303-1511				●
201	GUSSET; C/MBR FGJ(FG****) (B)	8-98191-632-0	02	1	1512-	●	●	●
201	GUSSET; C/MBR (B)	8-98191-632-0	02	1	1512-				●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1212-1302		●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1303-		●		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1212-1302	●	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1303-1511	●	●		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1512-	●	●	●	●
344	MEMBER; CROSS,4TH	8-98105-393-0	01	1	1212-1302		●
344	MEMBER; CROSS,4TH	8-98105-393-0	01	1	1303-		●		●
456	PATCH; STOPPER FGJ(FG****) (A)	8-97642-212-0	12	1	1212-1302	●	●
456	PATCH; STOPPER FGJ(FG****) (A)	8-97642-212-0	12	1	1303-1511	●	●
456	PATCH; STOPPER (A)	8-97642-212-0	12	1	1303-1511				●
456	PATCH; STOPPER FGJ(FG****) (A)	8-97642-212-0	12	1	1512-	●	●	●
456	PATCH; STOPPER (A)	8-97642-212-0	12	1	1512-				●
456	PATCH; STOPPER FGJ(FG****) (B)	8-97642-213-0	08	1	1212-1302	●	●
456	PATCH; STOPPER FGJ(FG****) (B)	8-97642-213-0	08	1	1303-1511	●	●
456	PATCH; STOPPER (B)	8-97642-213-0	08	1	1303-1511				●
456	PATCH; STOPPER FGJ(FG****) (B)	8-97642-213-0	08	1	1512-	●	●	●
456	PATCH; STOPPER (B)	8-97642-213-0	08	1	1512-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
