4-80 — ROAD WHEEL (#1112) — 50 parça

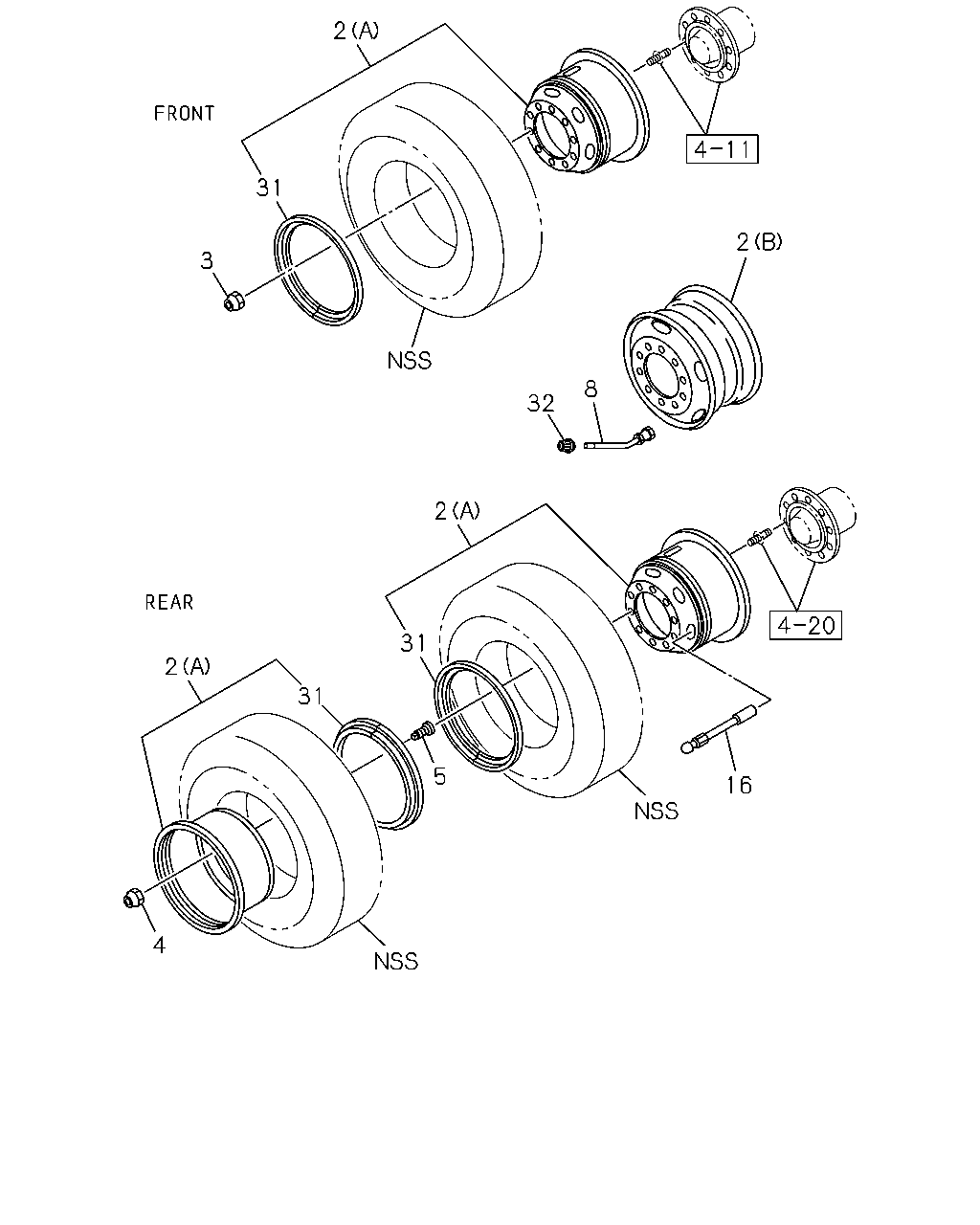

çizim 28805
2 31 2 3 8 32 2 31 2 31 5 16 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-167-1 01 1 9202-9205 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-167-1 06 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-442-0 01 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 01 1 9302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-161-2 01 1 9202-9205 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-161-2 06 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-443-0 01 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 01 1 9302- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-338-2 01 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-464-0 01 1 9401-9406 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 01 1 9407- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-331-0 01 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-467-1 01 1 9401- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-167-1 06 1 9202-9205 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-167-1 01 1 9206-9301 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 06 1 9302- ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-442-0 06 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-161-2 06 1 9202-9205 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-161-2 01 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 06 1 9302- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-42350-443-0 06 1 9206-9301 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-338-2 06 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-464-0 06 1 9401-9406 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 06 1 9407- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-331-0 06 1 9202-9312 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-467-1 06 1 9401- ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 		1-42333-029-0 20 1 9202-9203 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 RH THREAD 		1-42333-042-0 20 1 9204- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M24 LH THREAD 		1-42334-022-0 08 1 9202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M24 		1-42333-022-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 		1-42333-029-0 20 1 9202-9203 ● ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M22 RH THREAD 		1-42333-042-0 20 1 9204- ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M30 LH THREAD 		1-42334-023-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) M30 		1-42333-023-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9202- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-42370-022-3 01 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42370-020-3 01 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-12(Q87) 		1-42370-020-3 01 1 9307- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) 		1-42370-022-3 06 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42370-020-3 06 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-12(Q87) 		1-42370-020-3 06 1 9307- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-12(Q87) L=170 		1-42370-024-0 02 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 01 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 01 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 06 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 06 1 9202- ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 06 1 9304- ● ●
