Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#111196) — 58 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀

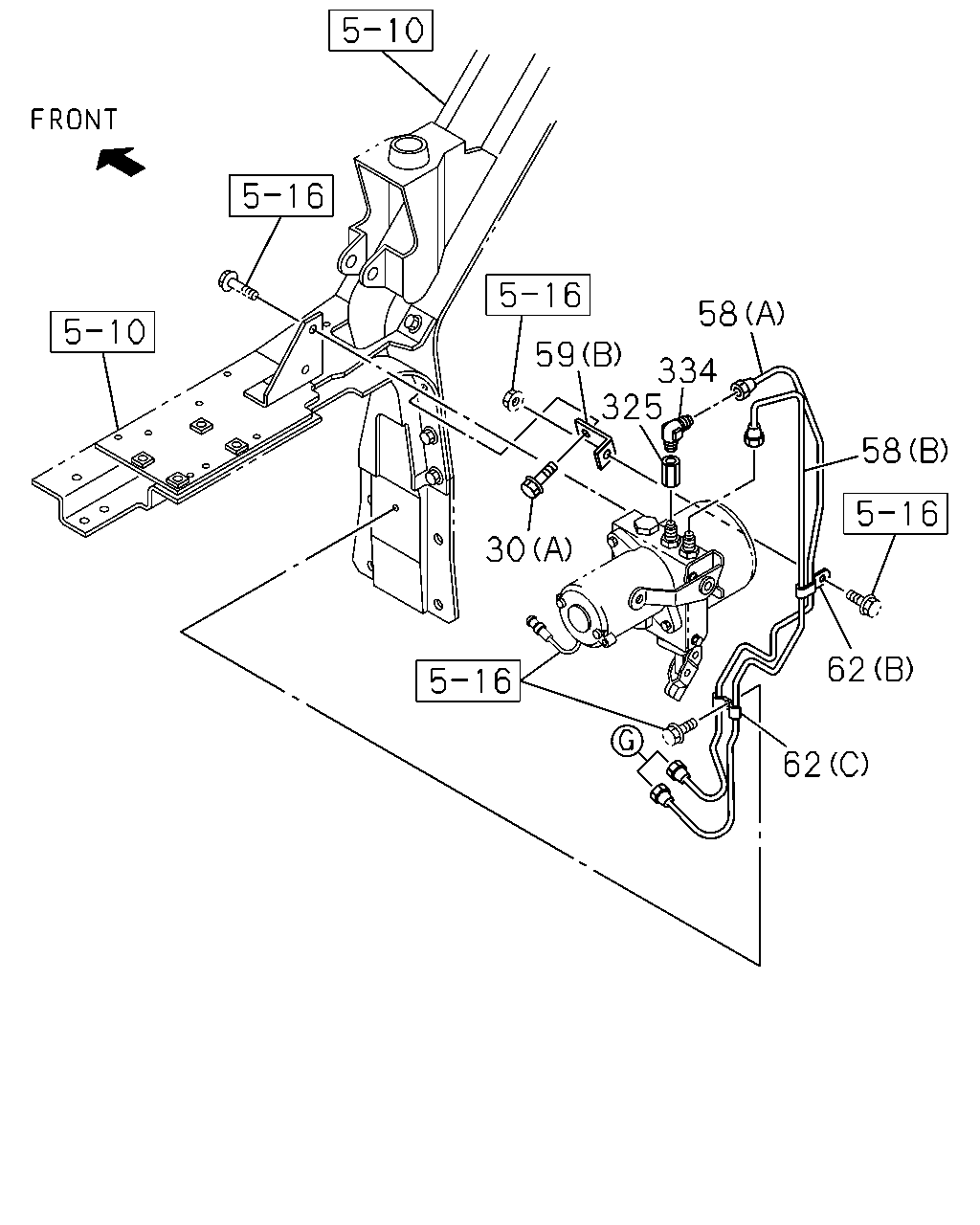

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (17 parça)

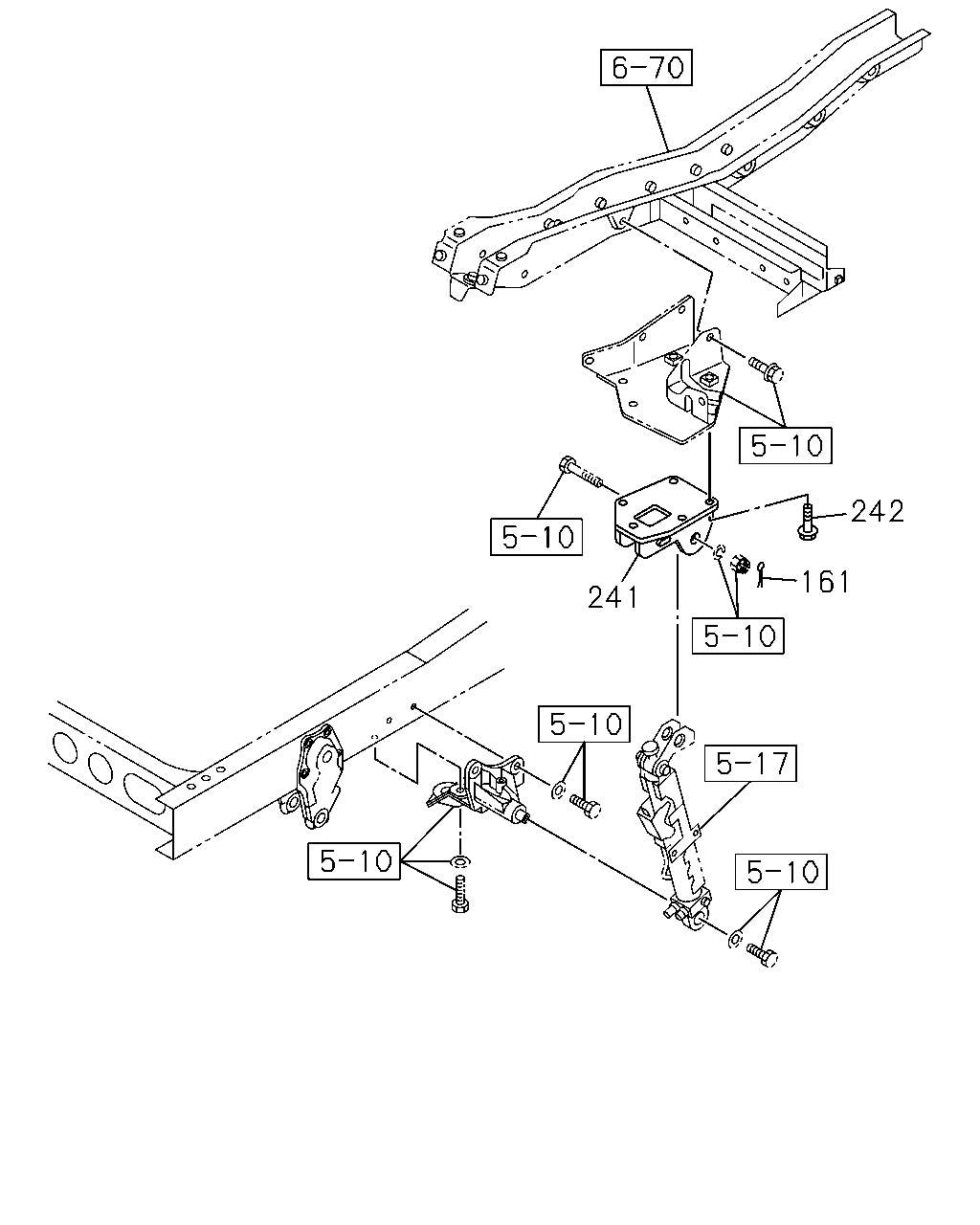

[515A] CAB TILT CYLINDER FIXING (3 parça)

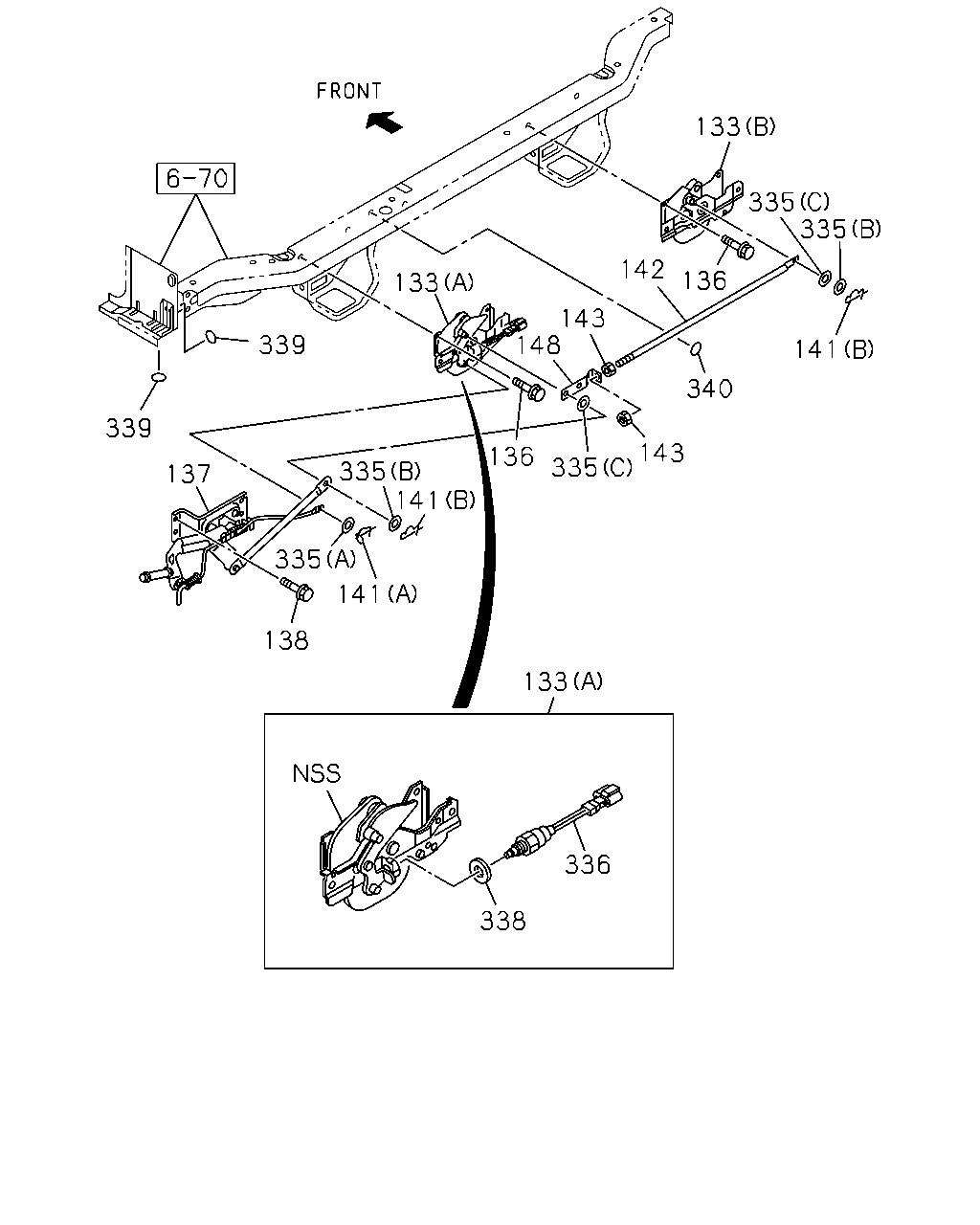

[515A] CAB REAR LOCK (17 parça)

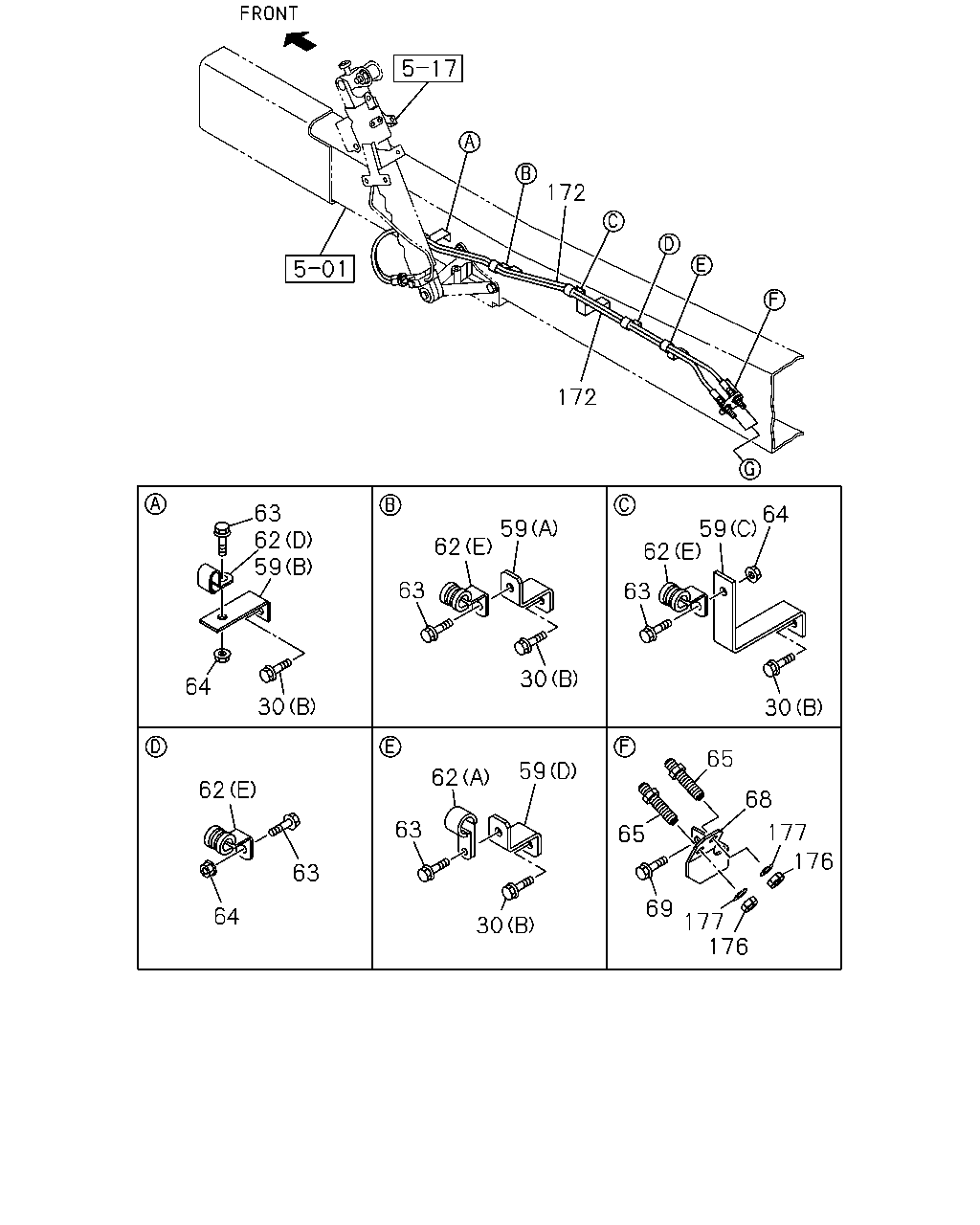

[515A] CAB TILT PIPING;FRAME SIDE (21 parça)
▶
59
30
334
325
58
58
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
1212-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
04
1
1212-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900
1-47428-729-0
01
1
1212-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000
1-47428-730-0
01
1
1212-
●
●
59
BRACKET; CLIP
(D)
1-47476-200-0
01
1
1212-
●
●
59
BRACKET; CLIP
(A)
1-47478-113-0
01
1
1212-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1212-1511
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
01
1
1212-1511
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1512-
●
●
59
BRACKET; CLIP
(C)
1-47479-248-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(E) ID=21 L=30 H=40
1-09700-991-1
03
1
1212-
●
●
62
CLIP; OIL PIPE
(A) ID=18 L=40
1-09701-111-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
1212-
●
●
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1212-
●
●
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1212-
●
●
241
161
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1212-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
1212-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE
0-28051-025-0
05
1
1212-
●
●
339
339
137
138
335
141
338
336
133
136
335
335
141
143
340
141
335
335
133
136
142
143
148
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1212-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1212-
●
●
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1212-
●
●
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
1212-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1212-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1212-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1212-
●
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1212-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1212-
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1212-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1212-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1212-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1212-
●
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1212-
●
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1212-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK
1-76798-019-0
04
1
1212-
●
●
340
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
1212-
●
●
172
172
63
62
59
64
30
62
63
59
30
63
62
59
64
30
65
68
177
176
177
176
69
65
59
62
63
30
63
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
1212-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
04
1
1212-
●
●
59
BRACKET; CLIP
(D)
1-47476-200-0
01
1
1212-
●
●
59
BRACKET; CLIP
(A)
1-47478-113-0
01
1
1212-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1212-1511
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
01
1
1212-1511
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1512-
●
●
59
BRACKET; CLIP
(C)
1-47479-248-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(E) ID=21 L=30 H=40
1-09700-991-1
03
1
1212-
●
●
62
CLIP; OIL PIPE
(A) ID=18 L=40
1-09701-111-0
01
1
1212-
●
●
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
1212-
●
●
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
1212-
●
●
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1212-
●
●
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1212-
●
●
68
BRACKET; UNION
8-98109-453-0
01
1
1212-
●
●
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1212-
●
●
172
HOSE; FLEX,OIL TILT
8-98086-335-0
02
1
1212-
●
●
176
NUT; UNION
M12
9-09840-280-0
02
1
1212-
●
●
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1212-
●
●
