5-10 — CAB MOUNTING; FRAME SIDE (#111195) — 97 parça
çizim 322071
65 202 203 202 205 204 204 203 112 535 51 191 191 535 51 27 48 535 535 535 191 51 536 535 535 535 191 536 48 27 51
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1212- ● ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1212- ● ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1212- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1212- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1212- ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1212- ● ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1212- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1212- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1212- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1212- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1212- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1212- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1212- ● ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1212- ● ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1212- ● ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1212- ● ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1212- ● ●

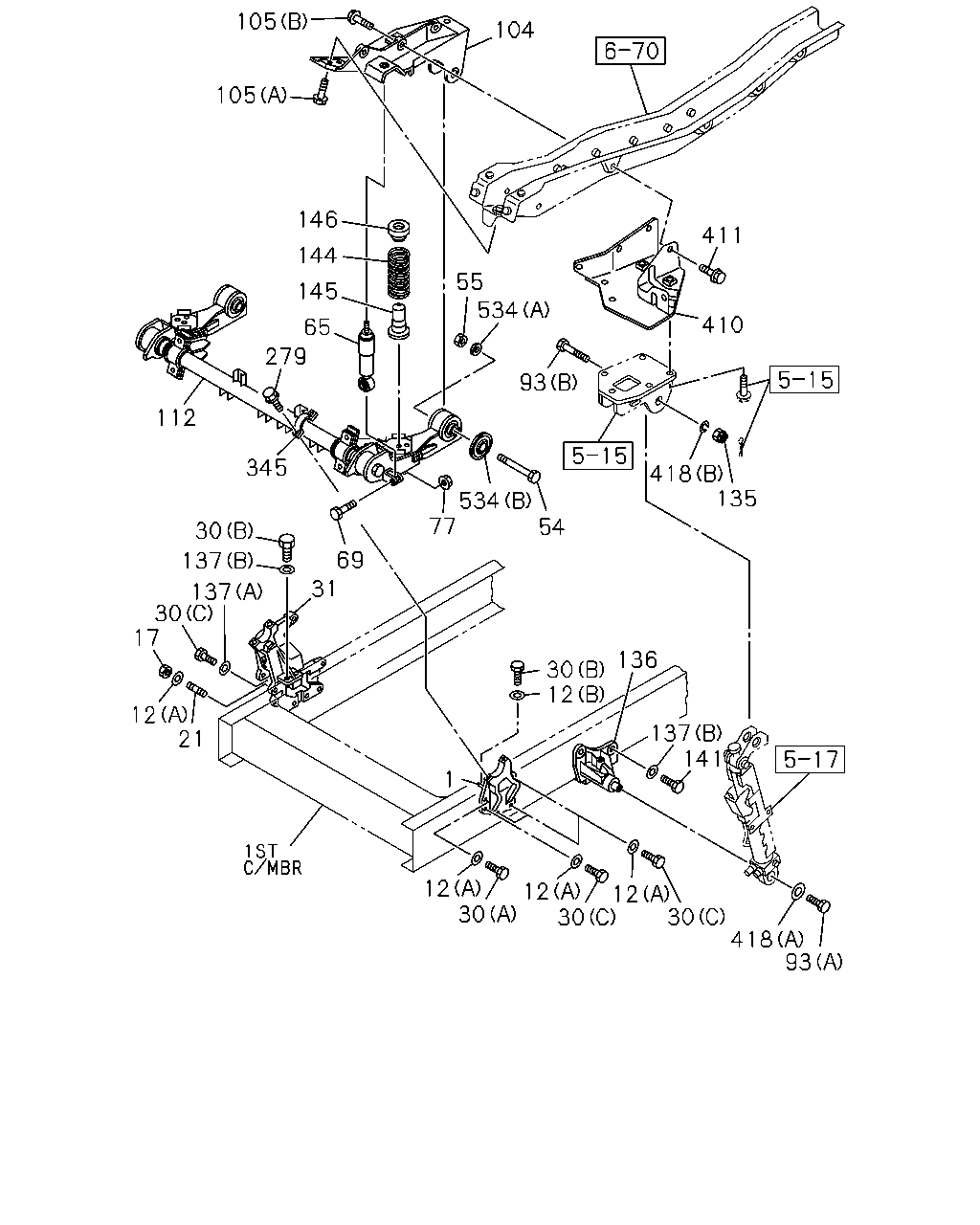

çizim 322340
105 105 104 411 410 55 534 146 144 145 65 279 112 345 30 137 69 137 31 30 17 12 21 30 12 136 137 141 12 30 12 30 12 30 418 93 135 418 93 77 54 534 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1212- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1212- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1212- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1212- ● ●
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1212- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 02 1 1212- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 02 1 1212- ● ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 04 1 1212- ● ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1212- ● ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1212- ● ●
31 BRACKET; CAB 8-98152-797-0 01 1 1212- ● ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1212- ● ●
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1212- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1212- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1212- ● ●
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1212- ● ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1212- ● ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1212- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1212- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1212- ● ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1212- ● ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1212- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1212- ● ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1212- ● ●
136 BRACKET; OIL CYL
WHEEL BASE 7300MM(73W) 		8-98226-400-0 01 1 1303- ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1212-1212 ● ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1301-1511 ●
136 BRACKET; OIL CYL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98054-835-0 01 1 1301-1511 ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1512- ●
136 BRACKET; OIL CYL
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) 		8-98054-835-0 01 1 1512- ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1212- ● ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1212- ● ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1212- ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1212- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1212- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1212- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1212- ● ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1212-1510 ● ●
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1212- ● ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1212- ● ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 03 1 1212- ● ●
411 BOLT; REINFORCEMENT
M10X30 FLANGE 		0-28661-030-0 02 1 1212- ● ●
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1212- ● ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1212- ● ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1212- ● ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1212- ● ●

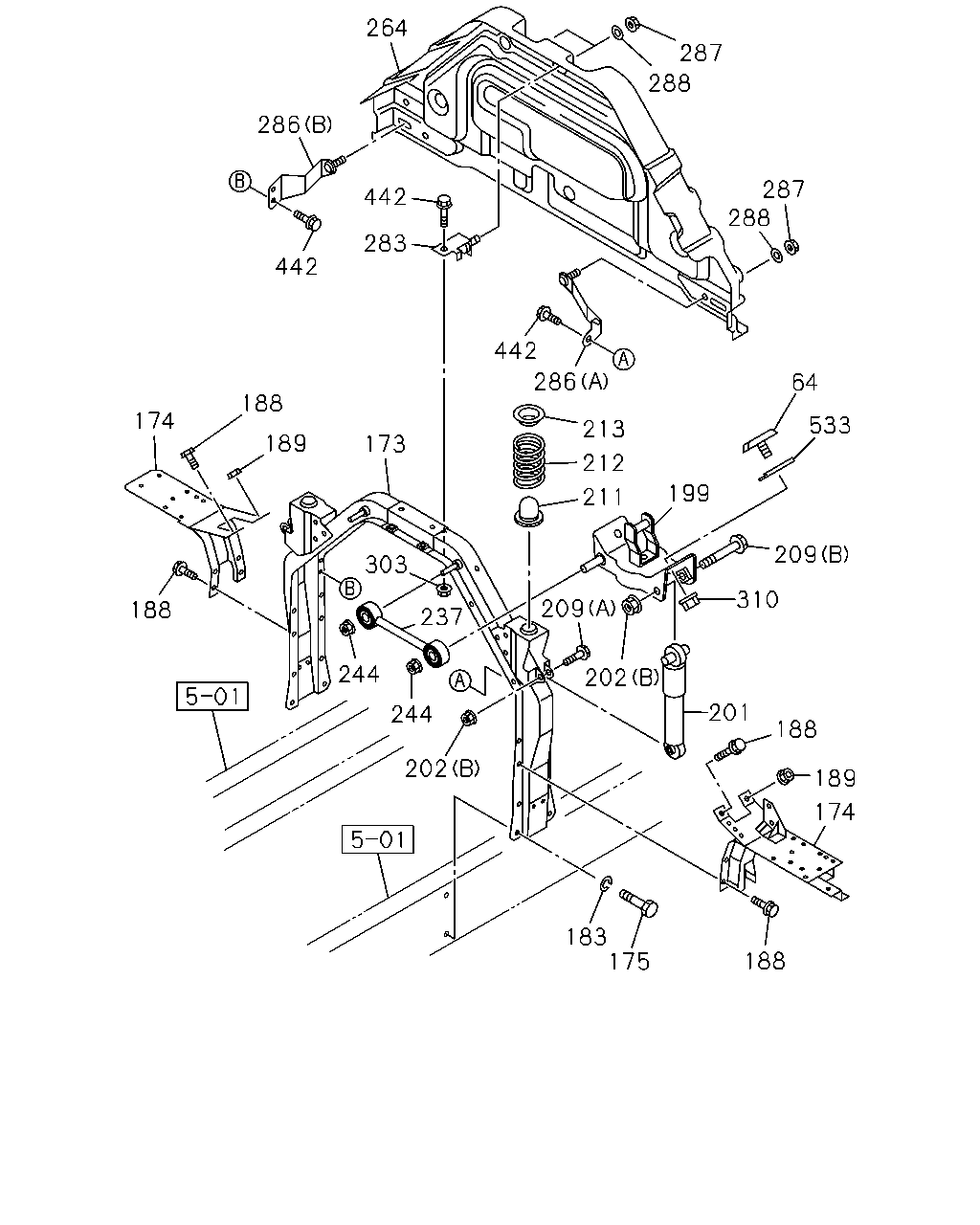

çizim 322358
264 286 442 283 442 288 287 287 288 442 64 213 211 209 286 173 174 188 212 199 533 310 189 188 303 244 244 202 209 202 201 188 189 174 183 175 188 237
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1212- ● ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1212- ● ●
174 OUTRIGGER 8-98054-839-2 01 1 1212- ● ●
174 OUTRIGGER 8-98054-838-1 01 1 1212- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1212- ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1212- ● ●
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1212- ● ●
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1212- ● ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1212- ● ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1212-1403 ● ●
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1212-1401 ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ● ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1212- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1212- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1212- ● ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1212- ● ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1212- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1212- ● ●
212 SPRING; COIL 1-09580-398-1 02 1 1212- ● ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1212- ● ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1212- ● ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1212- ● ●
264 PANEL; BACK 8-98055-597-1 01 1 1212- ● ●
283 BRACKET; UPR 1-53457-187-0 01 1 1212- ● ●
286 BRACKET; LOW
(A) 		8-98057-240-0 01 1 1212- ● ●
286 BRACKET; LOW
(B) 		8-98057-241-0 01 1 1212- ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1212- ● ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1212- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1212- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1212- ● ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1212- ● ●
