◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#11119) — 18 parça

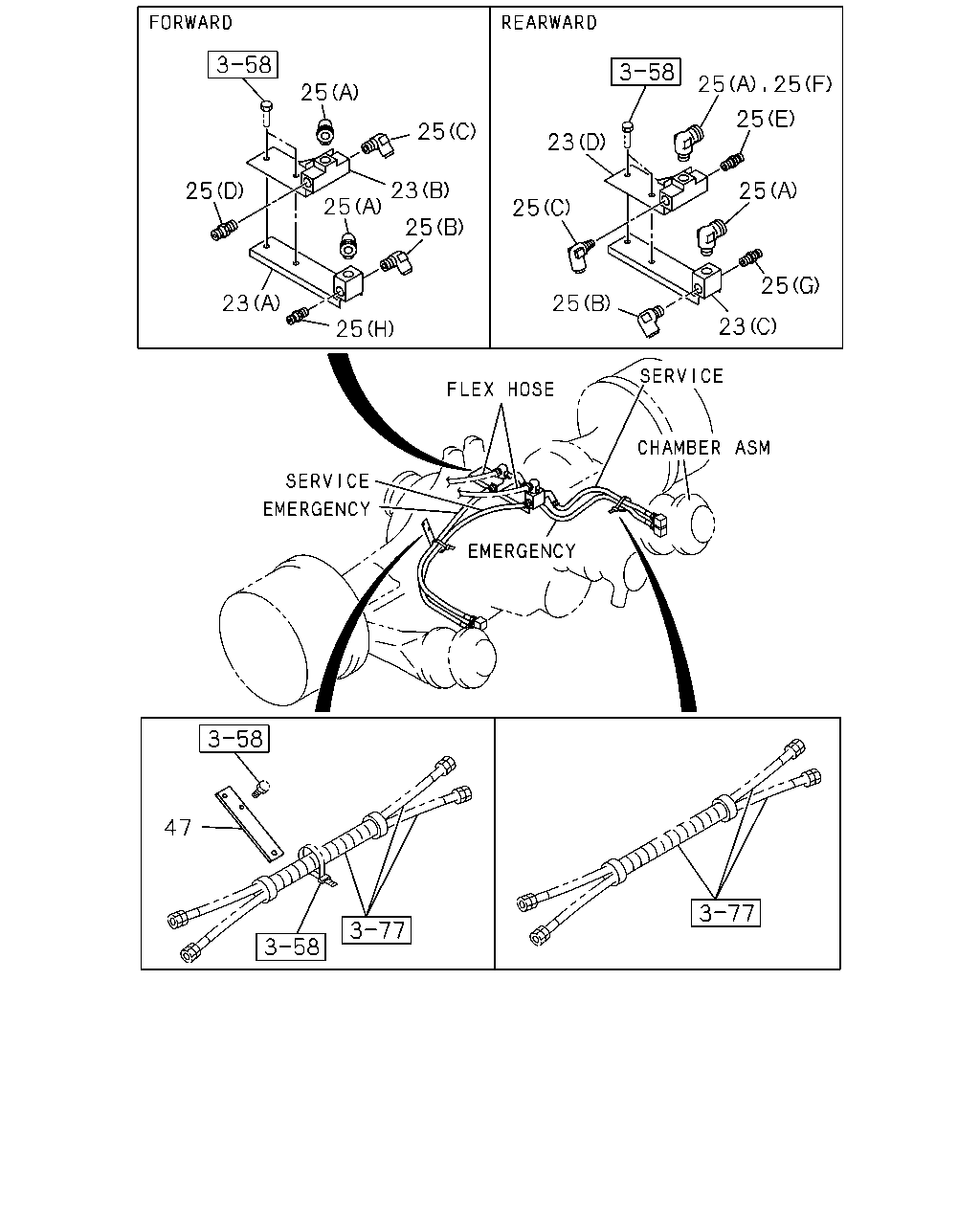

çizim 76153
25 25 25 25 25 23 23 25 25 25 25 25 25 25 23 23 25 47
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
(A) 		1-47470-373-1 01 1 0106-
23 NIPPLE; W/BRKT
(C) 		1-47470-500-0 01 1 0106-
23 NIPPLE; W/BRKT
(D) 		1-47477-703-1 01 1 0106-0402
23 NIPPLE; W/BRKT
(D) 		1-47479-966-0 01 1 0403-
23 NIPPLE; W/BRKT
EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-47475-536-1 01 1 0106-
25 CONNECTOR
(E) M14 & PT3/8 STRAIGHT 		1-09650-085-1 01 1 0106-
25 CONNECTOR
(G) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0106-
25 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0106-
25 CONNECTOR
(H) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0106-
25 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (F) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0106-
25 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
25 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW 		1-09660-136-1 02 1 0106-
25 CONNECTOR
(A) M27 & PT3/8 ELBOW 		1-09660-136-1 02 1 0106-
25 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0106-
25 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0106-
47 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-42119-123-0 01 1 0106-
47 BRACKET
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-42119-065-0 01 1 0106-

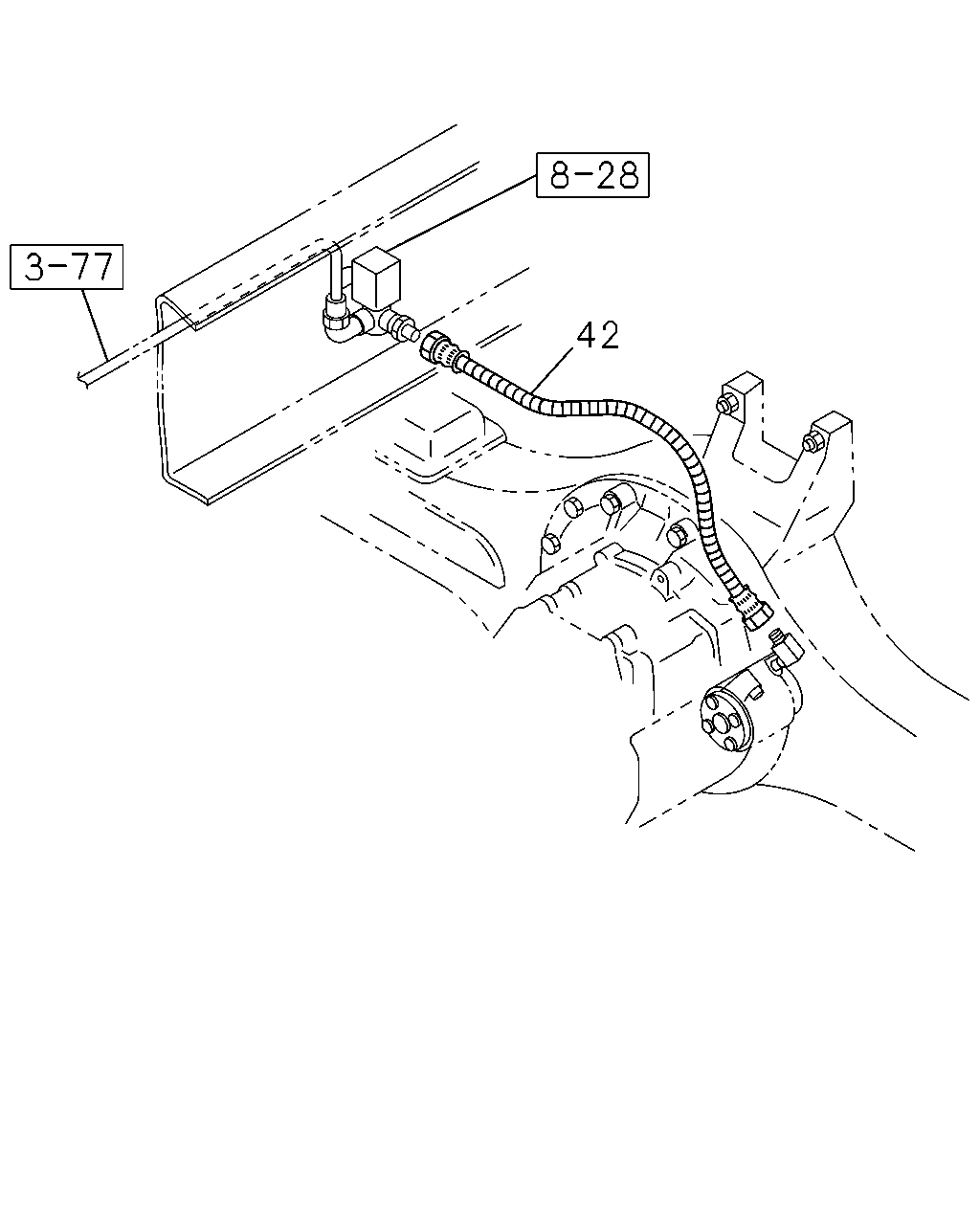

çizim 76673
42
BalonParca AdiParca NoAdetTipApplied Date
42 HOSE; FLEX,DIFF LOCK
L=580 		1-09363-641-0 01 1 0106-
