Isuzu WW
▶
TRUCKS
▶
FVR
▶
11496 - FVR(LHD) EURO5
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#111189) — 57 parça
◀

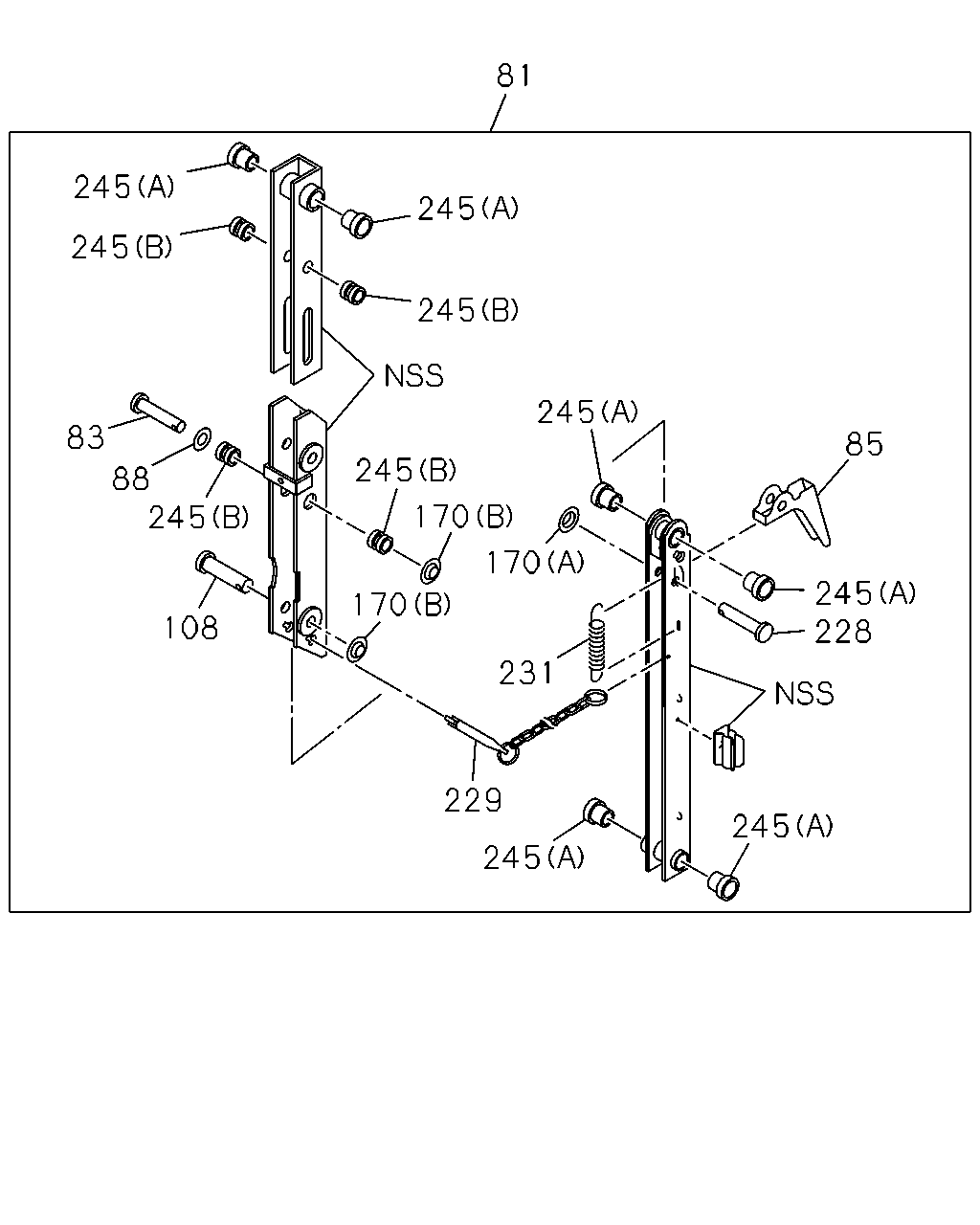

[515A] COMPONENT;CAB TILT STAY (13 parça)

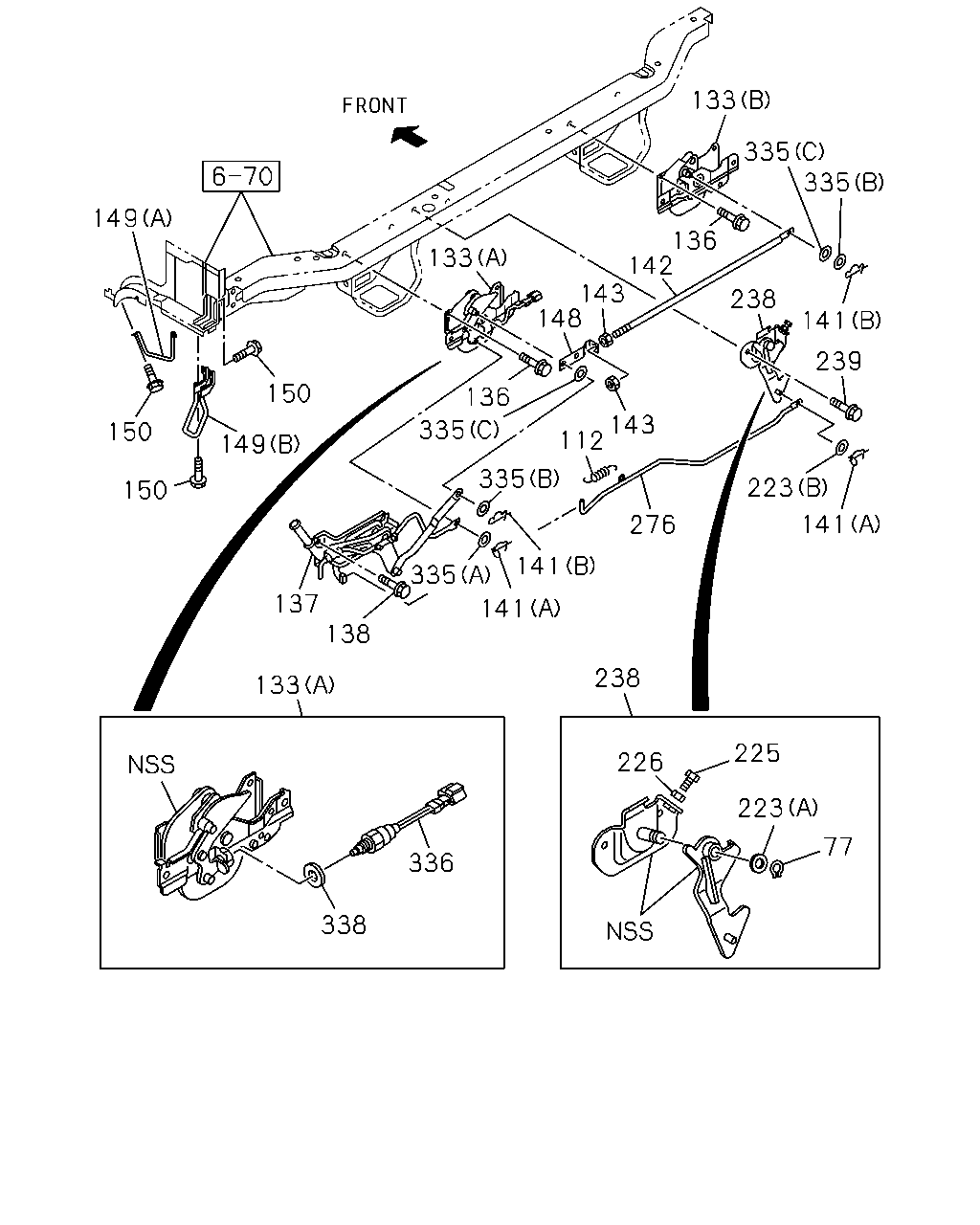

[515A] CAB LOCK AND TILT HANDLE (28 parça)

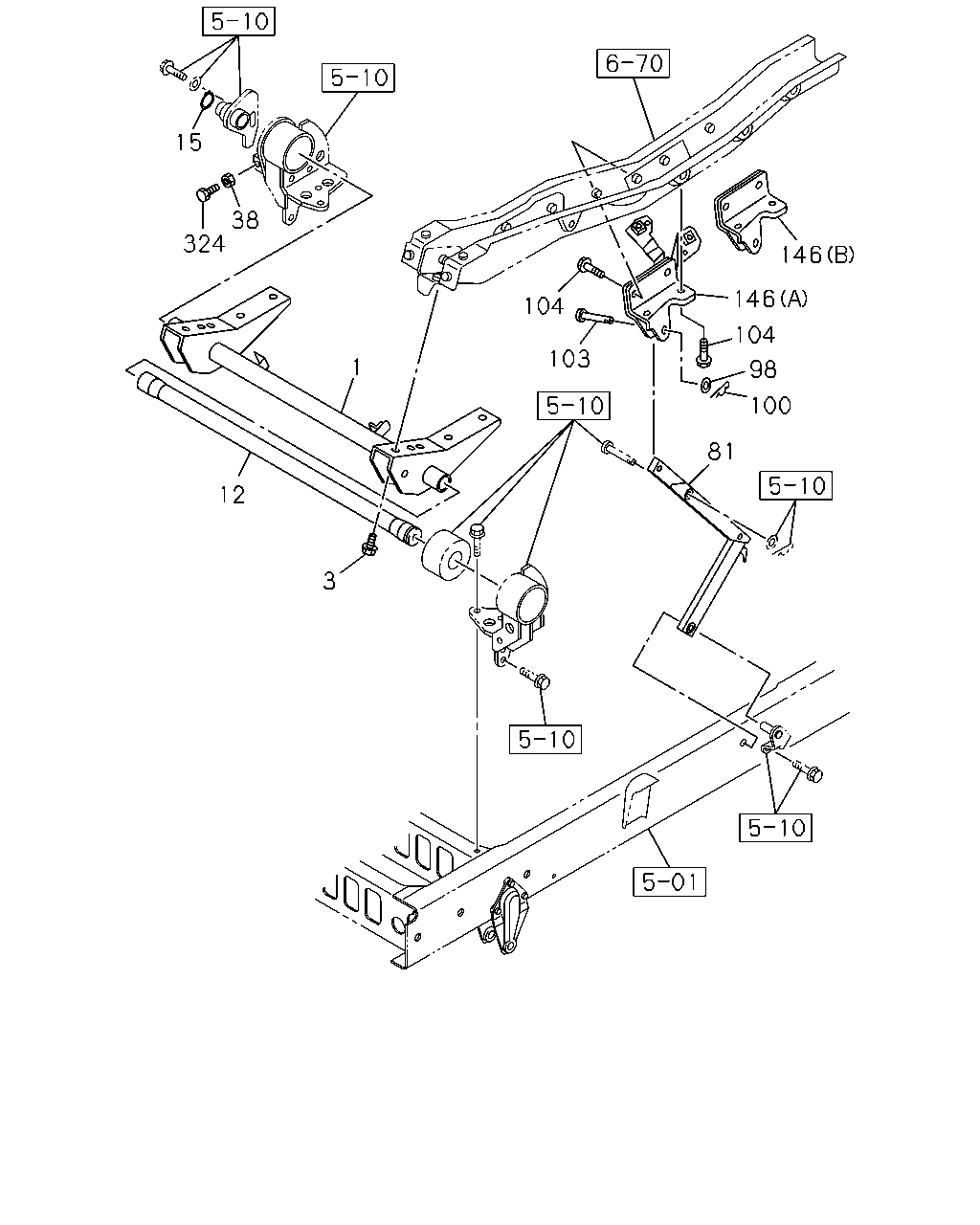

[515A] TORSION LEVER AND CAB TILT STAY (16 parça)
▶
81
245
245
245
170
170
231
170
229
245
245
228
245
85
245
83
245
245
88
108
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
STAY ASM; CAB TILT
1-62500-761-0
01
1
1212-1406
81
STAY ASM; CAB TILT
8-98278-116-0
01
1
1407-
83
PIN; JOINT,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1212-
85
LEVER; LOCK,CAB STAY
1-62500-503-0
01
1
1212-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0
1-09985-183-0
01
1
1212-
108
PIN; ADJ,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1212-
170
NUT
(A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
1212-
170
NUT
(B) ID=9.9 PUSH NUT
8-97022-566-0
02
1
1212-
228
PIN; SAFETY LOCK SPRING,CAB STAY
OD=8 L=27
1-09744-086-2
01
1
1212-
229
PIN ASM; SAFETY
1-62500-517-1
01
1
1212-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
1-09583-244-0
01
1
1212-
245
BUSHING; CAB STAY
(A)
1-62500-587-0
06
1
1212-
245
BUSHING; CAB STAY
(B)
1-62500-588-0
04
1
1212-
223
141
239
141
238
335
335
133
136
142
143
148
136
335
112
143
335
276
141
141
335
137
138
133
150
149
150
149
238
225
77
226
223
336
338
150
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
RING; SNAP
ID=14.7
0-91800-616-0
01
1
1212-
112
SPRING; RETURN,SAFETY ROD
1-79718-655-0
01
1
1212-
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1212-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1212-
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1212-
137
CONTROL UNIT; CAB LOCK
8-97587-592-5
01
1
1212-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1212-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1212-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1212-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1212-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1212-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1212-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1212-
149
HANDLE; TILT
(A)
8-97586-206-1
01
1
1212-
149
HANDLE; TILT
(B)
8-98025-707-3
01
1
1212-
150
BOLT; TILT HANDLE
M8X20 FLANGE
0-28650-820-0
06
1
1212-
223
WASHER; PL,SAFETY LK
(B) ID=8.4 OD=16
0-91610-508-0
01
1
1212-
223
WASHER; PL,SAFETY LK
(A) ID=17 OD=30
0-91610-516-0
01
1
1212-
225
BOLT; SAFETY LK
M8X30 FLANGE
0-28050-830-0
01
1
1212-
226
NUT; SAFETY LK
M8
0-91110-508-0
01
1
1212-
238
LOCK ASM; SAFETY,CAB TILT
8-98048-899-1
01
1
1212-
239
BOLT; SAFETY LK
M8X20 FLANGE
0-28650-820-0
02
1
1212-
276
ROD ASM; CAB LOCK,HOOK TO HOOK
8-98048-831-1
01
1
1212-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1212-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1212-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1212-
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1212-
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1212-
15
324
38
12
1
3
81
100
98
104
146
146
104
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
8-98017-608-5
01
1
1212-
3
BOLT; LEVER
M12X42 FLANGE
8-98090-287-1
08
1
1212-
12
BAR; TORSION,UPR
8-98017-940-0
01
1
1212-
15
RING; SNAP,TORSION BAR
T=1.90 BLUE
8-97129-615-0
01
1
1212-
38
NUT; LK
M14
0-91110-514-0
01
1
1212-
81
STAY ASM; CAB TILT
1-62500-761-0
01
1
1212-1406
81
STAY ASM; CAB TILT
8-98278-116-0
01
1
1407-
98
WASHER; CAB STAY
ID=10.5 T=2.0
1-09985-183-0
01
1
1212-
100
PIN; SNAP,CAB STAY TO CAB
L=34
8-98039-426-1
01
1
1212-
103
PIN; JOINT,CAB STAY
1-09744-108-1
01
1
1212-
104
BOLT; CAB STAY BRKT
M10X30 FLANGE
0-28661-030-0
04
1
1212-
146
BRACKET ASM; CAB STAY UPR
(A)
8-98089-081-0
01
1
1212-1304
146
BRACKET ASM; CAB STAY UPR
(B)
8-98019-506-0
01
1
1305-
324
BOLT; ADJUST
EXC. KD PREPARATORY PACK<6HF> M14X59
8-98330-402-0
01
1
1512-
324
BOLT; ADJUST
M14X55
8-98004-319-1
01
1
1212-1511
324
BOLT; ADJUST
KD PREPARATORY PACK<6HF> M14X55
8-98004-319-1
01
1
1512-
