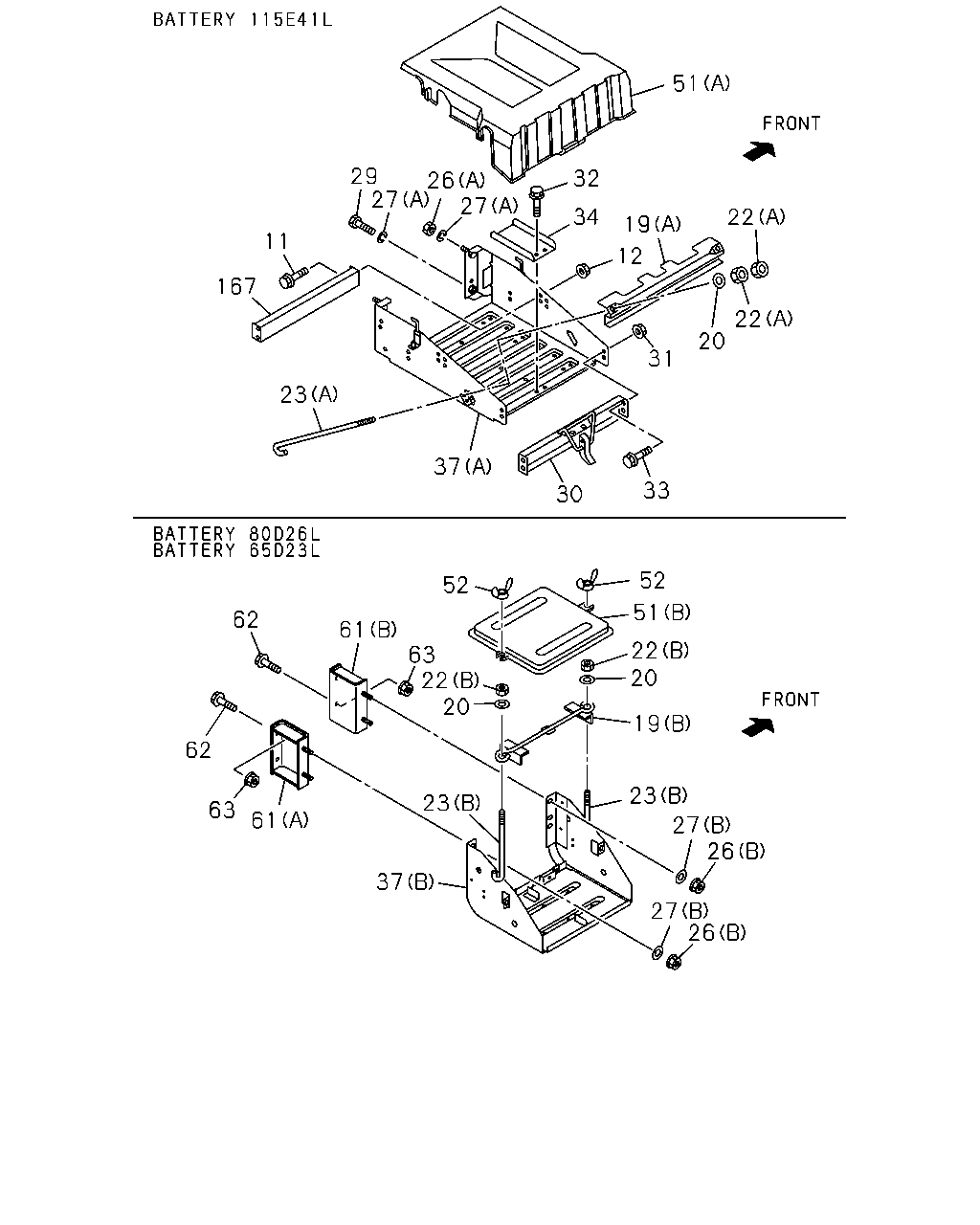

5-20 — BATTERY CARRIER (#111184) — 30 parça

51 22 9 31 20 22 12 34 32 27 26 27 29 11 167 23 37 30 33 52 51 22 20 19 23 27 26 26 7 37 23 20 22 61 52 62 62 62 61 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX BATTERY 115E41L<8MA> M8X20 FLANGE	0-28050-820-0	04	1	1212-	●	●
12	NUT; BRKT FIX BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
19	STAY; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	5-53615-004-1	01	1	1212-	●	●
19	STAY; BATTERY BATTERY 115E41L<8MA> (A)	8-98056-961-0	01	1	1212-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1212-	●	●
22	NUT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
22	NUT; STAY BATTERY 115E41L<8MA> (A) M8	0-91110-508-0	04	1	1212-	●	●
23	BOLT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1212-	●	●
23	BOLT; STAY BATTERY 115E41L<8MA> (A) L=250	1-53616-108-0	02	1	1212-	●	●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M10 FLANGE	0-91180-210-0	04	1	1212-	●	●
26	NUT; BRKT BATTERY 115E41L<8MA> (A) M14	1-09440-072-0	02	1	1212-	●	●
27	WASHER; LK,BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=10.5 OD=22	0-91614-610-0	04	1	1212-	●	●
27	WASHER; LK,BRKT BATTERY 115E41L<8MA> (A) ID=14.2	0-91510-514-0	04	1	1212-	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41L<8MA> M14X45	1-09000-764-0	02	1	1212-	●	●
30	PLATE; BATTERY BATTERY 115E41L<8MA>	1-53619-085-0	01	1	1212-	●	●
31	NUT; PLATE BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115E41L<8MA> M8X16 FLANGE	0-28050-816-0	02	1	1212-	●	●
33	BOLT; PLATE TO BRKT BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	04	1	1212-	●	●
34	SPACER; BATTERY BRKT BATTERY 115E41L<8MA>	8-98057-728-0	01	1	1212-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1212-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1212-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (A)	8-98088-440-3	01	1	1212-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1212-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-068-0	01	1	1212-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1212-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-98088-828-0	01	1	1212-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	8-98162-291-0	01	1	1212-	●	●
62	BOLT; DIST TO FRAME,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10X35 FLANGE	0-28651-035-0	04	1	1212-	●	●
63	NUT; DIST TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10 FLANGE	0-91180-210-0	04	1	1212-	●	●
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98091-941-0	01	1	1212-	●	●
