◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11496 - FVR(LHD) EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#111168) — 68 parça

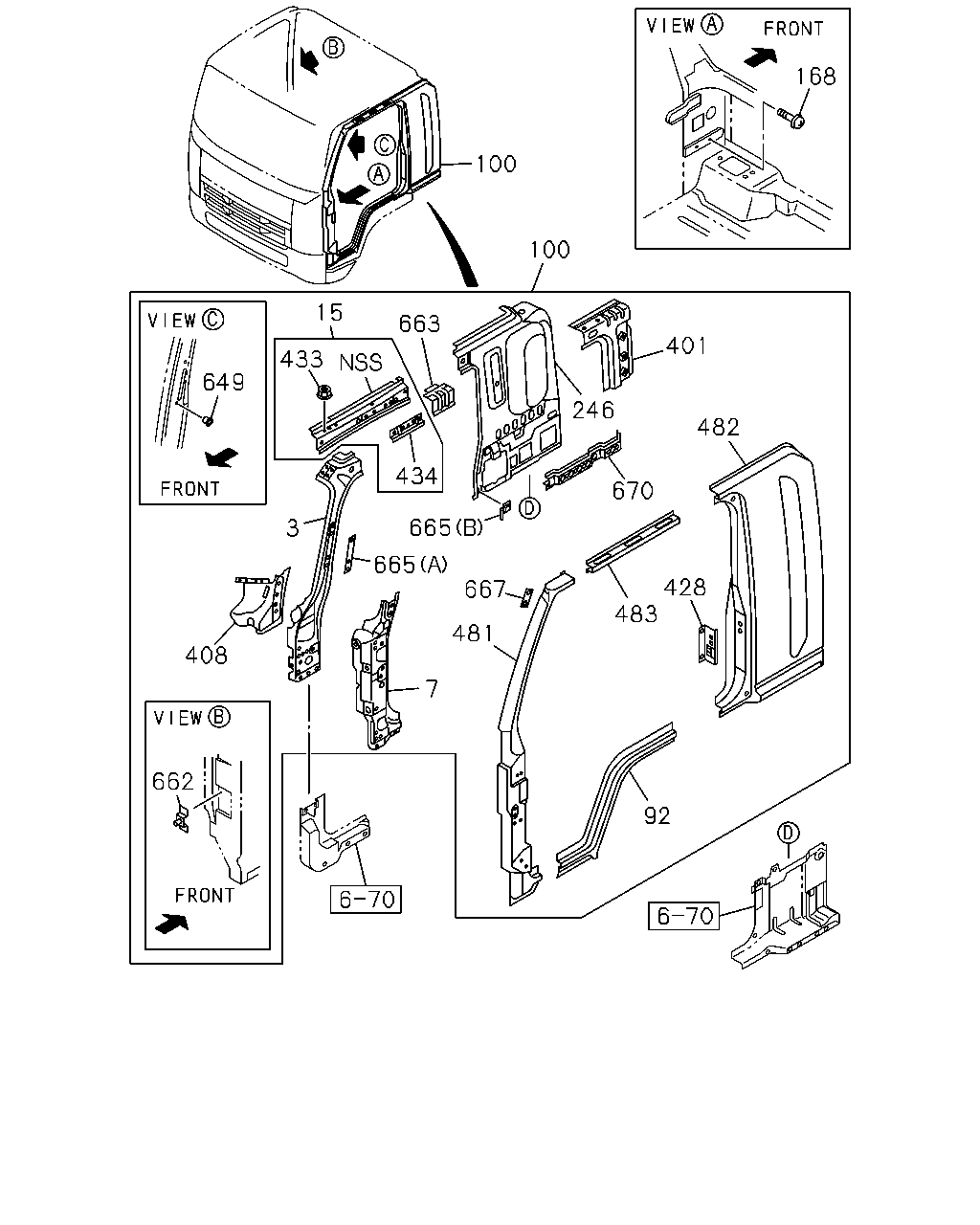

çizim 321716
401 482 670 483 428 667 665 665 7 481 92 662 649 15 663 100 100 168 3 408 434 246 433
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1212-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1212-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1212-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1212-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1212-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1212-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1212-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1212-
100 PANEL ASM; BODY SIDE 8-98020-223-7 01 1 1212-
100 PANEL ASM; BODY SIDE
KD PREPARATORY PACK<6HF> 		8-97586-076-6 01 1 1212-
100 PANEL ASM; BODY SIDE
EXC. KD PREPARATORY PACK<6HF> 		8-98088-589-4 01 1 1212-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1212-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1212-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1212-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1212-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1212-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1212-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1212-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1212-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1212-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1212-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1212-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1212-
481 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1212-
481 PANEL; SIDE FRT PILLAR 8-98092-911-0 01 1 1212-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1212-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1212-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1212-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1212-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1212-
662 BRACKET; DUCT 8-97584-611-1 01 1 1212-
663 BRACKET; AIR 8-97585-208-2 01 1 1212-
663 BRACKET; AIR 8-97585-207-2 01 1 1212-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1212-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1212-
667 BRACKET; MIRROR 8-98109-948-0 01 1 1212-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1212-

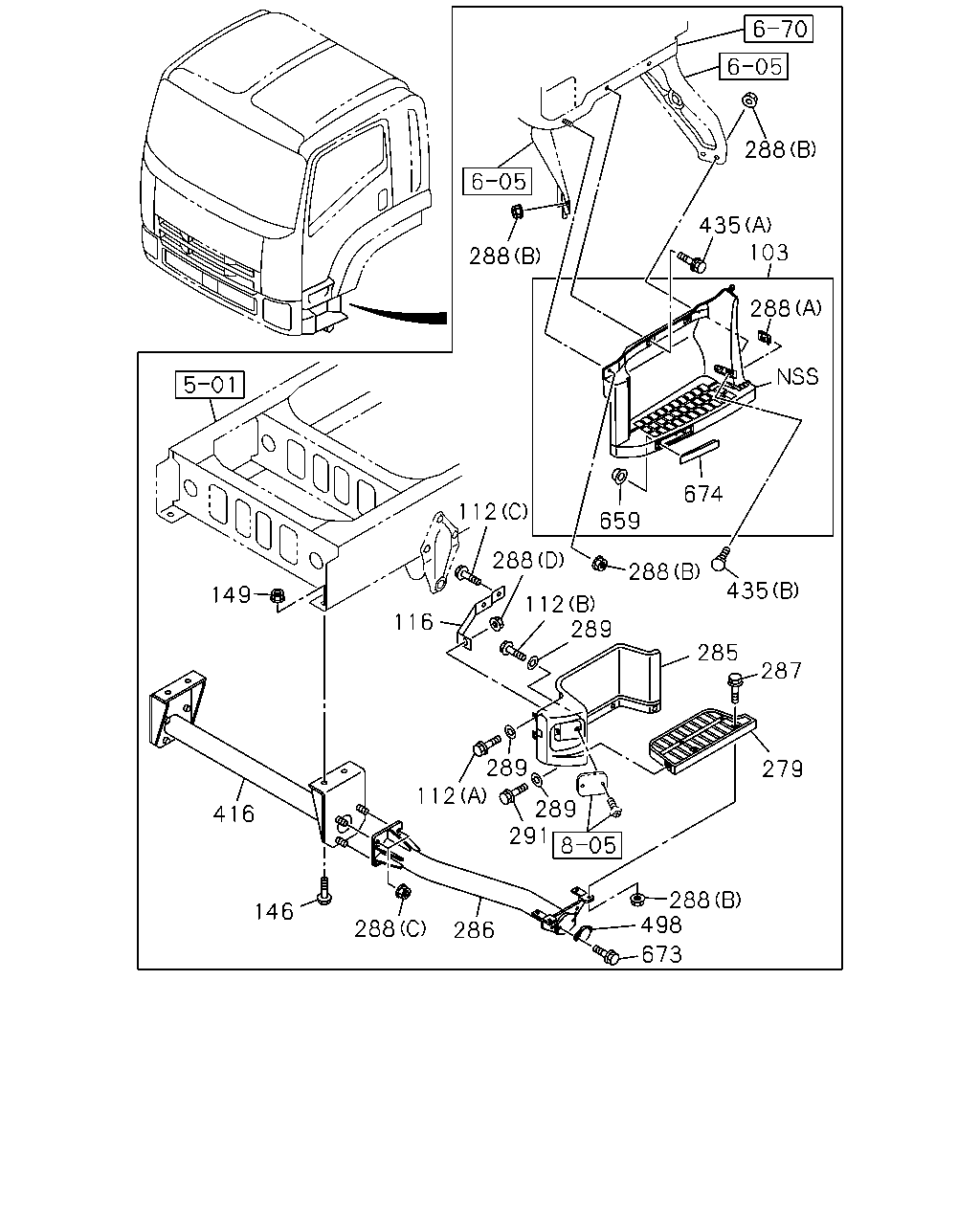

çizim 321781
288 288 435 288 674 659 288 435 285 287 279 288 498 673 291 286 288 289 289 112 146 416 116 288 112 289 112 149 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1212-
103 PLATE; STEP 8-98069-976-2 01 1 1212-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1212-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1212-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1212-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1212-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1212-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1212-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1212-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1212-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1212-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1212-
286 STEP ASM; 1ST 8-98082-430-2 01 1 1212-
286 STEP ASM; 1ST 8-98082-431-2 01 1 1212-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1212-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1212-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1212-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1212-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1212-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1212-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1212-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1212-
416 BRACKET; ASSIST STEP
FIRE TRUCK CHASSIS(V4F) 		8-98079-376-3 01 1 1212-
416 BRACKET; ASSIST STEP
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98053-542-4 01 1 1212-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1212-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1212-
498 REFLECTOR 1-82290-011-1 02 1 1212-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1212-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1212-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1212-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
