◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#111167) — 66 parça

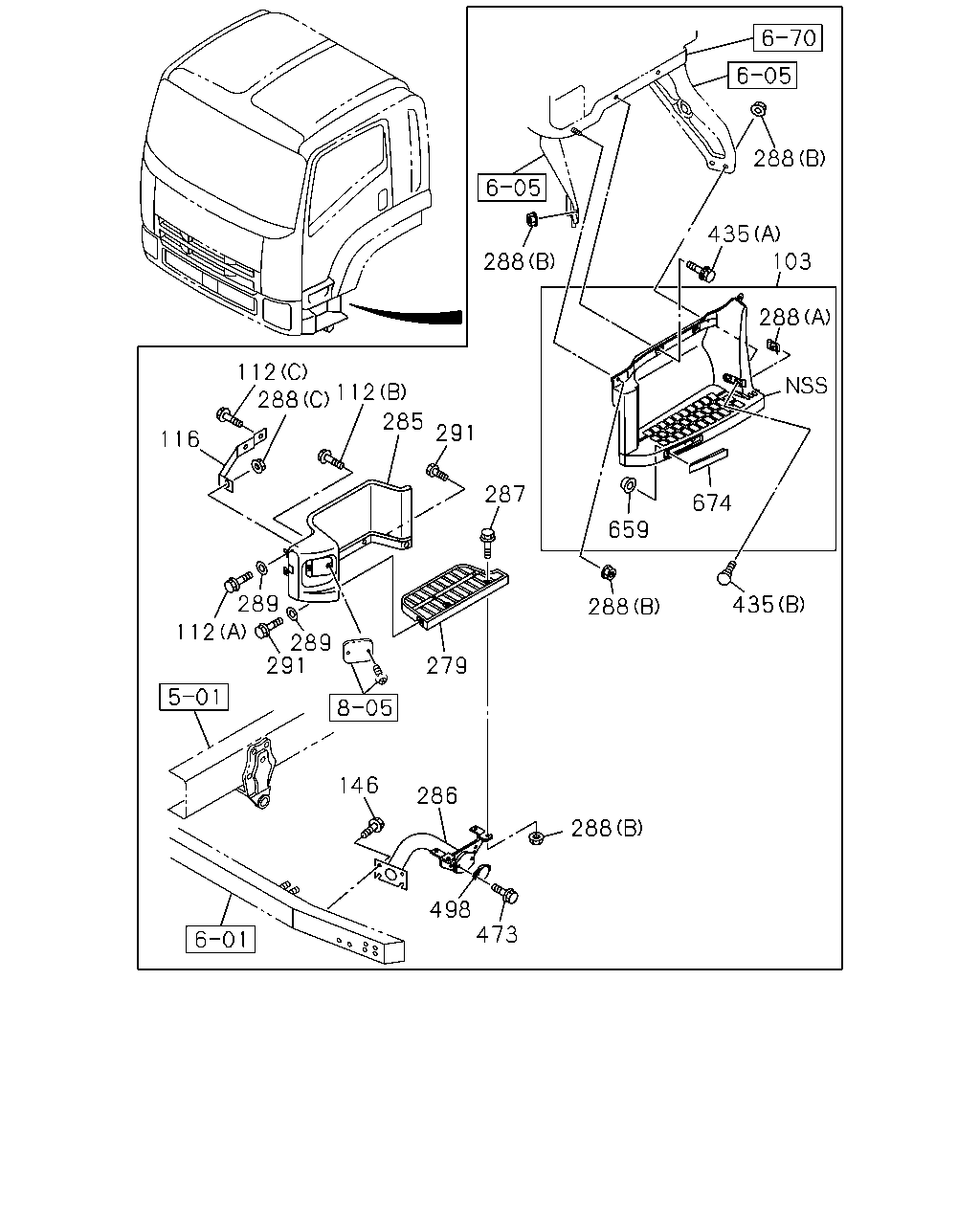

çizim 321809
112 112 288 285 287 291 116 112 291 289 289 279 146 286 288 498 473 288 435 674 659 288 103 435 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 1212- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 1212- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1212- ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1212- ● ●
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1212- ● ●
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1212- ● ●
146 BOLT; STEP BRKT
M12X30 FLANGE 		0-28051-230-0 08 1 1212-1504 ● ●
146 BOLT; STEP BRKT
M12X40 FLANGE 		0-28051-240-0 08 1 1505- ● ●
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1212- ● ●
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1212- ● ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1212- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1212- ● ●
286 STEP ASM; 1ST 8-98203-551-0 01 1 1212- ● ●
286 STEP ASM; 1ST 8-98203-550-0 01 1 1212- ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1212- ● ●
288 NUT; STEP
(C) M6 FLANGE 		0-91180-106-0 02 1 1212- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 1212- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1212- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1212- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1212- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1212- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1212- ● ●
473 DRIP; SIDE
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1212- ● ●
498 REFLECTOR 1-82290-011-1 02 1 1212- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1212- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 1212- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 1212- ● ●

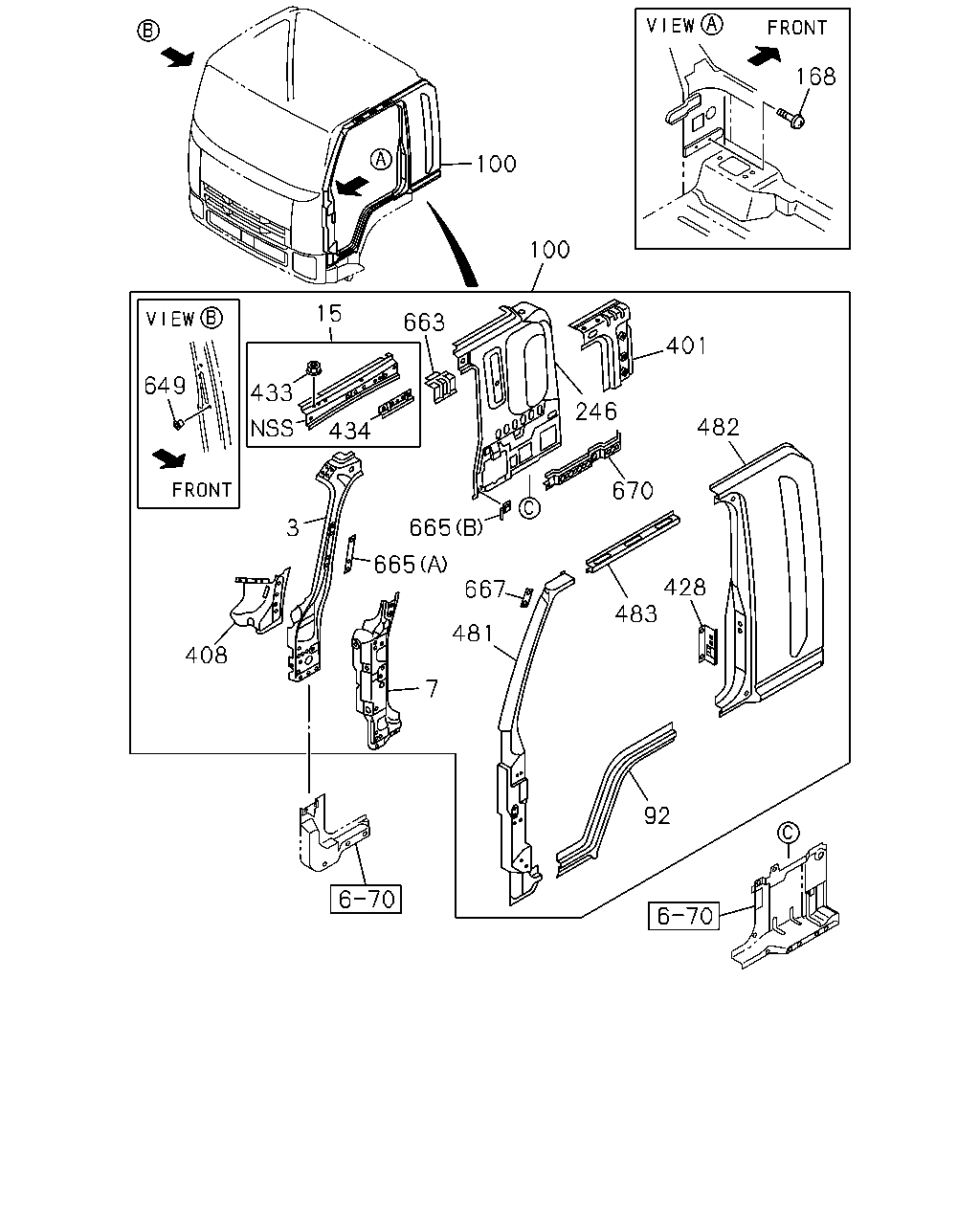

çizim 322402
92 483 428 482 670 246 401 481 667 665 665 408 3 434 433 663 100 15 100 168 7 649
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1212- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1212- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1212- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1212- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1212- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1212- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1212- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1212- ● ●
100 PANEL ASM; BODY SIDE 8-97586-079-7 01 1 1212- ● ●
100 PANEL ASM; BODY SIDE 8-98122-093-1 01 1 1212- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1212- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1212- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1212- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1212- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1212- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1212- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1212- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1212- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1212- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1212- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1212- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1212- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1212- ● ●
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 1212- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1212- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1212- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1212- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1212- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1212- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1212- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 1212- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1212- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1212- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1212- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1212- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1212- ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 1212- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1212- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1212- ● ●
