Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#111156) — 59 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀
[647A] MUD GUARD;FRONT (9 parça)
[647A] MUD GUARD;REAR (22 parça)
[647A] PANEL (16 parça)
[647A] MUD COVER AND SEAL (8 parça)
[647A] OTHER PARTS (4 parça)
▶

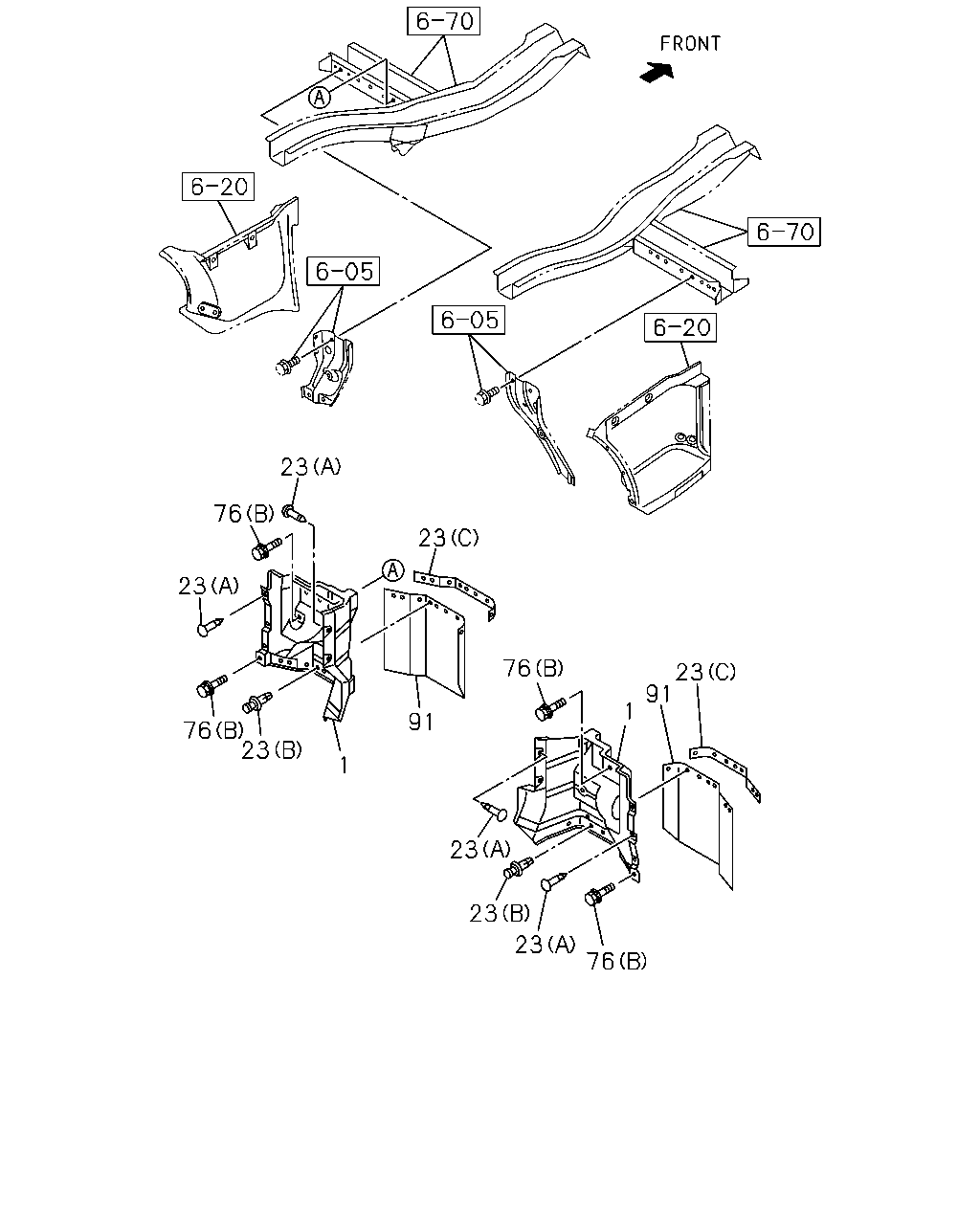

76
23
23
76
23
91
23
76
23
23
23
91
1
76
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
8-97617-152-0
01
1
1212-
●
●
1
GUARD; MUD,FRT
8-97617-151-0
01
1
1212-
●
●
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1212-
●
●
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
08
1
1212-
●
●
23
FASTENER; MUD COVER
(C)
8-98060-235-0
02
1
1212-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1212-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1212-
●
●
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1212-
●
●
91
COVER; MUD,FRT
8-97617-155-0
02
1
1212-
●
●

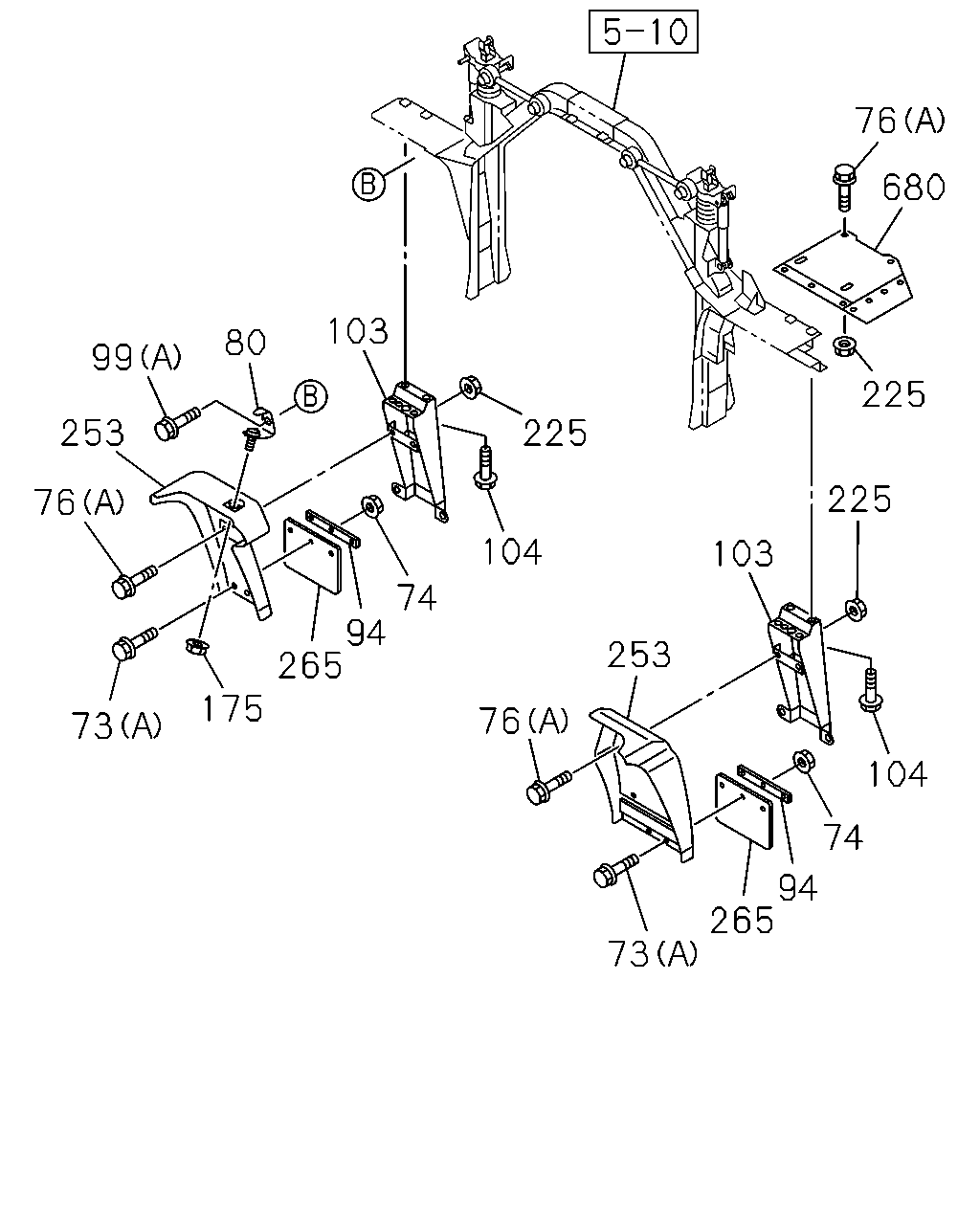

103
80
99
253
76
73
175
265
94
74
104
225
103
253
76
225
225
680
76
104
74
94
265
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1212-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1212-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1212-
●
●
74
NUT
M8 FLANGE
0-91180-108-0
06
1
1212-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1212-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1212-
●
●
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1212-
●
●
80
BRACKET; MUD GUARD STAY
8-98057-793-0
01
1
1212-
●
●
94
RETAINER; FLAP RUBBER
1-79931-091-2
01
1
1212-
●
●
94
RETAINER; FLAP RUBBER
8-98038-675-0
01
1
1212-
●
●
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE
0-28650-616-0
08
1
1212-
●
●
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE
0-28050-825-0
01
1
1212-
●
●
103
BRACKET ASM; RR MUD FLAP
8-98055-593-1
02
1
1212-
●
●
104
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1212-
●
●
175
NUT; STAY FIX
M8 W/DISHED WASHER
8-97329-625-0
01
1
1212-
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
04
1
1212-
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
04
1
1212-
●
●
253
GUARD; MUD
8-98057-779-1
01
1
1212-
●
●
253
GUARD; MUD
8-98057-778-1
01
1
1212-
●
●
265
RUBBER; FLAP,REAR
1-79930-978-0
01
1
1212-
●
●
265
RUBBER; FLAP,REAR
8-98106-956-0
01
1
1212-
●
●
680
GUARD; MUD,UPPER
8-98060-251-0
01
1
1212-
●
●

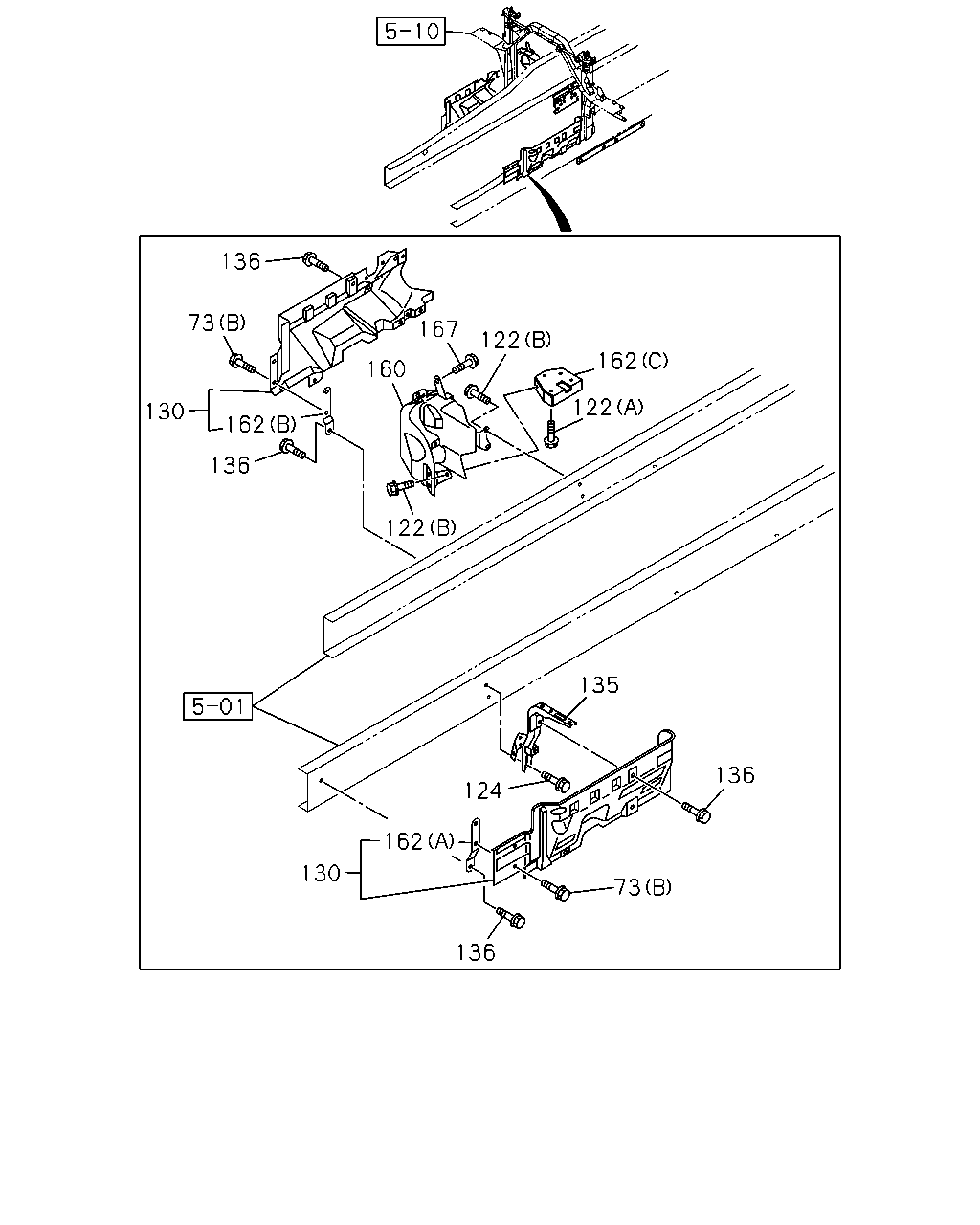

162
122
122
167
160
122
162
136
130
73
136
135
136
73
124
162
130
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1212-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1212-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1212-
●
●
122
BOLT
(A) M10X40 FLANGE
0-28051-040-0
02
1
1212-
●
●
122
BOLT
(B) M8X30 FLANGE
0-28650-830-0
03
1
1212-
●
●
124
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1212-
●
●
124
BOLT; BRKT
M12X25 FLANGE
0-28051-225-0
02
1
1212-
●
●
130
PANEL; SHUTTER NOISE
8-98088-647-0
01
1
1212-
●
●
130
PANEL; SHUTTER NOISE
8-98170-253-2
01
1
1212-
●
●
135
BRACKET; SIDE PANEL
8-98170-443-1
01
1
1212-
●
●
136
BOLT
M8X30 W/LK&PL WASHER
1-09030-095-0
12
1
1212-
●
●
160
COVER ASM; EXH
8-98213-777-0
01
1
1212-
●
●
162
BRACKET
(C)
8-98059-845-1
01
1
1212-
●
●
162
BRACKET
(A)
8-98055-601-0
01
1
1212-
●
●
162
BRACKET
(B)
8-98092-305-0
01
1
1212-
●
●
167
BOLT; EXH COVER
M8X20 FLANGE
0-28650-820-0
01
1
1212-
●
●

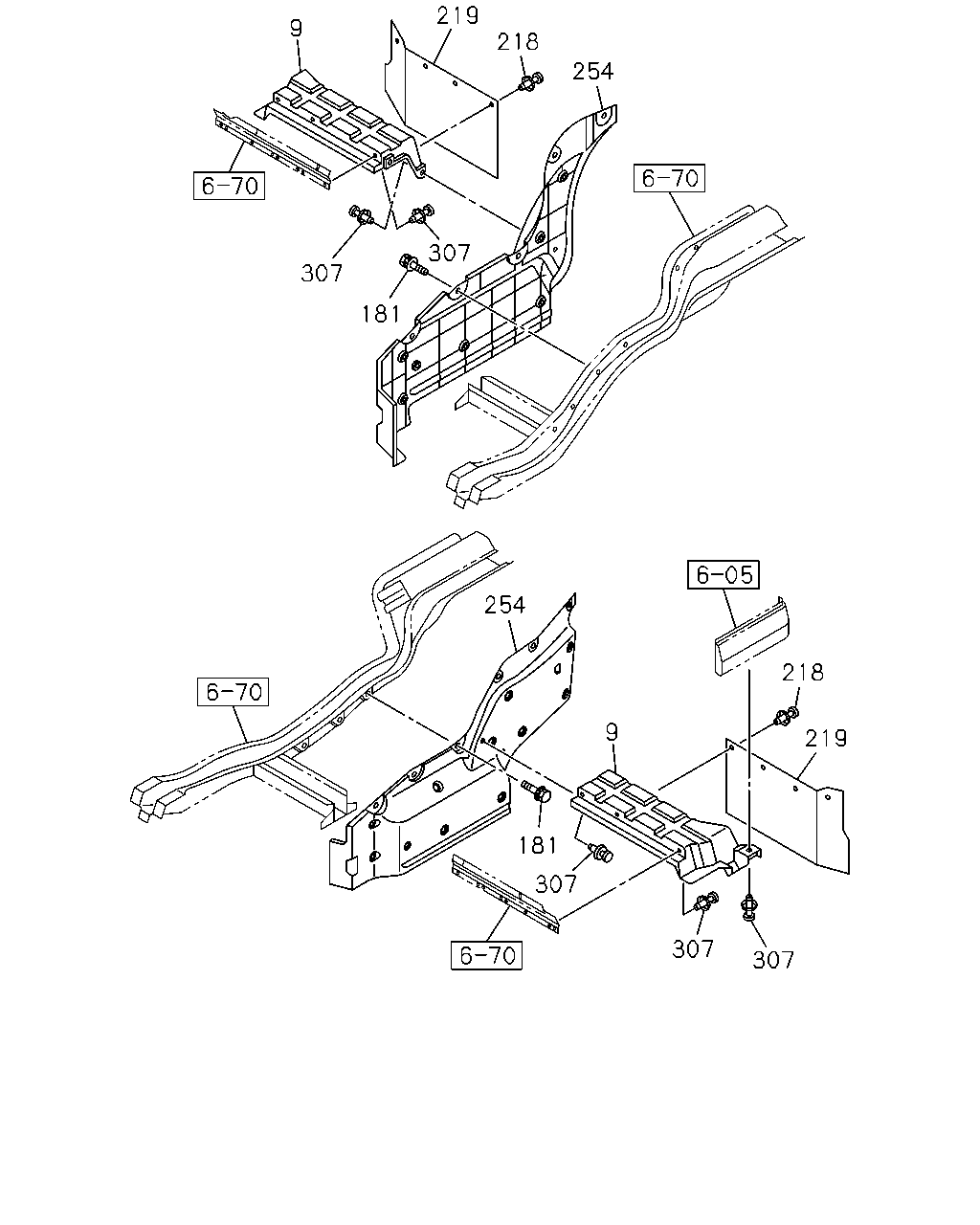

219
218
254
307
181
307
254
9
218
219
307
307
307
181
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-133-1
01
1
1212-
●
●
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-132-1
01
1
1212-
●
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
11
1
1212-
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1212-
●
●
219
FLAP; MUD GUARD
8-97617-139-0
02
1
1212-
●
●
254
COVER; MUD,VALANCE
8-98169-313-0
01
1
1212-
●
●
254
COVER; MUD,VALANCE
8-97617-143-1
01
1
1212-
●
●
307
RETAINER
D8X13.5
1-09987-248-1
12
1
1212-
●
●

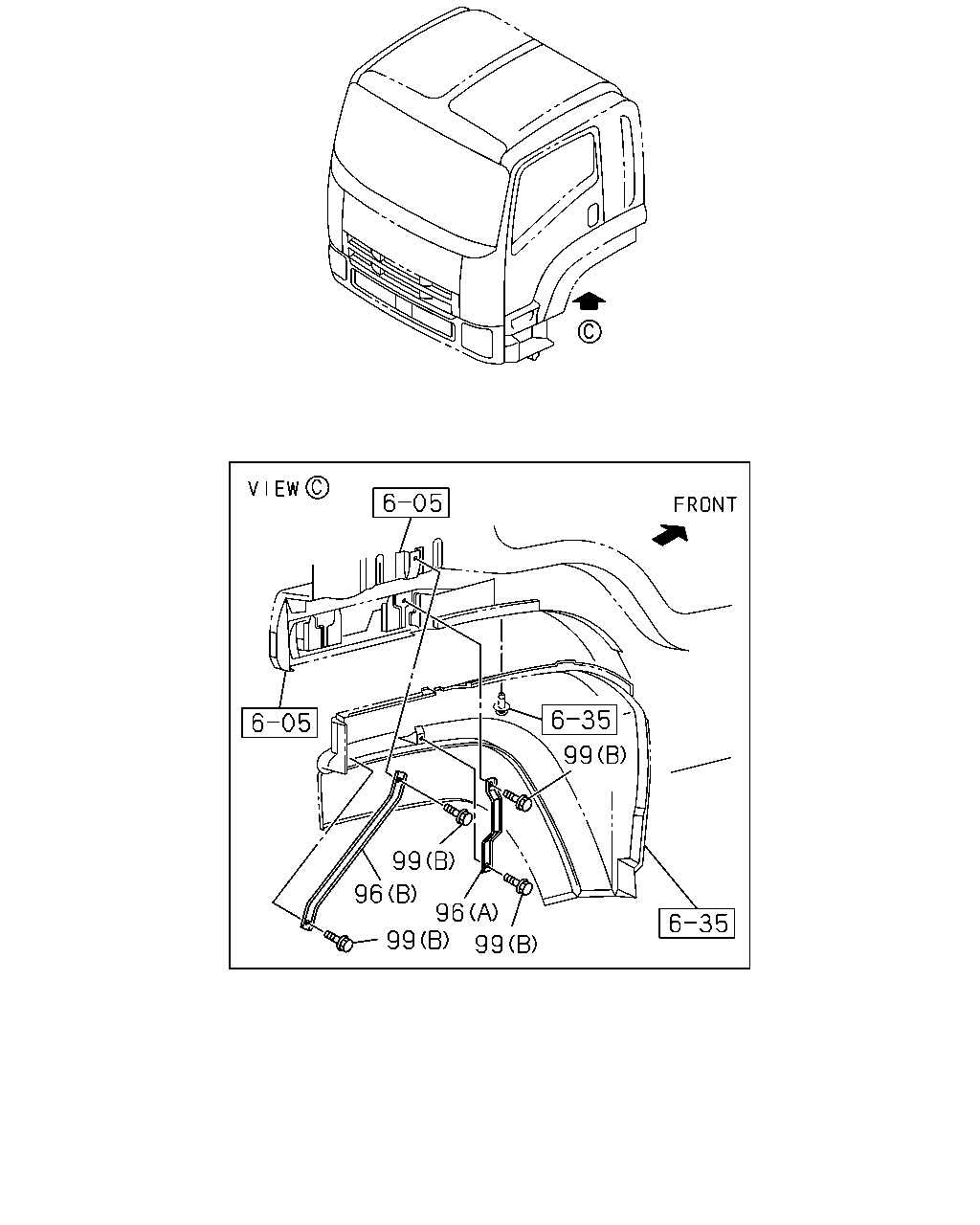

99
96
96
99
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
STAY; MUD GUARD
(A)
8-98057-075-0
02
1
1212-
●
●
96
STAY; MUD GUARD
(B)
8-98082-316-0
02
1
1212-
●
●
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE
0-28650-616-0
08
1
1212-
●
●
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE
0-28050-825-0
01
1
1212-
●
●
