Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#111152) — 248 parça

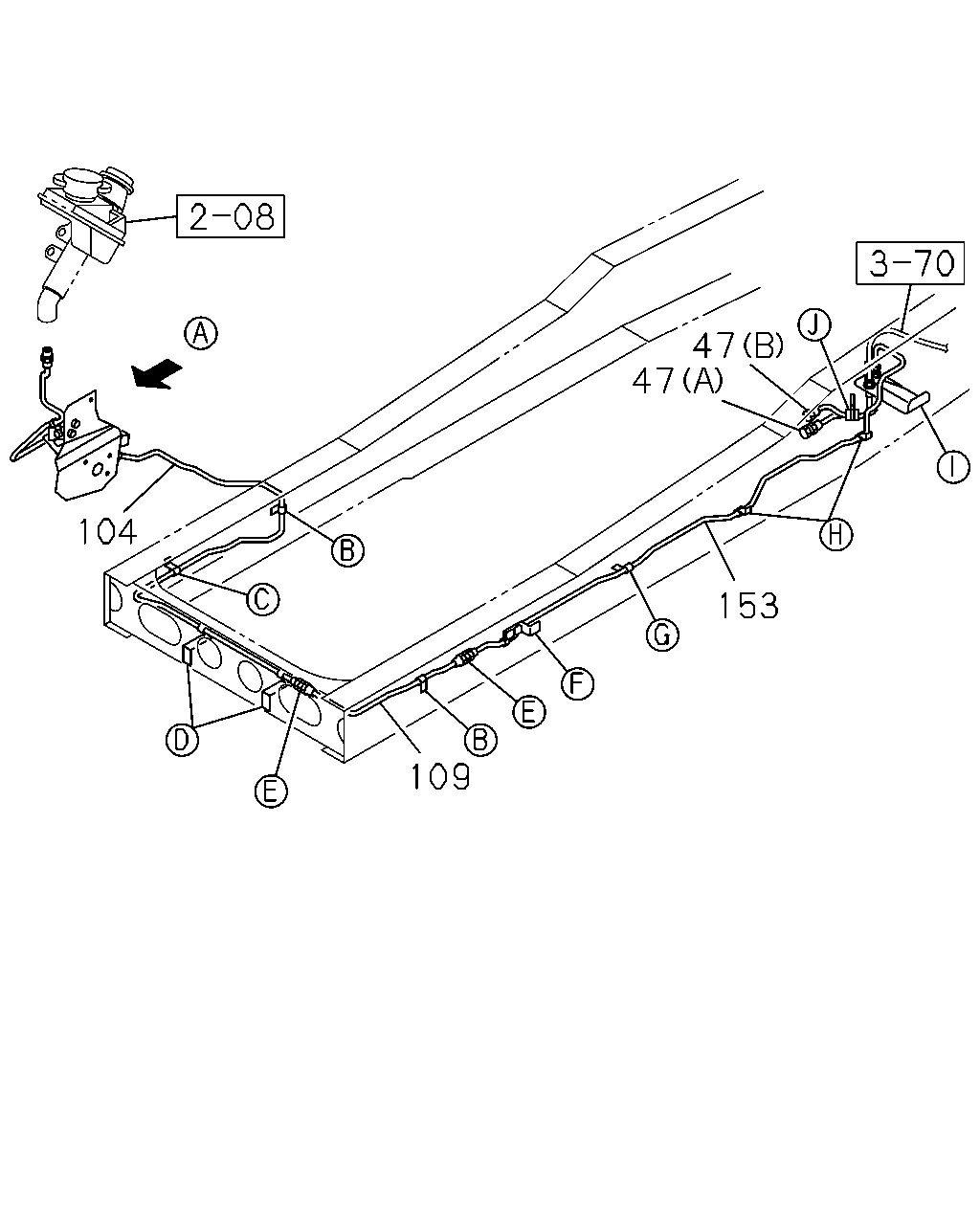

104 109 153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1212-1311	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1312-	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1212-1311	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1312-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580	1-09363-692-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620	8-98072-333-0	01	1	1212-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-FULLER RTO11908(Y5L) L=1740 SERVICED BY L=1800	1-47428-768-0	01	1	1212-1311	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1740 SERVICED BY L=1800	1-47428-768-0	01	1	1212-1311		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) L=1740 SERVICED BY L=1800	1-47428-768-0	01	1	1312-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) L=1740 SERVICED BY L=1800	1-47428-768-0	01	1	1312-		●
109	PIPE; AIR,UNION TO UNION TRANSMISSION-FULLER RTO11908(Y5L) L=1682 SERVICED BY L=1700	1-47428-767-0	01	1	1212-1311	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1682 SERVICED BY L=1700	1-47428-767-0	01	1	1212-1311		●
109	PIPE; AIR,UNION TO UNION TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) L=1682 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) L=1682 SERVICED BY L=1700	1-47428-767-0	01	1	1312-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1631 SERVICED BY L=1700	1-47428-767-0	01	1	1212-1311	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1631 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1531	8-98214-394-0	01	1	1212-		●

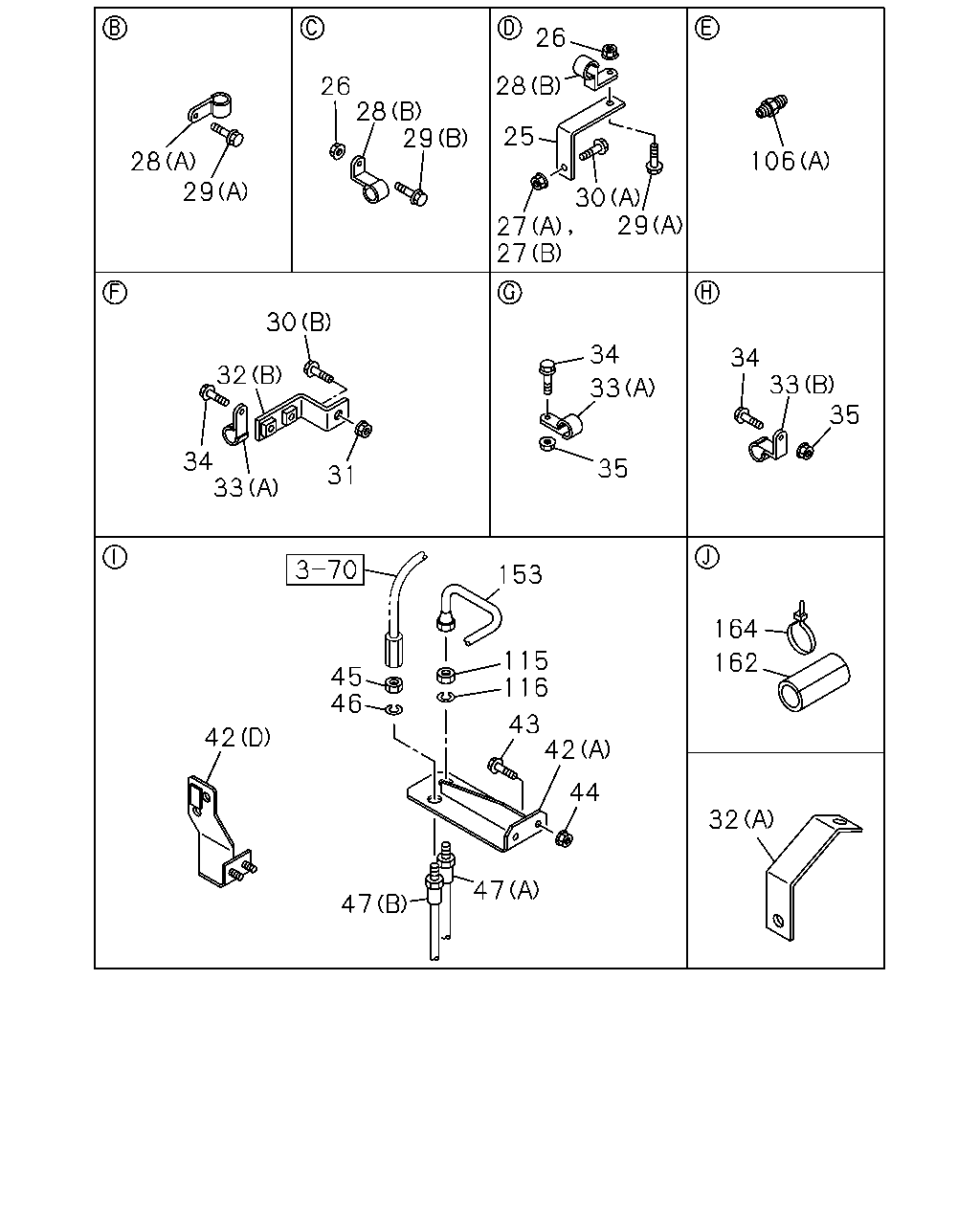

30 42 27 210 207 106 107 210 101 235 16 42 16 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L) ID=16 L=28	1-09700-872-0	03	1	1212-1311	●
16	CLIP; FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=16 L=28	1-09700-872-0	03	1	1212-1311		●
16	CLIP; FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ID=16 L=28	1-09700-872-0	03	1	1312-	●
16	CLIP; FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=16 L=28	1-09700-872-0	03	1	1312-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1212-1311	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1212-1311		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8 FLANGE	0-91180-108-0	01	1	1312-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8 FLANGE	0-91180-108-0	01	1	1312-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (B) M10 FLANGE	0-91180-210-0	03	1	1212-1311	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M10 FLANGE	0-91180-210-0	03	1	1212-1311		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M10 FLANGE	0-91180-210-0	03	1	1312-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) M10 FLANGE	0-91180-210-0	03	1	1312-		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1302	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1302		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (C)	8-98184-114-0	01	1	1212-1311	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C)	8-98184-114-0	01	1	1212-1311		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C)	8-98184-114-0	01	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (C)	8-98184-114-0	01	1	1312-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98209-935-0	01	1	1212-1311	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98209-935-0	01	1	1212-1311		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98209-935-0	01	1	1312-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98209-935-0	01	1	1312-1402		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98255-491-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98255-491-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	1212-1311	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	1312-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1212-		●
51	WASHER; LK TRANSMISSION-FULLER RTO11908(Y5L) ID=14.2	0-91510-514-0	01	1	1212-1311	●
51	WASHER; LK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14.2	0-91510-514-0	01	1	1212-1311		●
51	WASHER; LK TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ID=14.2	0-91510-514-0	01	1	1312-	●
51	WASHER; LK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=14.2	0-91510-514-0	01	1	1312-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L)	8-98184-197-0	01	1	1212-1311	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-98184-197-0	01	1	1212-1311		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98184-197-0	01	1	1312-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y)	8-98184-197-0	01	1	1312-		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	02	1	1212-1302	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	02	1	1212-1302		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311	●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311		●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-		●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-09654-191-1	01	1	1212-1311	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-09654-191-1	01	1	1212-1311		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-09654-191-1	01	1	1312-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-09654-191-1	01	1	1312-		●
107	NUT; UNION,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) M14	0-91111-514-0	01	1	1212-1311	●
107	NUT; UNION,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M14	0-91111-514-0	01	1	1212-1311		●
107	NUT; UNION,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14	0-91111-514-0	01	1	1312-	●
107	NUT; UNION,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M14	0-91111-514-0	01	1	1312-		●
207	BOLT; CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8X20 FLANGE	0-28650-820-0	01	1	1212-1311	●
207	BOLT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8X20 FLANGE	0-28650-820-0	01	1	1212-1311		●
207	BOLT; CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8X20 FLANGE	0-28650-820-0	01	1	1312-	●
207	BOLT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8X20 FLANGE	0-28650-820-0	01	1	1312-		●
210	NUT; CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	1212-1311	●
210	NUT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	1212-1311		●
210	NUT; CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	03	1	1312-	●
210	NUT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	03	1	1312-		●
235	GASKET; FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1212-1311	●
235	GASKET; FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=10.2 OD=16.0	9-09571-410-0	01	1	1212-1311		●
235	GASKET; FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ID=10.2 OD=16.0	9-09571-410-0	01	1	1312-	●
235	GASKET; FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=10.2 OD=16.0	9-09571-410-0	01	1	1312-		●

28 26 29 28 26 29 28 27 30 25 27 29 106 32 30 34 31 33 42 45 46 153 115 116 43 42 44 47 47 34 35 33 164 162 32 34 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L)	8-98123-057-0	01	1	1212-1311	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-98123-057-0	01	1	1212-1311		●
25	BRACKET; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98123-057-0	01	1	1312-	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y)	8-98123-057-0	01	1	1312-		●
26	NUT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311		●
26	NUT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1212-1311	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1212-1311		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8 FLANGE	0-91180-108-0	01	1	1312-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8 FLANGE	0-91180-108-0	01	1	1312-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (B) M10 FLANGE	0-91180-210-0	03	1	1212-1311	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M10 FLANGE	0-91180-210-0	03	1	1212-1311		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M10 FLANGE	0-91180-210-0	03	1	1312-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) M10 FLANGE	0-91180-210-0	03	1	1312-		●
28	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	03	1	1212-1311	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	03	1	1212-1311		●
28	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=9 L=20	0-95234-835-0	03	1	1312-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=9 L=20	0-95234-835-0	03	1	1312-		●
28	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1212-1311	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1212-1311		●
28	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1312-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1312-		●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	03	1	1212-1311	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	03	1	1212-1311		●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X20 FLANGE	0-28650-820-0	03	1	1312-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X20 FLANGE	0-28650-820-0	03	1	1312-		●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311		●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1302	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-1302		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1303-1311		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-		●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M8X25 FLANGE	0-28650-825-0	02	1	1312-		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311		●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X30 FLANGE	0-28650-830-0	01	1	1312-		●
31	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311	●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311		●
31	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-	●
31	NUT; BRKT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-		●
32	BRACKET; CLIP OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-47479-482-0	01	1	1212-1311	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-47479-482-0	01	1	1212-1311		●
32	BRACKET; CLIP OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-47479-482-0	01	1	1312-	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-47479-482-0	01	1	1312-		●
32	BRACKET; CLIP OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98123-057-0	01	1	1212-1311	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98123-057-0	01	1	1212-1311		●
32	BRACKET; CLIP OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98123-057-0	01	1	1312-	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98123-057-0	01	1	1312-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	1212-1311	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	1212-1311		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=9 L=20	0-95234-835-0	04	1	1312-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=9 L=20	0-95234-835-0	04	1	1312-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1212-1311	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1212-1311		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1312-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1312-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8X20 FLANGE	0-28650-820-0	04	1	1212-1311	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8X20 FLANGE	0-28650-820-0	04	1	1212-1311		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8X20 FLANGE	0-28650-820-0	04	1	1312-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8X20 FLANGE	0-28650-820-0	04	1	1312-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8X30 FLANGE	0-28650-830-0	01	1	1212-1311		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8X30 FLANGE	0-28650-830-0	01	1	1312-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8X30 FLANGE	0-28650-830-0	01	1	1312-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8X35 FLANGE	0-28650-835-0	02	1	1212-1311	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8X35 FLANGE	0-28650-835-0	02	1	1212-1311		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8X35 FLANGE	0-28650-835-0	02	1	1312-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8X35 FLANGE	0-28650-835-0	02	1	1312-		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	05	1	1212-1311	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	05	1	1212-1311		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	05	1	1312-	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	05	1	1312-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (C)	8-98184-114-0	01	1	1212-1311	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C)	8-98184-114-0	01	1	1212-1311		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C)	8-98184-114-0	01	1	1312-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (C)	8-98184-114-0	01	1	1312-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98209-935-0	01	1	1212-1311	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98209-935-0	01	1	1212-1311		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98209-935-0	01	1	1312-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98209-935-0	01	1	1312-1402		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98255-491-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98255-491-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	1212-1311	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	1312-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1212-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTO11908(Y5L) M8X30 FLANGE	0-28650-830-0	02	1	1212-1311	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8X30 FLANGE	0-28650-830-0	02	1	1212-1311		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8X30 FLANGE	0-28650-830-0	02	1	1312-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8X30 FLANGE	0-28650-830-0	02	1	1312-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1212-1311		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE	0-91180-108-0	02	1	1312-		●
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	1212-1311	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	1212-1311		●
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M12	9-09840-280-0	01	1	1312-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M12	9-09840-280-0	01	1	1312-		●
46	WASHER; LK,FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	1212-1311	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	1212-1311		●
46	WASHER; LK,FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ID=12.2	0-91510-512-0	01	1	1312-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=12.2	0-91510-512-0	01	1	1312-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1212-1311	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1312-	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1212-1311	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1312-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580	1-09363-692-0	01	1	1212-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620	8-98072-333-0	01	1	1212-		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	02	1	1212-1302	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	02	1	1212-1302		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311	●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311		●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1303-1311		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-		●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) M14 STRAIGHT	0-92113-008-0	01	1	1312-		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-09654-191-1	01	1	1212-1311	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-09654-191-1	01	1	1212-1311		●
106	UNION; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-09654-191-1	01	1	1312-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	1-09654-191-1	01	1	1312-		●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) M14	0-91111-514-0	01	1	1212-1311	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M14	0-91111-514-0	01	1	1212-1311		●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M14	0-91111-514-0	01	1	1312-	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M14	0-91111-514-0	01	1	1312-		●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ID=14.2	0-91510-514-0	01	1	1212-1311	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=14.2	0-91510-514-0	01	1	1212-1311		●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ID=14.2	0-91510-514-0	01	1	1312-	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=14.2	0-91510-514-0	01	1	1312-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1631 SERVICED BY L=1700	1-47428-767-0	01	1	1212-1311	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) ENGINE REAR PTO(SV1) L=1631 SERVICED BY L=1700	1-47428-767-0	01	1	1312-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1531	8-98214-394-0	01	1	1212-		●
162	COVER; RUBBER,FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L) L=175	1-09707-178-0	01	1	1212-1311	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=175	1-09707-178-0	01	1	1212-1311		●
162	COVER; RUBBER,FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) L=175	1-09707-178-0	01	1	1312-	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) L=175	1-09707-178-0	01	1	1312-		●
164	CLIP; BAND,FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L) L=350	1-09707-183-0	01	1	1212-1311	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=350	1-09707-183-0	01	1	1212-1311		●
164	CLIP; BAND,FLEX HOSE TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) L=350	1-09707-183-0	01	1	1312-	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) L=350	1-09707-183-0	01	1	1312-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
