◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#111147) — 19 parça
çizim 321010
666 333
BalonParca AdiParca NoAdetTipApplied Date
333 09.277 RELAY; MARKER LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1212-
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1212-1402
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1212-

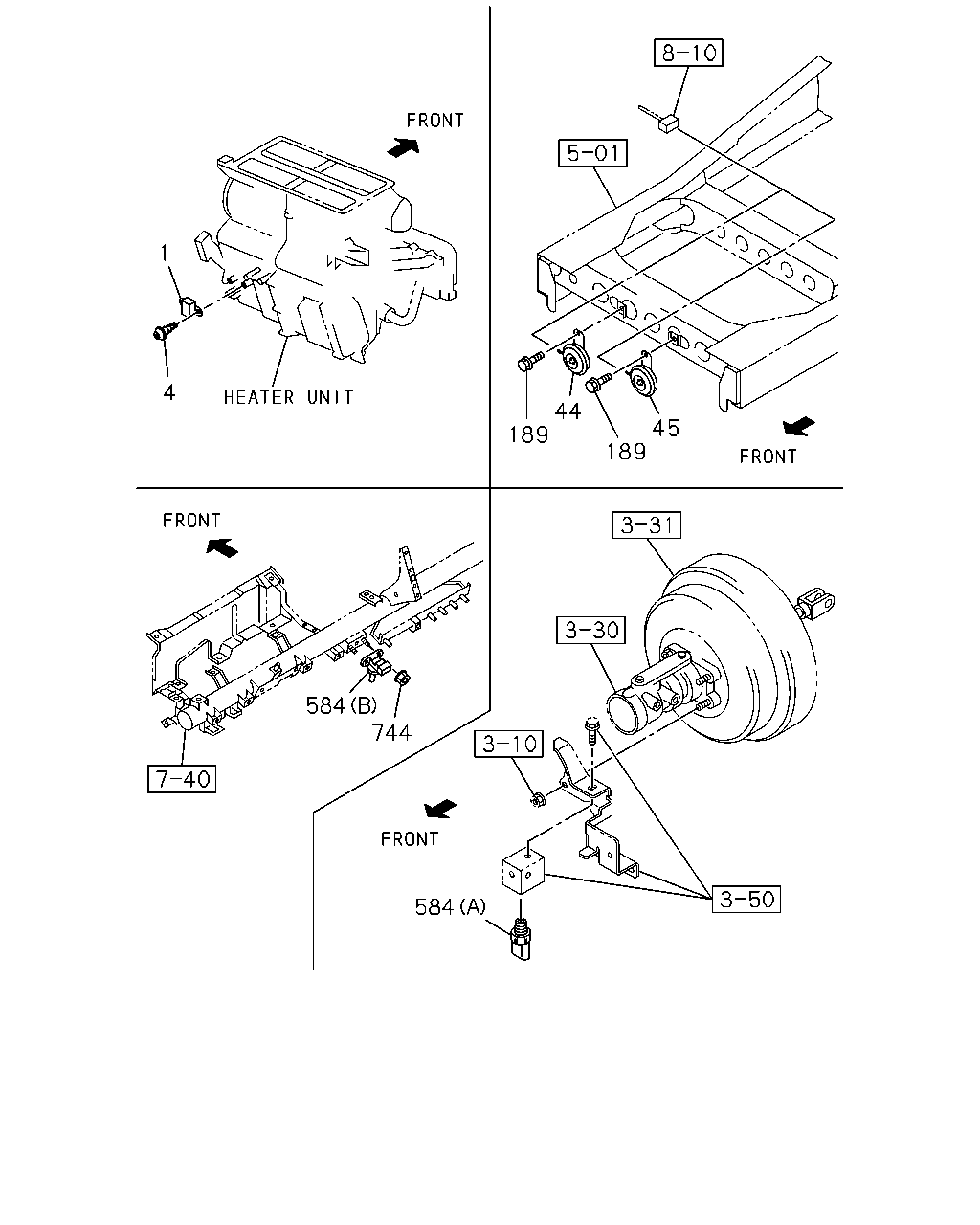

çizim 321820
1 4 584 744 584 189 44 189 45
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 1-83470-057-0 01 1 1212-
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1212-1212
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
44 02.810 HORN; HIGH NOTE 8-98070-080-0 01 1 1212-
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1212-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1212-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1212-
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1212-1402
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
584 02.440 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1212-
584 02.440 SENSOR; PRESSURE
03.331 (B) 		8-98020-514-0 01 1 1212-
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1212-

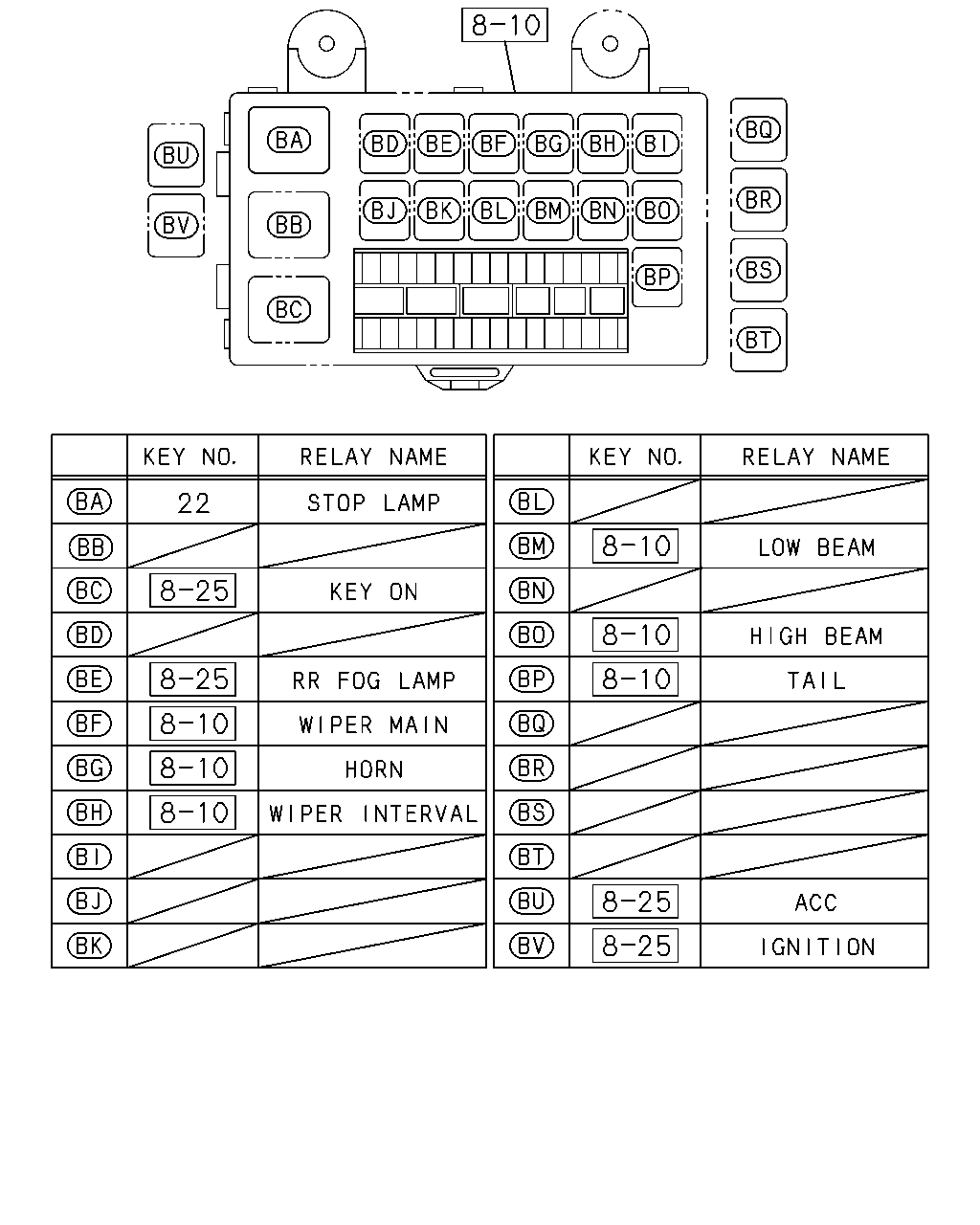

çizim 322833
22
BalonParca AdiParca NoAdetTipApplied Date
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1212-
531 02.769 RELAY; MAIN
02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1212-1402
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403-
