Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#111143) — 71 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀

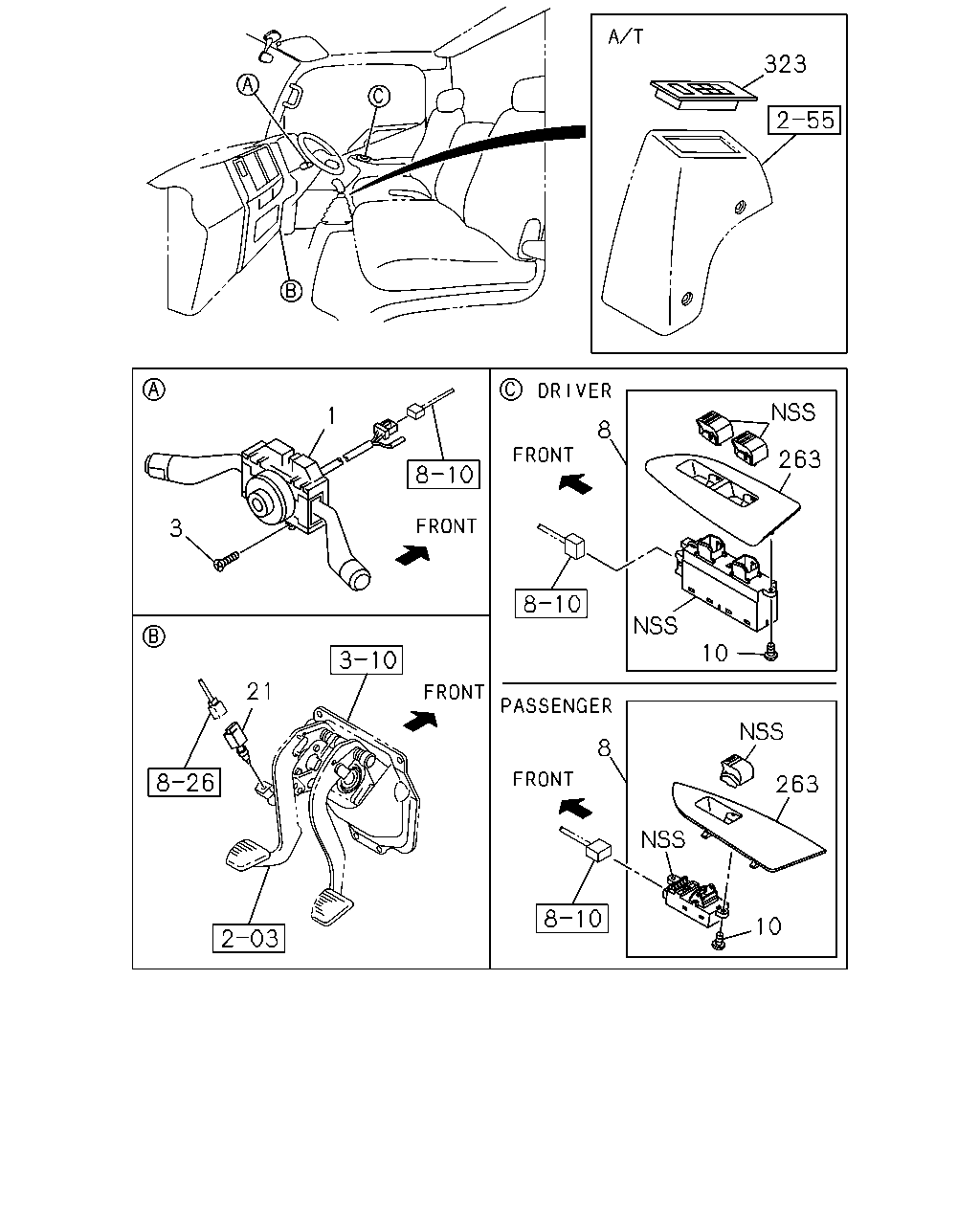

[825A] SWITCH NO.1 (17 parça)

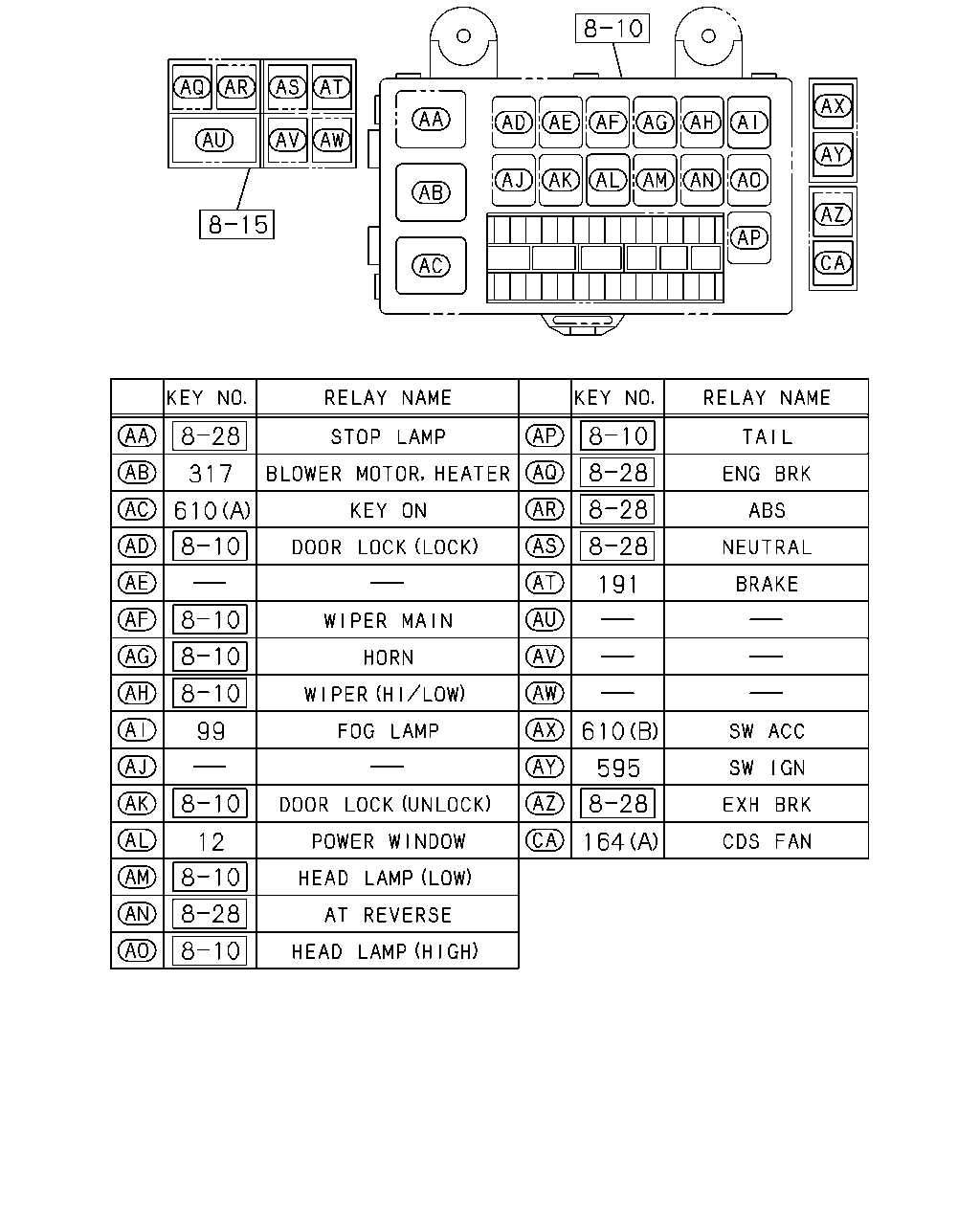

[825A] RELAY; CAB HARNESS (10 parça)

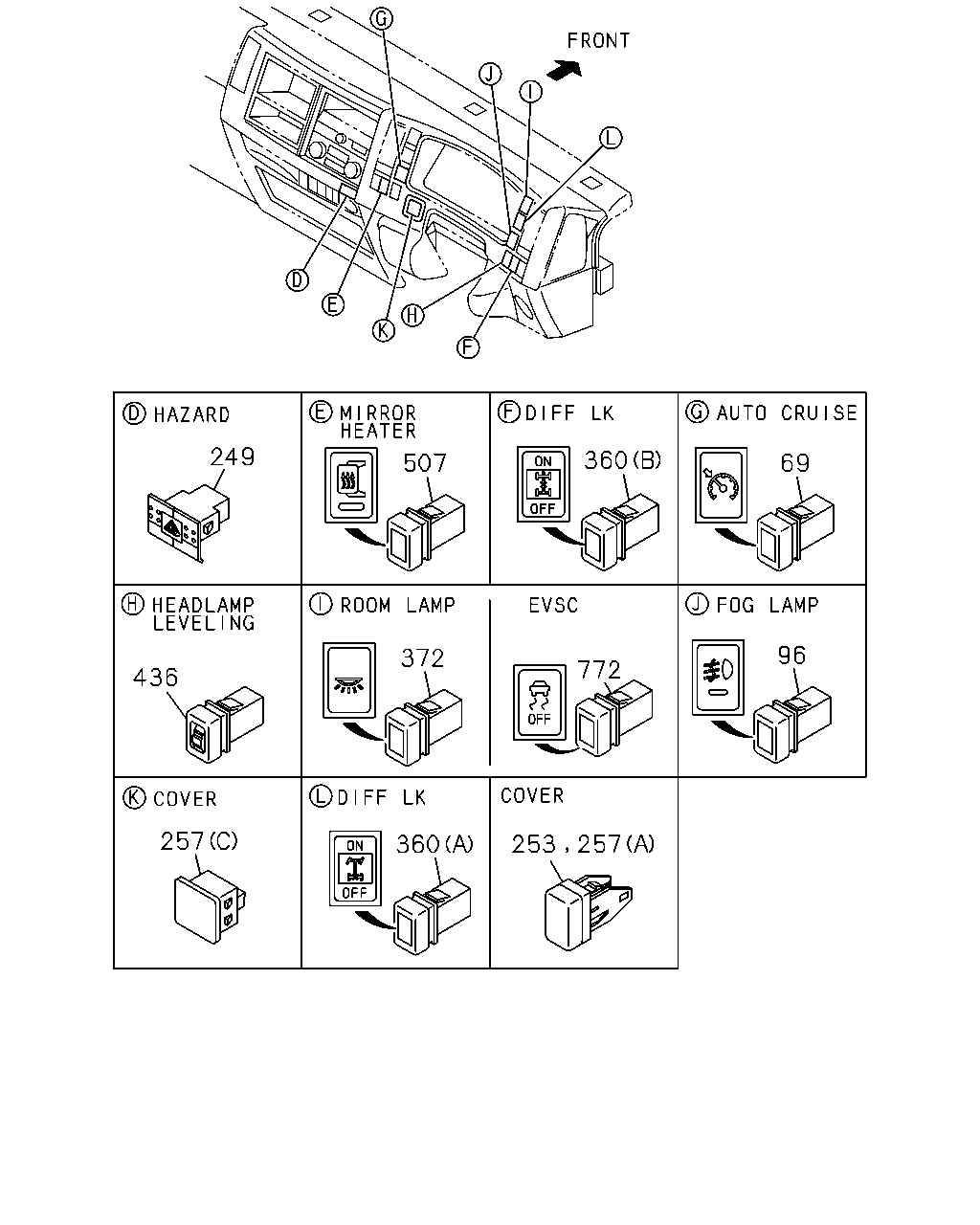

[825A] SWITCH NO.2 (15 parça)

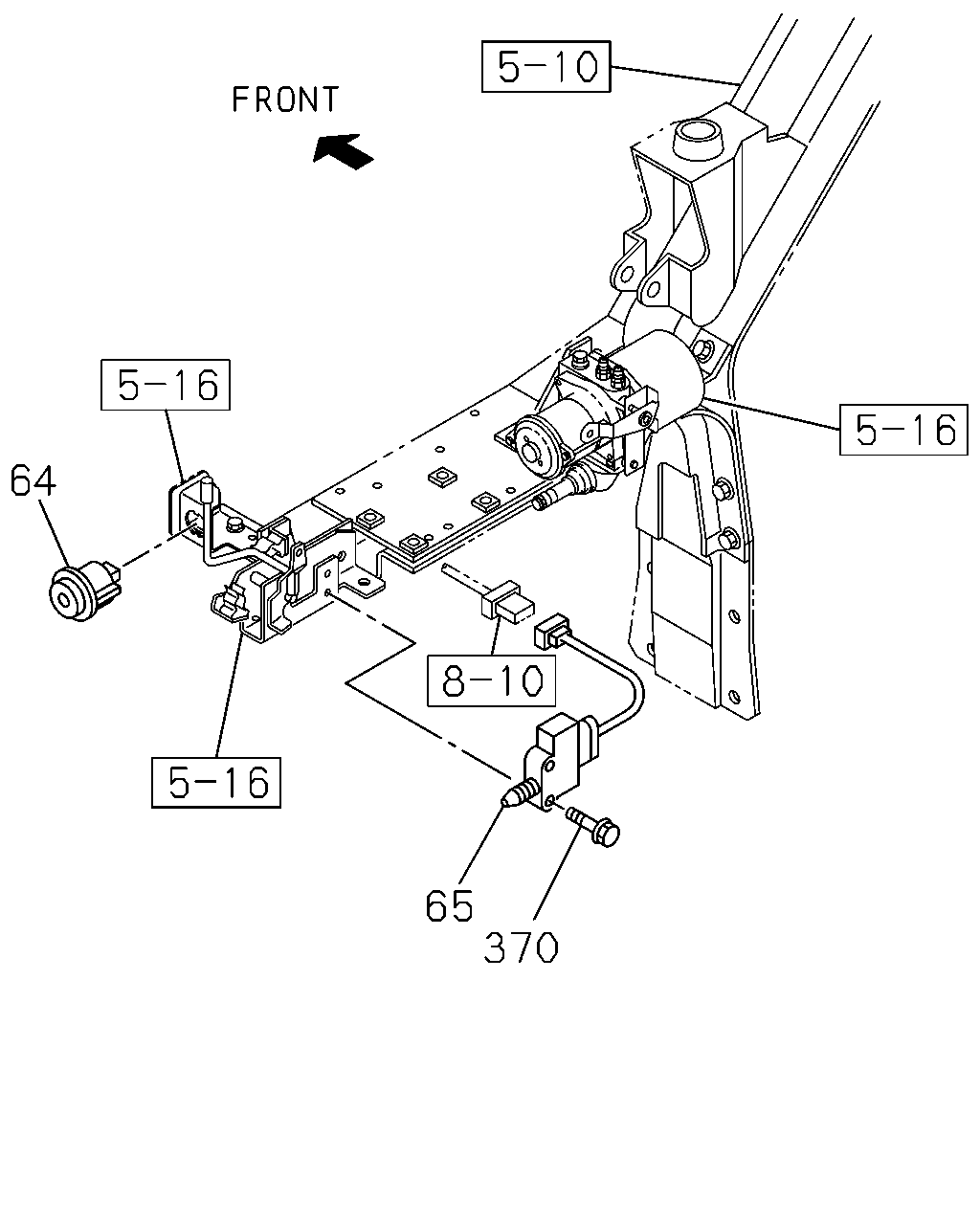

[825A] SWITCH NO.4 (3 parça)
[825A] RELAY; FRAME HARNESS (2 parça)
[825A] OTHER PARTS (17 parça)

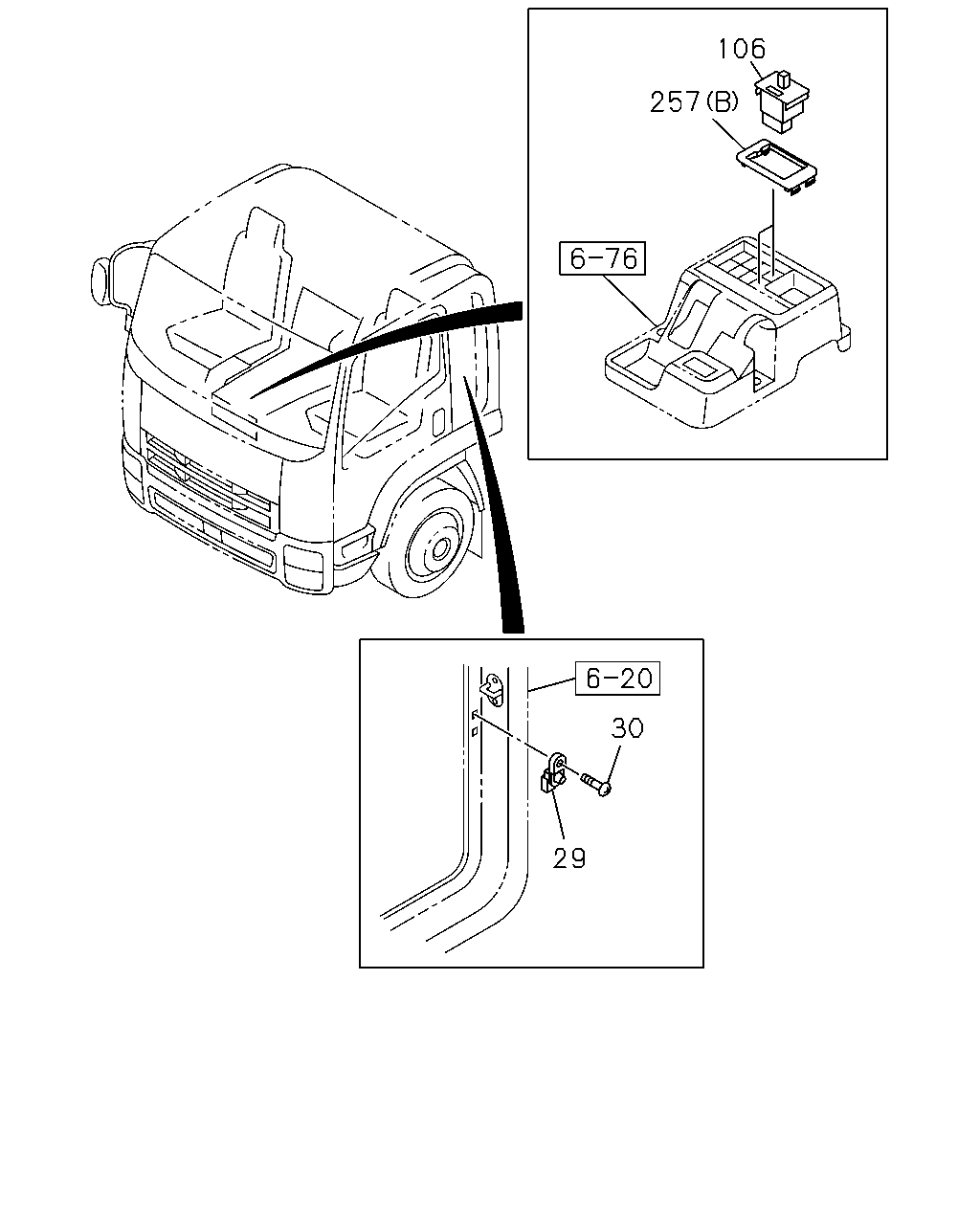

[825A] SWITCH NO.3 (7 parça)
▶
323
1
3
8
263
10
263
10
8
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98217-821-0
01
1
1212-1310
●
●
1
SWITCH; COMB
AUTO CRUISE<K30>
8-98243-692-0
01
1
1311-
●
●
3
SCREW; COMB SW
AUTO CRUISE<K30> M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1212-1511
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1512-
●
●
8
SWITCH; POWER WINDOW
DRIVER
8-98227-828-0
01
1
1212-1509
●
●
8
SWITCH; POWER WINDOW
DRIVER
8-98298-754-0
01
1
1510-
●
●
8
SWITCH; POWER WINDOW
PASSENGER
8-98227-829-0
01
1
1212-1509
●
●
8
SWITCH; POWER WINDOW
PASSENGER
8-98316-423-0
01
1
1510-
●
●
10
SCREW; POWER WINDOW SW
8-98153-865-0
02
1
1512-
●
●
10
SCREW; POWER WINDOW SW
8-98153-865-0
03
1
1212-1511
●
●
10
SCREW; POWER WINDOW SW
8-98153-865-0
01
1
1512-
●
●
21
SWITCH; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A)
8-97358-248-0
01
1
1212-
●
●
263
COVER; SW
DRIVER
8-98153-836-0
01
1
1212-
●
●
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
1212-
●
●
323
SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF>
8-98221-525-0
01
1
1504-
●
●
323
SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V)
8-98143-058-0
01
1
1212-1503
●
●
323
SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF>
8-98143-058-0
01
1
1504-
●
●
317
99
610
12
595
610
191
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1212-
●
●
191
RELAY; EXH BRK CUT
A/T ALLISON 4430(Y5V) 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1212-1302
●
●
317
RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1303-
●
●
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1212-
●
●
249
507
360
69
96
772
372
436
257
360
253
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
69
SWITCH; AUTO CRUISE
AUTO CRUISE<K30>
8-98011-344-1
01
1
1212-
●
●
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
1212-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
1212-
●
●
253
COVER; SW HOLE
8-98025-954-1
02
1
1212-
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
02
1
1212-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
05
1
1212-
●
●
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
1212-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1212-
●
●
360
SWITCH ASM; DIFF LK
(A) L-R
8-97613-963-2
01
1
1212-
●
●
360
SWITCH ASM; DIFF LK
(B) INTER
8-97613-964-1
01
1
1212-
●
●
372
SWITCH; ROOM LAMP
8-97386-917-2
01
1
1212-1511
●
●
372
SWITCH; ROOM LAMP
ANTILOCK BRAKE SYSTEM(BFA)
8-97386-917-2
01
1
1512-
●
●
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
1212-
●
●
507
SWITCH; MIRROR HEATER
8-97386-924-3
01
1
1212-
●
●
772
SWITCH; EVSC
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK)
8-98190-385-1
01
1
1512-
●
64
65
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
1212-
●
●
65
SWITCH; CAB TILT LK
STAMP NO
1-82380-172-1
01
1
1212-
●
●
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
1212-
●
●
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1212-
●
●
666
667
236
397
482
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA)
1-47476-200-0
02
1
1212-
●
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA)
1-47476-200-0
01
1
1212-1511
●
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK)
1-47476-200-0
01
1
1512-
●
237
NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
02
1
1212-
●
237
NUT
M8 FLANGE
0-91180-108-0
04
1
1212-
●
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
02
1
1212-
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE
0-91180-108-0
01
1
1212-1511
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M8 FLANGE
0-91180-108-0
01
1
1512-
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE
0-28650-830-0
02
1
1212-
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE
0-28650-830-0
01
1
1212-1511
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M8X30 FLANGE
0-28650-830-0
01
1
1512-
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20
1-09700-871-0
04
1
1212-
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20
1-09700-871-0
01
1
1212-1511
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) ID=11X2 L=20
1-09700-871-0
01
1
1512-
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE
0-28650-820-0
02
1
1212-
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE
0-28650-820-0
01
1
1212-1511
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M8X20 FLANGE
0-28650-820-0
01
1
1512-
●
106
257
30
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
BLACK
8-98022-211-0
02
1
1212-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
02
1
1212-
●
●
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
1212-
●
●
257
COVER; HOLE,SW
(B)
8-97619-254-1
02
1
1212-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
05
1
1212-
●
●
257
COVER; HOLE,SW
(C)
8-98029-914-1
01
1
1212-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1212-
●
●
