◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#111142) — 14 parça

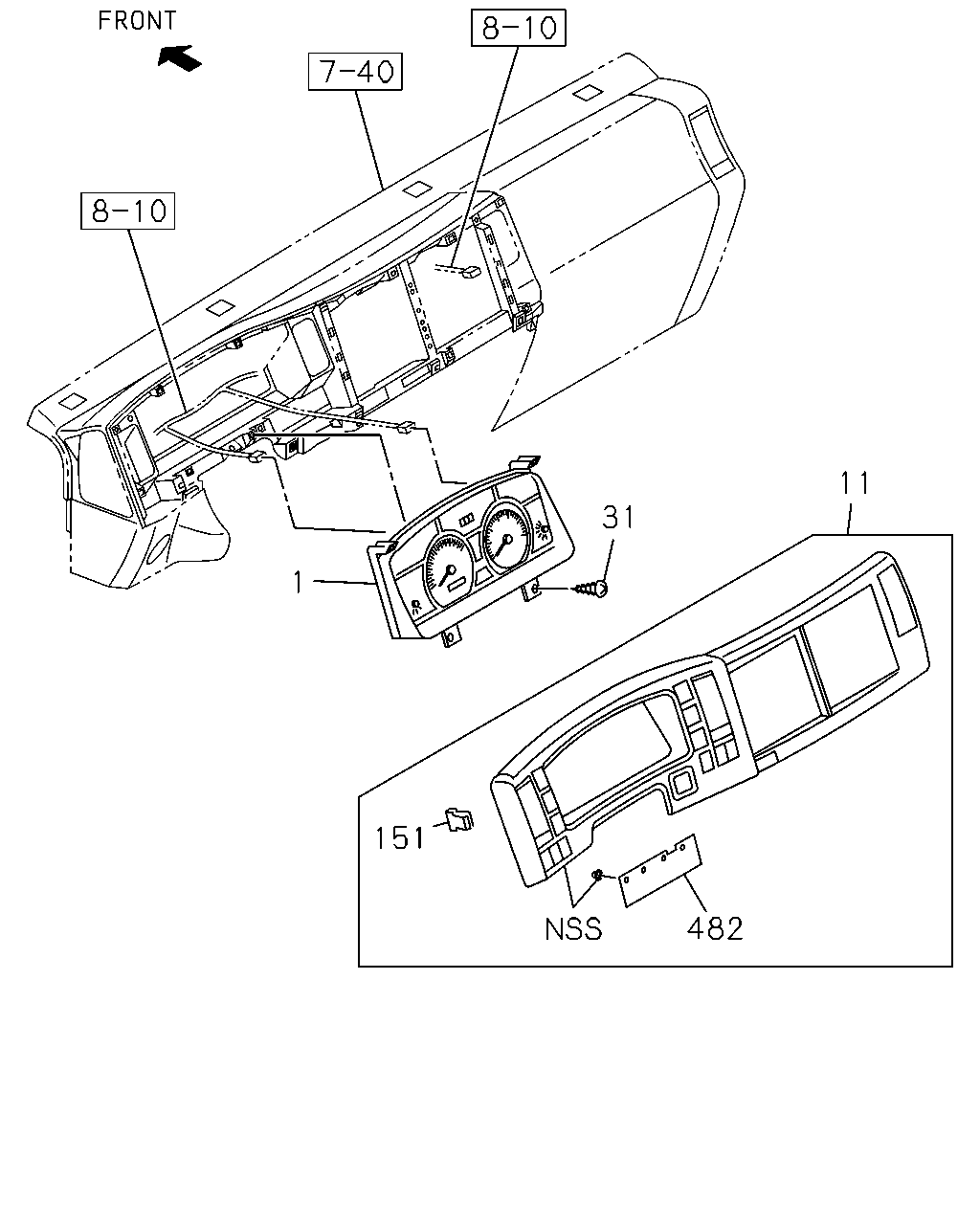

çizim 321879
1 31 11 482 151
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-251-4 01 1 1212-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-249-4 01 1 1212-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1212-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1212-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1212-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1212-

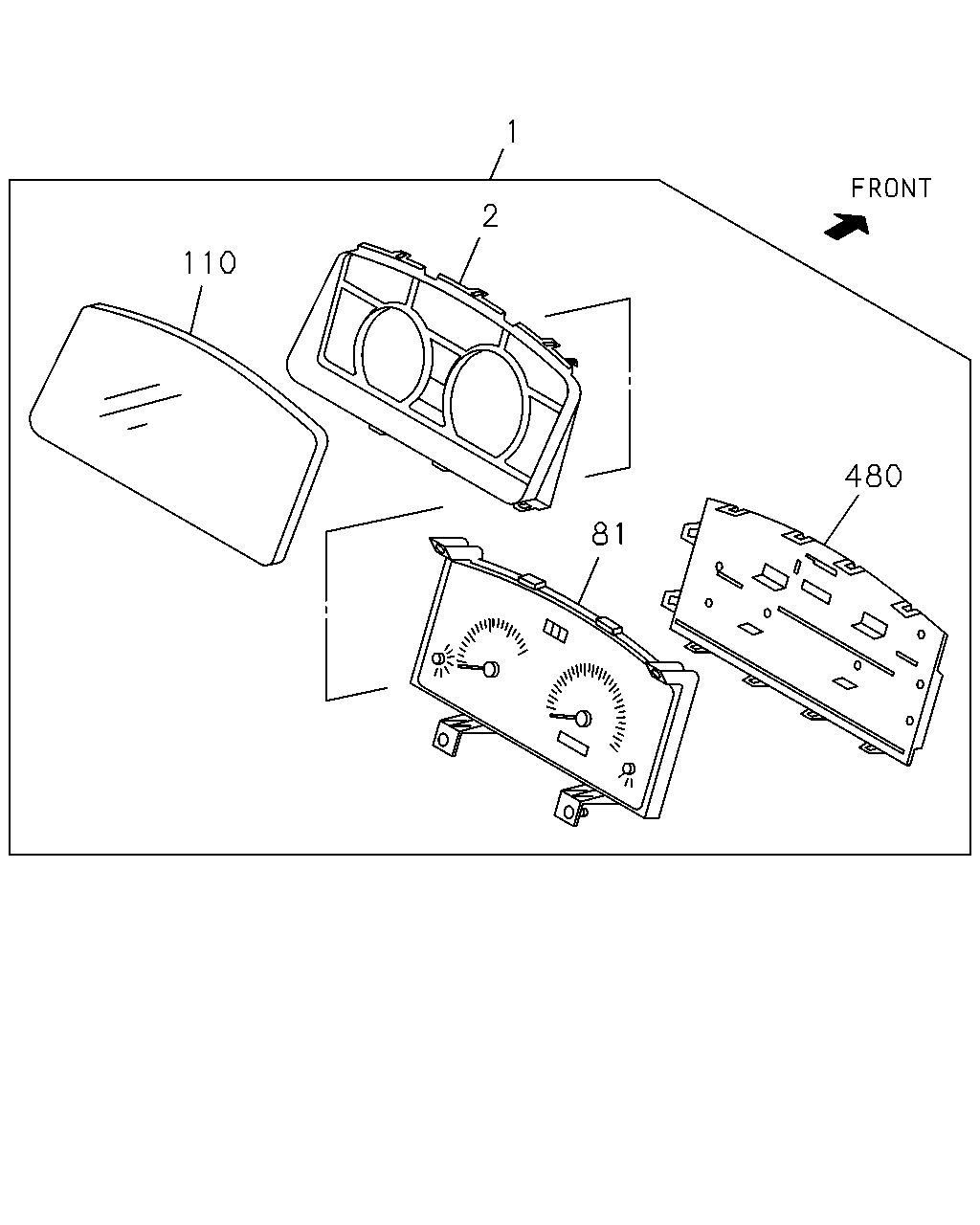

çizim 322812
1 110 2 81 480
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-251-4 01 1 1212-
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-249-4 01 1 1212-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1212-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98073-680-0 01 1 1212-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98073-677-0 01 1 1212-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1212-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1212-
