◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11475 - FRR-L EURO5 EXC.SPAC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#111141) — 22 parça

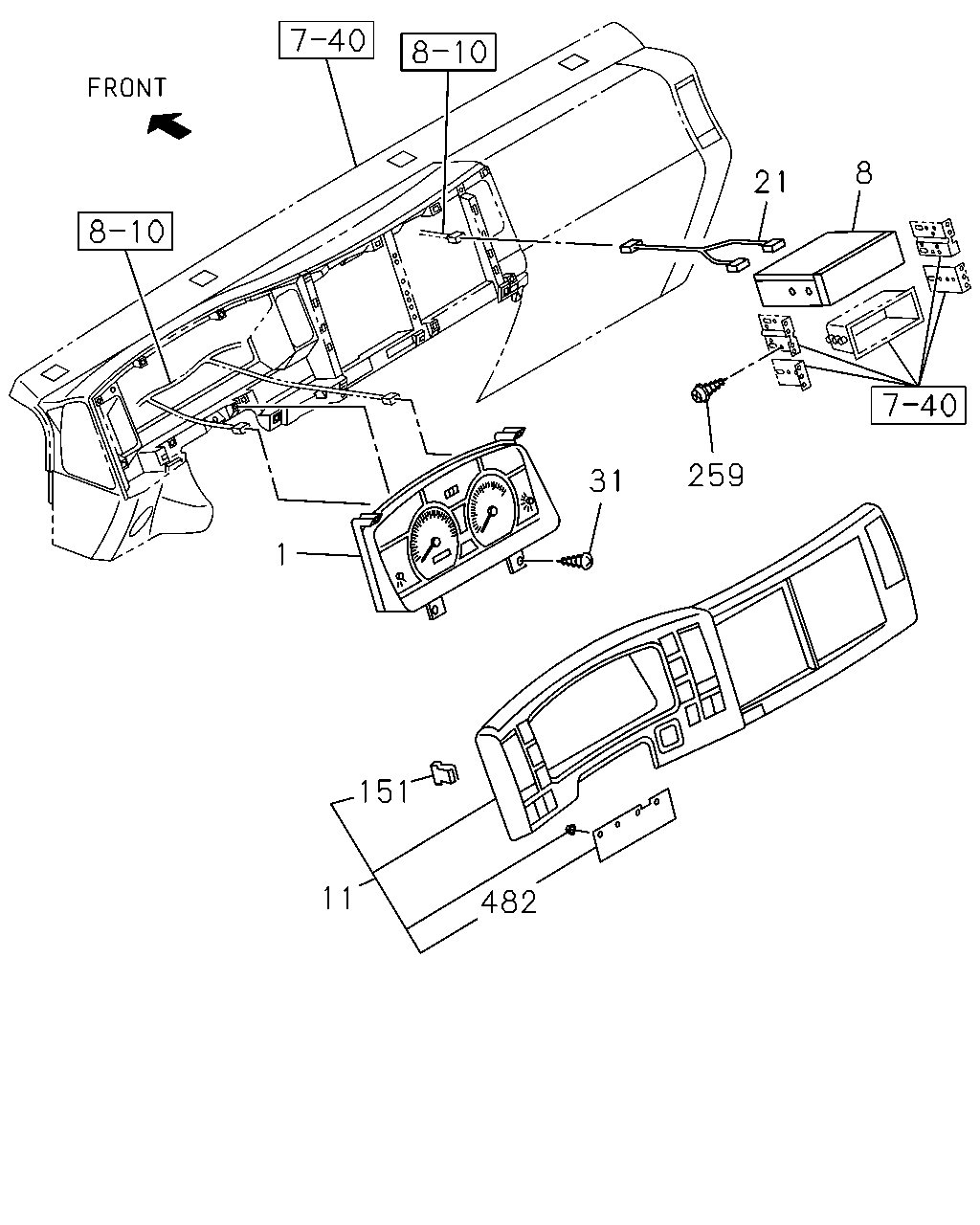

çizim 321849
21 8 259 31 482 11 151 1
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98161-851-1 01 1 1212-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-918-5 01 1 1212-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1212-
11 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1212-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1212-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1212-
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1212-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1212-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1212-

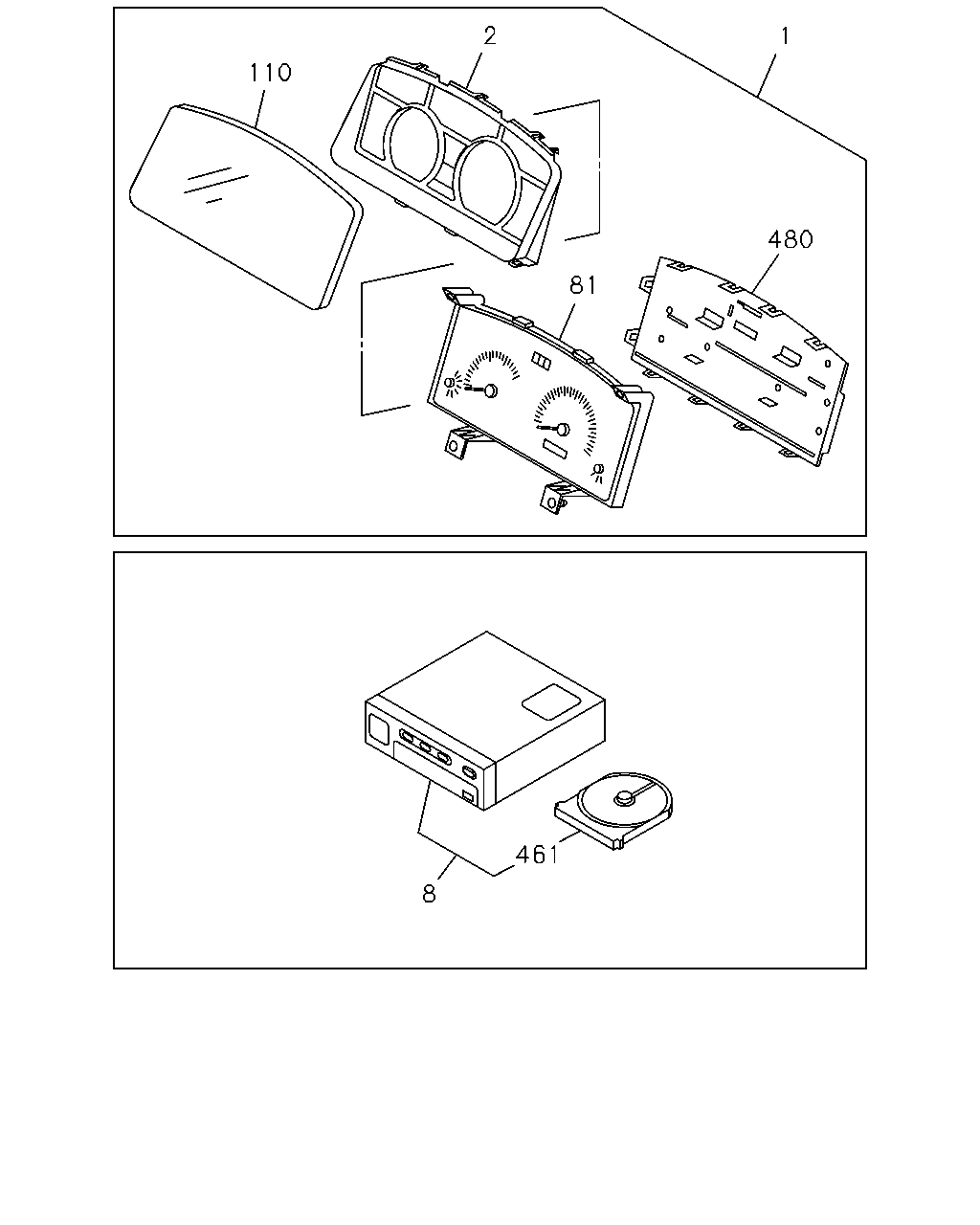

çizim 321880
110 2 1 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98161-851-1 01 1 1212-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-918-5 01 1 1212-
2 PANEL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-432-0 01 1 1212-
2 PANEL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-432-0 01 1 1212-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1212-
81 METER SUB ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98162-024-0 01 1 1212-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-692-0 01 1 1212-
110 GLASS; CLUSTER METER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-431-0 01 1 1212-
110 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-642-0 01 1 1212-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1212-
480 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98054-433-0 01 1 1212-
480 COVER; METER
EXC. MULTI INFORMATION DISPLAY<7NY>,TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98054-433-0 01 1 1212-
480 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
