Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#111138) — 102 parça
◀
[810A] OTHER HARNESS NO.3 (4 parça)
[810A] ENGINE SIDE NO.1 (4 parça)
[810A] ENGINE SIDE NO.2 (2 parça)
[810A] TRANSMISSION SIDE (5 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] CAB HARNESS NO.1 (24 parça)
[810A] CAB HARNESS NO.2 (11 parça)
[810A] FRAME HARNESS NO.1 (24 parça)
[810A] FRAME HARNESS NO.2 (6 parça)
[810A] OTHER HARNESS NO.1 (9 parça)
[810A] OTHER HARNESS NO.2 (7 parça)
[810A] AIR TANK HARNESS (4 parça)
▶
533
486
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98212-811-1
01
1
1212-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98212-810-1
01
1
1212-
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82675-898-0
01
1
1212-
533
CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180
1-09707-162-1
01
1
1212-

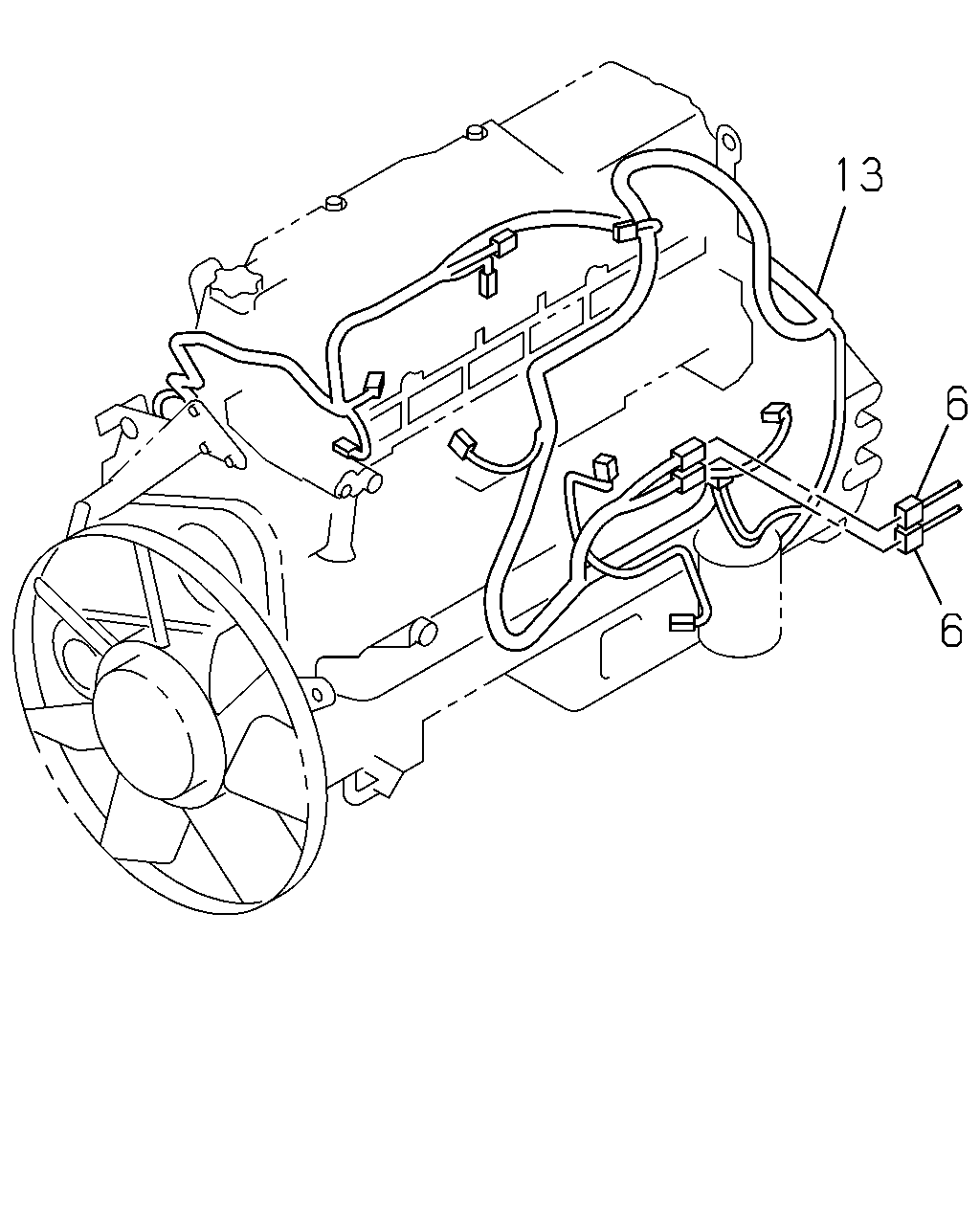

13
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
13
HARNESS; ENG
GENERATOR 24V50A(K89)
8-98177-206-0
01
1
1212-
13
HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)
8-98177-207-0
01
1
1212-

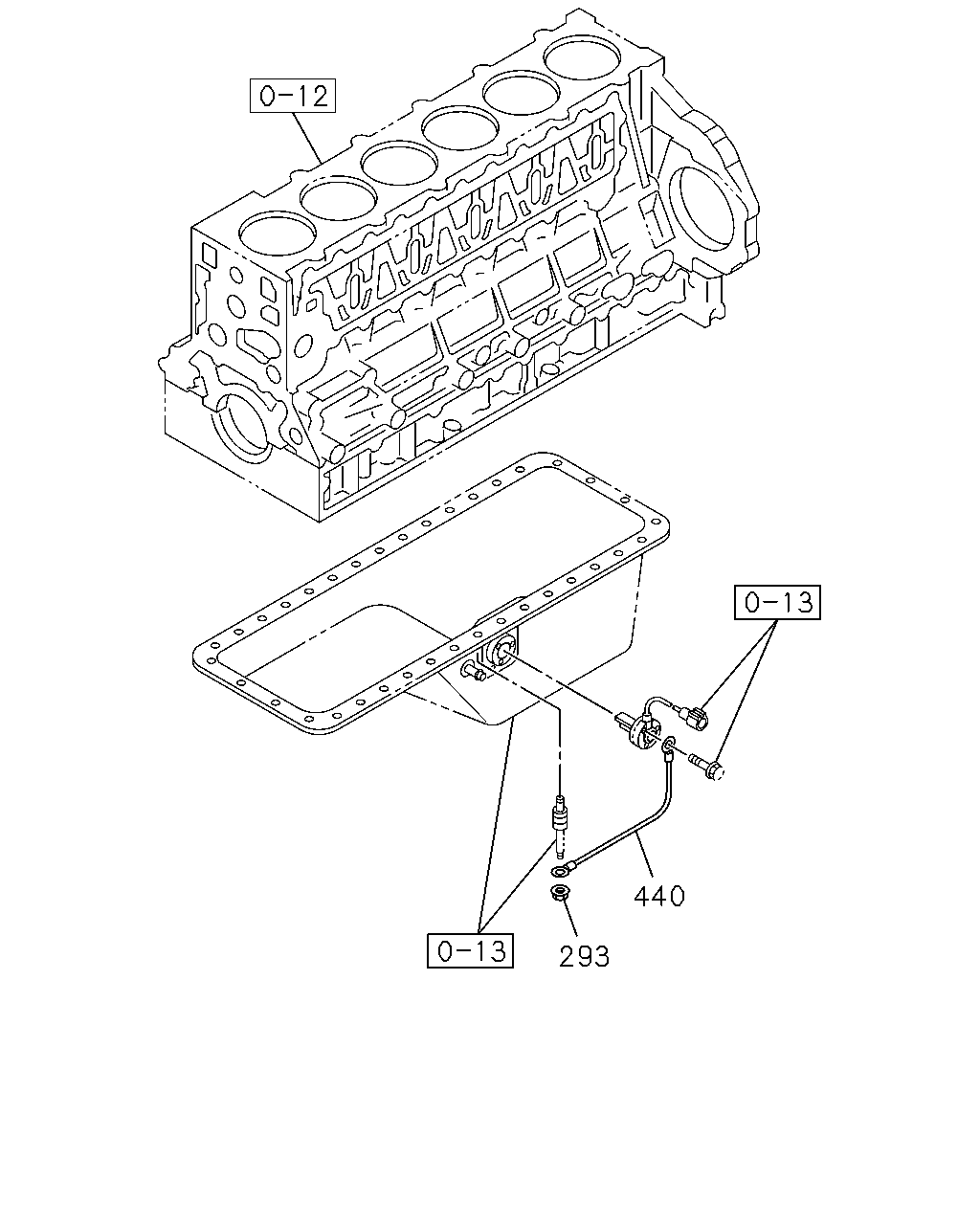

293
440
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
293
NUT
M8 FLANGE
0-91180-108-0
01
1
1212-
440
CABLE; EARTH
8-97606-639-0
01
1
1212-

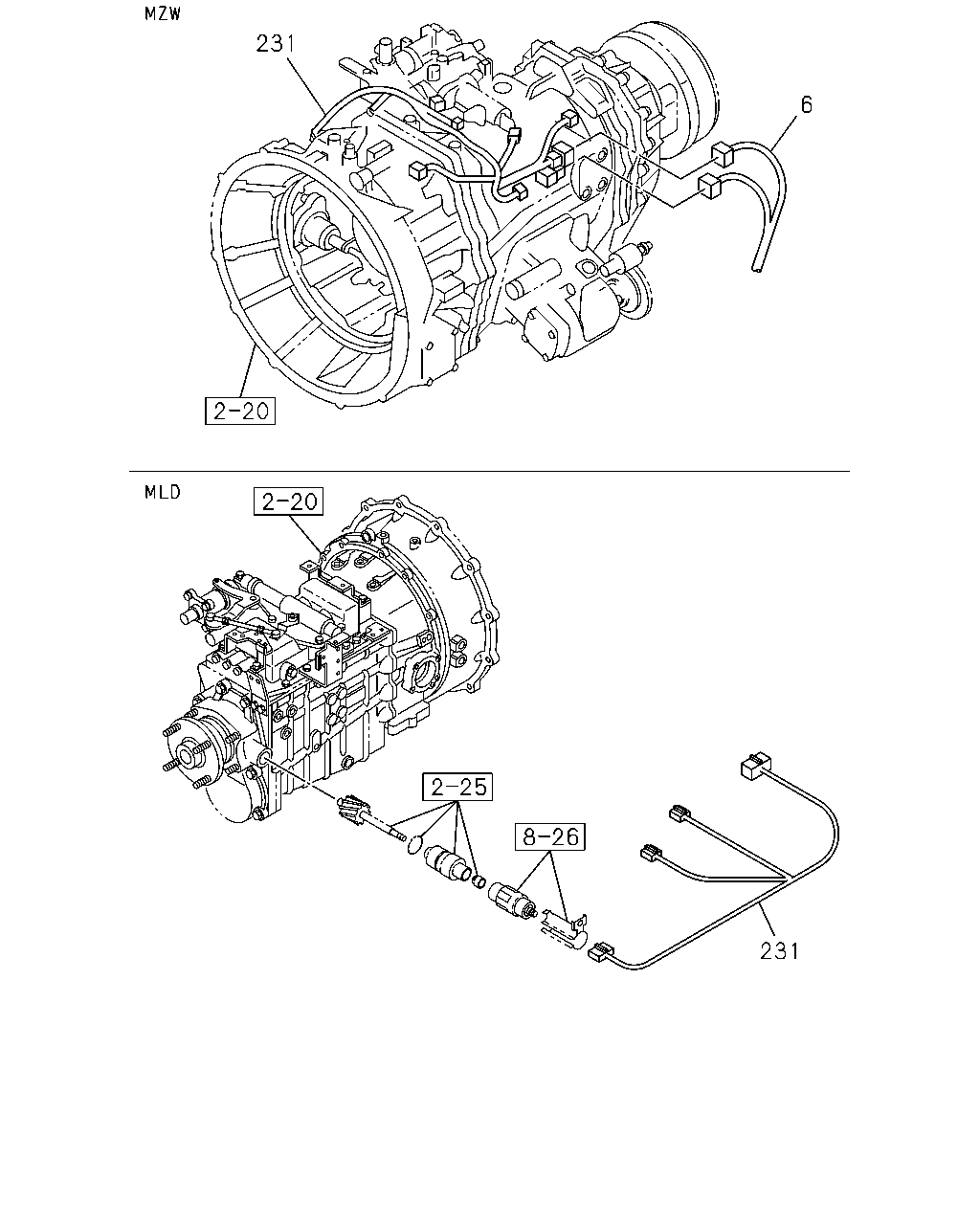

231
6
231
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
231
HARNESS; TRANS
MLD6S M/T(X7W)
8-97626-769-1
01
1
1212-
231
HARNESS; TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97620-317-3
01
1
1212-
231
HARNESS; TRANS
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97618-932-2
01
1
1212-

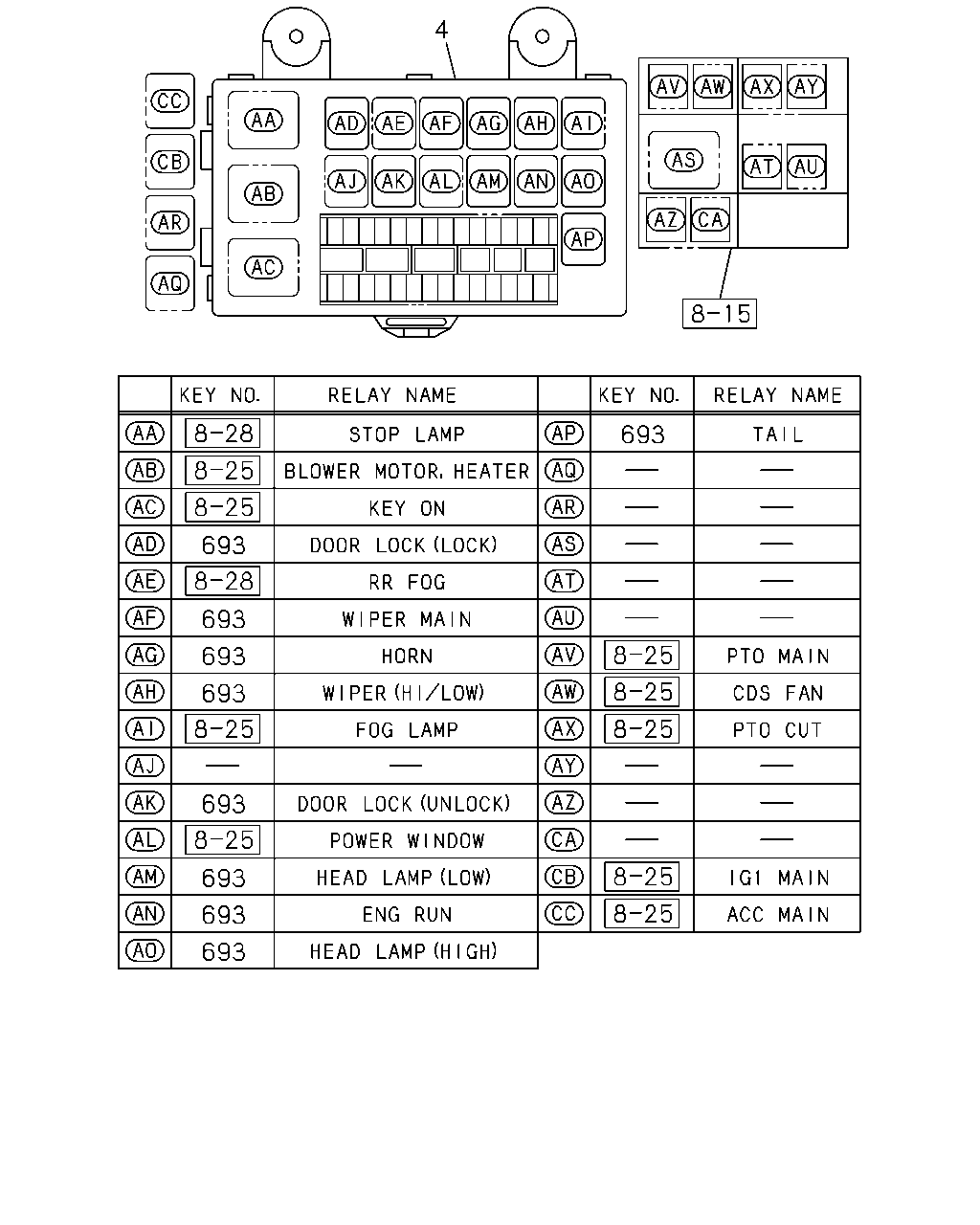

4
693
693
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1212-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1212-

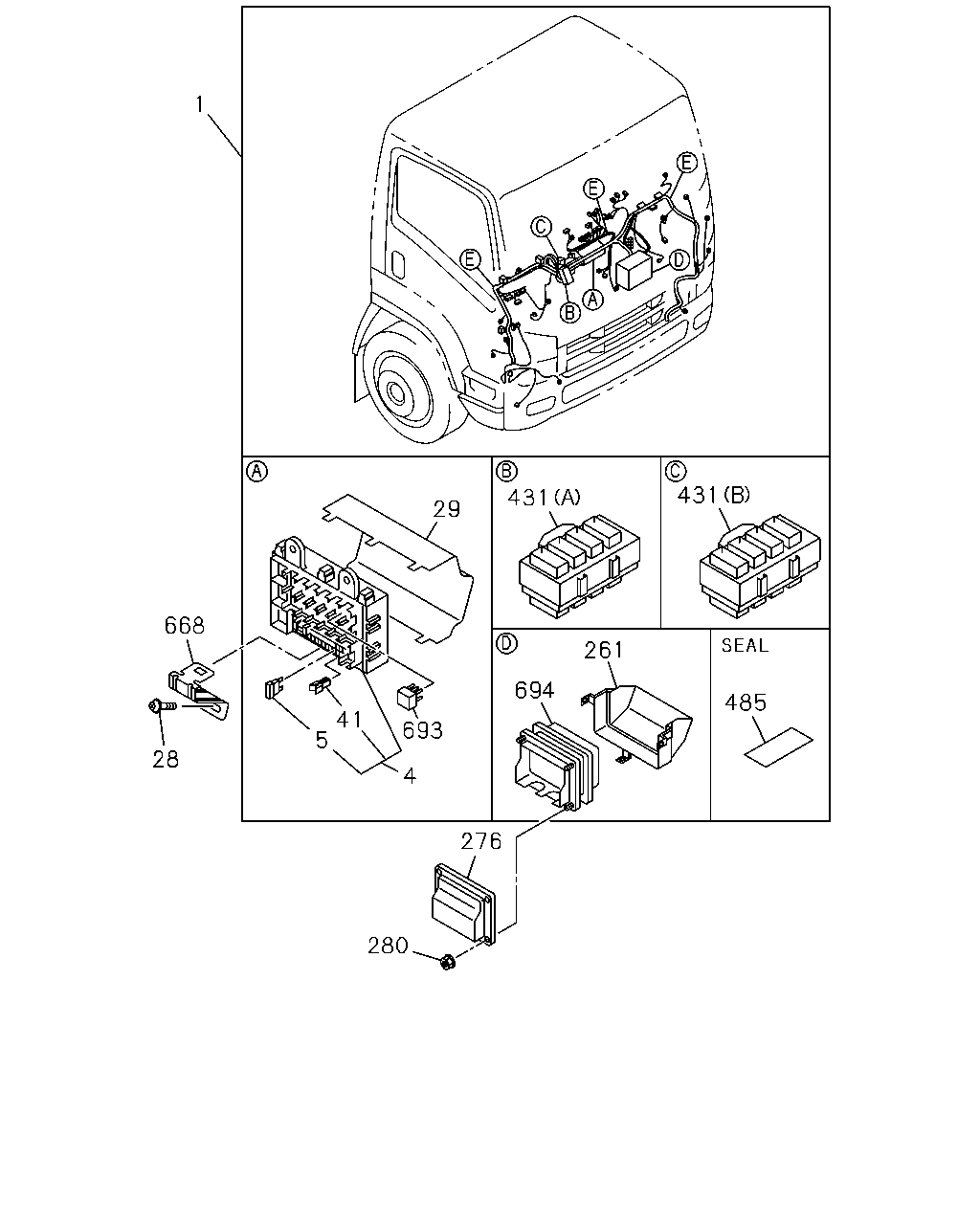

1
668
28
5
4
41
693
276
280
694
485
261
431
431
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98212-811-1
01
1
1212-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98212-810-1
01
1
1212-
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1212-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1212-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1212-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1212-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1212-
28
SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
01
1
1212-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1212-
41
PULLER; FUSE
8-98054-260-0
01
1
1212-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1212-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1212-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1212-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
02
1
1212-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1212-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
04
1
1212-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1212-
431
CONNECTOR; JOINT
(E) 6P BLACK
8-97616-194-0
03
1
1212-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1212-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1212-
485
SEAL; CONNECTOR
180X40
1-72498-019-1
01
1
1212-
668
BRACKET; HARNESS
8-98111-712-1
01
1
1212-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1212-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1212-
1
2
2
431
431
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98212-811-1
01
1
1212-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98212-810-1
01
1
1212-
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
AR
1
1212-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1212-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
02
1
1212-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1212-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
04
1
1212-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1212-
431
CONNECTOR; JOINT
(E) 6P BLACK
8-97616-194-0
03
1
1212-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1212-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1212-

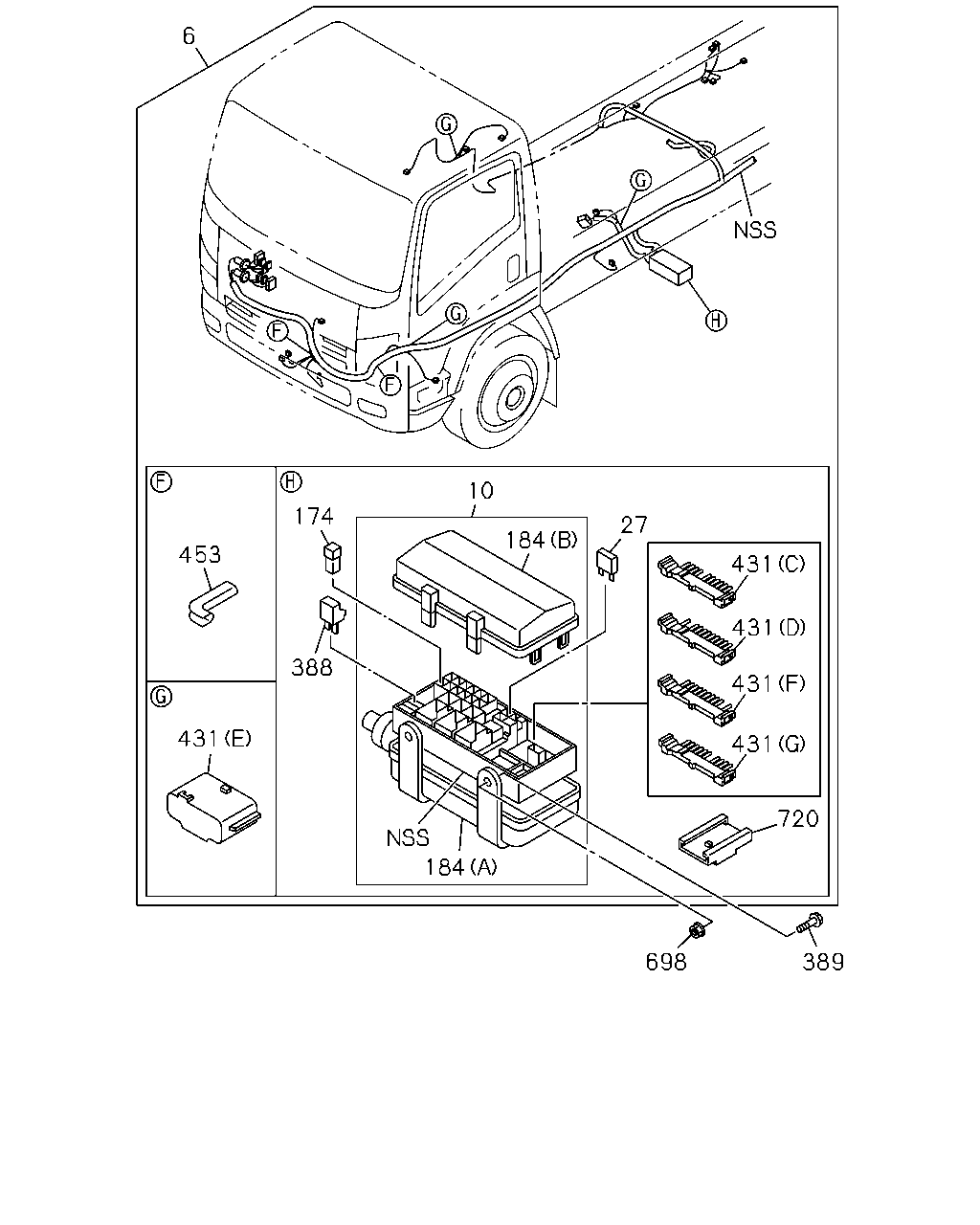

6
174
453
431
388
10
27
184
431
431
431
431
720
389
698
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1212-
27
FUSE UNIT
10A RED
8-98054-257-0
01
1
1212-
27
FUSE UNIT
15A BLUE
8-98054-258-0
02
1
1212-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
01
1
1212-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
02
1
1212-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
02
1
1212-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
02
1
1212-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
03
1
1212-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1212-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-1
01
1
1212-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
01
1
1212-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1212-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82698-579-0
02
1
1212-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
04
1
1212-
431
CONNECTOR; JOINT
(G) 10P GREEN
1-82699-599-0
04
1
1212-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1212-
431
CONNECTOR; JOINT
(E) 6P BLACK
8-97616-194-0
03
1
1212-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1212-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1212-
453
PROTECTOR; HARNESS
1-82699-709-0
02
1
1212-
698
NUT; COVER,RELAY BOX
M8 FLANGE
0-91180-108-0
02
1
1212-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1212-
9
9
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
9
HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W)
8-98168-579-0
01
1
1212-
9
HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W)
8-98168-595-0
01
1
1212-
9
HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W)
8-98168-583-0
01
1
1212-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W)
8-98168-585-0
01
1
1212-

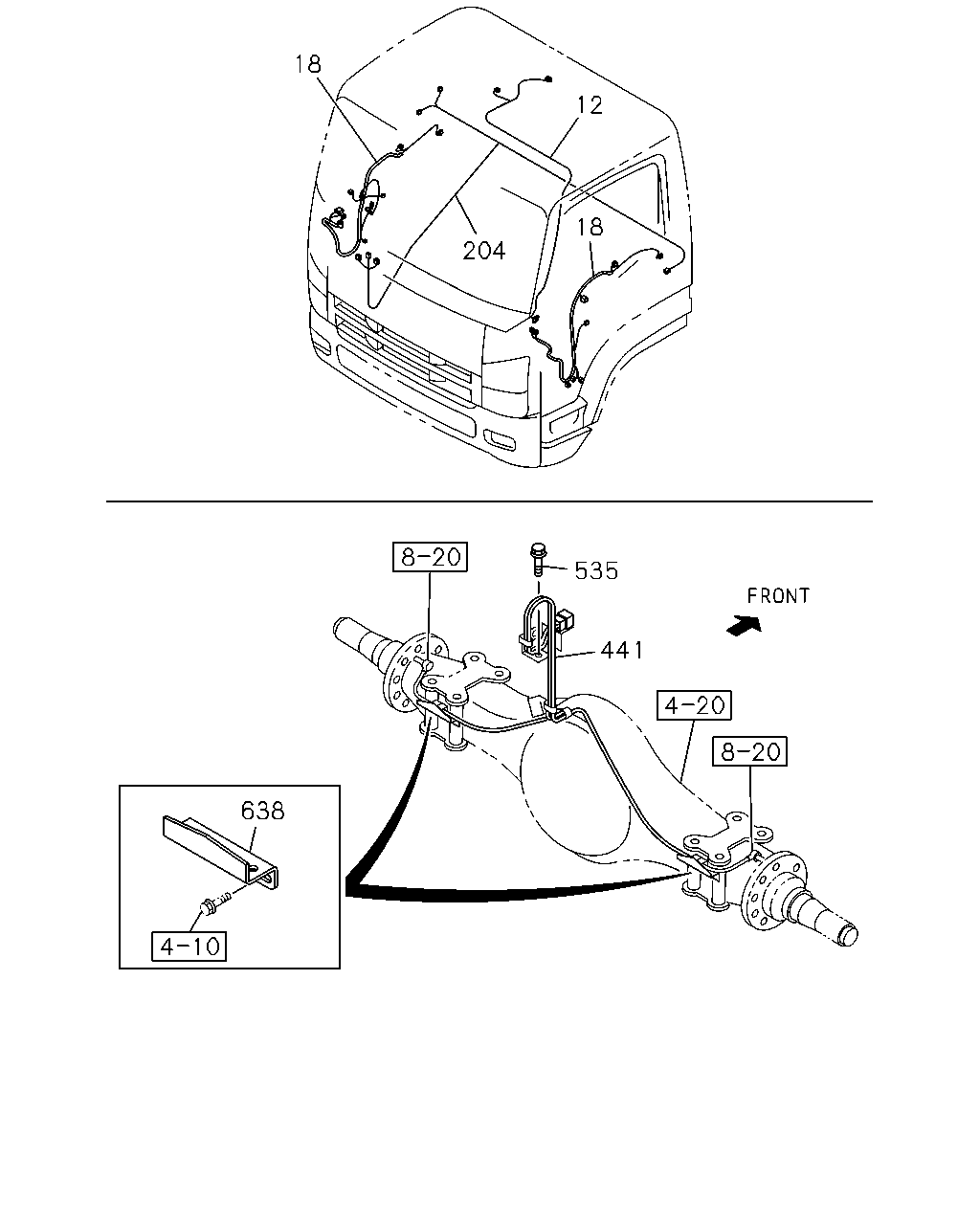

204
18
12
18
535
441
638
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
FLUORESCENT LAMP<6UC>
8-98079-073-2
01
1
1212-
12
HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98084-249-1
01
1
1212-
18
HARNESS; DOOR
8-98178-803-0
01
1
1212-
18
HARNESS; DOOR
8-98178-804-0
01
1
1212-
204
HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98084-217-1
01
1
1212-
204
HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98085-260-0
01
1
1212-
441
HARNESS; CABLE,SPEED SENSOR
8-98061-652-0
01
1
1212-
535
BOLT; BRKT FIX
M8X10 W/LK WASHER
8-98029-928-0
02
1
1212-
638
BRACKET; SPD SENSOR
8-98012-580-1
02
1
1212-

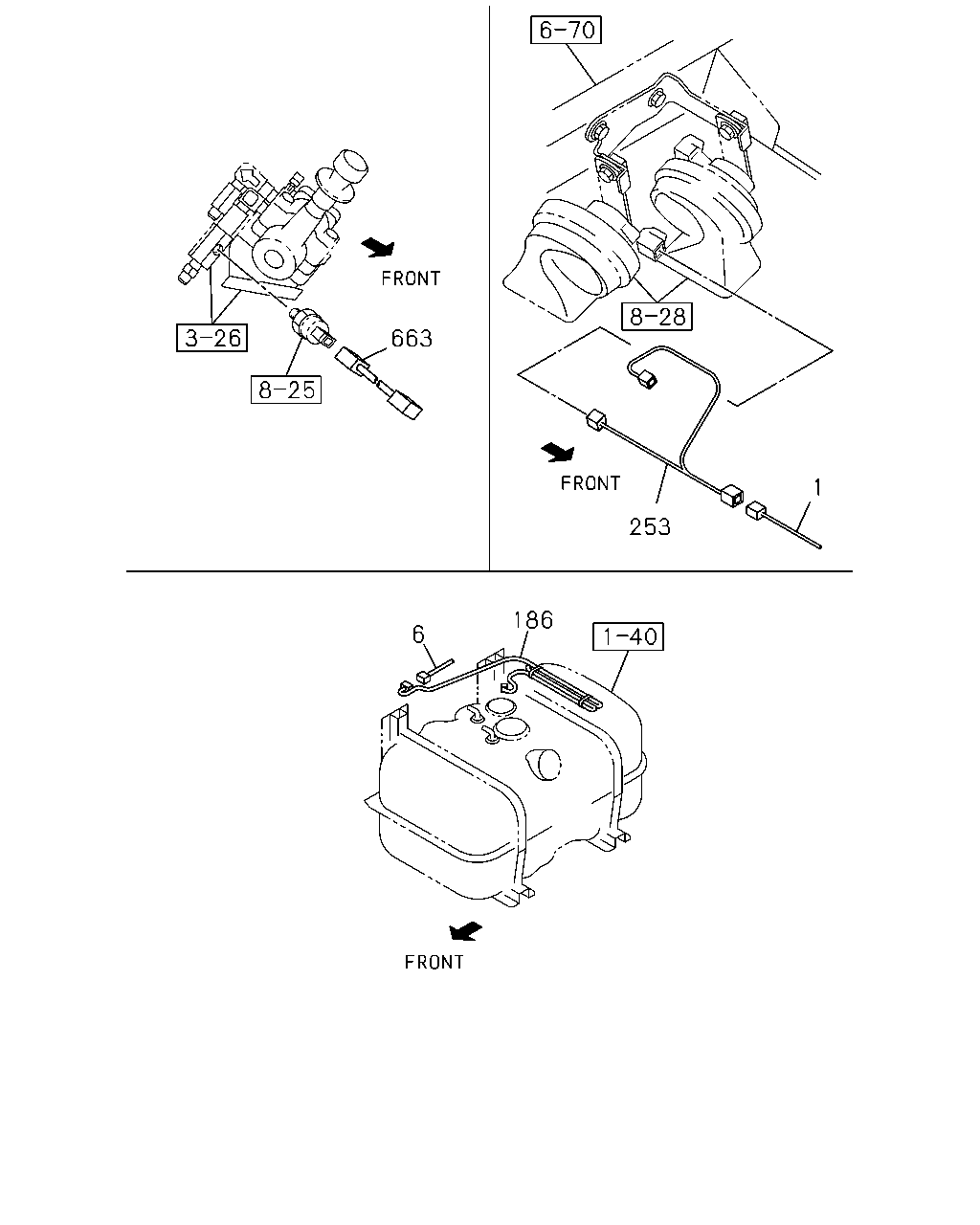

1
253
186
6
663
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98212-811-1
01
1
1212-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98212-810-1
01
1
1212-
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
186
HARNESS; FUEL TANK
WHEEL BASE 3700MM(37W)
8-97619-079-0
01
1
1212-
253
HARNESS; EXT,HORN
8-98074-080-3
01
1
1212-
663
HARNESS; EXTENSION,RR WHEEL PARKING
8-98126-779-2
01
1
1212-

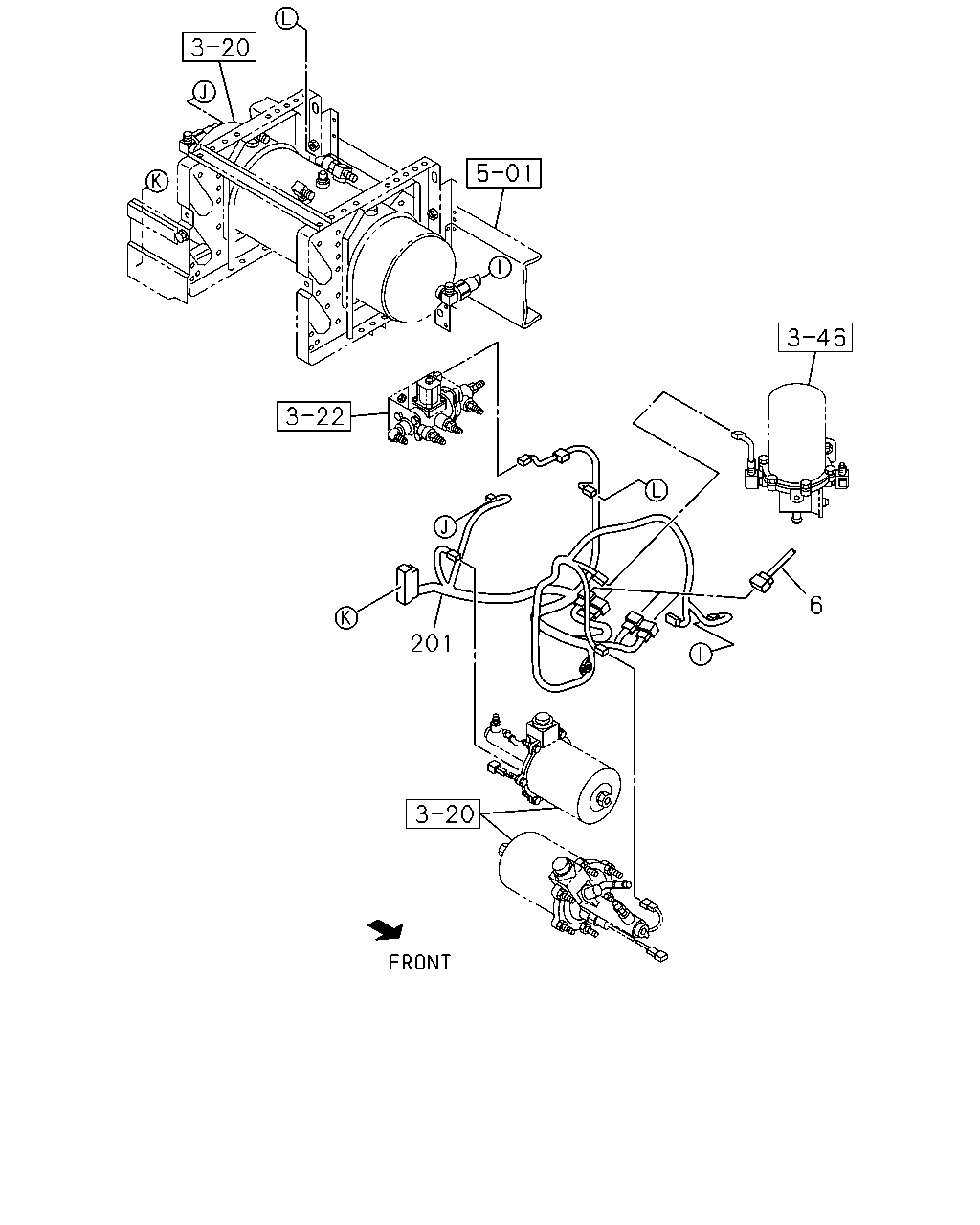

6
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-229-8
01
1
1212-
6
HARNESS; FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98079-230-7
01
1
1212-
201
HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH)
8-98156-704-2
01
1
1212-
201
HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98156-705-2
01
1
1212-
